Title: Effects of EMI on Digital Systems


1

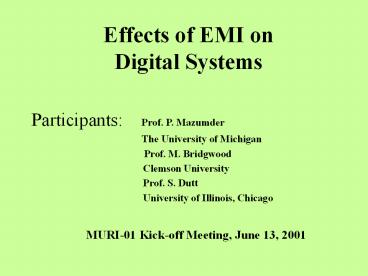

Effects of EMI on Digital Systems
  • Participants Prof. P. Mazumder
  • The University of Michigan
  • Prof. M. Bridgwood
  • Clemson
    University
  • Prof. S.
    Dutt
  • University
    of Illinois, Chicago

MURI-01 Kick-off Meeting, June 13, 2001
2
Task 3
Effects of EMI on Digital Systems
  • ESD Protection How good
  • is it for suppressing EMI
  • (Task 3.1 Bridgwood)
  • How simultaneous switching
  • of million devices causes EMI
  • and reduces chip operating
  • margin and reliability
  • How external EM pulses can
  • further aggravate chip
  • margins and reliability
  • (Task 3.2 Mazumder)
  • Characterization of functional
  • and behavioral failures
  • attributed to EMI
  • (Task 3.3 Dutt)

3
Conducted WB and NB Interaction with Digital
Devices
Task 3.1
  • Impedances of Interfaces through Switching
  • - Inputs, Outputs, Control Lines, Power
    supplies
  • Vulnerability Thresholds
  • - Disruption and Damage
  • - Single Nodes
  • - Multiple Nodes and Devices
  • Waveforms
  • - Pulses
  • - Damped Rings

Clemson University
Clemson University
4
DRAM Input Circuit Structure
Task 3.1
Clemson University
Clemson University
5
Task 3.1
Interaction With Devices Injection System

Clemson University
Clemson University
6
Modeling of Simple Capacitive StructureThrough
Breakdown Events
Task 3.1
Clemson University
7
SIA Roadmap - IC Technology
Task 3.2
  • Vdd scaling substantially reduces opearting and
    noise margins
  • Freq 2-20 GHz, Dissipation 100-200 W, EM
    emissions, P/G noises
  • On-chip wiring 3-25 km sources of parasitics,
    noises, delays
  • No. Trans 200 M to 1.7 B 85-95 of this area
    will be occupied by
  • Random-Access Memories, CAMs and ROMs.

University of Michigan
8
Task 3.2
EMI Impacts on Digital Circuits
  • Task 3.2.1 EMI generation due to Tr. Switching
  • Task 3.2.2 Effects of EMI on chip operations
  • Task 3.2.3 EMI Simulator Design

University of Michigan
9
Noise Distribution Paths
Task 3.2
  • Direct radiation from chip surface
  • Caused by high-frequency current within the chip
  • Level of radiation is small in comparison to the
    following ones
  • Conducting noise from the signal ports
  • Off-chip wires act as antennae
  • Effect of this noise source is significant but
    its an easy problem
  • Power-line conducting noise
  • High-frequency large power/ground current
  • Most significant source of EMI problem and is
    difficult to solve

University of Michigan
10
Power-Line Conducting Noise
Task 3.2
  • Modeling core power network
  • Power-line capacitance modeling
  • Switching current model

University of Michigan
11
Power Network Modeling
Task 3.2
University of Michigan
12
Switching Current Simulation
Task 3.2
  • Time-varying switching current consumed in
    circuit blocks is first simulated assuming ideal
    power supply voltage using SPICE
  • Circuit simulation is performed for the power
    network with the switching current information
    added
  • By iterating this annotation process, one can
    achieve better simulation accuracy

University of Michigan
13
Power-Line Conducting Noise
Task 3.2
UofM NDR-Group is the developer of Quantum SPICE
simulator and we have extensive knowledge in
SPICE.
Use UofM RAM compiler to generate Memory Array
and estimate Switching Noise and Noise Spectrum.
Study Failure Modes for Read and Write
operations, with and without external EMI noises.
University of Michigan
14
BisramGen, a Self-testable and Self- repairable
RAM Compiler Designed at Univ. of Michigan
15
Clock Network
Task 3.2
  • Transmission line modeling of clock wires
  • Differential Quadrature Method (DQM)
  • Model Reduction by Krylov Subspace Method
  • Study of clock jitters and synchronization
  • failures due to ringing and deformities
  • FD-TLM based VEDICS Tool (designed at Univ. of
    Michigan)
  • More accurate than lumped model yet more
    efficient than other field solvers

University of Michigan
16
EMI Simulator
Task 3.2
  • EMI simulation requires SPICE-like simulators
  • Give accurate results
  • Orders of magnitude faster than full-wave
    simulator
  • We will
  • incorporate new transmission line modeling
    methods
  • incorporate new device model including parasitic
    devices
  • combine FD-TLM based simulator with SPICE

University of Michigan
17
System Level Studies for Estimating EMI Effects
Task 3.2
  • Subcircuit level
  • Simple gates (Inverter, NAND, NOR, XOR, MUX,
    etc.)
  • Logic families (Static CMOS, Domino, DCVS, etc.)
  • Subsystem level (chips are already designed at
    UM)
  • 16-bit ALU
  • 16x16 multiplier
  • 4Kx32x32 (4 Mb) RAM SRAM memory
  • System level
  • Power/ground network
  • Clock distribution network
  • 32-bit RISC microprocessor (such as DEC Alpha,
    Pentium)

University of Michigan
18
Funded and Past Work
Task 3.3
  • Recently-funded work on FT (S. Dutt) Verma, MS
    Thesis, UIC,01, Verma Dutt, ICCAD01 subm.
    Dutt, et al., ICCAD99, Mahapatra Dutt,
    FTCS99-- Funded in part by DARPA-ACS, Xilinx
    Inc.
  • On-line test and fault reconfiguration of
    field-programmable gate arrays using a roving
    tester
  • Key is effective incremental re-placement and
    re-routing to dynamically move the roving tester
  • EM-induced faults
  • High level computer failure detection due to
    different types of EM signals Mojert et al.,
    EMC01 no cause-effect or classification
    analysis.
  • Failure in real-time communication control
    systems from communication line errors due to EM
    signals Kohlberg Carter, EMC01

University of Illinois
19
Assumptions/Scenarios of Past Work
Task 3.3
  • Past Work on general fault detection
  • Faults directly affect transistors on-chip
    interconnects
  • Random single (sometimes double) faults
  • Deterministic faults
  • Types of faults permanent, transient,
    intermittent intermittent not generally tackled
  • Past Work on EM-induced faults
  • No how/why/what analysis and classification of
    computer failure due to EM interference

University of Illinois
20
Different Scenarios in Proposed Work
Task 3.3
  • Faults directly affects off-chip signal lines
    (memory address, data and control lines) and
    power/ground (p/g) lines
  • p/g line faults gt multiple faults (clustered if
    p/g lines are partitioned, else random)
  • Signal line faults gt incorrect instr./data gt
    multiple clustered faults along control/data path
  • Window of susceptibility if p/g lines shielded --
    probabilistic model (e.g., susceptible on cache
    misses)
  • May need to tackle intermittent faults due to
    periodic EM pulses
  • Detailed error analysis and classification due to
    EM-induced faults

University of Illinois
21
Proposed Work
Task 3.3
  • Comprehensive VHDL processor and memory model
  • Will include variable-width variable-period fault
    injection capability for off-chip signal lines
    (to simulate different pulse widths and periods).
  • Similar fault-injection capability for on-chip
    wires with a probabilistic component

University of Illinois
22
Proposed Work (contd.)
Task 3.3
  • Will determine and classify the following type of
    computer system behavioral error (i.e., program
    errors) due to different patterns, extent,
    duration and location of faults
  • Control flow errors -- incorrect sequence of
    instruction execution. Causes address gen.
    error, memory faults, bus faults
  • Data errors. Causes computation errors, memory
    bus faults
  • Hung processor crashes. Causes C.U. transition
    to dead-end states, invalid instruction,
    out-of-bound address, divide-by-zero, spurious
    interrupts (?)
  • To the best of our knowledge, more comprehensive
    analysis of fault effects on a computer system
    than that attempted previously
  • Comprehensive analysis is needed due to the
    nature of EM effects--all pervasive, periodic,
    clustered

University of Illinois
23
Proposed Work--Methodologies Control Flow
Checking Mahmood McCluskey, TC88
  • A node is a block of instructions with a branch
    at the end
  • A derived signature of a node is a function
    (e.g., xor, LFSR) of all its instructions
  • A program graph is one in which there is an arc
    from node u to v if the branch at u can lead to
    node v

24
Proposed Work--Methodologies Algorithm-Based
Fault ToleranceHuang Abraham, TC84, Dutt
Assad, TC96
  • Use properties of the computation to check
    correctness of computed data
  • E.g., linearity property f(v1v2) f(v1)
    f(v2), of computation f( ) can be used to check
    it
  • Pre-compute v v1 v2 vk (input
    checksum)
  • Compute f(v1), ., f(vk)
  • Compute u f(v) f(v2) . f(vk) (output
    checksum)
  • Check if f(v) u inequality indicates
    computation error(s)
  • Can be used for linear computations such as
    matrix multiplication, matrix addition, Gaussian
    elimination Huang Abraham, TC84, Dutt
    Assad, TC96

University of Illinois
25
Goals, Questions Future Outlook
Task 3.3
  • Correlate the probability/frequency of different
    types of computer system errors to pattern,
    extent, duration, location of EM-induced faults
  • Correlate types of logic faults w/ similar
    descriptors to functional errors (output error of
    ALU, Control Unit) -- classification of
    catastrophic vs. non-catastrophic logic faults
  • Q Are there patterns of errors that lead to
    computer crashes w/ high probability?
  • Q If so, can the detection of such patterns be
    used to shut down the computer in a fail-safe
    manner (save state data for later resumption)?

University of Illinois
26
Goals, Questions Future Outlook (contd.)
Task 3.3
  • Q Are there patterns of errors that are
    characteristic of EM-induced faults versus random
    single/double faults?
  • Q If so, can these be used as early detection
    warning of EM interference?
  • Future Based on the correlation of system errors
    to EM faults, determine fault tolerance/error
    minimization techniques for EM-induced faults

University of Illinois
