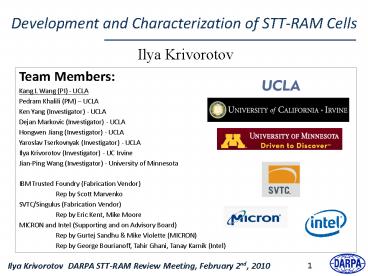

Development and Characterization of STT-RAM Cells

1
Development and Characterization of STT-RAM Cells

• Ilya Krivorotov

Team Members Kang L Wang (PI) - UCLA Pedram
Khalili (PM) UCLA Ken Yang (Investigator) -
UCLA Dejan Markovic (Investigator) - UCLA Hongwen
Jiang (Investigator) - UCLA Yaroslav Tserkovnyak
(Investigator) - UCLA Ilya Krivorotov
(Investigator) - UC Irvine Jian-Ping Wang
(Investigator) - University of Minnesota IBM
Trusted Foundry (Fabrication Vendor) Rep by
Scott Marvenko SVTC/Singulus (Fabrication
Vendor) Rep by Eric Kent, Mike Moore MICRON and
Intel (Supporting and on Advisory Board) Rep by
Gurtej Sandhu Mike Violette (MICRON) Rep by
George Bourianoff, Tahir Ghani, Tanay Karnik
(Intel)

2
Outline

• STT-RAM optimization to approaching Phase 1
  metrics
• Free layer dimensions (area, aspect ratio,
  thickness)
• Optimal MgO thickness
• Optimal write voltage pulse amplitude and
  duration
• Energy-efficient switching with non-collinear
  polarizer
• Measurement techniques
• Thermal stability
• Switching with short voltage pulses
• Recent results and metrics update
• Summary and Outlook

3
Where we were 3 month ago

• At the pervious review meeting we were reported
  initial results of non-optimized STT-RAM cells.
  They showed the following metrics parameters
• Write energy per bit 7.5 pJ
• Write time 2.5 ns
• Upper bound on thermal stability
• ? lt 90
• Lower bound on endurance of 105
• Since the review meeting in November 2009, we
  have substantially improved the metrics through
  STT-RAM device optimization

Data reported in November 2009
Voltage at the sample, Vs
4
STT-RAM Optimization Free Layer Dimensions
- critical current for STT-RAM
Fundamental constants and material parameters

• For a given material, to reduce Ic one should
  decrease the free layer volume V without
  sacrificing thermal stability ?

- Thermal stability

• To decrease volume V while keeping ? constant,
  we must increase thickness and decrease width w

5
STT-RAM Optimization Barrier Thickness

• - Since energy per write is I2R tw, low RA MgO
  also decreases energy per write
• Low TMR is signature of pinholes an
  lower-voltage dielectric breakdown
• MgO thickness with lowest RA that still has high
  TMR is needed

RA VS MgO thickness
TMR ratio VS MgO thickness
We found that the optimal MgO thickness for
I-STT-RAM devices is right at the knee in RA and
TRM plots versus MgO thickness.
6
STT-RAM Optimization Write Pulse Shaping
For short switching times, switching time versus
pulse duration is well fit by the following
functional dependence
V0 is the (zero-temperature) critical voltage for
switching
This is a signature of quasi-ballistic switching
dominated by angular momentum transfer rather
than temperature
This ?(V) allows us to determine the optimal
write voltage V for minimizing the energy per
write
7
STT-RAM Optimization Write Pulse Shaping
Energy per write
Write time
- E(V) has a minimum at V2V0 - Minimum energy
per write is at twice the critical voltage - This
is consistent with our data
8
STT-RAM Optimization Write Pulse Shaping
Experimental data
Theory
0.46 pJ
Predicted write energy minimum is experimentally
observed
9
STT-RAM Optimization Non-collinear structures

• Micromagnetic simulations show that for collinear
  free and fixed layer geometries
• there is long incubation time between the
  leading edge of the write pulse and the
  nanomagnet switching
• energy is wasted on excitation of non-uniform
  modes

10
STT-RAM Optimization Non-collinear structures
The incubation time results from small initial
spin torque in the collinear geometry (spin
torque ) Polarizer that is non-collinear with the
free layer provides larger spin torque,
accelerates the switching process
Collinear free and fixed layers, simulations
Non-collinear free and fixed layers, simulations
11
Materials for non-collinear structures

• We developed materials with perpendicular
  anisotropy for
• STT-RAM structures with non-collinear
  magnetizations

perpendicular filed
12
STT-RAM Optimization Non-collinear structures

• - Our measurements of switching of devices with
  non-collinear magnetization revealed deep sub-ns
  switching.
• - This is a salient feature of precessional
  switching due to perpendicular polarizer
• Pulse shaping is expected to further improve the
  energy per write

Device shape and magnetic multilayer optimization
is also expected to significantly improve the
non-collinear device performance compared to this
initial demonstration. This device concept is
very promising for meeting Phase 2 metrics.
13
Measurement Techniques of Metrics

• Energy per write and write time
• Switching in response to ns and sub-ns pulses
• Thermal stability measurements
• Thermally activated switching
• Field-assisted switching
• Hard axis hysteresis loop measurement

14
Switching by Short Voltage Pulse
Pulse Generator (0.1 10 ns pulse width)
STT-RAM element
Multimeter (resistance measurement)
DMM

• Pulses of variable duration are sent to the
  sample
• Sample resistance before and after the switching
  is measured
• - Probability of switching is determined

15
Voltage of Short Pulse at the Sample

• Voltage at the sample is a sum of incident and
  reflected voltages
• Since the sample resistance is much higher than
  50 ?, the voltage at the sample is nearly doubled
  compared to the incident voltage
• We use a pulse generator that absorbs the
  reflected pulse without affecting the incident
  pulse

Vin
Vs
Vref
Rs
16
Thermal Stability Method 1 Thermally-Activated
Switching

• - Switching in response to long, relatively
  low-voltage pulses
• Switching time histograms are measured and
  switching voltage versus pulse duration is
  obtained
• Extrapolation of the plot of switching voltage
  versus pulse duration down to zero voltage,
  ?(V0) gives the bit lifetime and thermal
  stability ?

Fitting to exponential function gives the average
bit life time, ?, at a given voltage
17
Method 1 Thermally-Activated Switching

• Applying current-assisted switching, lower bound
  on thermal stability ? is determined.
• This is only a lower bound due to current noise,
  ohmic heating and possible current-induced magnon
  excitation

Single switching attempt sequence
Quasi-ballistic switching
Thermally Activated
?63 ts(0 Volt) 31 billion years
Train of 10,000 write/reset pulses
10,000,000 switching attempts
18
Method 2 coercivity vs field sweep rate

• Another approach to determining thermal
  stability is to measure the sweep rate dependence
  of the coercive field. The coercive field under
  the sweep time based on the Neel-Arrhenius model
  is

Coercivity vs sweep time.
Resistance vs magnetic field at different sweep
time.
19
Thermal Stability Method 3 Hard-axis Loop
Estimating the anisotropy field as
Hard Axis Hysteresis Loop
free
free

• - Anisotropy field estimated by this method is
  570 Oe
• Micromagnetic OOMMF simulations give the
  hard-axis saturation field 520 Oe.
• The origin of the hard-axis loop asymmetry is not
  clear
• - Using 520 Oe value, the thermal stability
  estimate gives an upper bound on thermal
  stability ?

20
Current status of STT Cells
As a result of a combination of aforementioned
STT-RAM optimization procedures, device
performance has been substantially improved since
the last review meeting.
Optimized device quasistatic characteristics
21
Switching of Improved STT-RAM Cells
In the optimized devices, at the optimal voltage
pulse amplitude, write energy of 0.46 pJ has been
achieved.
?gt55
0.46 pJ
22
Two Thermal Stability Measurements of I-STT
Thermally activated switching lower limit for ?
Hard axis saturation upper limit for ?
?55
HK ? 650 Oe as average of HL and HR -gt ? ? 90
Two measurements give the bounds on the thermal
stability 55lt?lt90
HK ? 550 Oe from micromagnetic simulations
23
Metrics Update for STT-RAM
  Status at previous meeting (Nov 2009) Status (Feb 1, 2010) BAA Targets
Write Energy E7.5 pJ/bit E0.46 pJ/bit E0.25 pJ/bit
Write Speed (tW) 2.5 ns/bit 1.3 ns/bit 5 ns/bit
Cell Size N.A. 0.23 um2 (27F2) 0.24 um2 (lt28F2)
Memory Bit Area (A) 0.01 um2 0.01 um2 0.02 um2
Thermal Stability (?) N.A. 55 lt ? lt 90 60
Endurance gt105 gt107 1x1016
Wafer Yield gt40 gt40 40
24
Summary

• We made a significant progress towards optimizing
  the performance of STT-RAM cell through device
  optimization
• Free layer dimensions (area, aspect ratio,
  thickness)
• Optimal MgO thickness
• Optimal write voltage pulse amplitude and
  duration
• Energy-efficient switching with non-collinear
  polarizer
• All Phase 1 metrics are clearly within reach with
  modest further optimization.
• We are also on the way towards meeting Phase 2
  metrics using non-collinear structures.
