CAMEO: Year 1 Progress and Year 2 Goals

1

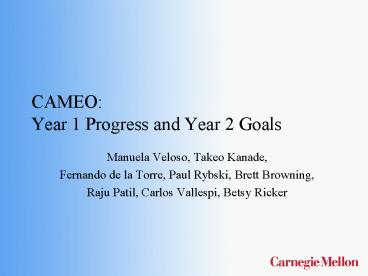

CAMEOYear 1 Progress and Year 2 Goals

• Manuela Veloso, Takeo Kanade,
• Fernando de la Torre, Paul Rybski, Brett
  Browning,
• Raju Patil, Carlos Vallespi, Betsy Ricker

2
CAMEO Internals
3
CAMEOs Connection to other CALO Agents
CAMEO is an example of a physical event capture
system. Systems such as these transmit state
information about people to the CALO timeline
server.
Individualized CALO agents can access this
information to obtain updates about their
individual users.
4
Inferring Meeting State with CAMEO Overview

1. CAMEO observes activities of people in meeting
2. Raw visual motion is segmented into discrete
   actions
3. High-level meeting state is inferred from the
   aggregate actions of the group

5
Training CAMEO to Recognize Human Actions
6
Action Recognition
Person action sequences are represented as a
simple finite state machine.
Person Action State Machine
State transitions are encoded in a dynamic
Bayesian network which infers the current person
state as a function of observed human activity
and previous state.
Dynamic Baysian Network
7
Classification of Person State in a Meeting
Example of person state classification Here,
the states of a person are correctly classified
from the Bayesian network. The parameters of the
activity data are learned from previously-recorded
meeting data.
Standing
Stand
Sitting
Sit
Time in seconds
8
Classification of the Meeting State
Global meeting state is defined by the aggregate
activities of every person attending the meeting.
9
Generating Meeting Summary

• Meeting event log becomes summary
• Low and high-level events can be organized into a
  hierarchy
• Meeting can be viewed at any requested level of
  detail from summary to captured video (and
  eventually audio)

• 2004-02-03 Project Status Report
• 130405 Meeting Start
• 131212 General Discussion
• 131945 Presentation
• 132423 General Discussion
• 132929 Meeting End

10
Generating Meeting Summary

• Meeting event log becomes summary
• Low and high-level events can be organized into a
  hierarchy
• Meeting can be viewed at any requested level of
  detail from summary to captured video (and
  eventually audio)

• 2004-02-03 Project Status Report
• 130405 Meeting Start
• 131212 General Discussion
• 131945 Presentation
• 131945 Jim stands
• 131950 Jim walks to podium
• 132000 Jim speaks
• 132204 Unknown speaks
• 132245 Jim speaks
• 133023 Wendy stands
• 133037 Wendy walks to podium
• 133042 Wendy speaks
• 133304 Wendy sits down
• 133304 Jim speks
• 133850 Jim sits down
• 134023 General Discussion
• 135029 Meeting End

11
Protecting Individuals Privacy Issues

• Recognition is voluntary. CAMEO only recognizes
  people it has registered.
• We can digitally represent video logs so faces
  are distorted or represented only as shapes

Raw video with tracking information
Stored video log after privacy filtering
12
Some ways CALO Agents could use CAMEO Data

• What meetings happened when?
• Who was at the meeting?
• Who was sitting, standing, or speaking?
• Where were people looking?
• Who was talking?
• What were people doing?
• Who was pointing at what?
• What happened during the formal presentation?

• What happened during the general discussion?
• What is a general/detailed summary of the
  meeting?
• What did person 'x' contribute to the meeting?
• How to replay a meeting from a specific point in
  time?
• How to replay specific parts of the meeting?

13
Some ways CALO Agents could use CAMEO Data

• What meetings happened when?
• When a meeting starts, CAMEO can post an event to
  the timeline server indicating the start time of
  the meeting. By querying the timeline server for
  events of the appropriate tag, CALO agents could
  determine the starts of the various meetings and
  obtain other information about them such as what
  it was about.

14
Some ways CALO Agents could use CAMEO Data

• Who was at the meeting?
• Face recognition is required. This can be done
  by applying various kinds of image matching
  algorithms (SVD, template matching, etc...) to
  see how close a given face is to a database of
  saved faces. A database of saved faces must be
  available to work from.

15
Some ways CALO Agents could use CAMEO Data

• Who is sitting, standing, or speaking?
• By tracking the positions of people as they move
  around, we should be able to tell who is sitting
  and who is standing. Depending on how animated
  the faces are in that state, we should also be
  able to tell who is speaking by how much they're
  bobbing around.

16
Some ways CALO Agents could use CAMEO Data

• Where are people are looking?
• In order to determine where people are looking, a
  profile face detector is needed. In this case,
  we should be able to tell which direction they're
  looking and correlate this with the other faces
  in the image to figure out where in the image
  people are likely to be looking

17
Some ways CALO Agents could use CAMEO Data

• Who was talking?
• Besides tracking the face movements, audio data
  can be recorded by possibly instrument CAMEO or
  the meeting attendees with microphones (i.e. Alex
  Rudnicky). With multiple microphones in the
  room, sound localization techniques would be
  required.

18
Some ways CALO Agents could use CAMEO Data

• What were people doing?
• Besides the relative positions of peoples bodies
  in the room, more detailed information could be
  obtained with a full-body tracker. Including
  information about the room itself, such as what
  else is in the room (tables, whiteboards, or
  chairs) would let CAMEO report more detailed
  information.

19
Some ways CALO Agents could use CAMEO Data

• Who was pointing at what?
• We need to have even more detailed full-body
  tracking. By tracking arms and arm positions
  with a stereo camera (ie, Trevor Darrell), we
  should be able to figure out where the person is
  pointing. By putting a stereo head on a panning
  mount, a lot of information about the environment
  could be obtained very easily. Even by extending
  the 2D tracker so that it identifies arms as
  being attached to bodies, we might be able to get
  this information. However, this is only as good
  as long as the person is pointing in a direction
  perpendicular to CAMEO. Having two CAMEOs would
  be a good way to solve this problem.

20
Some ways CALO Agents could use CAMEO Data

• What happened during the formal presentation?
• Information has to be collated and merged in such
  a way as the speaker is identified, and
  information regarding the speech and powerpoint
  presentation is processed (CALO-MMD group).

21
Some ways CALO Agents could use CAMEO Data

• What happened during the general discussion?
• Information has to be collated and merged in such
  a way as the speakers are identified, and
  information regarding the speech is processed
  (CALO-MMD group).

22
Some ways CALO Agents could use CAMEO Data

• What is a general/detailed summary of the
  meeting?
• Given a state machine which can be used to
  describe the most common things in a meeting, we
  could cluster the individual events into larger
  states which indicate the various sections of the
  meeting based on a generic agenda (intro, formal
  presentation, questions, open discussion,
  wrap-up), or even a specific agenda that is
  provided to CAMEO ahead of time? People print
  out agendas and often bring them to formal
  meetings so that everyone can follow allong.

23
Some ways CALO Agents could use CAMEO Data

• What did person 'x' contribute to the meeting?
• Tracking an individual person's speech and
  gestures allows the events posted to the timeline
  server to be gathered/clustered into a
  personalized kind of state machine that can be
  viewed at a very minute level of detail
  (individual gestures and actions) or a high level
  description such as "person x didn't talk very
  much", etc...

24
Some ways CALO Agents could use CAMEO Data

• How to replay a meeting from a specific point in
  time?
• The raw movie files are available. Once the
  individual person events are classified, the
  timestamps can be extracted from the timeline
  server and the video can be replayed from that
  location.

25
Some ways CALO Agents could use CAMEO Data

• How to replay specific parts of the meeting,
  i.e., introductions, discussion after the
  presentation, wrap up?
• We need to create a probabilistic meeting
  ontology that we can use to parse and tag the
  meeting identifying parts of the meeting with
  different probabilities. We can learn the model
  of different types of meetings in terms of
  learning the probabilistic parameters of an
  ontology or the Bayesian dependencies from types,
  people, and meeting purpose, to the format of the
  meeting.
