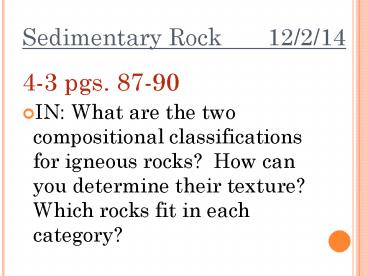

Sedimentary Rock 12/2/14

1
Sedimentary Rock 12/2/14

• 4-3 pgs. 87-90
• IN What are the two compositional
  classifications for igneous rocks? How can you
  determine their texture? Which rocks fit in each
  category?

2
sedimentary rock
compaction, cementation
sediment
high temperature great pressure
weathering and erosion
igneous rock
metamorphic rock
cooling, crystallization
melting
magma
3
How does sedimentary rock form?

1. Weathering and erosion of rock into sediment
   (sand).
2. Compaction and cementation back into rock.

4
Weathering and Erosion

• Wind, water, ice, sunlight, and gravity all cause
  rock to weather into fragments (weathering).
• These small fragments are called sediment.

5
Sediments

• Sediments are transported from one place to
  another (erosion)
• Water
• Wind
• Gravity

6
Compaction

• The layers eventually become compacted.

7
Cementation

• Dissolved minerals separate out of the water to
  form a natural glue that binds the sediments
  together.

8
Strata

• The layers of sedimentary rock that form from the
  deposition of sediment.
• These strata form oldest on bottom, youngest on
  top.

9
Sedimentary rock

• Form at or near the Earths surface.
• Their physical features tell part of Earths
  history.
• They are the only
• rocks that contain
• fossils.

10
Composition

1. Clastic
2. Chemical
3. Organic

11
Clastic sedimentary rock

• Forms when rock or minerals fragments, called
  clasts, stick together.
• Sandstone
• Conglomerate
• Shale
• Names of clastic sedimentary rock are based on
  grain size.

12
Chemical sedimentary rock

• Forms when minerals crystallize out of a
  solution, such as sea water, to become rock.
• limestone

13
Organic sedimentary rock

• Forms from the remains of organisms.
• fossiliferous limestone

14
Sedimentary rock structures

• Stratification is the layering of rock.
• Strata differ from one another depending on the
  kind, size, and color of their sediment.

15
Strata

• Sometimes records the motion of wind and water
  waves.

16
(No Transcript)
17
Conglomerate

• Sedimentary rock that resembles concrete.
• Clastic
• Coarse-grained

18
Sandstone

• Sedimentary rock formed from sand.
• Clastic
• Coarse-grained

19
Shale

• Sedimentary rock also known as mudstone.
• Clastic
• Fine-grained

20
Fossiliferous Limestone

• Sedimentary rock made from shells and coral.
• Organic

21

• OUT What are some features of sedimentary rocks?
