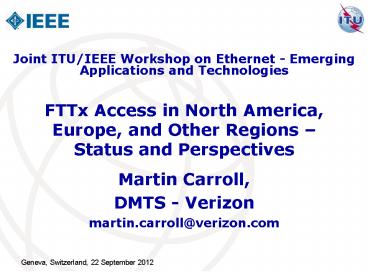

FTTx Access in North America, Europe, and Other Regions

1
FTTx Access in North America,Europe, and Other
Regions Status and Perspectives
Joint ITU/IEEE Workshop on Ethernet - Emerging
Applications and Technologies

• Martin Carroll,
• DMTS - Verizon
• martin.carroll_at_verizon.com

2
Outline

• FTTx in North America
• Verizon
• Other deployments
• FTTx in Europe
• FT
• Vodafone
• FTTx in Middle East, other regions
• Etisalat

3

• FTTx in North America

4
FTTH Accelerating in North America
5
Percent FTTHConnections by Country

• 930 North American, 880 U.S. providers
• 97 U.S. providers have lt 10K FTTH connections

6
Verizon Global Leader

• Headquartered in NYC
• Largest U.S. wireless company, with 107.8M total
  connections
• Largest 3G 4G LTE networks in the U.S.
• Global IP network reaches customers in gt 150
  countries
• Over 485,000 route miles
• First to deploy commercial 100Gb/s
  ultra-long-haul optical system
• Average 1 billion calls daily
• Leading FTTP deployment in North America

Advanced foundational platforms
7
FiOS Deployment

• FiOS Service is available in 12 States
  Washington, DC
• FiOS Internet
• Launched 2004
• Up to 300Mb/s down 65Mbps up
• 1Gb/s trials successful
• FiOS Video/TV
• Launched 2005
• 130 HD 530 SD channels
• Initial deployment BPON
• GPON introduced 2007
• XG-PON trials successful
• Over 17M premises passed

Stats as of 1H2012 Customers Net adds in 2Q2012 Penetration (Sales/Premises marketed)
FiOS Internet 5.1M 134,000 36.6
FiOS TV 4.5M 120,000 32.9
8
FiOS Architecture
Up to 1x32 splitter
Data path used for VoD and IPTV
WDM replaced with 2x2 splitter for 164 split
MoCA for in-home distribution
Video overlay
9
SuccessfulXG-PON1 Trials
Broad-cast Video
Home Network
Central Office
Router
EDFA
STB
Class 5 Switch
GPON ONT
Cat 5
PSTN
GPON OLT
Coax
1x2 Splitter
Test Cart
Gateway Router
XG-PON1 ONT
STB Converter
Internet / VOD
XGPON1 OLT
STB
Router
WDM1r
IP Test Set
Splitter
Test PC
Test PC
FDH
FDF
IP Test Set

• Huawei XG-PON1 overlaid on Motorola GPON
• WDM1r integrates GPON XG-PON wavelengths
• Successfully demonstrated
• 10G down x 2.5G up capable 1 Gig home network
• Coexistence of XG-PON GPON

10
XG-PON2 Proven

• XG-PON2 Symmetric 10Gb/s Downstream and Upstream
• Used existing ODN in Taunton, Massachusetts
• Alcatel-Lucent equipment
• Viability demonstrated
• 10Gb/s upstream channel viable, could be basis
  for NG-PON2
• Support greater upstream bandwidth for adoption
  on a mass scale of new and emerging business and
  residential applications

11
Residential Drivers
Bandwidth Growth

• Need for SPEED
• Consumer speeds increasing at 6-10x every 6 years
• Throughputs in excess of 1Gbps are expected by
  2015
• Competitive advantage
• New services/technologies
• Gain operational savings via copper replacement
• Central office consolidation

Source Cisco
Larger screens require higher resolution
UGC Sharing
Downloading HD 3D video content
Multi-location 3D HD video conferencing
12
Central Office Consolidation Opportunity
PON Reach at 20km allows Number of COs to reduce
to 58
273 COs
30-40km PON distance appears ideal balance
between cost and technology
PON Reach is 30km allows Number of COs to reduce
to 29
13
Business Drivers

• Ethernet Services
• SES (Switched Ethernet Service)
• Point to Point or Multipoint Ethernet service
• 10M, 100M, and GigE UNI options
• EPL (Ethernet Private Line)
• Wireless Backhaul
• Microcell site support
• Distributed eNodeB
• CPRI backhaul
• Macrocell
• Ethernet backhaul

• Optical Services
• OWS (Optical Wavelength Services)
• Dedicated wavelength 10G or 40G
• Point to point service
• Various client side handoffs, e.g., Ethernet,
  SONET, FC etc.
• OTN (OTU1 OTU3)
• SONET (OC3-OC192)
• EDSR (Enhanced Dedicated SONET Ring)
• Dedicated fiber in the access loop

Services currently supported over GPON will be
expanded and enhanced with Verizons 3rd
Generation PON driving economies of scale
14
Access PON Evolution
Vzs 3rd Generation PON

• Common platform to support residential and
  business services
• Deployable within existing infrastructure
• Splitter based FTTP architecture
• Connectorized system
• RF overlay
• Coexist with GPON
• Protection and resiliency options
• Demonstrated multi-vendor plug-an-play
  interoperability between OLT and ONUs
• Fully deployable by 2015

GPON
G-PON
G-PON Current Deployment Rates up to 400
Mbps Limited Business Circuits OTT Video Improved
Economies of Scale 164 Splits
B-PON Initial Deployment Rates to 30
Mpbs Consumer/Small Business Market 132 Splits
15
3rd Gen Candidates
XG-PON1 NG-PON2
System Rate 10/2.5 Gb/s 40/10 Gb/s
Subscriber Rates (up to) 2.5 Gb/s Symmetrical 10 Gb/s Symmetrical
Standards ITU-T G.987 series Developing ITU-T G.989 series
Coexistence with G-PON Demonstrated on Verizon infrastructure To Be Standardized
Interoperability Current activity in FSAN BBF VIF, ITU, FSAN, BBF
Migration Demonstrated on Verizon infrastructure Required
Availability 2011 Target 2015
ONTs Being Deployed
NG-PON2
XG-PON1
G-PON
B-PON
2020
2004
2011
2007
2015
NG-PON2 is best-fit for Verizon Focus
Standards and Interoperability development to
meet the timeline
16
Other FTTxDeployments

• ATT, CenturyLink have significant FTTC/FTTP
  deployments
• Chattanooga public utility (EPB) offered gigabit
  FTTH for 3 years
• Google Fiber to launch 1Gb/s in Kansas City
  fiberhoods in October
• GigU to deliver 1Gb/s drops in areas around
  universities

Google Fiberhood
17

• FTTx in Europe

18
FTTx in 2012 for France
19
Conquest 2015
20
(No Transcript)
21
Portugal

• As of September 2012, Vodafone has over 35,000
  customers on FTTH access.
• Alface project has been running commercially
  since September 2010, Libra project has been
  running commercially since March 2011
• Since September 2012, we have 476,000 homes
  passed.
• FTTH GPON is the technology used, with
  analogue/digital video overlay.

22
Capacity

• FTTH deployments offer much higher bit rates to
  customer. Vodafone Portugal base offer is 50/5
  Mb/s, with Internet Profiles up to 400/40 Mb/s to
  Residential subscribers.
• About 80 of our installed base subscribe to IPTV
  services. On-demand TV service (RestartTV) has
  increased the overall backhaul traffic and
  traffic per user.
• Some copper deployment is not suitable to deploy
  these bit-rate demanding services as VDSL2 is not
  viable

23
Interoperability

• OLT vendors already offer integrated gateways,
  but with few functionalities - today these
  gateways cant replace the already deployed CPE
  L2 ONT, they are expensive and they cant work in
  a multi-vendor environment.
• Vodafones goal is to have an integrated Home
  Gateway (similar to DSL) that can interoperate in
  a multi-vendor environment. This will reduce
  acquisition and retention costs, the amount of
  equipment installed in customer premises and
  simplify logistics.

24
Other EuropeanProjects

• Vodafone Germany has two FTTC trials under way in
  the cities of Wuerzburg and Heilbronn.
• Vodafone Italy is starting a project to deliver
  FTTH services with GPON technologies in Milan by
  using the Metroweb fiber network

25

• FTTx in the Middle East, Other Regions

26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
African Projects

• Vodafone Ghana is deploying FTTC for increasing
  data rate to customers by using GPON as
  technology for backhauling street cabinet DSLAMs
• Vodacom South Africa is staring a project for
  delivering FTTH services to business and high
  spending residential customers using GPON
  technology

36
Australia andNew Zealand

• In Australia, NBN Co will deploy 181,000 km of
  GPON network, and 57,000 km of transit backhaul.
  Aerial drop fibre to be used for 25 of
  households
• Provides a bitstream service with equal service
  terms to all ISPs, including Telstra, which will
  lose control of the copper. High interest in an
  open PON solution to overlap to their initial
  GPON in order to give ISP freedom to install
  their own OLT at the Central Office
• In New Zealand, the government is deploying a
  NZ1.5 billion UFB (Ultra Fast Broadband
  Initiative) access fibre network through Crown
  Fibre Holdings (CFH). FTTH to be available to 75
  (800,000 homes and businesses ) of the New
  Zealand market by 2019
• Vodafone New Zealand will buy Layer 2 products
  from the LFCs to deliver FTTH in the retail
  market. GPON for residential and point to point
  for large businesses. 100Mbps down and 50Mbps up.

37
