Cluster Validation

1

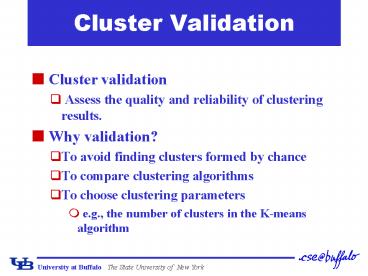

Cluster Validation

• Cluster validation
• Assess the quality and reliability of clustering
  results.
• Why validation?
• To avoid finding clusters formed by chance
• To compare clustering algorithms
• To choose clustering parameters
• e.g., the number of clusters in the K-means
  algorithm

2
Clusters found in Random Data
Random Points
3
Aspects of Cluster Validation

• Comparing the clustering results to ground truth
  (externally known results).
• External Index
• Evaluating the quality of clusters without
  reference to external information.
• Use only the data
• Internal Index
• Determining the reliability of clusters.
• To what confidence level, the clusters are not
  formed by chance
• Statistical framework

4
Comparing to Ground Truth

• Notation
• N number of objects in the data set
• PP1,,Pm the set of ground truth clusters
• CC1,,Cn the set of clusters reported by a
  clustering algorithm.
• The incidence matrix
• N ? N (both rows and columns correspond to
  objects).
• Pij 1 if Oi and Oj belong to the same ground
  truth cluster in P Pij0 otherwise.
• Cij 1 if Oi and Oj belong to the same cluster
  in C Cij0 otherwise.

5
External Index

• A pair of data object (Oi,Oj) falls into one of
  the following categories
• SS Cij1 and Pij1 (agree)
• DD Cij0 and Pij0 (agree)
• SD Cij1 and Pij0 (disagree)
• DS Cij0 and Pij1 (disagree)
• Rand index
• may be dominated by DD
• Jaccard Coefficient

6
Internal Index

• Ground truth may be unavailable
• Use only the data to measure cluster quality
• Measure the homogeneity and separation of
  clusters.
• SSE Sum of squared errors.
• Calculate the correlation between clustering
  results and distance matrix.

7
Sum of Squared Error

• Homogeneity is measured by the within cluster sum
  of squares
• Exactly the objective function of K-means.
• Separation is measured by the between cluster sum
  of squares
• Where Ci is the size of cluster i,
  m is the centroid of the whole data set.
• BSS WSS constant
• A larger number of clusters tend to result in
  smaller WSS.

8
Sum of Squared Error
K1
K2
K4
9
Sum of Squared Error

• Can also be used to estimate the number of
  clusters.

10
Internal Measures SSE

• SSE curve for a more complicated data set

SSE of clusters found using K-means
11
Correlation with Distance Matrix

• Distance Matrix
• Dij is the similarity between object Oi and Oj.
• Incidence Matrix
• Cij1 if Oi and Oj belong to the same cluster,
  Cij0 otherwise
• Compute the correlation between the two matrices
• Only n(n-1)/2 entries needs to be calculated.
• High correlation indicates good clustering.

12
Correlation with Distance Matrix

• Given Distance Matrix D d11,d12, , dnn and
  Incidence Matrix C c11, c12,, cnn .


• Correlation r between D and C is given by

13
Measuring Cluster Validity Via Correlation

• Correlation of incidence and proximity matrices
  for the K-means clusterings of the following two
  data sets.

Corr -0.9235
Corr -0.5810
14
Clusters found in Random Data
Random Points
15
Using Similarity Matrix for Cluster Validation

• Order the similarity matrix with respect to
  cluster labels and inspect visually.

16
Using Similarity Matrix for Cluster Validation

• Clusters in random data are not so crisp

K-means
17
Using Similarity Matrix for Cluster Validation

• Clusters in random data are not so crisp

Complete Link
18
Using Similarity Matrix for Cluster Validation

• Clusters in random data are not so crisp

DBSCAN
19
Reliability of Clusters

• Need a framework to interpret any measure.
• For example, if our measure of evaluation has
  the value, 10, is that good, fair, or poor?
• Statistics provide a framework for cluster
  validity
• The more atypical a clustering result is, the
  more likely it represents valid structure in the
  data.

20
Statistical Framework for SSE

• Example
• Compare SSE of 0.005 against three clusters in
  random data
• SSE Histogram of 500 sets of random data points
  of size 100 distributed over the range 0.2 0.8
  for x and y values

SSE 0.005
21
Statistical Framework for Correlation

• Correlation of incidence and distance matrices
  for the K-means of the following two data sets.

Correlation histogram of random data
Corr -0.5810
Corr -0.9235
22
Hyper-geometric Distribution

• Given the total number of genes in the data set
  associated with term T is M, if randomly draw n
  genes from the data set N, what is the
  probability that m of the selected n genes will
  be associated with T?

23
P-Value

• Based on Hyper-geometric distribution, the
  probability of having m genes or fewer associated
  to T in N can be calculated by summing the
  probabilities of a random list of N genes having
  1, 2, , m genes associated to T. So the p-value
  of over-representation is as follows
