Title: Deriving and Analysing the Quality of Software Architectural Designs

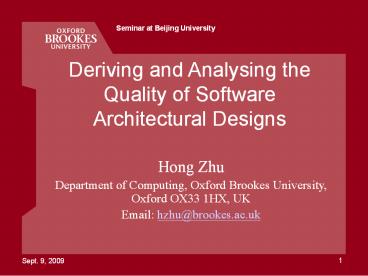

1
Deriving and Analysing the Quality of Software
Architectural Designs
  • Hong Zhu
  • Department of Computing, Oxford Brookes
    University, Oxford OX33 1HX, UK
  • Email hzhu_at_brookes.ac.uk

2
Outline
  • Overview of existing work and open problems
  • Our approach
  • Graphic model of software quality
  • Derivation of software quality model from design
  • Analysis of quality models
  • Conclusion
  • Comparison with related works
  • Future work

3
The Notion of Quality
  • Quality, in particular software quality, is an
    elusive concept and varying from people to
    people.
  • Garvins definitions of quality
  • Transcendent view Quality is universally
    recognisable. It is related to a comparison of
    features and characteristics of products.
  • Product-based view Quality is a precise and
    measurable variable. Differences in quality
    reflect the differences in quantities of some
    product attributes.
  • User-based view Quality is the fitness of
    intended uses.
  • Manufacturing-based view Quality is conformation
    to the specifications.
  • Value-based view A quality product is one that
    provides performance at an acceptable price or
    conformance at an acceptable cost.

4
Software Quality Models
  • Models about software quality in terms of
  • The factors that affect software quality
  • Attributes directly indicate the quality of he
    system, e.g. reliability, correctness, user
    friendliness, etc.
  • Attributes indirectly related to quality, e.g.
    internal complexity, etc.
  • The interrelations between the factors
  • Causality models
  • Causal relationship, in terms of stereo-type
    relations
  • Quantitative models
  • Quantitative relations expressed as numerical
    functions,
  • Numerical values of the basic attributes are
    given, e.g. through using metrics/measurements
  • The overall quality in an attribute on a more
    high level of abstraction is calculated
    numerically

5
Hierarchical Models of SQ
  • A set of quality related properties organised
    into a hierarchical structure
  • E.g. decompose quality into a number of quality
    attributes and attributes into a number of
    factors, and then a number of measures, etc.
  • Positive causal relationship is represented
  • Examples
  • McCall model (1977)
  • Boehm model (1978)
  • ISO model (1992)
  • Bansiya-Davis model of OO designs (2002), etc.

6
McCalls Model
7
ISO 9126 Model
8
Relational Models of SQ
  • A quality model consists of
  • A number of quality attributes and factors, etc.
  • A set of stereo types of relationships between
    them, normally include
  • Positive relation
  • High on one aspect of quality implies inevitably
    high on the other
  • Negative relation
  • High on one aspect of quality implies inevitably
    low on the other
  • Neutral relation
  • High or low on one aspect of quality does not
    imply on the other aspect the quality is high or
    low.
  • Examples
  • Perry model (1991)
  • Gillies model (1992, 1997)

9
Perrys Model
10
Roles in Software Development
  • Understanding software quality
  • To measure an existing systems quality,
  • To predict a systems quality during development
  • To analyse quality problems during development
    and/or in operation of a systems
  • Guidelines to development activities
  • To elicit users requirements on software quality
  • To perform quality assurance activities in
    software development and maintenance

11
Key Features of Existing SQ Models
Feature Pros Cons
Universal Applicable to all software systems Not address system specific issues
Simplicity Stereo types of relationships between quality attributes Incapable of dealing with complicated relationships between quality attributes
Black-box Treat software systems as black-boxes Provide little help to the designers to consider systems structure
Empirical Developed-based on empirical knowledge from experiences Cannot be validated or verified of its correctness
12
Our Approach
  • Representing software quality models in a
    diagrammatic notation (Zhang, Zhu, et al. 2002)
  • to improve expressiveness of quality models to
    represent complicated relationships between
    factors
  • to associate quality features with the structure
    of the system
  • Deriving software quality models from
    architectural designs (Zhang, et al. 2002, Zhu,
    2005)
  • to systematically derive quality models from
    software architectural designs by employing
    extended hazard analysis concepts and techniques
  • Automating the analysis of quality models to help
    software designers (Zhang, et al, 2006a, 2006b)
  • to perform various analysis tasks based on
    graphic quality models by developing and using
    automated software tools

13
Graphic Notation for Modelling SQ

14
Example Web-based Applications
Client side - Compatibility Font size too small
to be illegible when displayed users platform
15
Deriving Quality Models The HASARD Methods
  • HASARD Hazard Analysis of Software ARchitectural
    Design
  • Input A software architectural model
  • Output A quality model in graphic notation
  • Process
  • Hazard identification
  • A hazard identification method is applied to
    identify all quality sensitive observable
    phenomena of the components, connectors, the
    system, etc.
  • Cause-consequence analysis
  • The causal relationships between the identified
    hazards are recognized
  • Model assembling
  • The information obtained in the previous steps
    are assembled together and represented in the
    graphical notation
  • Quality concern recognition
  • The quality carrying properties/quality
    attributes that a phenomenon demonstrates are
    recognized according to the nature of the
    phenomenon

16
Hazard Identification
  • Extended Hazard and Operability Studies (HAZOP)
  • The method relies on determining answers to
    questions of what-if nature.
  • By applying a set of guide words systematically
    to develop a collection of what-if questions.
  • They are applied to the attributes of various
    components and connectors of the system being
    studied.
  • If a deviation from the normal working of the
    component is credible, the behaviour of the
    component is considered as a possible hazard.

17
Guide Words for Software Hazard Identification
Guide word Applicable attribute Interpretations
No Date/control signals No data / control signal exchanged No data / control signals produced/received.
No Component property/ function The component / connector does not have the designed property / function.
No Component / connector The system does not contain the component / connector.
More Quantitative parameters The value of the parameter is too large.
Less Quantitative parameters The value of the parameter is too small.
18
As well as Event or activity Redundant data sent, or event/activity occurred in addition to the intended ones.
As well as Component / connector Other components / connectors are added in addition to the intended ones.
Part of Structured data Only a part of the data produced, stored or received.
Part of Structure events Only a part of the events happened.
Reverse Direction of flow The information flow in the opposite direction.
Reverse Event The opposite event happened.
Other than Data/control signals, quantitative/qualitative parameters Incorrect data / control signals produced The parameter has a value different from the design.
Other than Component/systems function or property The component has a functionality / property different from the designed.
Other than Component/ connector Other kind of component / connector is contained.
19
Early Periodical events The event happened earlier than expected.
Late Periodical events The event happened later than expected.
Before Temporal orders The event happened in the order earlier than designed.
After Temporal orders The event happened in the order later than designed.
20
Example Internet Connection
Guide word Hazard/Failure mode Causes Consequences
No The internet connection passes no messages between the client and server. Physically disconnected Traffic jam Software failure Network server down. Client cannot communicate with the server.
More More messages are delivered than the clients and the server send out, e.g. duplicated messages. Hackers attack Heavy traffic on the Internet caused resending packages. System clash Overload on the server or the client.
Less Fewer messages are delivered than the server and the clients send out, i.e. lost messages. Discontinued Internet connection Heavy traffic on the Internet Software failure. Incomplete transactions System clash Damage the integrity of the data and program on the server and/or client.
21
As well as Messages are delivered to other destinations in addition to the designated receiver. Hackers attack Software failure. Leak of sensitive information.
Part of Only a part of the packets of a message is delivered to the destination client or server. Discontinued Internet connection Heavy traffic on the Internet Software failure. Software failure Production of incorrect computation results if incompleteness is not detected.
Other than A message not from the client (or the server) is passed to the server (or client). Hackers attack Other software systems failure System failure Damage the integrity of the data and the program.
Other than The message is in a different format. The client or the server is modified Fault in the software. System failure.
22
Cause-Consequence Analysis
  • It aims at understanding the causal relationships
    between hazards.
  • It can be performed backward or forward, or a
    combination of both.
  • Forward analysis
  • Search for the potential effects, i.e.
    consequences, of a hazard until the consequence
    is terminal.
  • A hazard or failure mode is terminal
  • if it does not affect any other component of the
    system or
  • If It does not cause any other hazards/failures.
  • if we are not interested in its further
    consequences.
  • Backward analysis
  • Search for the causes of a hazard until the
    hazard is primitive.
  • A hazard or failure mode is primitive
  • if its causes cannot be further identified
    without additional knowledge about the system
  • if we are not interested in its causes

23
Results of Cause-Consequence Analysis
24
Constructing Graphic Quality Model
  • Input
  • The records of the cause-consequence analysis
  • Output
  • A partially completed graphical representation of
    quality model
  • The transformation
  • Each record of the hazard or failure mode becomes
    a node with the component and phenomenon as
    specified in the record.
  • Each row in the record becomes a link from the
    node that represents the cause to the node that
    represents the consequence.
  • The explanation column of the row forms the
    reason of the link.

25
Example
26
Identification of Quality Concerns
  • For each node in the diagram
  • Identify the quality attribute or quality
    carrying property that the phenomenon
    demonstrates
  • Comparing the observable phenomenon with the
    definitions of a set of quality attributes and
    quality-carrying properties
  • Recognising a new attribute or property, if no
    existing one matches.
  • Fill the identified quality attribute into the
    slot of the node
  • Examples,
  • a hyperlink is broken demonstrates the quality
    attribute correctness of the HTML file.
  • Server is down is related to the availability
    of the server.

27
Analysis of Graphic Quality Models
  • Contribution factors
  • What are the factors that affect a specific
    quality issue that the user (designer) is
    interested in?

Example Factors of servers responsiveness
28
  • Impacts of design decisions
  • What are the consequences
  • of a design decision?

Example The impacts of HTML files are of large
sizes
HTML files Navigability Small number of
hyperlinks
Simpler hyperlink network usually easier to
navigate
29
  • Quality risks
  • When a negative quality property is present,
    where does the risk come from? And what are the
    implications of the problem?

Server side - Load balance Some servers have high
demand, but some not
Example (partial model) The risk of long
response time in a web-based application its
causes and implications
30
  • Relationships between quality issues
  • How two quality issues are interrelated?

Example Relationships between flexibility and
performance
31
  • Trade-off points
  • When a design decision has positive impact on one
    quality attribute but negative impact on another
    quality attribute, a trade-off must be made to
    balance between the two.
  • Where are the points in a complicated design that
    need to make trade-offs? Or simply, where are the
    trade-off points?

Example EJB components size is a trade-off
point in systems implemented using EJB.
32
Automation of Quality Analysis
  • SQUARE Software QUality and ARchitecture
    modeling Environment.
  • Tools to support software architectural modelling
  • Tools to support the derivation of software
    quality models from architectural design
  • Graph algorithms are designed and implemented to
    automate the analysis of software quality

Overall structure of SQUARE toolkits
33
Screen Snapshot of SQUARE toolkits
34
Case Study
  • The subject
  • A real e-commerce system of online trading of
    medicine.
  • The system is operated by the local medicine
    trading regulation authority who supplies
    medicines to all state-owned hospitals in the
    province.
  • Its main functions
  • customer relationship management,
  • product catalogue management,
  • online trade management,
  • online auction of medicine supplies,
  • online information advertisement,
  • a search engine for medicine information, and so
    on.
  • The system is implemented in J2EE
  • The system has been in operation for more than
    one year at the time of case study

35
Process of The Case Study
  • Step 1 Construct the architectural model
  • It is a reverse engineering process
  • Review of the design documents
  • The systems design document consists of four
    main parts
  • (a) a simple and schematic J2EE architecture
    showing that the system uses J2EE as
    implementation technology
  • (b) interface design, which consists of a lot of
    HTML files
  • (c) database design, which consists of about 63
    database tables
  • (d) a simple UML class diagram that contains a
    dozen of classes and shows the logical view of
    the system.
  • Review of parts of the source code.
  • When design information was not well documented,
    parts of the source code was reviewed
  • Construction of architectural model
  • Confirmation of architectural model by some of
    the chief developers of the system
  • The draft architectural model was reviewed and
    corrected
  • The final version of the model was approved of
    its accuracy

36
Architecture of CRM Subsystem
37
Step 2 Construction of Quality Model
  • Employed the HASARD method and the SQUARE
    toolkits
  • The quality model was reviews and corrected in
    several iterations with the collaboration with
    the developers
  • The final version was confirmed for its accuracy
    and correctness by the developers
  • The final result
  • 48 nodes
  • 60 links between the nodes.

38
Step 3 Analysis of the Quality Model
  • The quality model was analysed using the SQUARE
    analysis tools
  • Identification of quality risks and quality
    trade-off points
  • Derivation of the impacts of design decision and
    the contribution factors on certain quality
    attributes
  • The results were feed back to the developers
  • A workshop was run to validate the outcomes
  • All our findings were consistent with what has
    been observed in the development and operation of
    the system.
  • Some of the phenomena observed in the operation
    of the system were first time satisfactorily
    explained
  • A number of specific suggestions on the
    improvement of the systems architecture were
    made
  • Some were taken by the development team in the
    development of the new release of the system.
  • Some would result in major changes of systems
    architecture and regrettably cannot be
    implemented within the budget of the new
    releases.

39
Example 1 Causes of usability problem
  • The quality problem concerned
  • Users often cannot find desired information on
    the website
  • Analysis goal
  • Find the factors that may cause the problem
  • Method
  • Select the node that contains user as the
    entity and Cannot find info as its phenomenon
  • Use the tool to find the contribution factors to
    this node
  • Result
  • The tool generated a sub-diagram that contains 25
    nodes out of the 48 nodes in the quality model.
  • Interpretation of the result
  • Most components of the system affect usability of
    the system
  • Usability is a very sensitive quality issue in
    the design
  • The outcome
  • Details are provided by the tool about what
    affect usability
  • Useful direction to enhance usability

40
Example 2 Contribution Factors to Servers
Availability
  • Problem to be analysed
  • What are the factors that affect the servers
    availability?
  • Method
  • Select the node that contains server as entity
    and availability as property.
  • Use the tool to find the contribution factors.
  • Result
  • A sub-diagram is generated, that shows that the
    factors include hardware reliability, software
    reliability, power supply, system security, and
    maintenance.
  • Outcome Suggested measures to improve
    availability
  • To prevent hackers from attacking the server
  • To ensure a reliable power supply
  • To use reliable hardware to run the server
  • To use fault tolerance to avoid software crashes
    on invalid input
  • To provide maintenance tools to enable online
    maintenance
  • To reduce the time that the system has to be shut
    down for maintenance

41
Quality factors that affect servers availability
42
Example 3 Identify the quality trade-off points
  • Problem to be analysed
  • What are the trade-off points in the design?
  • Method
  • Select a node and to find the consequences of the
    node using the tool
  • Identify whether is leads to both positive result
    and negative result
  • Examples
  • The size of HTML files is a trade-off point.
    (See diagram on slide 25)
  • The granularity of the session beans.

43
Comparison with related works
  • Scenario-based analysis of software architectures
  • SAAM, ATAM, etc.
  • Builds no quality model,
  • not automated
  • Our approach
  • More systematic to derive quality model from
    design,
  • Can be automated for analysis once a model is
    constructed,
  • Models can be relatively easily validated
  • Hazard analysis of software system
  • HAZOP, FMEA, etc.
  • Focused on safety,
  • Systematic,
  • But not interrelationships between quality
    attributes
  • Our approach
  • More general rather than just for safety,
  • Focuses on the relationships between attributes

44
Future work
  • Combining with scenario-based methods
  • to construct graphic quality models
  • to represent results of scenario analysis
  • Analysis other quality features, e.g.
  • Process-oriented quality features how does a
    design affect the software development process?
    Such as reusability, modifiability, portability,
    etc.
  • More case studies
  • Existing case study is on e-Commerce web-based
    applications
  • Work in progress real-time and embedded systems

45
References
  • H. Zhu, Y. Zhang, Q. Huo and S. Greenwood,
    Application of Hazard Analysis to Software
    Quality Modelling, in Proc. of COMPSAC02, pp.
    139-144, IEEE CS, 2002.
  • H. Zhu, Software Design Methodology From
    Principles to Architectural Styles, Elsevier,
    2005.
  • Q. Zhang, J. Wu, and H. Zhu, Tool Support to
    Model-based Quality Analysis of Software
    Architectures, Proc. Of COMPSAC06, IEEE CS,
    2006.
  • Q. Zhang and H. Zhu, Automated Analysis of
    Software Designs with Graphic Quality Models,
    WSEAS Transactions on Computers, Vol. 5, Issue
    10, Oct. 2006, ISSN 1109-2750, pp2232-2237.

46
Acknowledgement
  • The work reported in this talk is based on the
    research collaborated with Dr. Yanlong Zhang of
    Manchester Metropolitan University, UK, Dr. Sue
    Greenwood of Oxford Brookes University, UK, Ms.
    Qian Zhang and Mr. Jian Wu of National University
    of Defence Technology, China.
About PowerShow.com
