Atmospheric Chemistry and Climate

1

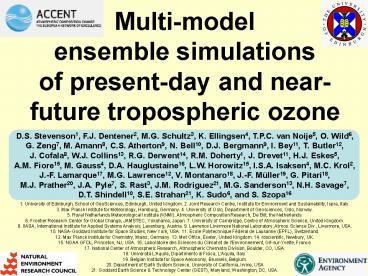

Multi-model ensemble simulations of present-day
and near-future tropospheric ozoneD.S.
Stevenson1, F.J. Dentener2, M.G. Schultz3, K.
Ellingsen4, T.P.C. van Noije5, O. Wild6, G.
Zeng7, M. Amann8, C.S. Atherton9, N. Bell10, D.J.
Bergmann9, I. Bey11, T. Butler12, J. Cofala8,
W.J. Collins13, R.G. Derwent14, R.M. Doherty1, J.
Drevet11, H.J. Eskes5, A.M. Fiore15, M. Gauss4,
D.A. Hauglustaine16, L.W. Horowitz15, I.S.A.
Isaksen4, M.C. Krol2, J.-F. Lamarque17, M.G.
Lawrence12, V. Montanaro18, J.-F. Müller19, G.
Pitari18, M.J. Prather20, J.A. Pyle7, S. Rast3,
J.M. Rodriguez21, M.G. Sanderson13, N.H. Savage7,
D.T. Shindell10, S.E. Strahan21, K. Sudo6, and S.
Szopa16 1. University of Edinburgh, School of
GeoSciences, Edinburgh, United Kingdom. 2. Joint
Research Centre, Institute for Environment and
Sustainability, Ispra, Italy. 3. Max Planck
Institute for Meteorology, Hamburg, Germany. 4.
University of Oslo, Department of Geosciences,
Oslo, Norway. 5. Royal Netherlands
Meteorological Institute (KNMI), Atmospheric
Composition Research, De Bilt, the Netherlands.
6. Frontier Research Center for Global Change,
JAMSTEC, Yokohama, Japan. 7. University of
Cambridge, Centre of Atmospheric Science, United
Kingdom. 8. IIASA, International Institute for
Applied Systems Analysis, Laxenburg, Austria. 9.
Lawrence Livermore National Laboratory, Atmos.
Science Div., Livermore, USA. 10. NASA-Goddard
Institute for Space Studies, New York, USA. 11.
Ecole Polytechnique Fédéral de Lausanne (EPFL),
Switzerland. 12. Max Planck Institute for
Chemistry, Mainz, Germany. 13. Met Office,
Exeter, United Kingdom. 14. rdscientific,
Newbury, UK. 15. NOAA GFDL, Princeton, NJ, USA.
16. Laboratoire des Sciences du Climat et de
l'Environnement, Gif-sur-Yvette, France. 17.
National Center of Atmospheric Research,
Atmospheric Chemistry Division, Boulder, CO, USA.
18. Università L'Aquila, Dipartimento di Fisica,
L'Aquila, Italy. 19. Belgian Institute for Space
Aeronomy, Brussels, Belgium. 20. Department of
Earth System Science, University of California,
Irvine, USA 21. Goddard Earth Science
Technology Center (GEST), Maryland, Washington,
DC, USA.
2
Background

• OxComp model intercomparison for IPCC TAR
  sampled models in 1999
• OxComp focussed on SRES A2 in 2100.
• Models and emissions have developed in the last 5
  years time for an update
• New scenarios from IIASA include AQ legislation
  measures (not in SRES)
• SRES didnt include ships new datasets
• SRES biomass burning(?) new satellite data

3
Scope of IPCC-AR4

• Chapter 2 Changes in atmospheric constituents
  and in radiative forcing
• Chapter 7 Couplings between changes in the
  climate system and biogeochemistry
• Includes a section on Air Quality
• Design intercomparison to be of direct use to
  IPCC-AR4

4
ACCENT IA3 / IPCC-AR4modeling activities on
climate / air pollution impact
Experiment 1 Delta O3 and radiative forcing
1850-2000-2100
Experiment 2 Air quality climate interactions
2000-2030
5
Institute / model CTM CCM trop.chem strat.chem
Europe Europe Europe Europe Europe Europe
Univ. LAquila, Italy ULAQ X X X
Univ. Oslo, Norway UIO_CTM2 X X X
CNRS/CEA, France LMDzINCA X X
DLR, Germany DLR_E39C X X X
UK MetOffice, UK STOCHEM_HadGEM1 (X) X (X)
Univ. Cambridge, UK UM_CAM X X
Univ. Edinburgh, UK STOCHEM_HadAM3 X X
USA USA USA USA USA USA
NCAR, USA NCAR_MACCM X X X
Japan Japan Japan Japan Japan Japan
JAMSTEC, Japan FRSGC_UCI X X (X)
JAMSTEC, Japan CHASER X X (X)
6
Gauss et al., ACPD, 2005
Radiative forcing due to changes in ozone since
preindustrial times -- A model study within
ACCENT --
M. Gauss1, G. Myhre1, I. S. A. Isaksen1, W. J.
Collins2, F. J. Dentener3, K. Ellingsen1, L. K.
Gohar4, V. Grewe5, D. A. Hauglustaine6, D.
Iachetti7, J.-F. Lamarque8, E. Mancini7, L. J.
Mickley9, G. Pitari7, M. J. Prather10, J. A.
Pyle11, M. G. Sanderson2, K. P. Shine4, D. S.
Stevenson12,K. Sudo13, S. Szopa6, O. Wild13, G.
Zeng11
7
(No Transcript)
8
Climate-chemistry interactions

• Increased humidity
• ozone loss ozone (mostly
  tropical LT)
• Slow-down of gas phase ozone loss
• ozone loss ozone (middle
  stratosphere)
• Increased PSC formation
• ozone loss ozone (high
  latitude LS)
• Increased Stratosphere-Troposphere Exchange /
  Lightning-NOx
• ozone (UT)
• Increase in tropopause height / convection / BD
  circulation
• ozone (tropical LS)

9
Annual-mean ozone change () 1850 2000
(climate change only!)
10
Ozone column changeBlue bars chemical
effectRed bars climate effect
11
tropospheric change
Annual-mean radiative forcing (Wm-2) 1850 2000
(emission change only)
12
Chemical change
RF due to ozone change between 1850 and 2000
Wm-2
13
Conclusions

• Increase in tropospheric ozone column, reduction
  in stratospheric ozone column since
  pre-industrial times tropstrat combined
  reduction in total ozone
• RF due to tropospheric ozone change0.29 Wm-2
  0.53 Wm-2 (CCMs, chemical change only)RF due
  to stratospheric ozone change0.10 Wm-2 0.08
  Wm-2 (CCMs, chemical change only)
  tropstrat combined positive RF
• Climate change leads to an increase in total
  ozone since pre-industrial times in both the
  troposphere and the stratosphere. RFtrop gets
  larger, RFstrat smaller.

14
ACCENT IA3 / IPCC-AR4modeling activities on
climate / air pollution impact
Experiment 1 Delta O3 and radiative forcing
1850-2000-2100
Experiment 2 Air quality climate interactions
2000-2030
15
ACCENT intercomparison (Expt. 2)

• Focus on 2030 of direct interest to
  policymakers
• Go beyond radiative forcing also consider ozone
  AQ, N- and S-deposition, and the use of satellite
  data to evaluate models
• Present-day base case for evaluation
• S1 2000
• Consider three 2030 emissions scenarios
• S2 2030 IIASA CLE (likely)
• S3 2030 IIASA MFR (optimistic)
• S4 2030 SRES A2 (pessimistic)
• Also consider the effect of climate change
• S5 2030 CLE imposed 2030 climate

16
Global NOx emission scenarios
SRES A2
CLE
MFR
2000
2030
Figure 1. Projected development of IIASA
anthropogenic NOx emissions by SRES world region
(Tg NO2 yr-1).
17
Other emissions categories

• EDGAR3.2 ship emissions, and assumed 1.5/yr
  growth in all scenarios
• Biomass burning emissions from van der Werf et
  al. (2003) assumed these remained fixed to 2030
  in all scenarios
• Aircraft emissions from IPCC(1999)
• Modellers used their own natural emissions
• Specified fixed global CH4 for each case (from
  earlier transient runs)

18
Requested model diagnostics

• Monthly mean, full 3-D
• O3, NO, NO2, CO, OH,
• O3 budget terms
• CH4 OH
• NOy, NHx and SOx deposition fluxes
• T, Q, etc. for climate change runs
• Daily NO2 column (GOME comparison)
• Hourly surface O3 (for AQ analysis)
• NETCDF files submitted to central database

19
26 Participating Models

• CHASER_CTM
• CHASER_GCM
• FRSGC/UCI
• GEOS-CHEM
• GISS
• GMI/CCM3
• GMI/DAO
• GMI/GISS
• IASB
• LLNL-IMPACT
• LMDz/INCA-CTM
• LMDz/INCA-GCM
• MATCH-MPIC/ECMWF

• MATCH-MPIC/NCEP
• MOZ2-GFDL
• MOZART4
• MOZECH
• MOZECH2
• p-TOMCAT
• STOCHEM-HadAM3
• STOCHEM-HadGEM
• TM4
• TM5
• UIO_CTM2
• ULAQ
• UM_CAM

CTMs driven by analyses
CTMs coupled to GCMs
CTMs driven by GCM output
20
NO3 wet deposition N. America
All models, regional analysis
Mean model, all stations
Dentener et al., in preparation
21
NO2 column comparison of GOME with model
outputvan Noije et al., in prep.
22
NO2 column over
van Noije et al., in prep.
23
Analysis of O3 results

• Masked at tropopause using O3150 ppbv
• Interpolated to common vertical and horizontal
  grid
• Ensemble mean model and standard deviations
  calculated
• Compared to sonde measurements
• Other ongoing validation work NO2 columns,
  surface O3, CO, deposition fluxes
• Global tropospheric O3 and CH4 budgets, radiative
  forcings

24
Year 2000 O3
25
Year 2000 Annual Zonal Mean Ozone (24 models)
26
Year 2000 Ensemble meanof 25 models AnnualZonal
Mean Annual TroposphericColumn
27
Sonde data from Logan (1999) SHADOZ data from
Thompson et al (2003)
Sonde 1SD
Model 1SD
UT 250 hPa
J F M A M J J A S O N D
MT 500 hPa
LT 750 hPa
90-30S 30S-EQ EQ-30N
30-90N
Ensemble mean model closely resembles ozone-sonde
measurements
28
Year 2000 Inter-model standard deviation
() AnnualZonalMean Annual
TroposphericColumn
29
O3 in 2030, radiative forcing influence of
climate change
30
Multi-model ensemble mean change intropospheric
O3 2000-2030 under 3 scenarios
Annual Zonal Mean ?O3 / ppbv
Annual Tropo-spheric Column ?O3 / DU
Optimistic IIASA MFR SRES B2 economy Maximum
Feasible Reductions
Likely IIASA CLE SRES B2 economy Current AQ
Legislation
Pessimistic IPCC SRES A2High economic growth
Little AQ legislation
31
Radiative forcing implications
Forcings (mW m-2) 2000-2030 for the 3 scenarios
37
-23
CO2
CH4
O3
32
Impact of Climate Change on Ozone by
2030(ensemble of 9 models)
Mean
Mean - 1SD
Mean 1SD
Positive and negative feedbacks no clear
consensus
33
Global budgets of O3 and CH4
34
Global O3 budget terms
Colours signifydifferent models
O3 lifetime / days
Ensemble mean model (offset)
O3 burden / Tg(O3)
35
O3 budget and CH4 lifetime
Ensemble mean model (offset)
O3 chemical loss / Tg(O3)/yr
What causes the inter-model differences?Water
vapour?Lightning NOx? Photolysis schemes?
CH4 lifetime / years
36
Conclusions

• Ensemble mean model O3 closely resembles
  observations
• Inter-model standard deviations highlight where
  models differ the most
• Quantitative assessment of 2030 scenarios provide
  clear options for policymakers (radiative forcing
  and AQ)
• Influence of climate change uncertain
• Global budgets reveal interesting and fundamental
  model differences
• Analysis is ongoing please come to meeting on
  Thursday night for more information.
• dstevens_at_met.ed.ac.uk

37
