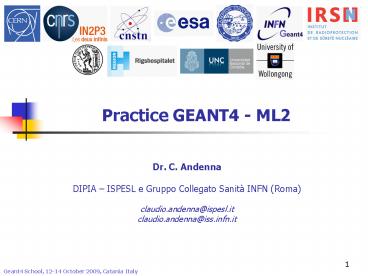

Practice GEANT4 - ML2

1
Practice GEANT4 - ML2
Dr. C. Andenna DIPIA ISPESL e Gruppo Collegato
Sanità INFN (Roma) claudio.andenna_at_ispesl.it clau
dio.andenna_at_iss.infn.it
Geant4 School, 12-14 October 2009, Catania Italy
2
Some aspects of the program

• /primaryParticleData/idParticleSource 1
• switch (this-gtidCurrentParticleSource)
• case idParticleSource_Random
• this-gtGenerateFromRandom()
• break
• case idParticleSource_CalculatedPhaseSpace
• this-gtGenerateFromCalculatedPhaseSpace()
• break

Geant4 School, 12-14 October 2009, Catania Italy
3
Some aspects of the program

• /primaryParticleData/idParticleSource 2
• switch (this-gtidCurrentParticleSource)
• case idParticleSource_Random
• this-gtGenerateFromRandom()
• break
• case idParticleSource_CalculatedPhaseSpace
• this-gtGenerateFromCalculatedPhaseSpace()
• break

Geant4 School, 12-14 October 2009, Catania Italy
4
Some aspects of the program

• Dose calculation and its standard deviation
• In each voxel

Geant4 School, 12-14 October 2009, Catania Italy
5
Some aspects of the program

• Dose calculation
• G4double depEnergy aStep-gtGetTotalEnergyDeposit()

• voxelMassdensityvoxels.halfSize.Xvoxels.halfSiz
  e.Yvoxels.halfSize.Z
• dosedepEnergy/voxelMass
• Voxels.nEvents
• voxels.depEnergydose
• voxels.depEnergy2dosedose

Geant4 School, 12-14 October 2009, Catania Italy
6
Content

• An overview of the results
• Phase space data
• Phantom voxelization
• Comparison between experimental and calculated
  doses
• Graphical view

Geant4 School, 12-14 October 2009, Catania Italy
7
Phase space data

• Type of data saved

n X mm Y mm Z mm dx dy dz kinEnergy MeV Part Type Prim part type Prim part
0 18.57 45.06 -831 0.03934 0.095413 0.99455 1.41684 22 11 33
1 57.61 27.74 -831 0.12265 0.058820 0.99004 1.35906 22 11 71
Geant4 School, 12-14 October 2009, Catania Italy
8
Phantom voxelization

• Type of data saved

Phys Volume X mm Y mm Z mm ix iy iz Dose Gy Dose2 Gy2 nEvents
fullWaterPhantomPV -297 -297 -177 0 0 27 1.78e-09 1.36e-18 9
.... .. .. ...
Geant4 School, 12-14 October 2009, Catania Italy
9
Experimental vs Calculated data

• Type of data saved

6 MeV Tutte le misure gaf 10 luglio 2009 campo
3x3 n2082 fh208 0 10 3.10291e07 10 758 2.7348
9e07 x mm, y mm, z mm, expDose Gy,
Calculated dose Gy, Calculated dose2 Gy2,
nEvents, normDose Gy, normDoseError
Gy d208 0 0 -300 0.6644 5.93877e-09 1.01606e-1
8 49 0.184275 0.0170647 0 0 -290 4.3128 1.44254e-0
7 1.05554e-15 274 4.47607 0.972941 0 0 -258 2.7057
7.59039e-08 2.80751e-16 65 2.35523 0.433426 .
Geant4 School, 12-14 October 2009, Catania Italy
10
Graphical view

• Dedicated programs have to be used to generate
  the wanted graphs
• We use matlab programs

Geant4 School, 12-14 October 2009, Catania Italy
11
Graphical view examples

• Comparison between calculated and measured data

Geant4 School, 12-14 October 2009, Catania Italy
12
Graphical view 3D

• Two examples of a section of the ROG

Geant4 School, 12-14 October 2009, Catania Italy
13
Thank you !

• Should you have any question, do not hesitate to
  contact us
