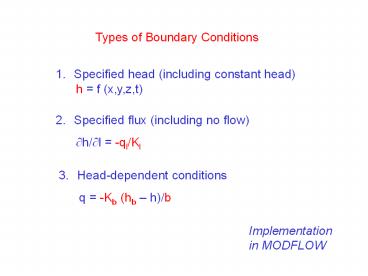

Types of Boundary Conditions
  • Specified head (including constant head)
  • h f (x,y,z,t)
  • Specified flux (including no flow)
  • ?h/?l -ql/Kl
  • Head-dependent conditions
  • q -Kb (hb h)/b

Implementation in MODFLOW
2
Versions of MODFLOW
MODFLOW 88/96 MODFLOW2000 MODFLOW2005
3
MODFLOW88/96 Packages
required
required
head dependent BCs
1 is required
PCG2
4
RIVER Package
Field setting
Representation in the model
5
(No Transcript)
6
hb hR head in the river
q -Kb (hb h)/b
Head Dependent Boundaries MODFLOWs River Package
7
(No Transcript)
8
Q conductance x change in head
9
Q C (hR hijk)
hijk
RBOT
Gaining River Cell
10
Q C (hR hijk)
RBOT
Losing River Cell
11
Q C (hR hijk)
RBOT
Losing River Cell
12
Q C (hR RBOT)
RBOT
Percolating River Cell
13
Definitions
Riverbed Conductance (Kv/m) wL Leakance Kv/m
Resistance m/Kv
Kv vertical hydraulic conductivity of riverbed
sediments m thickness of riverbed sediments w
width of the river L length of the river within
the cell
14
Resistance
River with sandy bottom 1 day Small stream
with silty bottom 1- 10 days Stream/lake in
till 100 days
15
Head Dependent Boundaries in MODFLOW88/96
Q C ?h
  • River Package
  • Drain Package
  • General Head Boundary (GHB) Package
  • ET Package

16
River Package
Q C (hR hijk) where C KvLw/m
17
(No Transcript)
18
Drain Package
19
Drain Package
Q C (hijk-d) where d head in the drain. Q 0
if hijkltd
20
General Head Boundary Package
Boundary cell
hB
L
h
Q C (hB-h) C K A /L
21
Evapotranspiration (EVT) Package to be
discussed later, when we do the Final Project
22
GHB
L
Lake
Model
hB
Q C (hB - h)
C Conductance K A/L K is the hydraulic
conductivity of the aquifer between the model and
the lake A is the area of the boundary cell,
perpendicular to flow.
23
  • Streamflow Package (Prudic 1989)- see p. 127 AW

Q
Allows for dynamic interchange of groundwater and
streamflow solves for stream stage.
Mannings Equation d (Q n / C w S1/2)3/5 n
is Mannings Roughness coefficient
New MODFLOW Package available in MODFLOW2000.
Streamflow Routing Package (Prudic 2004)
24
Estimating Mannings n
http//www.engineering.usu.edu/classes/cee/5470/ws
p2339.pdf
25
(No Transcript)
26
(No Transcript)
27
Lake Package Available in MODFLOW2000
(Cheng and Anderson, GW,1993) (Council, 1998)
(Merritt and Konikow, 2000)
Solves for lake levels
28
Lake (LAK) Package
Change in Storage Outflow - Inflow
Change in lake level Change in Storage/Area
29
Head Dependent Boundaries in original MODFLOW88/96
Q C ?h
  • River Package
  • Drain Package
  • General Head Boundary (GHB) Package
  • ET Package

Prudics 1989 Streamflow Package and a few
other packages have since been added to
MODFLOW88/96 and are available when running
MODFLOW88/96 in Groundwater Vistas.
