Valencia Testbed Site: IFIC (Instituto de F

1

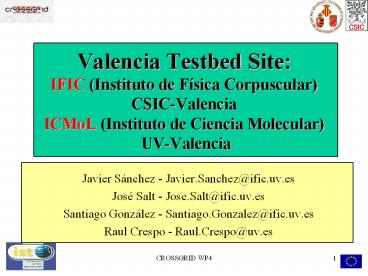

Valencia Testbed SiteIFIC (Instituto de Física
Corpuscular) CSIC-ValenciaICMoL (Instituto de
Ciencia Molecular) UV-Valencia

• Javier Sánchez - Javier.Sanchez_at_ific.uv.es
• José Salt - Jose.Salt_at_ific.uv.es
• Santiago González - Santiago.Gonzalez_at_ific.uv.es
• Raul Crespo - Raul.Crespo_at_uv.es

2
Motivation and Objectives

• Motivation the involvement in Grid Testbeds
• Participation in LHC experiments (HEP)
• ATLAS
• Participation in Air Pollution Modelling
• Objectives
• Initial development and exploitation of a Grid
  infrastructure in Valencia.
• Physics and Chemistry analysis preparation for
  Grid computing.
• Provide support and infrastructure for
• Development of Grid applications
• Test and validation of Grid applications.

3
GRID Projects

• DATAGRID (from European Union)
• CROSSGRID (from European Union)
• SPECIAL ACTION (Spanish Ministry of Science and
  Technology)
• project approved
• Three-Years Project (Spanish Ministry of Science
  and Technology)
• In the refereeing process

4
Current Grid Activities

• Evaluation of the DATAGRID middleware
• Implementation of the Valencia testbed site
• Maintenance of a Globus meta-directory
• Institutional MDS of Valencia dcific, dces,
  oGrid
• Integration of Valencia into the DATAGRID
  testbed
• Globus gatekeeper
• Globus Condor and PBS job-manager
• GSI authentication through the Spanish (in IFCA)
  CA
• Etc,...
• Participation in DATAGRID testbeds 0 and 1

5
Current Grid Activities

• We are participating in this year in the DATA
  CHALLENGE 1(DC1) of ATLAS experiment with two
  goals
• Event productions in our farm in order to
  provide samples for physics studies and make the
  Technical Design Report for the end of 2002.
• To test in our farm the new software, including
  Geant4, the new event data model and the
  evaluation of two database technologies,
  Objectivity and Root-I/O.

6
Networking in Spain

• ISP RedIris (Spanish Academic Research Network)
• Geant connectivity at 2.5 Gbits/s.
• US connectivity at 180 Mbits/s.

7
Valencia Networking

• Gibabit Ethernet BackBone in local area network.
• Fiber optic link with University BackBone using
  Gigabit Ethernet
• Fiber optic link of 155 Mbits/s with IP over ATM
  from the University to RedIris (Shared among
  other Universities and research centers of the
  Comunidad Valenciana)

8
Computing Infrastructure

• Acquired an infrastructure for Grid activities
  from CSIC-Universitat de València
• Grupo de Ordenadores para el GRID (GoG)
• 192 CPUs
• Chassis 2U (Rack Mountable)
• CPU AMD K7 Athlon _at_1.2GHz
• Memory 1 Gbytes, PC133
• HD 40 Gbytes, ATA 100 _at_7200 rpm
• NIC 100 Mbps full duplex.PXE 2.1, WOL

9
Computing Infrastructure

• 9 Racks 19
• 9 switches (
• 2 switches (Gigabit Ethernet 12 ports)
• Running Linux RH 6.2 (considering RH 7.2)
• Job scheduling by CONDOR (looking at PBS)

Catalyst 3524 XL fast Ethernet with Gigabit
Ethernet uplink)
10
Computing Infrastructure

• GRID test FARM
• 4 AMD and 5 Intel processor
• 4 AMD are K7 1 GHz, 512 MB of RAM and 40GB HD
• 5 Intel are Pentium MMX 150MHz, 64 MB of RAM and
  2 GB HD.
• Running Linux RH 6.2
• Job scheduling by Condor and PBS
• Being used to test DATAGRID testbed 0 and 1
• Gatekeeper
• CE
• SE
• Institutional GIIS
• Installation server

11
Valencia Testbed SetupGoG
12
FarmsGoG
13
Farms and Networking
14
Grid Test FarmsBeing used to test DATAGRID

• Institutional GIIS
• CE and Gatekeeper
• WNs

15
Human Resources

• IFIC and ICMoL have
• 2 Engineers
• 2 Physicians
• 2 Chemists
• 1 Post-doc
• Two new positions for the IFIC and ICMoL are
  being created (Using CrossGrid contract).
• IFIC and ICMoL Computer and Technical personnel.

16
Human Resources

• CROSSGRID involvement
• Dr. José Salt Cairols (Main Contact)
• Dr. Eduardo Ros Martínez
• Dr. Santiago González de la Hoz
• Mr. Fco. Javier Sánchez Martínez
• Dr. Raúl Crespo Crespo
• Dr. Roberto Tejero Toquero
• Mr. Martín Córdoba

17
Valencia and CROSSGRID

• Valencia is involved in the following tasks
• task 1.3 Distributed Data Analysis in HEP
• task 1.4 Weather Forecast and Air Pollution
  Modelling
• task 3.2 Grid Resource Management
• task 3.5 Integration, Testing and Refinement
• task 4.1 Testbed Setup and Incremental Evolution
• task 4.3 Infrastructure Support

18
Videoconference support

• VRVS and ISDN support.
• List of equipment
• Polyspan ViewStation SP video conference
• Document camera
• 2 video projectors (Proxima Ultralight LX2 and
  Hitachi CP-X960W/E)
• Several webcams in Desktop PCs
