Title: Chemistry 100


1

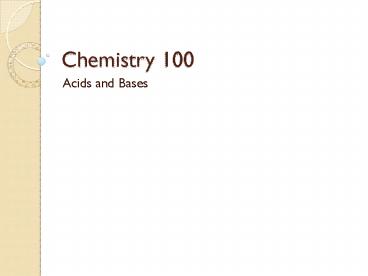

Chemistry 100
  • Acids and Bases

2
The Brønsted Definitions
  • Brønsted Acid proton donor
  • Brønsted Base proton acceptor
  • Conjugate acid - base pair an acid and its
    conjugate base or a base and its conjugate acid

3
Example Acid-Base Reactions
  • Look at acetic acid dissociating
  • CH3COOH(aq) ?CH3COO-(aq) H(aq)
  • ?
  • Brønsted acid Conjugate base
  • Look at NH3(aq) in water
  • NH3(aq) H2O(l) ?NH4(aq) OH-(aq)
  • ? ?
  • Brønsted base conjugate acid

4
Representing Protons in Aqueous Solution
  • CH3COOH(aq) ? CH3COO-(aq) H(aq)
  • CH3COOH(aq) H2O(l) ? CH3COO-(aq) H3O(aq)
  • HCl (aq) ? Cl-(aq) H(aq)
  • HCl(aq) H2O(l) ? Cl-(aq) H3O(aq)

5
Representing Protons
  • Both representations of the proton are equivalent
  • H5O2 (aq), H7O3 (aq), H9O4 (aq) have been
    observed
  • We will use either H(aq) or H3O(aq)

6
What is H (aq)?

H3O
H
H5O2
H9O4
7
The Hydroxide Bases
  • KOH, RbOH, NaOH, are not strictly Brønsted Bases
    since none of these substances accepts a proton
  • KOH(aq) ? K(aq) OH-(aq)
  • NaOH(aq) ? Na(aq) OH-(aq)
  • OH-(aq) H3O(aq) ?2 H2O(l)

8
The Autoionization of Water
  • Water autoionizes (self-dissociates) to a small
    extent
  • 2H2O(l) ? H3O(aq) OH-(aq)
  • H2O(l) ? H(aq) OH-(aq)
  • These are both equivalent definitions of the
    autoionization reaction. Water is acting as a
    base and an acid in the above reaction ? water is
    amphoteric.

9
The Autoionization Equilibrium
  • from the preceding chapter
  • but we know H2O is constant

10
The Defination of Kw
  • Keq H2O Kw HOH-
  • Ion product constant for water, Kw, is the
    product of the molar concentrations of H and OH-
    ions in pure water at a temperature of 298.15 K
  • Kw HOH- 1.0x10-14 at 298.2 K

11
The Definition of an Acidic Solution
  • We define an acidic solution as one where the
    H in the solution is greater than the the H
    in pure water
  • acidic solution ? H gt 1.0 x 10-7 mole/L at
    298.2 K

12
The Definition of a Basic Solution
  • Basic solutions are those where the H in the
    solution is less than its concentration in pure
    water at 298.2 K.
  • Basic solution ? H lt 1.0 x 10-7 mole/L
  • An alternative definition of a a basic solution
    is as follows
  • Basic solution ? OH- gt 1.0 x 10-7 mole/L

13
The Definition of a Neutral Solution
  • A neutral solution is defined as one where the
    H in the solution is equal to the hydrogen ion
    concentration in pure water
  • Neutral solution ? H OH- 1.0 x 10-7
    mole/L at 298.2 K!

14
The Dependence of Kw on Temperature
  • In our definitions of an acidic, basic, and a
    neutral solutions, we had explicitly stated the
    temperature as 298.2 K. Why?

Kw is temperature dependent
  • How will that affect our definition of an acidic,
    basic, or a neutral solution?

15
Neutrality at Body Temperature
  • At T 310.15 K (physiological temperature) ? Kw
    2.4 x 10-14
  • A neutral solution has H OH- (Kw)½
  • At 310.15 K, a neutral solution is one where H
    OH- 1.5 x 10-7 M

(UNLESS OTHERWISE INDICATED, ALL CALCULATIONS
WILL BE AT 298.15 K)
16
The pH scale
Sørenson - 1909 pH -log H
Solution Type H / M pH range
neutral solutions H OH- 1.0x10-7 pH 7.00
basic solutions H lt1.0x10-7 pH gt 7.00
acid solutions H gt1.0x10-7 pH lt 7.00
17
The Relationship between pH and pOH
  • pH -log H
  • pOH -log OH-
  • From the Kw expression
  • Kw HOH- 1.0x10-14 at 298.2 K
  • -log (1 x 10-14) -log H -log OH-

14.00 pH pOH
18
Acid Strength and Dissociation
  • CH3COOH(aq) ? CH3COO-(aq) H(aq)
  • HCOOH(aq) ? HCOO-(aq) H(aq)
  • both weak acids lt 5 ionized
  • Other examples of weak acids ? HF, HNO2, HCN

19
Acid Strength
  • The strength of an acid is directly dependent on
    its dissociation (? value)
  • For an acid
  • n the number of groups that donate a proton

20
Base Strength and Dissociation
  • Strong Bases also 100 ionized in water
  • NaOH(aq) Na(aq) OH-(aq)
  • Ba(OH)2(aq) Ba2(aq) 2OH-(aq)
  • Some bases are weak bases they dont ionize
    completely.
  • NH3(aq) H2O(l) ? NH4 (aq) OH-(aq)
  • lt 5 ionized in aqueous solution

21
Base Strength
  • The strength of a base is also directly dependent
    on its dissociation (? value)
  • For a base
  • baseo ? the original concentration of base
  • m the number of basic groups in the molecule

22
Conjugate Acid-Base Strengths
  • CH3COOH (aq) ? CH3COO-(aq) H(aq)
  • Note that the conjugate base of acetic acid is a
    reasonable proton acceptor
  • CH3COO-(aq) H2O (l) ? CH3COOH (aq) OH-(aq)

23
Other Examples
  • HNO3 (aq) H(aq) NO3-(aq)
  • conjugate base (very weak)
  • HCOOH (aq) ? HCOO-(aq) H(aq)
  • conjugate base is relatively strong
  • NH3(aq) H2O(l) ? NH4 (aq) OH-(aq)
  • relatively strong
    conjugate acid

24
  • HCl (aq) ? Cl-(aq) H(aq)
  • The conjugate base, Cl- ion, is extremely weak
  • Cl-(aq) H2O (l) ? HCl (aq) OH-(aq)

25
  • S2-(aq) H2O (l) ? HS-(aq) OH- (aq)
  • The conjugate acid, the HS- ion, is extremely
    weak
  • HS-(aq) ? H (aq) S2- (aq)
  • The equilibrium lies very far to the left for
    this reaction

26
  • The greater the acid strength (large Ka), the
    weaker the conjugate base of that acid
  • The weaker the acid (smaller Ka), the stronger
    its conjugate base
  • If the base strength is high (Kb is large), its
    conjugate acid is very weak
  • The weaker the base (small Kb value), the
    stronger the conjugate acid of the base

27
Calculating the pH of Solution of Strong Acids
  • For the dissolution of HCl, HI, or any of the
    other seven strong acids in water
  • HCl (aq) ? H (aq) Cl- (aq)
  • HI (aq) ? H (aq) I- (aq)
  • The pH of these solutions is obtained from the
    molarity of the dissolved acid
  • pH -log H -logHCl

28
Calculating the pH of Solution of Strong Bases
  • For the dissolution of NaOH, Ba(OH)2, or any of
    the other strong bases in water
  • NaOH (aq) ? Na (aq) OH- (aq)
  • Ba(OH)2 (aq) ? Ba2 (aq) 2OH- (aq)

29
  • The pH of these solutions is obtained by first
    calculating the pOH from the molarity of the
    dissolved base
  • pOH -log OH- -logNaOH
  • pOH -log OH- -log2 Ba(OH)2
  • pH 14.00 - pOH

30
The Seven Strong Acids
  • chloric acid HClO3
  • hydrobromic acid HBr
  • hydrochloric acid HCl
  • hydroiodic acid HI
  • nitric acid HNO3
  • perchloric acid HClO4
  • sulphuric acid H2SO4
  • What about the relative strength of the strong
    acids?

31
The Leveling Effect
  • H (aq) (or H3O(aq)) is the strongest acid that
    can exist in aqueous solution. Any acid stronger
    than H(aq) reacts with water completely to
    produce H(aq) and the weak conjugate base.

32
  • HNO3 (aq) is a stronger acid than H(aq) (H3O) \
    reacts with water completely to form H(aq)
  • HNO3 (aq) ? H (aq) NO3- (aq)
  • Acids weaker than H(aq) have the equilibrium
    lying primarily to the left.
  • HNO2(aq) ? H(aq) NO2- (aq)

33
  • The OH- ion is the strongest base that can exist
    in aqueous solution. Bases stronger than
    OH-(aq) react with water to produce the hydroxide
    ion (OH-).

34
  • NH2- (the amide ion) is an extremely strong base
    (much stronger than OH-). Therefore,
  • NaNH2 (aq) H2O (l) NH3 (aq) NaOH(aq)
  • NH2- cannot exist in aqueous solution.
  • NH3 is a much weaker base than OH-. Therefore,
    when it reacts with water, the equilibrium
    favours the reactants
  • NH3 (aq) H2O (l) ?NH4 (aq) OH-(aq)

35
The Leveling Effect Defined
  • Any acid that is stronger than H(aq) means that
    we have 100 ionisation of the acid.
  • For acids like HCl(aq), HClO4(aq), HNO3(aq), the
    appearance is one of equal acid strength.
  • Water is said to have a levelling effect on the
    acid strength

36
Equilibria in Aqueous Solutions of Weak Acids/
Weak Bases
  • By definition, a weak acid or a weak base does
    not ionize completely in water (? ltlt100).
  • How would we calculate the pH of a solution of a
    weak acid or a weak base in water?

37
The Ka Value
  • To obtain the pH of a weak acid solution, we must
    apply the principles of chemical equilibrium
  • Define the acid dissociation constant Ka
  • For a general weak acid reaction
  • HA (aq) ? H (aq) A- (aq)

38
Weak Acid/Bases and pH
  • For a solution of hydrofluoric acid in water
  • HF (aq) ? H (aq) F- (aq)

39
Equilibria of Weak Bases in Water
  • To calculate the percentage dissociation of a
    weak base in water (and the pH of the solutions)
  • CH3NH2 (aq) H2O ? CH3NH3(aq) OH- (aq)
  • We approach the problem as in the case of the
    weak acid above, i.e., from the chemical
    equilibrium viewpoint.

40
The Kb Value
  • Define the base dissociation constant Kb
  • For a general weak base reaction with water
  • B (aq) H2O (l) ? B (aq) OH- (aq)
  • For the above system

41
Diprotic/Polyprotic Acids
  • Look at the following system.
  • H2C2O4 (aq) ?HC2O4- (aq) H (aq) Ka1
  • HC2O4- (aq) ?C2O42- (aq) H (aq) Ka2
  • For the dissociation of diprotic and polyprotic
    acids, the magnitudes of the dissociation
    constants decrease in the direction
  • Ka1 gt Ka2 gt Ka3 etc.

42
Example
  • For oxalic acid in water,
  • Ka1 6.5 x 10-2
  • Ka2 6.1 x 10-5
  • Since Ka1gtgt Ka2, the H (and the pH) in the
    solution is due primarily to the first
    dissociation ONLY.

43
Obtaining the Relationship between Ka and Kb
  • We have already seen that there is a relationship
    between the strength of an acid and the ability
    of its conjugate base to hydrolyse.
  • HCOOH (aq) ?HCOO- (aq) H (aq)
  • Ka (HCOOH) 1.8 x 10-4
  • Examine the reverse reaction, the hydrolysis
    (reaction of the substance with water) of HCOO-
  • HCOO-(aq) H2O (l) ? HCOOH (aq) OH-(aq)

44
Obtaining the Kb of the Conjugate Base
  • HCOOH (aq) ? HCOO- (aq) H(aq)
  • HCOO- (aq) H2O (l) ?HCOOH (aq) OH- (aq)
  • Keq(1) Ka (HCOOH)
  • Keq(2) Kb (HCOO-)
  • Add the two reactions together
  • HCOOH (aq) ? HCOO- (aq) H(aq)
  • HCOO- (aq) H2O (l) ?HCOOH (aq) OH- (aq)

45
  • We are left with the overall reaction
  • H2O (l) ?H (aq) OH- (aq)
  • Kw H OH-
  • From our rules for the equilibria of multiple
    reactions.
  • Kw K (1) K (2)

Kw Kb Ka
46
Variation of Conjugate base Strength with Ka
  • HCOOH (aq) ?HCOO- (aq) H (aq)
  • Ka (HCOOH) 1.8 x 10-4
  • Kb (HCOO-) 5.6 x 10-11
  • CH3COOH (aq) ?CH3COO- (aq) H (aq)
  • Ka (CH3COOH) 1.8 x 10-5
  • Kb (CH3COO-) 5.6 x 10-10

47
Salts of Conjugate Bases
  • Look at the dissolution of CH3COONa in water.
  • CH3COONa (aq) ? Na (aq) CH3COO- (aq)
  • But we know that the acetate ion, CH3COO- (aq),
    will hydrolyze in aqueous solution according to
    the following reaction.
  • CH3COO- (aq) H2O (l) ?CH3COOH (aq) OH-(aq)

48
Hydrolysis reaction produces OH-
Dissolving a salt of a strong base/ weak acid in
water ? basic solution.
49
Salts of Conjugate Acids
  • Look at the dissolution of NH4Cl in water
  • NH4Cl (aq) ? NH4 (aq) Cl- (aq)
  • But we know that the ammonium ion, NH4 (aq),
    will donate a proton aqueous solution
  • NH4 (aq) ?NH3 (aq) H(aq)

50
Hydrolysis reaction produces H(aq)
Dissolving a salt of a strong acid/ weak base in
water ? acidic solution.
51
Both the cation and anion Hydrolyse
  • What about salts in which both the cation and
    anion hydrolyze?
  • The pH of the solution will depend on the
    magnitude of the Ka and the Kb values of the
    respective acidic and basic ions.

52
(No Transcript)
53
Salts of Weak Acids/Strong Bases
  • How do we prepare a solution of HCOONa?
  • Titration of HCOOH with NaOH according to the
    following reaction

HCOOH (aq) NaOH (aq) ? HCOONa (aq) H2O (l)
? ?
? Weak Acid Strong Base
Basic Salt
Dissolution of the salt of a weak acid/strong
base produces a basic solution (pH gt 7.00).
54
The Strong Acid/Weak Base Case
  • How do we prepare a solution of NH4Cl?
  • Titration of HCl with NH3 according to the
    following reaction

HCl (aq) NH3 (aq) ? NH4Cl (aq) ?
? ? Strong Weak
Acidic Acid Base Salt
Dissolution of the salt of a strong acid/weak
base produces a acidic solution (pH lt 7.00).
55
The Weak Acid/Weak Base Case
  • What would be the pH of a solution of CH3COONH4?
  • Look at the following reactions
  • NH4 (aq) ? NH3 (aq) H (aq)
  • K Ka (NH4)
  • CH3COO- (aq) H2O (l) ? CH3COOH (aq) OH- (aq)
  • K Kb (CH3COO-)

56

The pH of a solution the salt of a weak acid/weak
base depends on the magnitudes of the equilibrium
constants.
Write a Comment
User Comments (0)
About PowerShow.com
