Title: Airborne Contaminants Lab


1

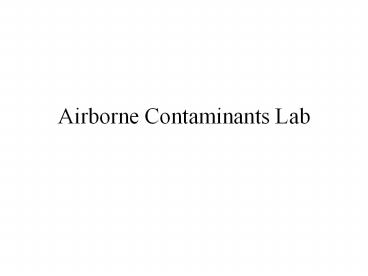

Airborne Contaminants Lab
2
(No Transcript)
3
(No Transcript)
4
(No Transcript)
5
Topics
  • Overview of workplace health and its regulation
  • Particulates and microscopy
  • Gases and vapors
  • Monitoring
  • Real time
  • Noise

6
Format
  • Lecture with break
  • Break
  • Hands-on, with Sheila M Simmons
  • Environmental Health, Safety, and Risk Management
  • http//www.uaf.edu/safety/

7
Practical Application
  • The terms
  • Environmental Engineering
  • Environmental work
  • Often extend to analyzing the workplace
    environment for contaminants
  • hence offering opinions on human health
  • firms often practice in this area.

8
Alphabet Soup
  • EPA
  • OSHA
  • NIOSH
  • AIHA
  • ACGIH

9
Alphabet Soup
  • OSHA, Occupational Safety and Health
    Administration
  • NIOSH, National Institute of Occupational Safety
    and Health
  • AIHA, American Industrial Hygiene Association
  • ACGIH, American Conference of Governmental
    Industrial Hygienists.

10
OSHA and NIOSH
  • Created in 1970s by same act of congress
  • MSHA was earlier,
  • OSHA
  • Law enforcement
  • Department of Labor
  • NIOSH
  • Science
  • Center for Disease Control in PHS.

11
AIHA and ACGIH
  • Industrial hygiene science of workplace health
  • AIHA accredits laboratories
  • ACGIH produces TLVs
  • safe values

12
Occupational Standards
  • OSHA, PELs
  • (CFR, code of federal regulations, on line)
  • PELs
  • ACGIH, TLVs
  • NIOSH, RELs
  • DFK, MAKs

13
TLVs
  • Of the approximately 450 standards
  • 15 have human or otherwise well tested
  • 25 have some animal testing
  • 60 Based on analogy, supposed, or
    traditional.

14
OSHA
  • OSHA main site OSHA
  • 1910 Subpart Z
  • 1910.1000
  • History of Tables
  • ANSI list
  • lawsuits

15
Contaminant Particulates
  • Asbestos
  • Quartz
  • Dust

16
Asbestos is useful
  • Asbestos used since ancient times
  • Fireproof
  • WW II ship building
  • Insulation
  • 1950s Schools
  • Sound proofing,
  • Many materials
  • Strength of fibers, chemical resistant

17
Asbestos kills
  • About 10,000 persons die each year from asbestos
    related disease
  • 1,000 from mesothelioma
  • 4,000 from asbestosis
  • 5,000 from lung cancer
  • (correlated with cigarette smoking)
  • 20 to 40 year latency period
  • Airborne fibers, not parent material

18
Asbestos is regulated
  • OSHA regulates workplace exposures
  • EPA regulates schools
  • EPA regulates disposal process

19
Asbestos Minerals
Insert SiO4
  • Asbestos is a commercial term
  • Polysilicate minerals

20
10 u /-
21
Amphiboles
lisa m applebee structure
  • Amosite (Mg, Fe)
  • Actinolite (Ca, Mg, Fe)
  • Anthophyllite (Mg, Fe)
  • Crocidolite (Na, Fe, Fe)
  • Tremolite (Ca, Mg)

22
Serpentine
  • Chrysotile (Mg)

23
Respiratory Tract
  • Anatomy
  • Physiology
  • Notes on the asbestos diseases

24
Asbestosis
  • Fibrotic lung disease
  • Lungs fill with scar tissue
  • restrictive lung disease, stiff
  • oxygen transport reduced
  • breathing labored

25
Gallery
  • Boston University School of Public Health
  • Breath Taken The Landscape Biography of
    asbestos
  • http//www/busph.bu.edu/Gallery

26
Normal Lung
27
Honeycombing
28
Asbesosis
29
Asbestos, clubbing of fingers
30
Hairdresser, combed from hair
31
Mesothelioma
  • Cancer of the lining of the abdominal cavity
  • Or thoracic cavity
  • Fatal

32

childhood exposure father worked in plant and
died of asbestosis note tumor on right side,
fills with fluid
33
  • Mesothelioma is a rare cancer
  • 2 deaths per million populations
  • But in a study of asbestos insulation workers
    there were 175 deaths from mesothelioma.

34
Lung Cancer
  • 32 of 41 studies indicated statistically
    significant increase in lung cancer of asbestos
    workers
  • Non-smokers were 5-fold higher than non-exposed
  • Smoking asbestos workers were much higher 50- to
    90-fold

35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Toxicology, Fiber type
  • Some studies indicate chrysotile can cause
    mesothelioma
  • Most indicate amphiboles, especially crocidolite
  • Some authors have concluded amphiboles are 100
    times more potent than chrysotile in inducing
    mesothelioma.

39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
particle
fiber
44
Clearance and fiber size
  • Residents of cities breath several hundred grams
    of particles over a lifetime
  • Only a few grams at autopsy
  • Most are cleared from lung
  • Sorting in the airways by aerodynamic diameter
  • Thin fibers penetrate much deeper than round
    particles of similar diameter

45
Clearance mechanism by location of deposition
  • Nasal clearance
  • in from of ciliated, by sneezing or blowing
  • further back swept down and swallowed
  • Tracheobronchial cleared via cilia
  • mucociliary escalator
  • Alveolar
  • macrophage

46
Macrophages
Robins pg. 757
  • Digest particles
  • Carry towards ciliated airway
  • Can wind up in lymph nodes and elsewhere
  • especially is surface route is overwhelmed

47
Macrophage
48
Macrophage
49
Clearance
  • Fibers less than 1 micron cleared half-life of 10
    days
  • Fibers longer than 16 micron, half-life over 100
    days
  • Maximum fiber length of one macrophage about
    16-17 microns

50
Disease vs. fiber length
  • Animal studies
  • Dust rich in f lt 5 ? less lung cancer
  • Dust rich in f gt 5 ? more lung cancer
  • Asbestosis associated f gt 2 ?
  • Lung cancer f gt 5 ?
  • Mesothelioma f gt 10 ?

51
Dose-Response
  • Measured in fibers per cc
  • f/cc
  • Usually states longer than 5 u.
  • EPA uses structures for some purposes
  • but
  • Disease incidence is proportional to exposure.

52
Dose-Response
  • 10 f/cc-yr has been suggests as threshold for
    asbestosis. (0.2 f/cc for 50 years)
  • OSHA PELs (over 5 microns)
  • 12 f/cc in 1971
  • 5 f/cc in 1972
  • 2 f/cc in the early 1980s
  • 0.2 f/cc in 1986
  • Now 0.1 f/cc.

53
Dose-Response, Epidemiology
  • Lowest dose that produced tumors
  • 16 of 19 studies lowest dose was
    gt 10 f/cc yr
  • 14 of 19 studies lowest dose was
    gt 20 f/cc yr
  • 3 studies lowest dose was lt 10 f/cc yr

54
Dose-Response, estimated
  • For 1 excess lung cancer / 10,000 ATSDR
  • For environmental (24 hrs, 365 days)
  • 0.35 f/cc yr (non-smokers)
  • For workers (40 hrs, 50 weeks)
  • 1.5 f/cc yr
  • 0.1 f/cc for 15 yrs
  • 0.05 f/cc for 30 yrs
  • OSHA uses 1 / 1000 for significance, sometimes.

55
ACGIH TLVs
  • Amosite 0.5 f/cc, A1
  • Chrysotile 2.0 f/cc, A1
  • Crocidolite 0.2 f/cc, A1
  • Other forms 2.0 f/cc, A1
  • (New TLVs do not distinguish fiber type

56
Toxicity, Summary
  • Airborne asbestos fibers are a significant health
    hazard
  • 0.1 f/cc (OSHA PEL) for mixed fiber types is
    reasonable
  • Chrysotile is less toxic than amphiboles
  • Fibers less than 5 microns long are less toxic
    than fibers over 16 microns

57
Microscopy
  • PCM phase contrast microscopy
  • and more PCM
  • NIOSH 7400
  • workhorse
  • Cheap, done on job
  • count all fibers longer than 5 microns
  • Does not distinguish asbestos from non-asbestos

58
PCM of Fiber Bundle
59
Microscopy
  • TEM transmission electron microscopy
  • can distinguish asbestos fibers and their mineral
    type
  • expensive (10-15 times PCM)
  • can count small fibers
  • Beam of electrons from bottom
  • just like PCM

60
(No Transcript)
61
TEM of virus
62
SEM
  • Scanning Electron Microscopy
  • Shines the electrons in from the top
  • Scans
  • Shows surface features.

63
SEM
64
Microscopy
  • PLM polarized light microscopy
  • can distinguish asbestos from non-asbestos
  • not used for air samples
  • yields percentage of asbestos fibers in bulk

65
  • Most minerals are translucent (i.e., if the
    mineral grain is thin enough then the light will
    pass through).
  • Analyst examines light that passes through a
    given sample
  • It has interacted with the internal structure of
    the mineral grains.
  • The light emerges from the sample it has been
    altered due to interactions within the mineral
    grains.
  • Each mineral is unique in its composition and/or
    structure so each mineral has a unique affect on
    light when it passes through it.
  • Thus interpreting the emergent light allows a
    geologist to identify minerals with great
    accuracy.

66
PLM of fibers
67
Microscopy
  • NIOSH 7400/7402
  • uses TEM to determine of asbestos in PCM
  • standard method (OSHA hybrid similar)
  • EPA Level II
  • TEM
  • measures small fibers (lt 5 microns) as well as
    larger

68
Summary of Microscopes
  • PCM, Phase Contrast Microscope
  • 400 X, transparent
  • PLM, Polarized Light
  • 400 X, mineral identification
  • Binocular
  • 400 X, dissection and gross identification
  • TEM
  • very powerful, expensive, identification
  • SEM
  • vivid pictures

69
Quartz
70
Quartz
  • Silicon dioxide (SiO2)
  • Occurs in a crystalline or noncrystalline
    (amorphous) form.
  • Crystalline silica may be found in more than one
    form (polymorphism).
  • The polymorphic forms of crystalline silica are
    alpha quartz, beta quartz, tridymite,
    cristobalite, keatite, coesite, stishovite, and
    moganite
  • Some more toxic than others

71
Inhalation of Quartz
  • silicosis, kills 200 300 each year
  • pulmonary tuberculosis (TB), lung cancer, and
    scleroderma.
  • A rare multisystem disorder characterized by
    inflammatory, vascular, and fibrotic changes
    usually involving the skin, blood vessels,
    joints, and skeletal muscle

72
Silicosis
  • Silicosis is similar to asbestosis and emphysema,
    a scarring and hardening of the lungs
  • Mediated by auto-immune problems
  • Can kill relatively quickly in sensitive
    individuals,
  • 2 to 5 years of exposure
  • sandblasters (sand no longer used in US.)

73
Monitoring Silica
  • Particles size
  • Crystal structure
  • Use special techniques
  • XRD Spectrometry
  • IR Spectrometry
  • Colorimetric Spectrophotometry

74
Dust
  • Nuisance Dust

75
How to collect samples
  • Draw known amount of air over a filter.
  • Filter traps particles
  • Dissolve filter for PCM
  • material must permit
  • For silica, use cyclone to separate respirable
    particles
  • For dust, must weight filter before and after
  • Use PVC filter
  • More on air volume a little later.

76
How about gases
  • Hundreds on list(s)
  • What are we monitoring
  • And Why?

77
What Chemical
  • Do we know?
  • Liquid
  • Gas
  • Particle

78
Chemical Properties
  • Major division
  • Hydrophobic vs. hydrophilic
  • Reactive or
  • Flammable
  • Explosive
  • Other chemicals present

79
Process characteristics
  • Sudden releases
  • Ambient
  • History

80
Receptor characteristics
  • Most highly exposed worker
  • All workers
  • Area
  • Work tasks
  • exertions
  • clothing

81
Exposure route
  • Inhalation
  • Dermal
  • Ingestion

82
Air contaminant terms
  • Gas
  • gas at NTP
  • Vapor
  • fume
  • aerosol
  • fog
  • smog

83
Health Hazards
  • Asphyxiation
  • Narcosis
  • Chronic toxicity
  • Acutely toxic

84
Once you know where you are going
  • Regulations may specify
  • Manufactures and suppliers literature
  • Industrial hygiene professional(CIH)

85
Two main divisions
  • Air sampling
  • Take a sample and analyze elsewhere
  • Direct reading
  • real time

86
Explosive
  • Sampling or Direct?

87
Sampling Objective
  • Documenting exposures
  • Regulation compliance
  • Pinpointing sources

88
Acute Hazard
  • Alarms

89
Chronic hazard
  • Usually health

90
Summary of sampling method criteria
  • Sampling Objective
  • Physical and chemical characteristics of chemical
  • Presence of other chemicals
  • Required accuracy and precision
  • Regulatory requirements

91
Summary of sampling method criteria, cont.
  • Portability and ease of operation
  • Cost
  • Reliability
  • Type area, personal, grab, integrated, etc.
  • Duration of sampling and program.

92
Air sampling devices
  • Collect and take to laboratory

93
SKC
  • SKC

94
Breathing zone
6-9
95
Sampling Train
Collection device
Air inlet orifice
Flow rate control
Airflow meter
Suction pump
96
Grab vs. Integrated
  • Vacuum bottles
  • Bags
  • http//www.skcinc.com/prod/tsb.html

97
Integrated
  • Absorption
  • Adsorption
  • Filters
  • Cyclones
  • Electrostatic
  • Inertial
  • Impinger
  • Elutriators

98
Absorption
  • Highly soluble and non-reactive
  • Reactive
  • Similar
  • Gas wash
  • spiral
  • fritted glass
  • glass beads

99
Gas Washing
http//www.skcinc.com/prod/impinger.html
100
Adsorption
  • http//www.skcinc.com/abosor.html
  • Passive http//www.skcinc.com/passamp.html

101
Filters
  • http//www.skcinc.com/prod/filters.html (good
    intro)
  • Respirable dust and selective filtration
  • http//www.skcinc.com/prod/ACyclone.html

102
Calibration
  • Mass of chemical determined in laboratory

103
(No Transcript)
104
Primary vs. Secondary
  • Secondary
  • Gas meters
  • Rotameters
  • http//www.skcinc.com/prod/frott.html
  • Primary
  • http//www.skcinc.com/prod/sfflow.html

105
Direct Reading
  • Colormetric
  • Length of stain
  • Draeger
  • Tubes
  • /- 25 is an oft quoted reliability
  • Advantages
  • cheap
  • fast

106
Direct Reading, electronic
  • Most use Wheatstone Bridge

Variable R
R
M
R
R
107
Sensor changes conductivity
  • Change with temperature
  • LEL/UEL
  • Change with gas
  • O2, etc.

108
Calibration
  • Gas supply

109
NFPA
  • National Fire Protection Association
  • Standards setting body
  • Flammable Liquid
  • Combustible Liquid

110
Flash Point
  • The flash point is a Temperature.
  • It is lowest temperature at which the liquid
    gives off enough vapor to form an ignitable
    mixture with the air above the mixture.
  • Determined by closed-cup and a variety of test
    methods.

111
Flammable Liquid
  • Flammable has flash point below 100 F (37.8 C)

112
Combustible Liquid
  • Flash point above 100 F.

113
Flammable RangeAKA Explosive Range
  • LEL, Lower Explosive Limit. Minimum
    concentration of vapors, below which propagation
    of flame does not take place. The mix is too
    lean.
  • UEL, Upper Explosive Limit. Maximum
    concentration of vapors, above which propagation
    of flame does not take place. The mix is too
    rich.

114
LEL-UEL
  • Typically expressed as vapor of atmosphere.
  • For many liquids (or gases), the LEL is 6 to 12
  • Table in book lists some in 1 to 2 range
  • Contrast with TLV. Most TLVs are 100s or 1000s
    PPM, while 1 is 10,000 PPM. So if vapor is less
    than TLV, much less than LEL.

115
If you dont remember anything else
  • Cannot use combustion gas meters to check if low
    oxygen

116
Environmental vs. Workplace
117
Chemical EPA(mg/m3) OSHA (mg/m3) Carbon
10.4 58 555 monoxide Styrene 1
425 42500 Carbon 0.7 62 8850
disulfide
118
MSDS
  • Material Safety Data Sheet
  • Manufactures and Suppliers of chemicals must
    supply.
  • Heres a site, Safety
  • Always start with MSDS
  • Available
  • Simple
  • One place
  • Dont rely on, dimethylmercury

119
Summary
  • Must know what you are sampling for
  • Why you are sampling
  • Must calibrate
  • Must keep records
  • Talk to the lab.
Write a Comment
User Comments (0)
About PowerShow.com
