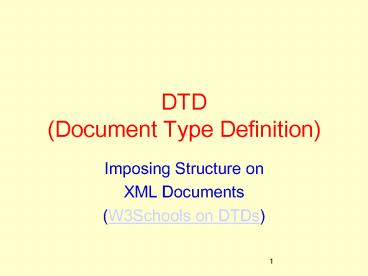

DTD (Document Type Definition)

1
DTD(Document Type Definition)

• Imposing Structure on
• XML Documents
• (W3Schools on DTDs)

2
Motivation

• A DTD adds syntactical requirements in addition
  to the well-formed requirement
• It helps in eliminating errors when creating or
  editing XML documents
• It clarifies the intended semantics
• It simplifies the processing of XML documents

3
An Example

• In an address book, where can a phone number
  appear?
• Under ltpersongt, under ltnamegt or under both?
• If we have to check for all possibilities,
  processing takes longer and it may not be clear
  to whom a phone belongs

4
Document Type Definitions

• Document Type Definitions (DTDs) impose structure
  on XML documents
• There is some relationship between a DTD and a
  schema, but it is not close hence the need for
  additional typing systems (XML schemas)
• The DTD is a syntactic specification

5
Example An Address Book

• ltpersongt
• ltnamegt Homer Simpson lt/namegt
• ltgreetgt Dr. H. Simpson lt/greetgt
• ltaddrgt1234 Springwater Road lt/addrgt
• ltaddrgt Springfield USA, 98765 lt/addrgt
• lttelgt [phone] lt/telgt
• ltfaxgt [phone] lt/faxgt
• lttelgt [phone] lt/telgt
• ltemailgt homer_at_math.springfield.edu lt/emailgt
• lt/persongt

6
Specifying the Structure

• name to specify a name element
• greet? to specify an optional (0 or 1)
  greet elements
• name, greet? to specify a name followed by
  an optional greet

7
Specifying the Structure (contd)

• addr to specify 0 or more address lines
• tel fax a tel or a fax element
• (tel fax) 0 or more repeats of tel or fax
• email 0 or more email elements

8
Specifying the Structure (contd)

• So the whole structure of a person entry is
  specified by
• name, greet?, addr, (tel fax), email
• This is known as a regular expression

9
Element Type Definition

• for each element type E, a declaration of the
  form
• lt!ELEMENT E Pgt
• where P is a regular expression, i.e.,
• P EMPTY ANY PCDATA E
• P1, P2 P1 P2 P? P P
• E element type
• P1 , P2 concatenation
• P1 P2 disjunction
• P? optional
• P one or more occurrences
• P the Kleene closure

10
Summary of Regular Expressions

• A The tag (i.e., element) A occurs
• e1,e2 The expression e1 followed by e2
• e 0 or more occurrences of e
• e? Optional 0 or 1 occurrences
• e 1 or more occurrences
• e1 e2 either e1 or e2
• (e) grouping

11
The Definition of an Element Consists of Exactly
One of the Following

• A regular expression (as defined earlier)
• EMPTY means that the element has no content
• ANY means that content can be any mixture of
  PCDATA and elements defined in the DTD
• Mixed content which is defined as described on
  the next slide
• (PCDATA)

12
The Definition of Mixed Content

• Mixed content is described by a repeatable OR
  group
• (PCDATA element-name )
• Inside the group, no regular expressions just
  element names
• PCDATA must be first followed by 0 or more
  element names, separated by
• The group can be repeated 0 or more times

13
An Address-Book XML Document with an Internal DTD

• lt?xml version"1.0" encoding"UTF-8"?gt
• lt!DOCTYPE addressbook
• lt!ELEMENT addressbook (person)gt
• lt!ELEMENT person
• (name, greet?, address, (fax tel),
  email)gt
• lt!ELEMENT name (PCDATA)gt
• lt!ELEMENT greet (PCDATA)gt
• lt!ELEMENT address (PCDATA)gt
• lt!ELEMENT tel (PCDATA)gt
• lt!ELEMENT fax (PCDATA)gt
• lt!ELEMENT email (PCDATA)gt
• gt

The syntax of a DTD is not XML syntax
14
The Rest of theAddress-Book XML Document
ltaddressbookgt ltpersongt ltnamegt Jeff
Cohen lt/namegt ltgreetgt Dr. Cohen
lt/greetgt ltemailgt jc_at_penny.com lt/emailgt
lt/persongt lt/addressbookgt
15
Regular Expressions

• Each regular expression determines a
  corresponding finite-state automaton
• Lets start with a simpler example
• name, addr, email

A double circle denotes an accepting state
This suggests a simple parsing program
16
Another Example

• name,address,(tel fax),email

17
Some Things are Hard to Specify

• Each employee element should contain name, age
  and ssn elements in some order
• lt!ELEMENT employee
• ( (name, age, ssn) (age, ssn, name)
• (ssn, name, age) ...
• )gt
• Suppose that there were many more fields!

18
Some Things are Hard to Specify (contd)

• lt!ELEMENT employee
• ( (name, age, ssn) (age, ssn, name)
• (ssn, name, age) ...
• )gt
• Suppose there were many more fields!

There are n! different orders of n elements It
is not even polynomial
19
Specifying Attributes in the DTD

• lt!ELEMENT height (PCDATA)gt
• lt!ATTLIST height
• dimension CDATA REQUIRED
• accuracy CDATA IMPLIED gt
• The dimension attribute is required
• The accuracy attribute is optional
• CDATA is the type of the attribute it means
  character data, and may take any literal string
  as a value

20
The Format of an Attribute Definition

• lt!ATTLIST element-name attr-name attr-type
  default-valuegt
• The default value is given inside quotes
• attribute types
• CDATA
• ID, IDREF, IDREFS

21
Summary of AttributeDefault Values

• REQUIRED means that the attribute must by
  included in the element
• IMPLIED
• FIXED value
• The given value (inside quotes) is the only
  possible one
• value
• The default value of the attribute if none is
  given

22
Recursive DTDs

• ltDOCTYPE genealogy
• lt!ELEMENT genealogy (person)gt
• lt!ELEMENT person (
• name,
• dateOfBirth,
• person, -- mother
• person )gt -- father
• ...
• gt
• What is the problem with this?
• A parser does not notice it!

Each person should have a father and a mother.
This leads to either infinite data or a person
that is a descendent of herself.
23
Recursive DTDs (contd)

• ltDOCTYPE genealogy
• lt!ELEMENT genealogy (person)gt
• lt!ELEMENT person (
• name,
• dateOfBirth,
• person?, -- mother
• person? )gt -- father
• ...
• gt
• What is now the problem with this?

If a person only has a father, how can you
tell that he has a father and does not have a
mother?
24
Using ID and IDREF Attributes

• lt!DOCTYPE family
• lt!ELEMENT family (person)gt
• lt!ELEMENT person (name)gt
• lt!ELEMENT name (PCDATA)gt
• lt!ATTLIST person
• id ID REQUIRED
• mother IDREF IMPLIED
• father IDREF IMPLIED
• children IDREFS IMPLIEDgt
• gt

25
IDs and IDREFs

• ID attribute unique within the entire document.
• An element can have at most one ID attribute.
• No default (fixed default) value is allowed.
• required a value must be provided
• implied a value is optional
• IDREF attribute its value must be some other
  elements ID value in the document.
• IDREFS attribute its value is a set, each
  element of the set is the ID value of some other
  element in the document.
• ltperson id898 father332 mother336
• children982 984 986gt

26
Some Conforming Data

• ltfamilygt
• ltperson idlisa mothermarge
  fatherhomergt
• ltnamegt Lisa Simpson lt/namegt
• lt/persongt
• ltperson idbart mothermarge
  fatherhomergt
• ltnamegt Bart Simpson lt/namegt
• lt/persongt
• ltperson idmarge childrenbart lisagt
• ltnamegt Marge Simpson lt/namegt
• lt/persongt
• ltperson idhomer childrenbart lisagt
• ltnamegt Homer Simpson lt/namegt
• lt/persongt
• lt/familygt

27
ID References do not Have Types

• The attributes mother and father are references
  to IDs of other elements
• However, those are not necessarily person
  elements!
• The mother attribute is not necessarily a
  reference to a female person

28
An Alternative Specification

• lt?xml version"1.0" encoding"UTF-8"?gt
• lt!DOCTYPE family
• lt!ELEMENT family (person)gt
• lt!ELEMENT person (name, mother?, father?,
  children?)gt
• lt!ATTLIST person id ID REQUIREDgt
• lt!ELEMENT name (PCDATA)gt
• lt!ELEMENT mother EMPTYgt
• lt!ATTLIST mother idref IDREF REQUIREDgt
• lt!ELEMENT father EMPTYgt
• lt!ATTLIST father idref IDREF REQUIREDgt
• lt!ELEMENT children EMPTYgt
• lt!ATTLIST children idrefs IDREFS REQUIREDgt
• gt

29
The Revised Data

• ltperson id"bart"gt
• ltnamegt Bart Simpson lt/namegt
• ltmother idref"marge"/gt
• ltfather idref"homer"/gt
• lt/persongt
• ltperson id"lisa"gt
• ltnamegt Lisa
• Simpson lt/namegt
• ltmother idref"marge"/gt
• ltfather idref"homer"/gt
• lt/persongt
• lt/familygt

• ltfamilygt
• ltperson id"marge"gt
• ltnamegt Marge
• Simpson lt/namegt
• ltchildren idrefs"bart lisa"/gt
• lt/persongt
• ltperson id"homer"gt
• ltnamegt Homer
• Simpson lt/namegt
• ltchildren idrefs"bart lisa"/gt
• lt/persongt

30
Consistency of ID and IDREF Attribute Values

• If an attribute is declared as ID
• The associated value must be distinct, i.e.,
  different elements (in the given document) must
  have different values for the ID attribute (no
  confusion)
• Even if the two elements have different element
  names
• If an attribute is declared as IDREF
• The associated value must exist as the value of
  some ID attribute (no dangling pointers)
• Similarly for all the values of an IDREFS
  attribute
• ID, IDREF and IDREFS attributes are not typed

31
Adding a DTD to the Document

• A DTD can be internal
• The DTD is part of the document file
• or external
• The DTD and the document are on separate files
• An external DTD may reside
• In the local file system
• (where the document is)
• In a remote file system

32
Connecting a Document with its DTD

• An internal DTD
• lt?xml version"1.0"?gt
• lt!DOCTYPE db lt!ELEMENT ...gt gt
• ltdbgt ... lt/dbgt
• A DTD from the local file system
• lt!DOCTYPE db SYSTEM "schema.dtd"gt
• A DTD from a remote file system
• lt!DOCTYPE db SYSTEM
  "http//www.schemaauthority.com/schema.dtd"gt

33
Well-Formed XML Documents

• An XML document (with or without a DTD) is
  well-formed if
• Tags are syntactically correct
• Every tag has an end tag
• Tags are properly nested
• There is a root tag
• A start tag does not have two occurrences of the
  same attribute

An XML document must be well formed
34
Valid Documents

• A well-formed XML document isvalid if it
  conforms to its DTD, that is,
• The document conforms to the regular-expression
  grammar,
• The types of attributes are correct, and
• The constraints on references are satisfied
