Applications of Obonok HDMI-over-UTP/CatX Products

1

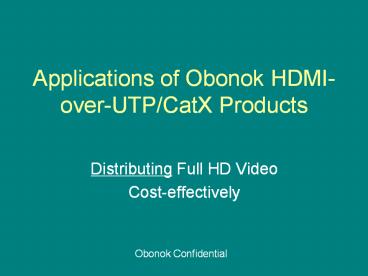

Applications of Obonok HDMI-over-UTP/CatX Products

• Distributing Full HD Video
• Cost-effectively

Obonok Confidential
2
The Manufacturer

• Obonok Technologies based in a free-trade zone
  4 hours outside Shanghai
• 2 years old
• Initial focus HDMI signal distribution RD
• First set of products ships in late June
• Seeking sales/marketing partners
• Manufacturers rep InteractAV Management, LLC
  Randy Young
• Contact phone [phone]

3
Extension Issues

• Limited to one source and one display
• Distance limitations
• Expense of long HDMI/DVI cables
• Extenders using costly multiple fibers or
  multiple shielded CatX cables

4
Obonok Solutions

• Distribution from one source to up to 2049
  displays
• Extension range to 1600 feet
• Inexpensive UTP CatX cables
• Easy deployment no adjustments

5
Introduction to Obonok HDMI-over-UTP-CAT5/6
products

• Design based on two cutting-edge core
  technologies
• Enable customers to distribute a single HD video
  source to up 2049 displays and up to 1600 feet of
  distance in a highly cost-effective manner
• Distribute HD video digitally and do not compress
  the data, to achieve the highest possible quality
• Support full HD (1080p) and are fully HDCP
  compliant

6
Core Technologies

• ASIC-based HDMI splitters
• A single ASIC splits one HDMI source into two
  identical sources
• A 1xN HDMI splitter is built using (N-1) ASIC
  chips
• All Obonok HDMI-over-UTP/CatX products use the
  same ASIC as the basic building block

7
Core Technologies contd

• Patent pending (US 6,0956,684 and 6,0968,046)
  HDMI over a single UTP/ CatX technology
• HDMI signals are converted to transmit through a
  single UTP/CatX cable / 150 or more each hop
• These are the keys to distributing HD video in a
  highly cost-effective manner

8
Obonok Advantages vs. Gefen HDMI Cat-5 Extreme

• Lower cost
• Unit pricing
• One CatX cable vs. two
• UTP vs. shielded
• Much easier installation / setup / maintenance
• One cable
• No adjustments on transmitter or receiver, vs.
  dipswitches on both Gefen units
• No power needed for point-to-point receiver
  regardless of distance

9
Obonok Advantages vs. Gefen HDMI Cat-5 Extreme
(cont.)

• More robust
• Patent pending technologies
• Less sensitive to interference from cell phones
• Breadth of product line
• 1x4 transmitter
• Daisy-chain receivers
• DAs
• CatX switches
• Far superior distance and signal distribution
  capability not simply point-to-point

10
How can Obonok extend HDMI HDCP over one UTP?

• TMDS Transition Minimized Differential
  Signaling data packets
• Contain encoded video, audio and control data
• Obonok further encrypts/encodes TMDS digital
  video data with HDCP
• One of Obonoks core technologies / patent pending

11
HDMI Connector
12
How can Obonok daisy-chain its receivers out to
1600 feet?

• Adaptive equalizer automatically adjusts the
  overall gain based on the variable losses due to
  the cable length / coupling
• Proprietary matching networks at both the
  transmitter receiver
• Proprietary clock jitter removal
• Next receiver sees clean TMDS signals, as if
  connected to the video source

13
HDMI-over-UTP Products

• HD-SP0104
• 1x4 Splitter (one HDMI in, 4 HDMI out).

H-gt4H
14
HDMI-over-UTP Products contd

• HD-EX0101T
• 1x1 Extender Transmitter (one HDMI in, one UTP
  out)
• Works with HD-EX0101R or HD-EX0101RD to extend
  150 feet via UTP/CatX cable.

H-gtU
15
HDMI-over-UTP Products contd

• HD-EX0101R
• 1x1 Extender Receiver (one UTP in, one HDMI out)
• No DC adaptor is needed
• Works with HD-EX0101T to extend 150 feet

U-gtH
16
HDMI-over-UTP Products contd

• HD-EX0101RD
• 1x1 Extender Daisy-chain Receiver (one UTP in,
  one UTP out, one HDMI out)
• Works with HD-EX0101T to extend 150 feet

U-gtU -gtH
17
HDMI-over-UTP Products contd

• HD-EX0103RD
• 1x3 Extender Daisy-chain Receiver (one UTP in,
  one UTP out, one HDMI out)
• Works with HD-EX0101T to extend 150 feet

U-gtU -gt3H
18
HDMI-over-UTP Products contd

• HD-EX0104T
• 1x4 Extender (one HDMI in, one HDMI out, 4 UTP
  out)
• The HDMI output is ideal for a local monitor

H-gtH -gt4U
19
HDMI-over-UTP Products contd

• HD-DS0108T
• 1x8 Distributor
• One UTP in, 8 UTP out

U-gt8U
20
HDMI Cable vs. UTP Cable

• Technically an HDMI cable can reach up to 75
  feet. But HDMI cables over 30 feet are bulky,
  expensive and usually need special orders.
• A 60-foot HDMI cable costs about 350.

• UTP cables are widely available.
• A 150-foot UTP Cat6 cable costs around 35.

21
HDMI Cable vs. UTP Cable contd

• HDMI cables are heavier, thicker and less
  flexible their length is fixed.

• UTP cables are lighter, thinner and more
  flexible multiple shorter cables can be easily
  connected to create a longer one.
• Most buildings are pre-wired with UTP cables.
• Using UTP cable can greatly reduce over-all
  engineering costs.

22
Application 1

• Extending one HD source to one display up to 150
  feet

HD source
H-gtU
U-gtH
23
Application 2

• Splitting one HD source to 4 displays

HD source
H-gt4H
24
Application 3

• Splitting one HD source to 4 displays and
  extending to 150 feet, plus a local monitor

U-gtH
H-gtH -gt4U
U-gtH
HD source
U-gtH
U-gtH
25
Application 4
Application 4

• Distributing one HD source

• Distributing one HD source to 5 displays which
  are each located 150 feet apart from each other.
  Highly cost-efficient.

U-gtU -gtH
U-gtU -gtH
U-gtU -gtH
U-gtU -gtH
HD source
H-gtU
U-gtH
26
Application 5

• Splitting one HD source to up to 256 by cascading
• 1 -gt 4 -gt 16 -gt 64 -gt
  256

H-gt4H
H-gt4H
H-gt4H
HD source
H-gt4H
x4
x16
x64
H-gt4H
H-gt4H
H-gt4H
27
Application 6

• Distributing one HD source to up to 2049 displays
  and up to 600 feet by cascading

U-gt8U
U-gt8U
U-gt8U
U-gtH
H-gtH -gt4U
HD source
x4
x32
x256
x2048
U-gt8U
U-gt8U
U-gt8U
U-gtH
28
Application Notes

• The above are six typical applications.
• represents UTP cables up to 150 feet.
• represents short HDMI cables.
• HDMI and DVI are interchangeable by using an
  HDMI/DVI adaptor or an HDMI/DVI converter cable.
• UTP cables are hot-pluggable.
• HDMI/DVI cables are generally not hot-pluggable.

29
Application Notes contd

• The above six applications can be combined to
  create an almost unlimited number of variations
• To reduce cost, only use HDMI cables when
  connected either to the source or to the
  displays use UTP cables for all intermediate
  transmission

30
Summary

• Obonok Technologies has the HDMI distribution
  product line with the best technology in the
  world, right now Blu-Wire
• Obonoks Blu-Wire and Blu-Eye Series will soon
  become the industry leader with their broad range
  of extremely capable HDMI distribution gear
• Cost-effective point-to-point pairs
• Multi-output transmitters
• Daisy-chain, multi-output receivers
• DAs
• Large switches
• Fiber versions
