Title: GIS Lecture 3


1

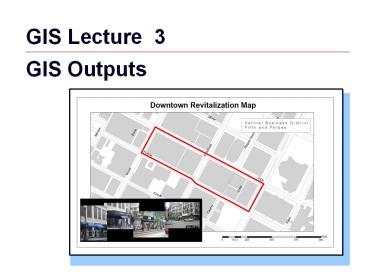

GIS Lecture 3 GIS Outputs
2
Outline
  • Map Design Principles
  • Map Audiences
  • Map Layouts
  • Scales
  • Multiple Maps
  • Reports and Graphs on a Layout
  • Exporting Maps
  • Other Map Outputs

3
Map Design Principles
  • Design maps for appropriate medium
  • Print vs. electronic
  • Link layouts to map purpose
  • Planning a layout
  • Choose appropriate export options

4
Map Audiences
  • Map Use Exploration Presentation
  • Audience Trained Analyst General Public

5
Map Audiences
  • Map Use Exploration Presentation
  • Audience Trained Analyst General Public
  • Purpose Visual Thinking Communication

6
Map Audiences
  • Map Use Exploration Presentation
  • Audience Trained Analyst General Public
  • Purpose Visual Thinking Communication
  • Advantages Graphical Believable

7
Map Audiences
  • Map Use Exploration Presentation
  • Audience Trained Analyst General Public
  • Purpose Visual Thinking Communication
  • Advantages Graphical Believable
  • Granularity Fine Coarse

8
Map Audiences
  • Map Use Exploration Presentation
  • Audience Trained Analyst General Public
  • Purpose Visual Thinking Communication
  • Advantages Graphical Believable
  • Granularity Fine Coarse
  • Symbols Abstract Mimetic

capital
railroad
9
(No Transcript)
10
Number of Pedestrian Injuries by
Neighborhood City of Pittsburgh
Data obtained from Childrens Hospital of
Pittsburgh, 2000-2005
11
Population under 14 by Neighborhood City of
Pittsburgh
Data obtained from U.S Census, 2000
12
Injury Rate by Neighborhood City of Pittsburgh
Data obtained from Childrens Hospital of
Pittsburgh, 2000-2005
13
Map Layouts
14
Map Layouts
  • Includes all of the elements of a stand alone map
  • Make the map the largest and most prominent
    element of the layout
  • Put a rectangular boundary around the map (called
    a neat line by cartographers) to help draw
    attention to it as the central element
  • Include a map title
  • The title needs to include information minimally
    answering the three questions what, where, and
    when.

15
Map Layouts (Continued)
  • Include a legend for symbols placed in the
    lower-right or left of the layout
  • No need to label it Legend. Everyone will know
    what it is (this eliminates chart junk)
  • Include data sources
  • Ensure legibility
  • Include a graphic map scale if your audience is
    not familiar with the area shown
  • Do not include a north arrow unless the top of
    your map is not north

16
Map Layouts (Continued)
  • Occasionally include other components as needed
    such as a data table listing, a frequency bar
    chart for the attribute of a choropleth map, or a
    photograph

17
ArcView Layouts
18
(No Transcript)
19
Other Map Elements
  • Neatline, Scale, Additional Text, Photos

20
Example of a bad map...
21
A better map
22
Map Scales
23
Dimensionless Map Scales
  • ratio that relates a unit of measure on a map to
    some number of the same units of measure on the
    earth's surface
  • 125,000
  • tells us that 1 unit of measure 25,000 of the
    same units on the earth's surface
  • 1 on the map 25,000 inches on the earth's
    surface
  • one meter or one yard or one kilometer or one
    mile would represent 25,000 meters or yards or
    kilometers or miles, respectively, on the earth's
    surface.

24
Large and Small Scale Maps
  • 15,000 is large scale

150,000,000 is small scale
25
Commonly Used Map Scales
http//id.water.usgs.gov/reference/map_scales.html
26
USGS Scales
http//www.carolinamapdistributors.com/products/to
po/mapscales.htm
27
Map Units
  • Feet or meter is the map unit for many local
    government GIS applications

28
Map Units
Inch is the map unit for CAD applications
29
Scale 1100,000
Scale
30
Scale 124,000
31
Scale 110,000
32
Scale 12,000
33
Multiple Maps, Reports, and Graphs
34
Multiple Maps Comparing Data
35
Reports and Graphs
36
Reports on a Layout
  • Select records to include

37
Reports on a Layout
  • Generate a report

38
Reports on a Layout
  • Add report to the layout

39
Graphs on a Layout
  • Select records to include
  • Create a graph and include on layout

40
Importing Charts
  • Create graph in excel
  • Copy and Paste object to layout

41
Exporting Maps
42
Exporting Maps
  • Export Images

43
Exporting Maps
  • Export Images

44
Exporting Maps
  • Export PDFs

45
Exporting Maps
  • Copying to PowerPoint
  • copy individual objects

46
Exporting Maps
  • Paste into PowerPoint or another application
  • paste objects individually

47
Other Outputs
48
Other Outputs
  • ARCIMS (Internet Mapping Server)
  • ArcExplorer (Free Viewer)
  • ArcReader (Free Viewer)

49
Other Outputs
  • WEB Based Interactive GIS
  • ArcIMS
  • http//www.esri.com/software/internetmaps

50
Other Outputs
  • Municipality of Anchorage, Anchorage Alaska
  • http//home.muni.org/contents1/maps.cfm

51
Other Outputs
  • ArcExplorer
  • Free GIS Viewing Application
  • http//www.esri.com/software/arcexplorer

52
Other Outputs
  • ArcReader
  • Free GIS Viewing Application
  • http//www.esri.com/software/arcgis/arcreader/inde
    x.html

53
Summary
  • Map Design Principles
  • Map Audiences
  • Map Layouts
  • Scales
  • Multiple Maps
  • Reports and Graphs on a Layout
  • Exporting Maps
  • Other Map Outputs
