Title: Knowledge Management using Business Process Modelling and Workflow Techniques

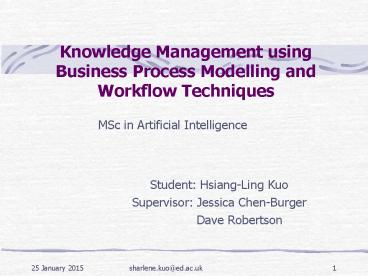

1
Knowledge Management using Business Process
Modelling and Workflow Techniques
MSc in Artificial Intelligence
  • Student Hsiang-Ling Kuo
  • Supervisor Jessica Chen-Burger
  • Dave Robertson

2
Outline
  • Problem Solution
  • Aim
  • Work
  • Conclusion
  • Future Work

3
Problem
  • Business are becoming larger and more diverse,
    the operation is more complex than before
  • Information technology is widely applied in
    business operations, it still lacks a precise way
    of communicating between business model and
    software system development.
  • The gap between Enterprise Models (EM) and
    Software Systems

4
Bridging The Gap between EM and Software Systems
Enterprise Models (EM)
Software System Development
Business Model
Relational DBMS
Workflow System
Business Process Model
OO DBMS
Automating BPM
Other Software Systems
Organisational Model
Mapping of Data Structure Concepts
Ontology
UML Class Diagram
Capability Model
Quality Assurance
Data Model
5
Solutions
  • Make use of one type of EM method Business
    Process Modelling (BPM) Method to bridge the gap
  • Build a workflow system (WFS) based on a business
    process model

6
Aim
  • Design a formal representation (called FBPML
    WorkFlow Language FWFL) that has a direct
    mapping to FBPML
  • Design and implement a generic workflow system
    that is domain independent and has a direct
    mapping to FBPML FWFL and its execution logic,
    but is open in its implementation details to
    allow multiple variations according to context
  • Design a three-level framework to analyse the
    business process model

7
Work
  • Review standard process modelling languages,
    IDEF3 and PSL, then introduce a business process
    modelling language FBPML resulting from their
    merger
  • Create a formal representation and define a
    workflow language called FWFL based on FBPML
  • Design and implement a workflow engine based on
    FWFL and demonstrate it using case studies

8
Work (Cont.)
  • Describe a three-level framework to verify and
    analyse the business process
  • Discuss the complexity of business process models
    is discussed
  • The comparison between FBPML FWFL, the
    application of Petri-Nets to workflow management
    and the research work done in the University of
    Queensland

9
Review
  • IDEF3
  • A process flow and object state description
    capture method
  • A domain expert can express knowledge about the
    operation of a particular system or organization
  • A well-throughout graphic notation
  • PSL (Process Specification Language)
  • An interchange language with which allows
    applications to exchange discrete process data
  • Facilitates the communication between those
    applications by using PSL-based translators
  • A well-defined ontology and formal semantics

10
Fundamental Business Process Modelling Language
(FBPML)
  • FBPML
  • A visual modelling language that is a merger of
    IDEF3 and PSL
  • It can support software and workflow system
    development
  • The notation of FBPML
  • Three types of nodes Main Node, Junction and
    Annotation

11
FBPML--Main Nodes and Junction Types
Source Chen-Burger (AKT project)
12
The semantics of four types of junctions
13
A Business Model example using FBPML
Adapted form AKT project
14
FBPML WorkFlow Language -- FWFL
  • A workflow language which is directly mapped to
    FBPML

15
The Definition of FWFL-- process
process(ProcessId, ProcessName, Pstate, TrigCond,
PreCond, Action)
  • Example 1
  • process(a, receiveCustomerReq, Pstate,
  • exist(event_occ(EventId,custom_req
    _for_pc_spec,created,
  • attribute(Attr))),
  • true,
  • create_entity(attribute(Attr))).
  • Example 2
  • process(b, autoCreateOrderNumber, Pstate,
  • true,
  • exist(data(customer-name/NameV,cu
    stomer-tel/telV)),
  • delay_time(4),
  • add_attribute(attribute(solution(
    customer-
  • orderNo/OrderNoV)))).

16
The Definition of FWFL-- instance
instance(InstanceId, InstanceName, Istate,
TrigCond, PreCond,
Action, BeginT/EndT)
  • Example 3 (The instance of example 2)
  • instance(b-i-'John',autoCreateOrderNumber,Istate,
  • true,
  • exist(data(customer-name/'John',
    customer-tel/'0131-5323241)),
  • delay_time(4),
  • add_attribute(attribute(solution
    (customer-orderNo/'001')))),
  • 1/2).

17
The Definition of FWFL -- entity
entity(EntityName, EntityId, EntityState,
EntityAttribute)
  • Example 4
  • entity_occ(ioBoard, io2, valid,
  • attribute(ioBoard-type/io2,
    ioBoard-slot/4,
  • ioBoard-length/long,
  • ioBoard-capability/(no
    rmal-graphics-long)))

18
The Definition of FWFL -- Junction and Model
  • junc(ModelId, JunctionType, PreProcesses,
    PostProcesses)
  • Example 5
  • junc(m1,start,,a).
  • junc(m1,link,a,b).
  • junc(m1,or_split,b,c,d,e,f,g).
  • junc(m1,and_joint,c,d,e,f,g,h).
  • junc(m1,end,h,).

19
FWFL Workflow system Architecture
20
FWFL Workflow System Flowchart
21
Workflow Meta-Interpreter
  • Top level
  • execute(Step)-
  • initial_state(flow_state(FState,T)),
  • execute_flow(initial,,1,Step,T,flow_state(
    FState,T)).
  • main predicate
  • BaseCase Compare "StepSofar" and termination
    "Step" which is
  • given from the user. If Step 'User
    define' then exit flow.
  • execute_flow(MState,ProcessAgenda,StepSofar,Step,T
    ,flow_state(FState,T)) - Step is StepSofar - 1.
  • Another baseCase at the end of each Model
    State and ProcessAgenda then exit flow.
  • execute_flow(MState,,StepSofar,Step,T,flow_state
    (FState,T))-
    check_mstate(MState).

22
Workflow Meta-Interpreter
  • Case1 When there are new events, create
    instances of the business process model.
  • execute_flow(MState,ProcessAgenda,StepSofar,Step,T
    ,flow_state(FState,T))-
  • check_event(MState,NewMState),
  • execute_flow(NewMState,ProcessAgenda,StepSofar
    ,Step,T,flow_state(FState,T)).
  • Case2 When there are no new events, execute
    the junctions for the instances of the business
    process model.
  • execute_flow(MState,ProcessAgenda,StepSofar,Step,T
    ,flow_state(FState,T))-
  • \ check_event(MState,_NewMState),
  • do_junction_process(MState,,NewMState,Proces
    sAgenda,
  • NewProAgenda,FState,T),
  • execute_process(NewProAgenda,NewProAgenda,NewP
    roAgenda1,FState,NFs,T),
  • update_time(T,NewT),
  • update_step(StepSofar,NewStep),
  • execute_flow(NewMState,NewProAgenda1,NewStep,S
    tep,NewT,
  • flow_state(NFs,NewT)).

23
Workflow Meta-Interpreter
  • Case3 When there are no new events and
    execution failure of the junctions for the
    instances of the business process model.
  • execute_flow(MState,ProcessAgenda,StepSofar,Step,T
    ,flow_state(FState,T))-
  • \ check_event(MState,NewMState),
  • \ do_junction_process(MState,,NewMState,Pro
    cessAgenda,
  • NewProAgenda,FState,T),
  • execute_process(ProcessAgenda,ProcessAgenda,Ne
    wProAgenda,FState,NFs,T),
  • update_time(T,NewT),
  • update_step(StepSofar,NewStep),
  • execute_flow(MState,NewProAgenda,NewStep,Step,
    NewT,flow_state(NFs,NewT)).

24
State Transaction Diagram
25
Three-level Framework
26
Model Behavior Level
  • Considers the overall model behavior to find the
    appropriate topology for the BPM
  • Carries out the syntactic critiques

27
Syntactic Critiques
28
Detailed Model Testing Level
  • Captures the topology features from level 1,
    eliminates impossible execution sequences
  • Carries out the semantic critiques

29
Semantic Critiques
30
Instantiation of Business Scenario Level
  • Executes the business process model using
    business scenarios (entity data) in a particular
    domain and attempts to validate the model

31
Complexity of a Single Model
32
Results of Complexity
  • The Or_split and Or_Joint have the greatest
    influence on the complexity
  • The complexity of a business process model has at
    least the factorial rate of growth. It is
    impossible to carry out all the possible
    execution results

33
Complexity of Combined Models
  • A model finishing with an And_Joint junction
  • A model finishing with an Or_Joint junction

34
A model finishing with an And_Joint junction
The possible execution sequence 2! 3! 12
35
A model finishing with an Or_Joint junction
Assumption all the triggered processes must be
finished before the final process of each
connected model
The complexity is O(nm)! When m0, it
represents the complexity of the And-Or model
36
Conclusions
  • Because the formal semantics and graphic notation
    of FBPML and the formal representation of FWFL
    which is directly mapping to FBPML, a business
    process may be easily defined and executed
    through a simple procedure
  • The workflow meta-interpreter is based on FBPML
    FWFL, it accepts the input specifications and
    execute the business process model directly

37
Conclusions (Cont.)
  • The three level-framework provides a thorough
    test, which is useful when analysing a business
    process model
  • The complexity of a business process model has at
    least the factorial rate of growth. It is
    impossible to carry out all the possible
    execution results

38
Future Work
  • The FWFL workflow language should be enhanced,
    especially focusing on the formal specification
    of the communication issues
  • The priority issue among processes and Role
    concept should be involved in the FWFL workflow
    engine
  • More clear definition of validation and
    verification in a business process model

39
Future Work (cont.)
  • Consider the decomposition and iteration of the
    business process
  • A graphic user interface may be integrated into
    FWFL
  • Resources management may be considered as part of
    the workflow system
