Title: NPOESS Data Exploitation (NDE) Preliminary Design Review


1

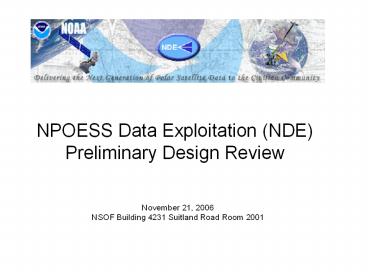

NPOESS Data Exploitation (NDE)Preliminary Design
Review
  • November 21, 2006
  • NSOF Building 4231 Suitland Road Room 2001

2
Welcome-J. Silva
3
PDR Agenda
  • 800 a.m. Welcome
  • 815 a.m. Introduction/Background
  • 900 a.m. Project Overview
  • 1045 a.m. NDE Context and Hardware
  • 1115 a.m. Algorithm Development
  • 1200 p.m. Lunch
  • 100 p.m. Data Handling System
  • 230 p.m. IT Security
  • 300 p.m. Communications Study
  • 340 p.m. Closing Remarks

4
Agenda
  • 800 a.m. Welcome
  • 815 a.m. Introduction/Background
  • 900 a.m. Project Overview
  • 1045 a.m. NDE Context and Hardware
  • 1115 a.m. Algorithm Development
  • 1200 p.m. Lunch
  • 100 p.m. Data Handling System
  • 230 p.m. IT Security
  • 300 p.m. Communications Study
  • 340 p.m. Closing Remarks
  • Introduction/Background J. Silva
  • Mission Design Drivers J. Silva
  • Architectural Overview G. Goodrum
  • Data Products T. Schott

5
NDE Design Review Board
  • Chairperson Vanessa Griffin, (NESDIS/OSD) Ground
    Systems Division Chief
  • Mike Mignogno (NESDIS/OSD) Polar Program Manager
  • Mike Tanner (NESDIS/HQ) Senior Program Advisor
  • Reginald Lawrence (NESDIS/OSDPD), Environmental
    Satellite Processing Center Chief
  • David Benner (NESDIS/OSDPD) Satellite Services
    Division Chief
  • Mitch Goldberg (NESDIS/STAR) Satellite
    Meteorology and Climatology Division Chief
  • Joseph Mulligan (NOAA/IPO) NPOESS Interface Data
    Processing Segment Lead
  • Kevin Schrab, Ph.D. (NWS) Satellite Product
    Improvement Manager
  • Brian Gockel (NWS/OST/SEC) Systems Engineer
  • Lt. Amanda Bittinger (NESDIS/STAR) Satellite
    Oceanography and Climatology Division
  • Charles MacFarland NESDIS/OCIO Representative

6
Request for Action
  • Briefing Title
  • Slide Number
  • _________________________________________
  • Comment/ Question
  • _________________________________________
  • Background on Comment or Question
  • _________________________________________
  • Team response
  • RFAs are available on tables at back of room
  • RFAs to be submitted to a Review Board Member
  • All RFAs are due today by the end of the meeting
    (400 p.m.)
  • Please state your questions clearly
  • Review Board will disposition RFAs
  • Board Members are requested to convene to
    disposition RFAs

7
The NDE IT Design Team
8
Todays Objective
  • Objectives To ensure that NDEs design concepts
    are consistent with NPOESS and NOAA architectures
    and that NDE plans are feasible
  • NDE Design Review Board roles and
    responsibilities
  • Review NDE system conceptual design
  • Review project plans necessary to reach Critical
    Design Review (CDR) in August 2007
  • Review strategies (acquisition, development,
    testing, implementation, transition)
  • Assess risks
  • Request actions that will improve NDE designs and
    plans

9
Assessment Criteria
  • Does the proposed preliminary design satisfy the
    contractual requirements?
  • Has the overall system framework been clearly
    presented?
  • Has the functionality been appropriately
    allocated to subsystems?
  • Have the interfaces between subsystems and to
    external entities, including users, been
    identified?
  • Have the security features and controls been
    defined?
  • Have delivery strategies been defined for the
    subsystems (build, buy, reuse)?
  • Are the plans and schedules leading to CDR
    feasible?

10
Background Documents
  • NDE Requirements Performance Measures
  • Software Engineering
  • Infrastructure
  • Systems Management
  • Data Retention Archive
  • Interfaces
  • Operational Product Generation
  • Communications
  • Distribution

See NDE Web site http//projects.osd.noaa.gov/nd
e
11
NDE Design Review BoardReview Calendar
Date Deliverable Tasked
Nov 21 Requests for Action (RFA) Review Board
Dec 15 Action Responses to Board and Chairperson NDE Design Team
Jan 26 Final Report Design Board Chairperson
12
Agenda
  • 800 a.m. Welcome
  • 815 a.m. Introduction/Background
  • 900 a.m. Project Overview
  • 1045 a.m. NDE Context and Hardware
  • 1115 a.m. Algorithm Development
  • 1200 p.m. Lunch
  • 100 p.m. Data Handling System
  • 230 p.m. IT Security
  • 300 p.m. Communications Study
  • 340 p.m. Closing Remarks
  • Introduction/Background J. Silva
  • Mission Design Drivers J. Silva
  • Architectural Overview G. Goodrum
  • Data Products T. Schott

13
Mission
  • The NPOESS Data Exploitation (NDE) will provide
    critical environmental products derived from NPP
    and NPOESS observations to NOAAs operational
    community in near-real time

14
Capabilities AssessmentNDEs ?s
Current State Target State
DMSP POES ? NPP NPOESS
End-to-End Control ? Post-processing
Orbital Processing ? Granule Processing
Stove-pipe Applications Processing ? Centralized Data Processing
Bolted-on Security ? Security Compliant w/ Standards
100 GB/day Ingest ? 2.5 (NPP) TB/day Ingest
300 GB/day Distribution ? 6 TB/day Distribution
Heritage Instruments ? New Instrument Technologies
15
NDE ProjectCapabilities Assessment
  • Current State Target State
  • Orbital Processing ? Granule Processing
  • Granule (data structure) Processing
  • Instrument specific
  • SafetyNet
  • Continuous ingest
  • Near-real time lt30 minutes
  • All data packaged as HDF5
  • Orbital Processing
  • Near-real time 156 minutes from observation to
    product

NDE systems must adapt to all new input formats,
alter formats to user needs, take advantage of
improved latency
16
NDE ProjectCapabilities Assessment
  • Current State
    Target State
  • Stove-pipe
  • Applications Processing ?

Centralized IT Architecture
  • Centralized IT Architecture
  • Reusable objects
  • Database Technologies Data Management
  • Common CM, testing, and transition processes
  • Common toolsets
  • Centralized management and control
  • Stove-pipe Applications Processing
  • Duplicated, redundant functionality
  • High cost of management control

NDE will establish latest proven technologies and
manage them in 3 basic environments Development,
System Test, Operations
17
NDE ProjectCapabilities Assessment
  • Current State
    Target State
  • 300 GB/day Distribution ?
    6 (tbc) TB/day Distribution
  • Increase customer base (increase benefits)
  • Online subscriptions
  • GUIs
  • More Dissemination Options
  • Push, pull, network, fiber, internet, etc.
  • Product benefits realized by relatively small
    customer base
  • Limited number of dissemination options
  • orders require developer intervention
  • FTP (pull) in most cases

NDE to establish a Communications Architecture in
collaboration with NOAAs Network Advisory
Committee (NAC) and AWIPS
18
The Transition Challenge
  • Environmental satellite industry challenge
  • NESDIS history 2 ½ years from data
    availability, through research, to provision of
    products to operational users (R2O)
  • All new NOAA projects must have Transition Teams
    and submit Transition Plans for approval
  • NDE submitted plans (MIRS, CrIS/ATMS, Sea Surface
    Temperature) developed with SPSRB oversight
  • NDEs Goals
  • Minimize IT obstacles as algorithms migrate
    through development, test, and operational
    environments
  • Work with end users to prepare operations for
    products

19
NDE Milestone Plan
20
Agenda
  • Introduction/Background J. Silva
  • Mission Design Drivers J. Silva
  • Architectural Overview G. Goodrum
  • Data Products T. Schott

800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm Development
1200 p.m. Lunch 100 p.m. Data
Handling System 230 p.m. IT Security
300 p.m. Communications Study 340 p.m.
Closing Remarks 400 p.m. PDR Board
Review of RFAs
21
NDE System Objectives
  • Disseminate NPOESS Data Records to NOAA
    Operational Community
  • Generate and disseminate tailored NPOESS Data
    Records (versions of NPOESS Data Records in
    previously agreed alternative formats and views)
  • Generate and disseminate NOAA-unique products
    (augmented environmental products constructed
    from NPOESS Data Records)
  • Deliver NOAA-unique products, product processing
    elements, and associated metadata to CLASS for
    long-term archiving
  • Provide services to customers, including NDE
    product training, product enhancement, and
    implementation support across NOAA
  • Provide software for NPOESS Data Record format
    translation and other data manipulations

22
NPOESS Data Exploitation (NDE) Mission Context
Diagram
NOAA Environmental Satellite Processing
Center (ESPC)
NPOESS Ground System
Data Records (xDRs)
NPOESS Data Exploitation (NDE)
NOAA Unique Products
Tailoring Tools
Data Records (xDRs)
NPOESS will deliver more than 100 different
data records (xDRs)
Tailored Products
Data Records (xDRs)
NOAA Unique Products
CLASS
Near Real-time Customers
CLASS
xDRs
Climate Community
Near Real
-
time
Near Real
-
time
Near Real
-
time
Climate
Tailoring Tools
Customers
Customers
Customers
Community
NOAA
-
Unique Products
23
Scope Requirements
  • Design, develop and implement
  • Development Environments for NPP/NPOESS
  • System Test Environment for NPP/NPOESS
  • Operational Environment for NPOESS

24
Vision3 Environments, Common Standards
Environmental Satellite Processing
Center
NDE System Test/Backup Environment
NDE Operational Environment
NDE Development Environment
Shared Capabilities, Common Standards
25
Design Considerations
  • Algorithm modularity
  • Reuse
  • Centralization
  • Scalability

26
IDPS / NPP NDE Integration Timeline
NDE-NPP Integration
NDE CriticalDesign
NDE PreliminaryDesign
NDE System Test Environment

Concepts in work
Note New NPP IPAC Verification events
(Performance Verification) not yet Planned
27
Risk Handling and MitigationAssessment of impact
and project plans
  • Mitigating steps in NDEs current plans
  • Develop a risk management plan
  • For IT work, schedule control via earned value
    management
  • Develop lifecycle cost and benefit estimates
  • Develop the project budget
  • Plan for needed resources
  • Design systems to support reliability
    requirements
  • Monitor NOAA and DoC security requirements
  • New risk mitigating activities
  • Develop and implement a quality management plan
    to address system and data quality, quality
    assurance, and quality control.
  • Develop and implement NDE continuity plans that
    are coordinated among participating
    organizations.
  • Coordinate development of preliminary
    (pre-launch) data with the IPO and instrument
    designers

28
Risk Management Summary
  • Risks management plan will be revised as risks
    are handled, new risks are identified, or
    stakeholder views change
  • Continued input from stakeholders and other
    sources
  • Developers have a critical responsibility to
    identify issues, risks, and challenges and their
    potential impact on operations
  • Preliminary design review will identify issues
    and challenges for key design elements

29
Agenda
  • Introduction/Background J. Silva
  • Mission Design Drivers J. Silva
  • Architectural Overview G. Goodrum
  • Data Products T. Schott

800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm Development
1200 p.m. Lunch 100 p.m. Data
Handling System 230 p.m. IT Security
300 p.m. Communications Study 340 p.m.
Closing Remarks 400 p.m. PDR Board
Review of RFAs
30
Product Definitions
  • Products delivered by NPOESS contractor
  • xDRs
  • Raw Data Records (RDR)
  • Sensor Data Records (SDR)
  • Temperature Data Records (TDR)
  • Environmental Data Records (EDR)
  • Intermediate Products (IP)
  • Pre-planned Product Improvements (P3I)
  • Products produced by NOAA using xDR information
  • Tailored xDRs and IPs
  • NOAA Unique Products (NUPs)

31
NPOESS Products Requirements
Integrated Program Office (IPO)
Deliverables
Contract Document
Requirements Document
NPOESS Integrated Operational Requirements
Document (IORD II) Dec 10, 2001
NPOESS Technical Requirements Document
Sensor, Temperature, Environmental Data Records
(xDRs)
NPOESS Data Exploitation (NDE)
(1) Tailored xDRs (2) NOAA-unique products (NUPs)
NDE Product Matrix
NDE Product Development
32
Sample from Mission Goal Version of Product Matrix
Products Line Office
Mission Goal
Review

(CORL items in gray)
Master, WW, Climate, Ecosystems, CT spreadsheets
Motivation Develop NPOESS products to meet all
NOAA user requirements
33
NPP Product Summary
NPP Totals
Data Records (xDRs/IPs/P3I) 39
NOAA Unique Products 59
Totals 98
34
Acquisition StrategyEmphasis POES Mission
Continuity
  • Nunn-McCurdy process restructured NPOESS
    acquisition efforts
  • POES mission continuity might rely on NPP data
    operationally

35
Define NPP Products
  • POES and EOS Mission Continuity
  • Essential that we address these products
  • Development products
  • Under development and could go operational prior
    to NPP launch
  • New products
  • Never provided to user community and not under
    development within NESDIS

36
NPP Mission Continuity Products
NOAA-Unique Products NOAA-Unique Products Tailored Products
CrIS Thinned Radiances SST Anomalies ATMS Radiances
Total Precipitable Water (ATMS) Coral Reef Degree Heating CrIS Radiances
Snow Cover (ATMS) Coral Reef Bleaching VIIRS Radiances
Precipitation Type/Rate (ATMS) Tropical Rainfall Potential OMPS Radiances
Surface Emissivity (ATMS) Vegetation Fraction Cloud Mask
Cloud Liquid Water (ATMS) Hazard Support (Tropical) Sea Surface Temperature (SST)
Sea Ice Cover/Concentration Hazard Support (Volcano) Ozone Profile
Snow Water Equivalent (ATMS) Total Ozone (CrIS) Ozone Total Column
Ice Water Path (ATMS) Blended Ozone Snow Cover
Land Surface Temperature Outgoing Longwave Radiation Imagery
Temperature Profiles (ATMS) Outgoing Longwave Radiation Ocean Color/Chlorophyll
Moisture Profiles (ATMS) Absorbed Radiation Vegetation Index
Blended Snow Cover Rainfall Prediction Active Fires
Harmful Algal Blooms Tropical Cyclone Intensity Atmospheric Temperature Profile
Regional Ocean Color Tropical Rainfall Potential Atmospheric Moisture Profile
Blended SST Vegetation Fraction Aerosol Optical Thickness
Surface Type Vegetation Cover
Surface Albedo
Cloud Cover/Layers
37
NPP Development Products
NOAA-Unique Products Tailored Products
CrIS Cloud Cleared Radiances Aerosol Particle Size
Clear Sky Radiances (VIIRS) Cloud Top Temperature
Polar Winds (VIIRS) Cloud Top Pressure
Vegetation Health Land Surface Temperature (VIIRS)
Vegetation Moisture
Drought Indices
Vegetation Thermal Conditions
Leaf Area Index
Fire Potential
SST (AVHRR-like)
Aerosol (AVHRR-like)
Carbon products
38
NPP New Products
NOAA-Unique Products Tailored Products
Integrated xDRs at CrIS Resolution Cloud Base Height
Cloud Liquid Water Path (VIIRS) Cloud Effective Particle Size
Cloud Ice Water Path (VIIRS) Cloud Optical Thickness
Cloud Top Temperature (VIIRS) Cloud Top Height (VIIRS)
Inversion Strength and Height Ice Surface Temperature
Net Heat Flux
Sea Ice Characterization (VIIRS)
Suspended Matter
Atmospheric Pressure Profile
39
Agenda
800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm Development
1200 p.m. Lunch 100 p.m. Data
Handling System 230 p.m. IT Security
300 p.m. Communications Study 340 p.m.
Closing Remarks 400 p.m. PDR Board
Review of RFAs
  • Project Overview G. Sloan
  • Requirements Mgmt L. Fenichel
  • Development Approach E. Wilson
  • Tool Selection E. Wilson

40
A Reminder
  • Parts of NPP, NPOESS, and NDE are subject to
  • ITARs (International Trafficking in Arms
    Restrictions)
  • NOFORN Classification

41
Topics
  • Requirements Management
  • Development Approach
  • Algorithm Development
  • Data Handling System
  • IT Security
  • Data Distribution
  • The Way Forward

42
Master Phasing Schedule
43
NDE Baselined Documents
Document Status
NDE Concept of Operations Draft Delivered 8/24/2006 Draft Delivered 11/7/2006 (Incorporated RIDS from Peer Review)
NDE Federal Enterprise Architecture Draft Delivered 8/24/2006
NDE Data Distribution Conceptual Design Draft Delivered 8/24/2006
NDE Stake Holder Survey Summary Status 2006 Draft Delivered 8/24/2006 Draft Re-Delivered 8/28/2006
NDE Network Services Design Draft Delivered 8/24/2006
NDE System/Subsystem Design Description Draft Delivered 8/24/2006
NDE Logical and Geographical Connectivity Design Draft Delivered 8/24/2006
Standards for NDE Algorithm Development, Delivery, Integration Test Draft Delivered 8/24/2006
44
NDE Baseline Documents (Contd)
Document Status
Project Plan Draft Delivered 8/2004 Draft Delivered 8/2005 Draft Delivered 8/2006 Draft Delivered 11/2006
NDE Systems Requirement Specification Draft Delivered 11/7/2006
NDE Configuration Management Plan Draft Delivered 5/18/2006 Draft Delivered 6/30/06 Draft Delivered 8/30/2006
Risk Management Plan Delivered 7/14/2006
45
Management Approach
  • Staff the NDE Design Team with experienced
    professionals
  • Use design tools
  • Prototype of Development Environment
  • IBM p570 using AIX
  • Use NPP as the NDE risk reduction mission
  • Maximize use of COTS and GOTS (minimize custom
    code)
  • Collaborate with similar, current projects
  • Develop prototypes to validate requirements and
    design
  • Sell-off requirements as early as possible

46
Lessons Learned from NASAs EOSDIS Core System
  • Integrate Algorithms with the Data Handling
    System early in the life cycle
  • Test the system under full operational load
    data driven systems behave in strange ways
  • Build in Operator Dashboard and System Metrics
    for reporting
  • NetIQ and CAs Unicenter are candidates
  • Configuration Parameters
  • Put in Database for change control, audit trail
  • Document CPs, min/max values, default, suggested
    values
  • Use Rolling Wave technology refresh approach
  • Constant effort
  • Keeps budgets flat no large peaks every 5 years
  • Just in Time Hardware buys

47
NDE Design Assumptions
  • All NDE users are registered users
  • Users get data by entering an NDE subscription
  • Subscriptions have two types
  • Standing Order (no expiration date)
  • Ad-Hoc (covers a limited time period)
  • Subscription to NOAA-unique products to be
    archived to CLASS will be determined by Archive
    Review Board
  • NDE will subscribe to all IDPS xDRs (in lieu of
    implementing complex logic using IDPS API to
    order only xDRs needed)
  • NDE will not distribute RDRs in near-real time to
    users (exception Telemetry)
  • Users will need to request RDRs from CLASS
  • Product latency is customer and product specific

48
Data Access
  • NDE will flag customers as authorized for data or
    not during data denial
  • Use Initial Joint Polar System (IJPS) Data Denial
    Implementation Plan for initial authorization
    guidance
  • NDE will maintain a customer database that will
    contain sufficient attributes in order to set
    flag
  • Restricted data will be delayed for subscriptions
    from unauthorized customers
  • Timeliness more an issue for NPOESS than NPP
  • Only authorized users will be notified of data
    access status
  • End User License Agreement with customer
    restricts redistribution

49
Agenda
800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm Development
1200 p.m. Lunch 100 p.m. Data
Handling System 230 p.m. IT Security
300 p.m. Communications Study 340 p.m.
Closing Remarks 400 p.m. PDR Board
Review of RFAs
  • Project Overview G. Sloan
  • Requirements Mgmt L. Fenichel
  • Development Approach E. Wilson
  • Tool Selection E. Wilson

50
Requirements Management Matrix
ID Section Requirement Contract
SRS203 3.14.10 Development Lifecycle Tools - The Contractor will specify a suite of proven development lifecycle tools to enhance NESDIS capabilities in performing developmental and software maintenance tasks. The documentation will demonstrate that the selected tools are widely supported in the remote sensing software industry and the most likely to be known by future NESDIS support staff. Technologies in this category are CASE tools, modeling tools, 4th Generation Languages, Testing tools, and Requirements Tracking tools. SE3
SRS94 3.14.6 SEI Capability Maturity Model - The Contractor shall design the System so that its management capabilities can be evaluated in terms of the Software Engineering Institute's (SEI) Capability Maturity Model (CMM), with the goal of Level 2 certification during proposal evaluation and Level 3 certification three years after contract award. SM1
SRS201 3.14.8 NOAA IT Best Practices - The System shall be designed and built with NOAA IT "Best Practices" guidance from the NESDIS Information Technology Architecture Team (ITAT). SE8
51
Requirements Management The Process
  • Define Business Objectives
  • Contained in Contract Requirements Matrices
    under Desired Outcomes and Performance Standard
    columns
  • Additional Objectives detailed in the Concept of
    Operations
  • Automate Requirements Analysis, maintain
    Traceability (Use DOORS)
  • Reduce Ambiguity
  • Contractual Requirements reviewed, System
    Requirements Spec (SRS) created
  • Derive Requirements to further capture NDE
    functionality
  • Use Case Driven Process
  • Cause/Effect Tables
  • Automate using UML compliant tools
  • Domain Expert Reviews and Refinements
  • Several Iterations
  • Capture and Formalize Detailed Requirements
  • Test Cases generated
  • Final Round of Domain Expert Reviews

52
NDE Requirement Allocations
Allocations Number of SRS Requirements
Customer Services 16
Ingest 24
Production 26
Distribution 25
Product Management 22
Common Services (Infrastructure) 50
System Monitoring and Control 22
Security 1
Documentation 12
53
NDE Requirements Traceability
ID Section Short Title Contract Allocation Use Case Test Case
SRS62 3.2.1.3.2 SARSAT Telemetry from IDPS XF1 Ingest UC101 TC25
SRS63 3.2.1.3.3 ADCS Data from IDPS XF1 Ingest UC101 TC26
SRS58 3.2.1.3.4 Product Subscriptions to IDPS XF1 Ingest UC102 TC44
SRS101 3.2.2.3.1 Available Data Product Projections PG5 Production UC181 TC124
SRS102 3.2.2.3.2 Available Data Product Aggregations PG6 Production UC182 TC131
  • Maintained in DOORS Tool with Active Links to
    other NDE Documents
  • Telelogic Tool Suite (DOORS, TAU Developer)
  • Use Cases Mapped
  • Test Cases Mapped
  • Test Results Tracked

54
Challenges Matrix
Challenge Related Requirement Impact Mitigation
Maintain Requirements Traceability throughout the Project Life Cycle (SRS201) 3.14.8 NOAA IT Best Practices Potential testing gaps and schedule delays as a result Use of Tools (SRS201/Automated Tool Suite)
Full specification of NDE System Elements and Components N/A Cost, quality, schedule Employ a methodology (SRS204) where domain experts are involved early in the process, delivery at CDR
55
Agenda
800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm Development
1200 p.m. Lunch 100 p.m. Data
Handling System 230 p.m. IT Security
300 p.m. Communications Study 340 p.m.
Closing Remarks 400 p.m. PDR Board
Review of RFAs
  • Project Overview G. Sloan
  • Requirements Mgmt L. Fenichel
  • Development Approach E. Wilson
  • Tool Selection E. Wilson

56
Development ApproachRequirements
ID Section Requirement Contract
SRS204 3.10.1 The Contractor shall identify a widely accepted software engineering methodology to be used on the project. SE12
SRS94 3.14.6 The Contractor shall design the System so that its management capabilities can be evaluated in terms of the Software Engineering Institute's (SEI) Capability Maturity Model (CMM), with the goal of Level 2 certification during proposal evaluation and Level 3 certification three years after contract award. SM1
SRS172 3.9.2 The Contractor shall evaluate candidate System Elements for operational fitness using Unit, Integration, Regression, Stress (load), and End-to-End System testing. SE4
SRS173 3.9.2.1 Each algorithm for creating NOAA-Unique products will be described in terms of explicit, expected test results prior to the installation of the NOAA-supplied algorithm on the operational product generation system. The NOAA-Unique algorithms must satisfy these test requirements. PG8
SRS182 3.11.6 The Contractor shall cooperate with algorithm developers to identify System Test procedures, standards, and the criteria to be applied in determining a system elements' fitness for operational status. SE4
57
Development Approach Requirements Based Testing
  • What is it?
  • Requirements Based Testing (RBT) is a System
    Implementation Methodology that
  • Substantially Reduces the Risk of
  • Building the Right System to the Wrong
    Requirements !
  • Why are we Concerned about That ?
  • Over half all software project defects originate
    in the requirements phase
  • 82 of application re-work is related to
    requirements errors
  • Only 54 of initial project requirements are
    actually realized
  • Requirements problems account for 44 of project
    cancellations

Statistics by James Martin and others, taken from
Eliminate the Testing Bottleneck, Borland White
Paper, August, 2006, p. 4.
58
The Methodology of Requirements Based Testing
(RBT)
  • Its about Testing as an Integral Step of
    Implementation -- not a Separate Phase
  • Design Tests before Designing the Software -- the
    Test Cases become the Ultimate Statement of the
    Develops Requirements
  • Iterate the Requirements-to-Test Case Loop with
    Users and Domain Experts until they concur that
    successful Test Execution will produce the result
    they want not necessarily what they originally
    specified!
  • to insure that
  • What we Build is What we Say
  • and What we Say is What we Mean

59
Traditional Implementation Hand-Off Phases
Natural Language Requirements
Natural Language Requirements
Design
Design
Code

Test Plans
Test Plans
  • Analysts talk to Domain Experts to express
    Natural Language Requirements
  • S/W Designers Interpret these into Design, which
    is then interpreted into Code
  • Independent Test Team Interprets Requirements to
    develop Test Plans
  • The Result Unresolved ambiguities and
    inconsistencies between what was developed, what
    is tested, and what is really needed!

60
RBT Focuses on Formalized Requirements Test
Cases
Requirements Analysts
Users Domain Experts
Create Formal Reqts from Natural Language
Create Logical Test Cases
Review/Fix/Validate Reqts Logical Test Cases
Review/Fix Reqts Logical Test Cases
Formal Reqts and Test Case Repository
Study Logical Test Cases Review Design
versus Validated Test Cases Review Code versus
Validated Test Cases
Study Logical Test Cases Complete Physical Test
Cases
Test Experts
Developers
61
Requirements-Based Testing (RBT) Workflow
Requirements Quality
Logical Test Case Design
Structure/Formalize Requirements
Validate against Business Objectives
Map against Use Cases
Validated Requirements
Define/Optimize Test Cases
Ambiguity Analysis
Reqts Review by Domain Experts
Requirement Fixes
Logical Test Cases
Baseline of Validated Test Cases
Test Case Quality
Test Case Review By Reqs Authors
Test Case Review By Domain Experts
Test Execution
Create Test Procedures
Design and Code Quality
Code Baseline
Developers Study Test Cases
Test Experts Study Test Cases
Design Code Review with Test Cases
Execute Tests
Diagram based on Eliminate the Testing
Bottleneck, Borland White Paper, August, 2006,
Fig. 2.
62
Sample Technique for Formalized Requirements
REQT ID CAUSES EFFECTS
SRS80 System is in Degraded Operations Mode Customer meets Pre-Defined Criteria TBD Customer has Pending Data Request Pending Data is distributed to Customer Customers Pending Data Subscriptions are Ignored while Degraded Operations Mode persists

63
Development ApproachChallenges
Challenge Related Requirement Impact Mitigation
Build the NDE Systems as we Say, and Say what we Mean them to Be SRS94, SRS173, SRS182 Unresolved ambiguities and inconsistencies between what gets developed, what gets tested, and what is really needed! Utilize Requirements Based Testing (RBT) Methodology
Find a Suite of Development Tools that Support the RBT Implementation Workflow SRS203 Worst case develop RBT artifacts manually (using only Excel, Visio, Word) and develop a homegrown database to track baselines, team member updates, and requirements to test traceability Identify the Development Functionalities needed to Support RBT establish Criteria to Evaluate Tools performance w.r.t the Functions, taking into account interoperability between Tools in a Candidate Suite
64
Agenda
800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm Development
1200 p.m. Lunch 100 p.m. Data
Handling System 230 p.m. IT Security
300 p.m. Communications Study 340 p.m.
Closing Remarks 400 p.m. PDR Board
Review of RFAs
  • Project Overview G. Sloan
  • Requirements Mgmt L. Fenichel
  • Development Approach E. Wilson
  • Tool Selection E. Wilson

65
Tool Selection Requirements
ID Section Requirement Contract
SRS93 3.8.3.2 The NDE Processing System Design will use COTS and Open Source software where it is possible, practical, and approved by the Government. SE10
SRS203 3.14.10 The Contractor will specify a suite of proven development lifecycle tools to enhance NESDIS capabilities in performing developmental and software maintenance tasks. The documentation will demonstrate that the selected tools are widely supported in the remote sensing software industry and the most likely to be known by future NESDIS support staff. Technologies in this category are CASE tools, modeling tools, 4th Generation Languages, Testing tools, and Requirements Tracking tools. SE3
SRS215 3.10.2 The contractor shall develop the data processing elements of the future NDE system using the latest proven technologies (programming languages, CASE tools, object repositories, data base management systems, etc.) that are appropriate for remote sensing data processing. SE13
66
RBT Steps whereNDE Expects to Employ
Tools
Validate against Business Objectives
Ambiguity Analysis
Baseline of Validated Test Cases
Code Baseline
Developers Study Test Cases
Test Experts Study Test Cases
Diagram based on Eliminate the Testing
Bottleneck, Borland White Paper, August, 2006,
Fig. 2.
67
IT Development ToolsFunctional Categories
  SUMMARY OF FUNCTIONAL CATEGORY SCORES   SUMMARY OF FUNCTIONAL CATEGORY SCORES   SUMMARY OF FUNCTIONAL CATEGORY SCORES   SUMMARY OF FUNCTIONAL CATEGORY SCORES   SUMMARY OF FUNCTIONAL CATEGORY SCORES
1. Interoperability (with respect to a Suite, and with Common Interchange Tools) 1. Interoperability (with respect to a Suite, and with Common Interchange Tools) 1. Interoperability (with respect to a Suite, and with Common Interchange Tools) 1. Interoperability (with respect to a Suite, and with Common Interchange Tools) 0
2. Requirements Specification Maintenance 2. Requirements Specification Maintenance     0
3. Configuration Management 3. Configuration Management 3. Configuration Management   0
4. Requirements Verification       0
5. Engineering Management/Team Support       0
6. General Architectural Design and Modeling       0
7. Data Modeling       0
8. Business Process Modeling       0
9. Software Analysis, Design, and Construction 9. Software Analysis, Design, and Construction     0
10. Extensibility       0
11. User Interface       0
12. OS/Network Support - Tool Server       0
13. Tool Administration Vendor Support       12
14. Documentation, Training, and Ongoing Education 14. Documentation, Training, and Ongoing Education     0
15. Vendor Comprehension Licensing Offer       0
68
Tool Selection Methodology
  • Goal
  • To Define a Process for Trade-Off Comparisons
    between IT Development Tools
  • That
  • Establishes a Consistent Approach regardless of
    the Individuals performing the Evaluation
  • Produces Quantitative Results for Comparison and
    Justification
  • is Conducted as Objectively as Possible
  • . . . and can also be applied to
  • Architecture Operational Components
  • Science Development Tools

69
Sample SectionIT Development Tool Evaluation
Worksheet
13. Tool Administration Vendor Support  13. Tool Administration Vendor Support  13. Tool Administration Vendor Support  13. Tool Administration Vendor Support  13. Tool Administration Vendor Support  13. Tool Administration Vendor Support  13. Tool Administration Vendor Support  12
13.1 Ease of Installation (server/client combined) 50 ltnonegt 0 10
13.2 Degree of Site/User Configurability 50 ltnonegt 0 10
13.3 Vendor includes personal tool setup assistance in the purchase price 90 ltnonegt 0 10
13.4 Number of Release Defects Reported by Vendor 50 ltnonegt 100 0
13.5 Number Un-reported Defects uncovered during Evaluation of Release 80 ltnonegt 10 0
13.6 Number of old versions of the tool currently supported 65 Enter the number 1,2,3,4 0 5
13.7 Vendor provides online help support tool 50 ltnonegt 0 10
70
We Attempt to Establish an Evaluation Framework
that is as Objective as Possible
  • We evaluate each tool with respect to all
    functional categories, and develop our own
    profile of a tools capabilities giving each
    tool a numeric score for each functionality
  • For a suite of tools, we calculate functional
    category scores by combining scores for all tools
    in the suite for each category
  • Suite Functional Score Min(Tool Scores) for a
  • weakest link
  • Suite Functional Score Max(Tool Scores) for a
  • strongest component
  • Similar approach applied to
  • Science Development Tools - K. Tewari
  • Architectural Components - A. Al-Jazrawi

Common Function
Specialized Function
71
IT Development Tool Suites Under Consideration
  • IBM Rational
  • Requisite Pro, Clear Case, Clear Quest, Software
    Architect, (Test Manager)
  • Telelogic
  • DOORS, Synergy CM, Synergy Change, System
    Architect, Tau Developer, (Rhapsody), plus
    Mercury Test Director
  • Borland
  • Caliber DefineIT, Caliber RM, Silk Central,
    Together, StarTeam

72
Tool Selection Challenges
Challenge Related Requirement Impact Mitigation
Find a Suite of Development Tools that Interoperate smoothly, allowing us to move from step to step or backwards without manual cut-and-paste transfer of data SRS203 Vendor Tool Suites are a mix of in-house products and products from buy-outs, not as well integrated as heralded members of some suites dont even run on the same set of platforms Our evaluation methodology makes special provisions to evaluate a Suite as a whole Tool Interoperability is scored w.r.t the Suite Context Suite score for that and other common functions is taken to be the weakest link of the Suite members
Find a Suite of Development Tools that can be expected to be supported several years into the future. SRS203 IT Tool development is currently a very dynamic area with many contenders, some of them with outstanding new products Our evaluation criteria include vendor stability factors, as well as number years experience with the tool (e.g. after a buyout) our down-select list is composed of 3 of the most well-known, stable vendors in this field.
73
Tool Selection Challenges
Challenge Related Requirement Impact Mitigation
Business Process modeling tools are closely tied to their vendors middleware for collection of information to feed the model they are not interchangeable to other vendors middleware SRS215 It could be that our first choice for modeling NDE business activities would force us toward middleware that might be inadequate for our near real-time requirements We will evaluate the middleware architectural components first, as that component will have the broadest impact on overall system performance however, before making a final decision we will evaluate the Business Process tools to check that we arent forced toward an unacceptable product we may have to balance the gap in tools with the gap in architectural components.
74
Agenda
800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm Development
1200 p.m. Lunch 100 p.m. Data
Handling System 230 p.m. IT Security
300 p.m. Communications Study 340 p.m.
Closing Remarks 400 p.m. PDR Board
Review of RFAs
  • Context G. Roth
  • Environments G. Roth
  • Hardware G. Roth

75
NPOESS Context Diagram
AFWA (Air Force Weather Agency)
(Supports NPP)
FNMOC (Fleet Numerical Meteorology
and Oceanography Center)
NESDIS (National Environmental Satellite Data
and Information Service)
NPOESS (National Polar-orbiting
Operational Environmental Satellite System) (IDPS)
(Supports NPP)
NAVOCEANO (Naval Oceanographic Office)
76
IDPS Context Diagram
SDS (Science Data Segment) (NASA)
NESDIS
NSIPS (NPOESS Science Investigator-led Processing
System) (cal val)
IDPS (Interface Data Processing Segment) (at NOAA)
SAN
NDE
CLASS (Comprehensive Large Array-data
Stewardship System) (archive)
77
NDE Context Diagram
Users
ESPC (Environmental Satellite Processing Center)
IDPS (at NOAA)
CLASS (LTA) (Long Term Archive)
NDE
Algorithm Developers (STAR) (Center for
Satellite Applications and Research)
78
NDE Environment Requirements
ID Section Requirement Contract
SRS83 3.14.3 The System shall be designed to support Operational, System Test, and Development Environments. SE2
SRS237 3.14.3.1 The Contractor shall provide an Operational Environment design that lowers the cost and risks of generating and distributing NPOESS-derived products to customers. SE2
SRS85 3.14.3.2 The System shall provide the capability to support the development of the Data Handling System and the development and integration of Scientific Algorithms in a segregated Development Environment. I3
SRS84 3.14.3.3 During the NPP mission, the System Test Environment will be segregated in a manner that supports "Quasi-Operational" product generation and distribution (Quasi-Operational is defined as 24 X 7 automated product generation and distribution with 8 X 5 Science and Operations support services). I1
SRS86 3.14.2.3 - During the NPP mission, the System will have the capability to support product volumes of 4 TB/day. - During the NPOESS C1 mission, the System will have the capability to support product volumes of 8 TB/day. - During the NPOESS C2 mission, the System will have the capability to support product volumes of 12 TB/day. I1
79
NDE System
  • IT Development Environment
  • Where the Data Handling System (DHS) is developed
  • Science Development Integration Environment
  • Science Algorithm Development Environment
  • Science Algorithms may be delivered from STAR
    Collaborative Environment (CE)
  • Algorithms integrated with Data Handling System
    (DHS)
  • Algorithm Performance Tuning
  • Functional, end-to-end testing of NDE System
  • System Test Environment
  • Stress Testing, Regression Testing and Operations
    Acceptance Testing
  • System and Algorithm Performance Testing
  • Serves as Backup for Operations Environment
  • Augmented to make products during NPP
    (quasi-operational)
  • Operations Environment
  • DHS and Algorithms
  • High Availability
  • Low NDE Latencies
  • High Product Volume

80
NDE System
Configuration Management
81
DHS Promotion Integration Process
82
Algorithm Promotion Integration Process
83
Hardware Design Development Environment (Phase
1)
Design
Development Environment CM
ESPC Network
CITS Administration LAN
StorNext
Automated Tool Servers Dell PE1850 Servers Dual
3.0GHz 4 GB RAM 2 Win2003 1 RHEL4 42U Rack
Storage ESPC SAN Expansion 146 GB SATA
Drives 2.33 TB (usable) StorNext FS Server 42U
Rack
Processing IBM p570 16 x 2.2 GHz CPUs 32 GB
RAM AIX 5.3 42U Rack
84
Rolling Wave Capacity Upgrade Planning
Data Direct Networks Disk Storage
Data Direct Networks Disk Storage
SAN Disk Storage Ingest Distribution
CPUs Processing Database
N n lt 2N
additional capacity
Operations
85
IBM Virtualization
  • Virtual I/O Server
  • Shared Ethernet
  • Shared SCSI and Fibre Channel-attached disk
    subsystems
  • Supports AIX 5L V5.3 and Linux partitions
  • Micro-Partitioning
  • Share processors across multiple partitions
  • Minimum partition 1/10th processor
  • AIX 5L V5.3, Linux, or i5/OS
  • Partition Load Manager
  • Balances processor and memory request
  • Managed via HMC or IVM

Dynamically resizable
AIX 5L V5.2
Linux
AIX 5L V5.3
i5/OS V5R3

6 CPUs
2 CPUs
4 CPUs
1 CPU
1 CPU
6 CPUs
Linux
Linux
AIX 5L V5.3
AIX 5L V 5.3
AIX 5L V5.3
AIX 5L V5.3
AIX 5L V5.3
Micro-Partitioning
Virtual I/O server partition
IVM
Storagesharing
Ethernet sharing
Virtual I/O paths
Hypervisor
PLM partitions
Unmanaged partitions
LPAR 2 AIX 5L V5.3
LPAR 1 AIX 5L V5.2
LPAR 3 Linux
Manager Server
PLM agent
PLM agent
Hypervisor
SLES 9 or RHEL AS 4 and above Available
on selected p5-570, p5-590 and p5-595
models IVM on p5-560Q and below
86
NDE Design Challenges
Challenge Related Requirement Impact Mitigation
IDPS requires use of StorNext to write to ESPC SAN vs ESPC security zones Imposed on NDE by IDPS and ESPC Multiple NDE hosts also need to see the same file system on the ESPC SAN that IDPS uses therefore NDE is also required to use StorNext as its metadata server ESPC (Brian Callicott) is pursuing technical solution
Processing multiple read writes to from SAN (utilizing StorNext) may not meet product latency requirements SRS 133 3.2.5.4 Data Product Latency Table CD9 File I/O to/from SAN may not meet latency requirements. Early testing of StorNext from IDPS to the ESPC SAN and early interface testing of StorNext from the ESPC SAN to NDE.
Potential risk of not having a Product Technical Baseline and model may impact the ability to correctly size the number of CPUs, RAM, Disk, and internal networks required to meet latency requirements. SRS 133 3.2.5.4 Data Product Latency Table CD9 Insufficient hardware sizing of future System Test and Operations Environments or increased spending to overcompensate for lack of information Develop a Product Technical Baseline and model with Product Development Lead Tom Schott
87
Agenda
  • 800 a.m. Welcome
  • 815 a.m. Introduction/Background
  • 900 a.m. Project Overview
  • 1045 a.m. Building Blocks and Hardware
  • 1115 a.m. Algorithm Development
  • 1200 p.m. Lunch
  • 100 p.m. Data Handling System
  • 230 p.m. Communications Study
  • 330 p.m. Closing Remarks
  • 400 p.m. PDR Board Review of RFAs
  • Research to Operations M. McHugh
  • SADIE K. Tewari

88
Research to Operations
  • GOAL Faster, more efficient transition of
    research to operations.
  • HOW By facilitating interaction between STAR
    and NDE developers
  • Similar
  • Standards
  • Configuration management (CM) tools
  • CM procedures.
  • Common
  • Libraries, error handling, development and
    visualization tools etc.
  • Compatible
  • Architectures.

89
Similar Environments
90
Research to Operations
STAR Collaborative Environment (SCE)
Create the Delivered Algorithm Package (DAP) for
an algorithm
Send DAP to the SADIE
Integrated Product Team
91
Research to Operations
STAR Collaborative Environment (SCE)
Create the Delivered Algorithm Package (DAP) for
an algorithm
Send DAP to the SADIE
Integrated Product Team
92
Science Algorithm Development and Integration
Environment (SADIE)
Receive DAP from outside of SADIE
Place received DAP under configuration
management (CM) control
Ensure DAP has correct format
CM Manager
Baseline the DAP
Compile algorithm
Integrated Product Team
Execute algorithm using its DAP
NDE Development Team
Integrate algorithm into Data Handling System
93
Science Algorithm Development and Integration
Environment (SADIE)
Receive DAP from outside of SADIE
Place received DAP under configuration
management (CM) control
Ensure DAP has correct format
CM Manager
Baseline the DAP
Compile algorithm
Integrated Product Team
Execute algorithm using its DAP
NDE Development Team
Integrate algorithm into Data Handling System
94
Science Algorithm Development and Integration
Environment (SADIE)
Receive DAP from outside of SADIE
Place received DAP under configuration
management (CM) control
Ensure DAP has correct format
CM Manager
Baseline the DAP
Compile algorithm
Integrated Product Team
Execute algorithm using its DAP
NDE Development Team
Integrate algorithm into Data Handling System
95
Science Algorithm Development and Integration
Environment (SADIE)
Receive DAP from outside of SADIE
Place received DAP under configuration
management (CM) control
Ensure DAP has correct format
CM Manager
Baseline the DAP
Compile algorithm
Integrated Product Team
Execute algorithm using its DAP
NDE Development Team
Integrate algorithm into Data Handling System
96
Science Algorithm Development and Integration
Environment (SADIE)
Receive DAP from outside of SADIE
Place received DAP under configuration
management (CM) control
Ensure DAP has correct format
CM Manager
Baseline the DAP
Compile algorithm
Integrated Product Team
Execute algorithm using its DAP
NDE Development Team
Integrate algorithm into Data Handling System
97
SCIENCE ALGORITHM DEVELOPMENT AND INTEGRATION
ENVIRONMENT (SADIE)
Receive DAP from outside of SADIE
Place received DAP under configuration
management (CM) control
Ensure DAP has correct format
CM Manager
Baseline the DAP
Compile algorithm
Integrated Product Team
Execute algorithm using its DAP
NDE Development Team
Integrate algorithm into Data Handling System
98
Science Algorithm Development and Integration
Environment (SADIE)
Receive DAP from outside of SADIE
Place received DAP under configuration
management (CM) control
Ensure DAP has correct format
CM Manager
Baseline the DAP
Compile algorithm
Integrated Product Team
Execute algorithm using its DAP
NDE Development Team
Integrate algorithm into Data Handling System
99
System Test Environment
Install Algorithm
Test Algorithm
CM Manager
Promote to Operations
Operations Environment
NDE Development Team
Integrated Product Team
Install Algorithm
Monitor Algorithm Performance
ESPC CCB
100
System Test Environment
Install Algorithm
Test Algorithm
CM Manager
Promote to Operations
Operations Environment
NDE Development Team
Integrated Product Team
Install Algorithm
Monitor Algorithm Performance
ESPC CCB
101
System Test Environment
Install Algorithm
Test Algorithm
CM Manager
Promote to Operations
Operations Environment
NDE Development Team
Integrated Product Team
Install Algorithm
Monitor Algorithm Performance
ESPC CCB
102
System Test Environment
Install Algorithm
Test Algorithm
CM Manager
Promote to Operations
Operations Environment
NDE Development Team
Integrated Product Team
Install Algorithm
Monitor Algorithm Performance
ESPC CCB
103
System Test Environment
Install Algorithm
Test Algorithm
CM Manager
Promote to Operations
Operations Environment
NDE Development Team
Integrated Product Team
Install Algorithm
Monitor Algorithm Performance
ESPC CCB
104
Agenda
  • 800 a.m. Welcome
  • 815 a.m. Introduction/Background
  • 900 a.m. Project Overview
  • 1045 a.m. Building Blocks and Hardware
  • 1115 a.m. Algorithm Development
  • 1200 p.m. Lunch
  • 100 p.m. Data Handling System
  • 230 p.m. Communications Study
  • 330 p.m. Closing Remarks
  • 400 p.m. PDR Board Review of RFAs
  • Research to Operations M. McHugh
  • SADIE K. Tewari

105
Science Algorithm Development Integration
Environment (SADIE)
  • Has similar components and configuration as the
    IT, System Test, and Operational environments
  • Uses common CM and Defect Tracking tools as other
    environments
  • Accessible locally and remotely to algorithm
    developers
  • Supports development, integration with DHS test
    of new algorithms and those delivered from STAR
    Collaborative Environment (SCE)
  • Supports a suite of software development and
    science tools (COTS, GOTS, etc.)
  • Receives Delivered Algorithm Package (DAP) from
    SCE

106
SADIE
  • SCE users receive
  • - Access and training in use of SADIE
  • - Defect Reports
  • Supports development of additional science tools
    and applications (i.e., validation of products,
    determination of coefficients, etc.)
  • Supports trouble-shooting of product generation
    failures in System Test and Operational
    Environments
  • Supports algorithm functional and regression
    testing
  • Supports fine tuning of algorithms for meeting
    latency goals in System Test and Operational
    Environment

107
Candidate Science Development Integration Tools
  • ArcExplorer
  • ArcInfo
  • ArcView
  • CDAT
  • EDGEIS
  • Geomatica
  • GeoTIFF
  • GrADS
  • HDF4 Tools
  • HDF5 Tools
  • IDL/Envi
  • IMSL
  • MATLAB
  • McIDAS
  • netCDF
  • OPeNDAP
  • PV-WAVE
  • SAS
  • TeraScan
  • WXP

108
Science Algorithm Development, Delivery,
Integration Test Standards
  • Algorithm Development Standards
  • Example Use Similar Development and Test
    Environments
  • Algorithm Delivery Standards
  • Example Standardized Algorithm Delivery Package
  • CM and Defect Tracking Standards
  • Example Algorithm Developers and NDE use same CM
    and Defect Tracking Tools
  • Algorithm Input Standards
  • Example Production Rules Not Hard-coded in
    Science Algorithms
  • Algorithm Processing Environment Standards
  • Example Customized Toolkit Containing Utilities
  • Algorithm Output Standards
  • Example Common File Format for All NOAA-Unique
    Products

109
Design Challenges
Challenges Related Requirement Impact Mitigations
Agreement on Standards Adherence to Standards SE14 Delays in research to operations Collaboration w/STAR
Provide low NDE Latency times for products (minutes) NDE Latency largely determined by algorithm performance Algorithms are developed by another part of NESDIS and sometimes in another environment SRS 10 3.3.3 Fail to achieve major goal of NDE Integrate algorithms and DHS as soon as possible Algorithm Development, Delivery, Integration and Test Standards being developed jointly with STAR Make STAR Collaborative Environment and SADIE as alike as possible to facilitate Delivered Algorithm Package (DAP)
110
Agenda
800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm
Development 1200 p.m. Lunch 100 p.m.
Data Handling System 230 p.m. IT
Security 300 p.m. Communications Study
340 p.m. Closing Remarks 400 p.m.
PDR Board Review of RFAs
111
Agenda
800 a.m. Welcome 815 a.m.
Introduction/Background 900 a.m. Project
Overview 1045 a.m. NDE Context and
Hardware 1115 a.m. Algorithm Development
1200 p.m. Lunch 100 p.m. Data
Handling System 230 p.m. IT Security
300 p.m. Communications Study 340 p.m.
Closing Remarks 400 p.m. PDR Board
Review of RFAs
  • External Interfaces E. Wilson
  • DHS Architecture E. Wilson
  • Common Services P. MacHarrie
  • Subsystem Design A.Al-Jazrawi

112
External Interface Requirements
ID Section Requirement Contract
SRS243 3.3.1 IDPS Data Acquisition - The System shall provide the capability to acquire all xDRs, Intermediate Products, SARSAT Telemetry, A-DCS, ancillary, and auxiliary data and metadata from IDPS. XF1
SRS244 3.3.2 External Ancillary Data Acquisition The System will provide the capability to configure ancillary data acquisition streams from external sources. PG9
SRS10 3.3.3 Data Product Retrieval - The NOAA-Unique and Tailored Products generated by NDE shall be made available to customers by placement in locations where data can be extracted within a time not to exceed the time specified in the Data Product Latency Table. XF3
113
External Interface Requirements
ID Section Requirement Contract
SRS137 3.3.4.1 Archive Data Used for Functional Testing - Metadata and ancillary data, as well as Intermediate , NOAA-Unique, and Tailored Products used in documented Functional Tests, will be sent to CLASS. DA5
SRS138 3.3.4.2 Retrieve Data From CLASS - The System will have the capability to retrieve data from CLASS. DA9
SRS140 3.3.5 MMC Interface Through ESPC - ESPC Operations shall provide an interface between NDE and the NPOESS Mission Management Center (MMC) such that 100 of the NDE inquiries to the MMC and NDE replies to MMC reuests are received by the MMC in a time not to exceed that specified in the ICD, and that 100 of the notifications and inquiries from the MMC to NDE are received by NDE in a time not to exceed that specified by the ICD. XF9
114
External Interface Requirements
ID Section Requirement Contract
SRS141 3.3.6
About PowerShow.com
