Title: A Software Engineering Institute for the Victorian Software Industry


1

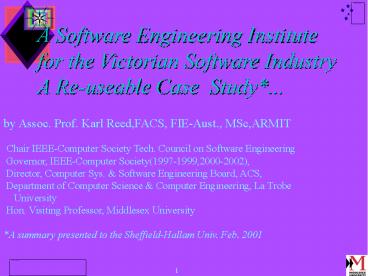

A Software Engineering Institute for the
Victorian Software Industry A Re-useable Case
Study...
by Assoc. Prof. Karl Reed,FACS, FIE-Aust.,
MSc,ARMIT
Chair IEEE-Computer Society Tech. Council on
Software Engineering Governor, IEEE-Computer
Society(1997-1999,2000-2002), Director,
Computer Sys. Software Engineering Board, ACS,
Department of Computer Science Computer
Engineering, La Trobe University Hon.
Visiting Professor, Middlesex University A
summary presented to the Sheffield-Hallam Univ.
Feb. 2001
2
Why Were We Proposing VSEI?
  • Promote government policy in information
    technology ensuring support for an already
    successful industry
  • Ensure that the industry has a major research
    institute
  • Ensure worlds best practice is understood and
    adopted here
  • Twenty years from now
  • a permanent structure delivering an increased
    competitive edge to a major exporting industry!

3
Australian Political Reality
  • Information Technology Sector --gt Primary
    Industry share of GDP
  • Extensive Govt R D for Primary Sector..
  • 10 Divisions of CSIRO, State R D inst., CRCs
  • 15 Govt.-Industry Funded R D Corps for Primary
    Industry
  • Estimated relative short-fall A700M.p.a
    (300M.p.a)
  • Few Public sector large-scale professional
    research groups
  • Universities regarding R D as their domain..
    means of cross-subsidising teaching(?)
  • How does this compare with the UK?

4
What was our strategy?
  • Forcing argument based on comparison with
    Primary Industry and Govt. rhetoric
  • Linkage with industry
  • Credible proposal . to deliver worlds best
    practice
  • Twenty years from now
  • a permanent structure delivering an increased
    competitive edge to a major exporting industry!

5
Goals
  • Guarantee the long term technical viability of a
    major IT industry sector
  • the software and services industries
  • Provide equivalent R D support as that
    available to overseas competitors
  • Provide professional research capability
    advancing the discipline

6
Industry-Academia Working Party Meeting since May
1997
  • Chairman
  • Karl Reed, La Trobe University
  • Deputy Chairman
  • Paul Radford, Managing Director Charismatek
  • Working party
  • Silvio Salom, Managing Director Adacel
  • Laurie Lock Lee, Manager Planning and Development
    BHPIT
  • Robyn Lawrie, Technical Director Charismatek
  • Alex Sawicki, Department of State
    Development/Multimedia Victoria
  • Gary Stoneham, Marketing Manager MITS
  • Sally Duncan, Project Manager Megatec
  • Barbara OBrien, Quality Manager Megatec
  • Bill Jacobs, Technical Director TUSC Computer
    Systems
  • David Cleary, La Trobe University
  • Special advisor
  • Dan Marantz, Cobol Digital
  • Observers
  • The Preston Group
  • Whittle Programming

7
Academic Partners with industry links
  • Karl Reed,
  • Amdahl Project (Case, Metrics, Evolvable
    Programming)
  • Tharam Dillon, La Trobe University
  • OO, Relibility, Metrics
  • T.Y. Chen, Swinburne Univ. Tech., IVE/STC HK
  • Testing and Software Quality
  • Paul Bailes, Univ. Queensland.
  • Software Maintenance Centre
  • HK opportunity for participation

8
Not Seeking Silver Bullets
  • Weve all heard of
  • goto-less programming, structured analysis and
    design, CASE, object orientation, CMM, SPIN
  • ???
  • all trumpeted as the solution
  • This proposal
  • a considered holistic response to a series of
    difficult problems
  • not a quick fix!

9
An Appropriate Solution A Small to Medium
Enterprise Bias
  • Only one of its kind in the world, other SEIs
  • client domains generally not the software
    industry
  • focus on embedded systems, telecom and defense
    aerospace
  • pre-occupied with process issues
  • Our objectives
  • commercial outcomes, deliverables to industry
  • not just academic
  • Funding for technology transfer

10
Worlds Best Practice
  • Aggregated research teams
  • researchers 40 20 PG's
  • Funded technology transfer
  • Industry driven collaboration (including
    management)
  • Cash driven budget (mostly Government)
  • Single point of control

11
Scale Comparable to World's SEI's
  • Overall
  • A2M pa to A30M pa (combined Esprit is much
    larger)
  • Fraunhofer Institute for Experimental Software
    Engineering
  • DM20Mpa (goal)
  • Centre de Recherche de Montreal (CRIM)
  • C18M pa (total)
  • C3M pa (software engineering)

12
International Funding Models
  • Overall
  • typically less than 50 non-government funding,
    often as low as 30, sometimes zero
  • funds often obtained from government sources
    other than granting agency
  • funding models
  • dominant mode core funding (up to 70)
    guaranteed by government agency with allowances
    for ramp-up
  • 100 government funding
  • grant based funding

13
International Funding Models
  • Fraunhofer Institute for Experimental Software
    Engineering
  • Fraunhofer Gesellschaft 40
  • regional government 10
  • future goal non-Fraunhofer funding to be 70
    (ramp up conditions apply)
  • joint projects seek 50 involvement (people
    preferred)

14
SEIs Around the World a Brief Summary
  • Client domain
  • generally not targeted at the software industry
  • mainly embedded systems, telecom and defense
    aerospace (Korea and Taiwan and some Esprit
    projects are software industry)
  • Modus Operandi
  • networks, multi-project granting (CNRC, CRIM),
    academic driven, research driven, captive-client
    (SEI), in house, large-scale (Fraunhofer), etc

15
SEIs Around the World a Brief Summary
  • Areas of investigation
  • all areas of software engineering...
  • Technology transfer
  • seminars to technology trials and leverage
    activities (often funded by agency), experiments
    (PIEs), intellectual property handover
  • Research styles
  • single project (Esprit), short, medium,
    long-term, team, consortia, distributed consortia

16
SEIs Around the World a Brief Summary
  • Outcomes
  • process improvement, methodology, tools, some
    product (Esprit varies enormously), intellectual
    property
  • Intellectual property
  • all models shared by partners, client owned

17
SEIs Around the World a Brief Summary
  • Participants (primary funding sources)
  • single agencies (SEI, Fruanhofer, etc), multiple
    agencies (European SEI), state governments
    (Italy, Canada, Germany), multi-national programs
    (Europe), very few consortia with upfront
    industry funding

18
SEIs Around the World a Brief Summary
  • Research agenda determination
  • agenda setting agency attempts to inject new
    technology and best of breed practice (NSF, SEI,
    DARPA)
  • responsive industry set research agendas
  • academic interventionist academia propose
    research projects
  • joint academia and industry
  • empiricist agendas derived from study of
    practice

19
SEIs Around the World Fraunhofer Institute for
Experimental Software Engineering
  • Funding
  • Fraunhofer Gesellschaft 40
  • regional government 10
  • future goal non-Fraunhofer funding to be 70
  • local government 50 of new building
  • special ramp-up conditions apply
  • Scale goal DM20M pa

20
SEIs Around the World, Centre de Recherche de
Montreal (CRIM) Software Development Tools and
Methods (SDTM)
  • Funding
  • about C3M pa for software engineering
  • Quebec
  • Scale total CRIM C18M pa
  • Client domain
  • embedded systems, aerospace, telecom, electricity
    supply, software tool builders

21
SEIs Around the World, Centre de Recherche de
Montreal (CRIM) Software Development Tools and
Methods (SDTM)
  • Modus operandi
  • joint academic-industry projects
  • studies of tools, methods etc for clients
  • specific research projects.
  • participation sought
  • technology monitoring
  • projects seem small

22
SEIs Around the World, Centre de Recherche de
Montreal (CRIM) Software Development Tools and
Methods (SDTM)
  • Areas of investigation
  • methodology improvement
  • re- and reverse engineering
  • improvement of practice, including metrics,
    standards and SQA
  • object orientation
  • domain-specific architectures, reuse
  • real-time systems, including formal methods

23
Some ESPRIT Research Projects
  • Legacy Assessment Workbench (LAW)
  • areas (aerospace, nuclear)
  • reengineering, metrics workbench for C legacy
    code (safety critical systems)
  • symbolic execution, formal methods
  • outcomes
  • prototypes for evaluation and adoption

24
Where Are We?
Traditionalists View
DISASTER IN WAITING!
  • Bowsers that are limited
  • Time-To-Market web-application deployment
  • 16 year old wunder-kinder throwing systems
    together

NO PROBLEMS MATE!
  • poorly designed functionality

Modernists View
  • rapidly deployed functionality
  • rapid evolution of systems to meet customer needs
  • conventional approaches being left behind
  • the old do not understand the new

25
To many surprises.!!!(nsf report on s/w research
1998)
F1. Current software has too many surprises. The
sources of surprise are poorly understood.
F2. Key sources of software surprise include
immature or poorly integrated software domain
sciences, construction (product) principles, and
engineering processes. Software research emphases
have swung from process to product research, with
weak coverage of domain sciences and
integration.
Sources of surprises... Real and apparent
ambiguity in the means of representation of
systems, e.i. Languages (cf 3 pages of c with 3
pages of government regulations)(Reed, 2000)
26
No surprises.!!!(nsf report on s/w research 1998)
F1. Current software has too many surprises. The
sources of surprise are poorly understood.
Sources of surprises... Real and apparent
unpredictability in behaviour...
Teenagers have less trouble with PC software
because they are adept at playing computer games
Charles Wright, editor Melbourne Age green
pages computer section 2000
Building bots that play computer games with
near human competence is not that hard US
researcher in AI.
27
By way of Illustration...Some Contradictions and
confusion
1. Software Architecture.. not immutable, not
always determinable apriori,multiple versions
in one artefact, retrofitable. Analog with
built systems not clear.
2. Software Process.. CMM vs fine-grained
process independent, Time To Market vs Planned
Process, Phase incompletedness, Extreme
Programming.
3. Software Process... Often mandated, but not
followed few detailed studies similar to
production engineering (see Hess)
4. Re-use not successful, yet components
industry emerging
5. Engineering SE.. Poor choices of analogues
from traditional domains, e.g. immutable
components
28
Some Contradictions and confusion (contd)
6. SWEBOK.. Organised body of knowledge opposed
by leading SE players.
7. Prescriptive Design processes... only slowly
beginning to appear, perhaps via UML.
8. Requirements Engineering... Cannot always be
completed in advance..may be continuous part of
the implementation process...
9. Software Crisis yet increasingly,
successful large-scale applications are ubiquitous
10. High Quality training for 30 yrs.. Yet each
new s/w development wave starts with a blank
mind, e.g. web-based computing
11. Documentation matters but.. Its seldom
actually done
29
Approaching Software Developers
  • Technico-Commercial Drivers the linkage
  • The goal is to find a high-level, one-line
    statement of pressing commercial issue that maps
    directly on to a technology acquisition
    (research) agenda (map idea to common concept
    base accessible to highest management)
  • Show an economic benefit
  • Be able to show ROI after adoption costs
    (equipment training) and productivity losses
    due to learning curves after adoption. (improved
    profit)
  • Show resolution of competitive advantage
    problems (beat off competitors, maintain market
    share)
  • Show new market opportunities due to new
    products/services

30
Research-Commercial Mapping Defining Relevance
Typical SE Research Agenda Australia 1997
Technico-commercial Drivers
Impact of developments in run-time
platforms Low-cost and evolving software
User Interface Development Software
Productivity Performance Predictability
Software Product Quality Certification Time to
Market
1.Re-engineering and Empirical Studies of s/w
Practice, 2.Tools and Methodologies, and Design
Representation, 3. Re-Use, 4. Evolving
Software, 6. Object Oriented Dev. 7. Product
Quality Measurement 8. Time-to-Market 9.
Testing
31
  • The ANSEI Technico-Comercial Driver to Research
    agenda mapping

32
Organisational Proposal
33
Research Agendas Providing Solutions Over-Arching
Goals
  • Our research outcomes are methodologies with the
    following properties, these in fact become
    research objectives
  • performance-based, predictable, development of
    systems to stated performance requirements
  • fine-grained-prescriptive, provide precise
    prescriptions for steps in development
  • improved technology and expertise for
    re-engineering of existing systems
  • study of existing systems and projects, using
    re-engineering, design recording

34
Research Agendas Providing Solutions Over-Arching
Goals
  • Issues of re-use, re-use intensive and re-use
    based methodologies
  • evolving software (current agenda of DARPA)
  • object oriented methodologies, will influence,
    and be influenced
  • engineering of interfaces, part of the
    methodology program
  • Plus, tools that reflect this!

35
Characterising Time to Market
  • Delivery schedules severely truncated compared to
    normal (less than 50)
  • How would we deal with this currently?
  • RAD/JAD, prototyping, super programmers
  • What would the product be like?
  • slow, unreliable, incomplete expensive!
  • Research goal
  • convert this to a methodology capable of
    delivering quality products

36
Characterising Time to Market
  • Research problems
  • for a given project
  • a minimum feasible delivery time tdmin
  • cost k tdmin
  • quality greatly reduced
  • competitive position increased!

-n
37
Time to Market Project Attributes
Attribute Standard Development (under
control) Schedule controlled acceptable Cost c
ontrolled acceptable Quality high Customer
high satisfaction Runtime minimal resources Des
ign high quality
Time to Market (current situation) truncated unpre
dictable uncontrollable high usually low usually
resentful excessive poor
Time to Market (target situation) truncated predic
table acceptable predictable high high predictabl
e high
38
Research Questions
  • Schedule
  • What is an optimal/reasonable project schedule?
  • Is it feasible to attempt a project within a
    specific timeframe?
  • Resources
  • How can available human resources best be
    allocated to ensure projects succeed?

39
Research Questions
  • Factors determining schedules
  • estimating
  • staff quality and experience
  • methodology
  • re-use
  • tools

40
Research Activities Outcomes
  • Determine existing best practices
  • collaborative work with institute partners from
    industry and academia
  • Develop models, methods, tools and methodologies
  • Assess models, methods and tools
  • field assessments using real projects
  • internal assessments using institute projects
  • Disseminate knowledge gained
  • field application of methods and tools with
    institute partners, publication

41
Research Overview
Issue Factors Approach Outcomes Schedule Impa
ct of schedule Data collection Calibrated
new reduction Process recording
exemplar estimating techniques projects
Codification of known models (eg
Microsoft) Risk assessment Identification
of risk indicators Tool
assessment Resource allocation Impact on
project Data collection Improved
planning planning Process recording methods
Impact of decomposition models and
parallel implementation Staff Quality Skill
identification, fine Improved selection grai
ned classification techniques Experience Ident
ification and recording Training need of
experience identification Project structure
42
Research Overview
  • Issue Factors Approach Outcomes
  • Methodology Improved Analysis RAD/JAD High
    quality prototyping
  • productivity Conversion of prototyping to
  • product development
  • Identify essential features of
  • usability
  • Application generators
  • Ultra high skill levels
  • Re-use Areas of How to achieve
    this? Components
  • application What is re-use? Plans
  • Assess current re-user Designs
  • practices Test plans
  • Importance of experience
  • Tools CASE versus What do we really need
    here? Tool set selection
  • lightweight Tool integration New tools
  • Project management Analysis of existing
    tools Choice
  • and planning Identify processes
  • Languages Review and recommendation
  • Process/design

43
5. Current State of Knowledge and Practice-MS vs
the Rest..(contd) history
  • Dijkstra and THE OS in the 70s (the lesson?)...
  • Five people as smart as Edgar Dijkstra can do
    anything Reed, 1981
  • The first Unix effort(but what did it take for
    product versions)
  • OS/360, PL/I (the lesson?) (60s)..
  • Very large teams can build large systems very
    quickly.. x1000 person years
  • Total volumes of functionality (e.g. OS/360) may
    allow partitioning..TTM issue obscured..

44
Waterfall S/W Process Model
/ No need for third-party readable work
products!
/ Extreme programming?
/ Private s/w process? (PeSP compliant?)
45
Time to Market Conclusion
  • Massive competitive advantage from time to market
    products with traditional high quality
  • Necessary elements of time to market focussed
    processes may be accessible
  • Detailed research by experienced staff with
    access to current practice is most likely to be
    successful

46
The role of re-engineering.. S/W Archaeology and
S/W Architecture....
/ recovery of standard architectures
/ identification of s/w construction practices,
e.g. shifts from one programming style to another
/ development of maintainability and
evolvability classifications for --
design methodologies
architectural styles
/ development of maintainability and
evolvability classifications for architectural
styles
47
component semantics and concept extraction.. The
role of re-engineering.. Architecture issues for
the S/W Archaeologist
/ identification of design approaches which
ensure that conceptual architectures are
transferred to implementation
/ identification of standard mappings from
conceptual to actual architectures which occur
using different design approaches on different
problems
48
Conclusion
  • The proposal didnt win..beaten by SEA.. (Problem
    ridden.. Consortium)
  • Is there a need for an SEI in the UK?
  • Surely more than one)
  • Do the arguments map?
  • How will the academic community react?
  • (SE research in the US did not stop because CMU
    got the SEI)

49
Technico-Commercial Problems Facing the Software
Industry
  • Hardware-software run-time environments-adding
    GUI etc to legacy systems
  • Evolving software dynamically
  • Engineered user interfaces
  • Software productivity
  • Design to predicted performance
  • Time to market
  • Software quality
  • Testing
  • Object orientation
  • Net-centric systems- autonomous communicatings
    "agents"

50
Technico-Commercial Problems Facing the Software
Industry
  • Developments in hardware-software run-time
    environments
  • continuing improvements in price/performance
    GUI
  • need to migrate legacy systems to these platforms
  • need to add functionality to legacy systems on
    existing platforms, e.g GUI, client-server
  • Re-engineering of legacy systems to conform to
    these constraints a major business opportunity

51
Technico-Commercial Problems Facing the Software
Industry
  • Evolving software dynamically
  • software capable of rapid change to meet
    existing customers changing needs
  • software capable of rapid change to meet needs
    of new customers
  • New development methodologies which yield
    evolving software

52
Technico-Commercial Problems Facing the Software
Industry
  • Engineered user interfaces
  • UI design derived from data presentation and
    processing ergonomics
  • Methodology supporting improved UI design

53
Technico-Commercial Problems Facing the Software
Industry
  • Software productivity
  • increase productivity to produce PC
    shrink- wrapped software
  • reduce costs for NC/style delivery platforms,
  • reduce maintenance costs
  • New diagramming systems
  • design recording
  • new methodologies enforcing re-use

54
Technico-Commercial Problems Facing the Software
Industry
  • Software Quality Testing and Certification
  • Improve efficiency of specfication-based testing
  • Develop means of code-quality control and
    asessment
  • Improve design to simplify "testablity" of code

55
Research Agenda Providing Solutions Main Items
  • Our research agendas address the
    technico-commercial problems
  • reengineering and empirical studies of software
    practice
  • tools, methodologies and design representations
  • re-use
  • evolving software
  • engineering of user interfaces
  • object oriented development
  • product quality measures
  • time to market
About PowerShow.com
