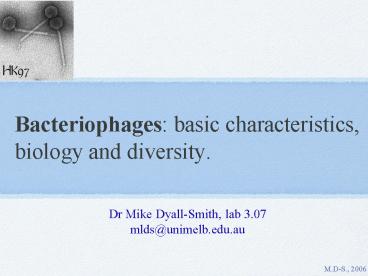

Bacteriophages: basic characteristics, biology and diversity.

1
Bacteriophages basic characteristics, biology
and diversity.

• Dr Mike Dyall-Smith, lab 3.07
• mlds_at_unimelb.edu.au

2
What are bacteriophages?

• Viruses of bacteria - first discovered 1915,
  Frederick Twort and but largely researched by
  Felix DHerelle
• Bacteriophages (or phage)
• are small (lt 200 nm diam), acellular organisms
  that contain DNA or RNA genomes enclosed in a
  protein coat.
• are inactive outside cells, but once they have
  infected a cell they direct the cell metabolism
  to assemble more virus particles.

3
Lambda and P1 specialised or site-specific
recombination
Refs Trun and Trempy, Fundamental Bacterial
Genetics
Lewin, Genes VIII

• Dr Mike Dyall-Smith, lab 3.07
• mlds_at_unimelb.edu.au

4
Advantages of phages

• Simple, small genome - easy to manipulate
• Rapid and efficient infection of host cells
• Rapid replication
• Very high production rates and yields of virus
  from host cells
• Can clone foreign DNA into viral DNA
• Can use their genes and enzymes or the virus

5
Types of Infection

• Lytic or Virulent - eg. T4. Virus has lysin gene
  and destroys the host cell to liberate newly made
  virus particles.
• Temperate - eg. lambda, P1. Virus can maintain
  its genome in a stable state (prophage) in the
  host cell for an indefinite time, without lysing
  the host.
• Chronic - eg. M13, fd. Once infected the host
  cell continually produces virus particles at high
  rates, slowing host cell growth and lowering
  viability.

6
Temperate phage

• Have a regulatory switch between lytic and
  temperate states
• When existing as a prophage, they express
  repressor proteins to block expression of virus
  replication genes, and also express genes to
  protect the cell from superinfection by similar
  viruses (immunity genes)
• Usually a small percentage of cells break out of
  the prophage state and go through the lytic cycle.

7
Temperate phage (eg. lambda)
From Prescott, Harley and Klein, 2005
49 kb
Phage lambda has linear, dsDNA has ss ,
complementary 3 overhangs
Once circularized, it can recombine with the host
chromosome, integrating into a specific site. The
virus genome is then almost completely inactive,
but is replicated along with the host cell
chromosome.
8
Lambda phage
From Prescott, Harley and Klein, 2005
9
Specialised recombinationor site-specific
recombination

• recombination between specific sites that are not
  necessarily completely homologous
• lambda phage integrates into the host chromosome
  by recombination at a specific (att) site
• the lambda genome is excised from the E.coli
  chromosome by recombination between the ends of
  the prophage
• lambda gene int codes for an integrase enzyme
  (Int recombinase) that catalyses integration

10
Specialised recombination

• Extensive regions of homology are not required,
  and Rec enzymes are not involved.
• Can occur between two DNA molecules (lambda
  integration), or within the same DNA molecule
  (lambda excision)
• Very energy efficient, ATP is not required for
  site-specific recombination

11
Specialised recombination
12
Specialised recombination
lambda
E.coli chromosome
13
Specialised recombination

• If the att site is deleted from the E. coli
  chromosome, integration is possible elsewhere,
  but the efficiency is far less (lt0.1) compared
  to the frequency of integration at att .
• These secondary attachment sites, resemble the
  authentic att sequences.

14
Specialised recombination
attP phage attachment site
attB bacterial attachment site - located
between genes for galactose utilization and
biotin synthesis.
attP and attB are also called the POP and BOB
sites, and contain the same 15 nt core
sequence GCTTTTTTATACTAA
15
Specialised recombination

• Int recombinase catalyzes the cutting within a 7
  nt sequence TTTATAC of the core sequence
• attB has two sites for Int recombinase
• attP of lambda has five sites for Int
• An E.coli factor, IHF (integration host factor)
  is also bound.

16
Specialised recombination

• IHF bends the flanking sequences of attP core
  sequence to be closer to the core.
• Three IHF binding sites are in attP. None are in
  attB.
• Once Int and IHF have bound, and the two sites
  (attP and attB) are close together, Int catalyzes
  four phosphodiester strand breakages.

17
Lambda integration

• The right end of the attP core is joined to the
  left end of the attB core and vice versa
• Int catalyses the joins

18
Lambda excision

• The integrated lambda phage genome can be excised
  by a reversal of the same process.
• The process is called excision
• Requires Int, IHF and a second protein Xis
  (excisionase)

19
Site-Specific / specialised recombination

• Integrase acts in a similar way to type I
  topoisomerases in that DNA strands are broken one
  at a time
• However Int then joins the ends up cross-wise
  (whereas topoisomerases rejoin the same ends)
• Basic principle is that one Int enzyme is
  required for each strand breakage (so four are
  required)
• Int is a monomeric enzyme with an active site
  capable of cutting or ligating DNA

20
Site-Specific / specialised recombination

• Two enzymes bound to each recombination site
• At each site, only one enzyme cuts the DNA, and
  the 3 end is joined to a Tyrosine
• The 5-OH attacks the tyrosine bound 3 end of an
  opposing molecule forming a Holliday junction

21
Site-Specific / specialised recombination

• Resolution occurs when the other two enzyme
  molecules (not involved in the first round) act
  on the other pair of complementary strands
• The result is a conservative strand exchange,
  with no deletions or insertions, and no use of
  ATP.

22
Lambda recombination
Host protein IHF is also required for both
integration and excision IHF is a 20 kDa
protein Not essential for E.coli Has the ability
to wrap DNA on a surface IHF and Int bind at
different sequences within the core sequence
23
Excision of lambda
When Int and IHF bind to attP, they generate a
complex in which all the binding sites are
brought together on the surface of a protein The
complex is called an INTASOME
24
Intasome
When Int and IHF bind to attP, they generate a
complex in which all the binding sites are
brought together on the surface of a protein The
complex is called an INTASOME The current model
suggests that the attP intasome traps attB
25
Intasome

• The current model suggests that the attP intasome
  traps attB
• The initial reaction is not based directly on att
  DNA homology but by Int binding to both att sites
• The two att sites are then positioned on the
  intasome, in the correct orientation for
  recombination.

26
Excision requires Xis

• In the integrated state, the two ends are called
  attL and attR.
• The lambda gene product, Xis protein, is required
  for excision, as well as Int and IHF
• Why would a specific phage factor be needed for
  excision?

27
Lambda

• Lambda phage integration/excision requires host
  factor and two phage proteins (Int,Xis)
• This means the system cannot easily used in other
  cells for example, to delete genes

28
Lambda

• Lambda phage integration/excision requires host
  factor and two phage proteins (Int,Xis)
• This means the system cannot easily used in other
  cells

What if you had a way of integrating/excising DNA
that just needed one enzyme and a short DNA
sequence
29
Phage P1
Enterobacteriophage P1 94.8 kb linear, dsDNA
genome 87 x 216 nm Infects Shigella,
E.coli Temperate, forms a plasmid inside cell Has
a site-specific integrase, Cre. Why?
Dr Maria Schnos, Department of Molecular
Virology, Bock Laboratories, University of
Wisconsin
30
Cre LoxP

• Cre is a 38 kDa, recombinase encoded by P1 phage
• In the P1 life cycle it causes cyclization of the
  linear genome and resolution of multimeric
  genomes produced during replication
• Acts at specific sites (loxP) that are composed
  of near identical Cre binding sites (13 nt) in
  inverted orientation, with an 8 bp central
  cross-over region.
• Simple system only need Cre and target sequence
  (lox)

31
Cre - lox recombination
32
Cre - lox recombination
33
Site-Specific recombination
Reaction intermediate (from crystal structure of
phage P1 integrase) showing the close proximity
of the recombinase enzymes and the DNA
ends. Strand exchange takes place in a central
cavity of the protein complex that contains the
central part of the cross-over region.
34
Site-Specific recombination
35
Phage P1 Cre-lox
http//www.callutheran.edu/BioDev/omm/jmol/cre/cre
.html
36
Cre loxP

• Cre-lox system will work on ANY DNA in both
  eukaryotic and prokaryotic cells.
• If you can supply Cre to cell DNA containing lox
  sequences, then recombination will occur
• Can set this up to show expression from
  eukaryotic promoters, eg. Tissue specific gene
  expression
• For example, if put Cre gene under host promoter
  control, then give it a target of lox sites that,
  if excised will give a signal, then can tell in
  which tissues the promoter is active

37
Site-specific recombination
Know the process of site-specific (specialised)
recombination and be able to use the lambda and
P1 Cre-lox systems as examples Be able to
compare these to other DNA transactions that you
learn in this course. Find an example in the
journal literature where cre-lox system is used.
38
Lambda recombination
