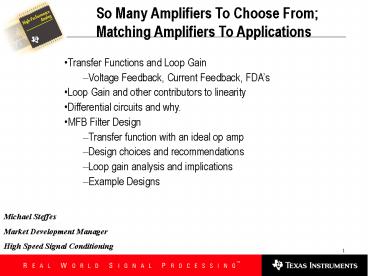

So Many Amplifiers To Choose From Matching
Amplifiers To Applications

• Transfer Functions and Loop Gain
• Voltage Feedback, Current Feedback, FDAs
• Loop Gain and other contributors to linearity
• Differential circuits and why.
• MFB Filter Design
• Transfer function with an ideal op amp
• Design choices and recommendations
• Loop gain analysis and implications
• Example Designs

Michael Steffes Market Development Manager High
Speed Signal Conditioning
2
Loop Gain is Everything in Op Amps

• Op Amp suppliers are essentially selling a device
  that does impedance transformation (high input Z
  to low output Z) and a whole lot of open loop
  gain.
• The customer then closes the loop to get a more
  controlled voltage gain, but also gets a huge
  improvement in precision (both DC and AC) due to
  the high open loop gain.
• For high frequency parts, the DC open loop gain
  is a secondary issue and it is really the one
  pole rolloff curve that is of interest and where
  the magnitude of the open loop gain equals the
  inverse of the feedback ratio. (Loop Gain
  x-over).

3
Simplified VFB Analysis
4
Simplified VFB Loop Gain Analysis
5
Simplified CFB Analysis
6
Simplified CFB Loop Gain Analysis
7
Simplified FDA Analysis
With the feedback ratios matched, this reduces to
the same equation as an inverting VFB amplifier.
Will have the same Loop gain Bode
Plots. Considerable complexity in the analysis
will result with imbalanced feedback
ratios. Refer to TI app. Note SLOA054 for
details. For this discussion, the FDA will be a
subset of the VFB class of devices.
8
Comparing Voltage and Current Feedback Op Amps

• Two parts on the same process, at the same
  quiescent power, will have pretty similar open
  loop gain curves for VFB and CFB devices
  Compare the OPA690 (VFB) and the OPA691(CFB)
  below.

OPA690 Voltage Feedback (VFB)
OPA691 Current Feedback (CFB)
Dominant Pole at 80kHz
Dominant Pole at 200kHz
Gain of 2 (6dB) Loop Gain at 20Mhz is 14dB
Gain of 2, Rf 402ohms, Loop gain at 20Mhz is
16dB
The loop gain profile is just slightly higher
over frequency for the CFB version due to the
higher dominant pole location
9
Theoretical Determinants of Harmonic Distortion

• An Ideal amplifier would take an input spectrum
  and pass it on to the output with the same gain
  for each Fourier component and no added power in
  the spectrum.
• We have not quite achieved that ideal, hence new
  amplifiers and techniques moving closer to this
  are still being introduced.
• Output spectral purity has many levels of
  consideration the better you aspire to, the
  more of these levels you will have to consider.
• The first level is that, for a high open loop
  gain type of part, the output linearity will be
  the linearity intrinsic to the output stage
  corrected by the loop gain at the fundamental
  frequency.
• Low loop gain devices, like most RF amplifiers,
  achieve high linearity by making the signal power
  a very small part of the quiescent power. Hence
  you will see gt80dBc SFDR type devices to very
  high frequencies using gt 1.5W quiescent power

10
Distortion Analysis using Negative Feedbackwith
Distortion modeled only as an Output Stage
Distortion
Distortion
Differencing
Signal
Stage
Vd

Vo

Vi
Verr
A

Forward Gain
-
f
Feedback
Ratio
where Af Loop Gain. Output stage
non-linearities are corrected by loop gain.
11
Paths to Improved Distortion Suggested by the
Control Theory Model.

• At a first level, output linearity is the open
  loop distortion of the output stage, corrected by
  the loop gain. So, improving either of these will
  improve distortion.
• One key conclusion from the Loop Gain comparison
  between VFB and CFB is that the CFB holds a more
  constant loop gain over signal gain (Gain
  Bandwidth Independence). This should hold more
  constant distortion to higher gains than
  VFB.Comparing those plots for the VFB OPA690 and
  CFB OPA691 -

OPA690, VFB, HD linear with log gain
OPA691,CFB, HD more constant over gain
12
Continued Improvement in SFDR??

• The 2nd Harmonic typically does not follow this
  theory exactly. There are other, external,
  effects that typically come into play on the even
  order terms for a single ended amplifier.
• Even order distortion can be visualized as ½
  cycle imbalance on a sine wave. Odd order
  distortion can be visualized as curvature through
  zero on a sine wave.
• Anything that will take a purely balanced output
  sine wave and introduce perturbation on one ½
  cycle but not the other, will be generating even
  order distortion terms.
• Suspects include
• Mutual coupling in the negative supply pin to the
  non-inverting input
• Slightly imbalanced ground return currents
  getting into the input signal paths.
• Imbalanced supply decoupling impedance.
• One of the best ways to eliminate this issue is
  to run the signal path differentially but
  exactly why does that work??

13
Why is it that a Differential Configuration
Suppresses the 2nd harmonic??
14
Why is it that Differential configuration
suppress the 2nd harmonic??

• Substituting in the two halves of differential
  input signal, getting to each output signal, then
  taking the difference - shows we are
  theoretically only left with the desired linear
  signal and the 3rd order term. Even if the A2
  coefficient is not exactly matched between the
  two amplifiers, it is their difference that ends
  up being the gain for this 2nd order
  non-linearity at the output. We also see a
  reduction in the 3rd order coefficient - arising
  from only applying 1/2 of the input through each
  channel.

15
Single Ended Even order Terms become Odds in the
Differential Configuration

• In the time domain, this effect can be seen by
  producing a clipped waveform for the two outputs,
  then taking the difference. The individual
  outputs would have a very high even order
  harmonic content, while the differential signal
  will still be distorted, but will give rise to
  only odd harmonics since the clipping is now
  symmetric on each 1/2 cycle of the sinusoid.

16
Single Ended vs. Differential SFDR

• To illustrate the power of differential designs
  in suppressing HD2, the plots below show the HD2
  and HD3 for a low noise, low distortion VFB dual
  amplifier in both single ended and differential
  configurations. The test conditions give the same
  loop gain, but the differential test had a 35ohm
  load to each output while the single ended was a
  100ohm which raised the HD3 quite a bit.

17
Key Elements to Understanding and Improving
Distortion

• External conditions that will influence
  distortion
• Required Output Voltage and Current as a portion
  of the quiescent power and design of the output
  stage
• This is including loading and supply voltage
  effects as well.
• Adding a higher standing current in the output
  stage will often lower distortion with no effect
  on noise. This Class A current can pick up about
  10dB on the 3rd.
• Loop gain use a VFB designed for the desired
  gain setting or, at higher gains use a CFB
  device.
• Frequency since loop gain changes with
  frequency, a fixed output stage non-linearity
  will give a changing distortion over frequency.
• Layout and Supply Decoupling
• This is covered in detail in TI app. Note
  SBAA113

18
Applying these Concepts to the MFB Filter

• MFB Filter Design
• Transfer function with ideal Op amp
• Design choices and recommendations
• Loop gain analysis and implications
• Example Design with unity gain and non-unity gain
  VFB Devices
• Example Design with FDA Device

19
Starting point for the MFB Filter Design

• MFB (Multiple FeedBack) Low Pass Filter
• Can also call this an Integrator Based Filter
  because imbedded inside the filter is an
  integrator circuit (R2 and C2) which is of
  critical interest to the op amp for stability.
• Since it is an integrator op amp application, a
  couple of constraints come in
• Should be a unity gain stable voltage feedback op
  amp.
• We will overcome the unity gain stability
  constraint later but you cannot (easily) use a
  current feedback device in this filter.
• At DC, the signal gain is R1/R3. Later, we will
  see that R3 only impacts the Q of the filter
  shape (not the wo). Tuning R3 for Q will,
  however, also be changing the DC Gain.

20
What advantages does an MFB filter provide.

1. The MFB filter provides much better stopband
   rejection than an equivalent Sallen-Key filter
   (also called VCVS filter)
2. The MFB filter is also much more forgiving of
   lower bandwidth op amps in terms of the close
   loop pole sensitivity to amplifier gain bandwidth
   product. At least for low Q designs, it gets much
   more sensitivity at higher Q
3. In theory, it is impossible to make this circuit
   oscillate (at least with really slow op amps put
   into the circuit)

21
Stop Band Rejection Comparison

• The plot below compares two designs for a
  Butterworth low pass design using an MFB and then
  a Sallen Key design using the same low speed
  amplifier
• Note the improved stopband rejection achieved for
  the MFB
• The Sallen Key filter eventually shows signal
  feedthrough to the output through the feedback
  capacitor that gives the rising portion of the
  output curve.
• (from sboa049b, Active Low Pass Filter Design,
  Jim Karki)

22
Ideal Transfer Function for the MFB Low Pass
Filter

• The equations below show the transfer function
  and the key design elements resulting from this.

23
MFB Filter Design Methodology

• As is normally the case in active filter design,
  we have more components to resolve than filter
  design parameters.
• Here, there are 5 external elements to resolve
  from which we need to set
• 1. DC Gain (this will be just -R1/R3). Call this
  Av and only use the magnitude in the filter
  design (but we will get an inverting gain through
  the filter)
• 2. Filter wo (characteristic frequency in
  radians)
• 3. Filter Q (quality factor, unitless)
• We need to come up with 2 more constraints to
  uniquely resolve all 5 component values to get a
  nominal design for the filter.
• Another way to say this is that there is an
  infinite number of external component
  combinations that will give the desired filter
  shape. But the internal details of the filter
  performance vary significantly as different
  component combinations are selected.

24
MFB Filter Design Methodology

• In active filter design the other issues that can
  be used to constrain component values are noise
  and distortion. At low frequencies, before the
  capacitors come into play for this low pass
  filter, the noise of R2 adds directly to the
  voltage noise of the op amp to set the apparent
  input noise voltage for calculation purposes.
• It might not be too unreasonable to constrain R2
  to add the same (or lower) output noise power as
  the op amps input noise voltage.
• The full expression for output noise at low
  frequencies is relatively complicated.
• But first, lets look at the DC part of this
  circuit and set up for DC bias current
  cancellation using a resistor on the
  non-inverting input - Rp

25
MFB DC Analysis Circuit

To improve the output DC precision, for bipolar
input Op amps,
26
MFB Noise Analysis Circuit and Total Output Noise
Equation
en is the op amp voltage noise in is the current
noise assumed equal for VFB op amps on each
input

This is not attempting to include any
bandlimiting effects of the filter caps.
27
Output Noise Analysis

• This complete equation includes a couple of terms
  that we can safely ignore.
• The Rp resistor is in place if bias current
  cancellation is part of the intended design.
  However, in the final circuit a large capacitor
  should be placed across this resistor to
  attenuate the noise contributions due to Rp.
  Recall that CMOS or FET input stages (or current
  feedback amplifiers in general) will not benefit
  from adding this Rp towards improving output DC
  accuracy.
• The en will come from the amplifier selected so
  that is a fixed portion of the total output noise
  equation.
• R2 adds several terms that can, if you are not
  careful, dominate over the en term. So if a low
  noise amplifier was selected for its noise,
  setting R2 consistent with that will retain the
  original intent.
• R3 will also add noise in a similar fashion to R2
  it will turn out that setting R3 R2 is good
  for other reasons so we will use that as a
  working assumption in setting an upper limit for
  R2 in this noise analysis

28
Approximate Target for a Maximum R2

• Pulling the en term out and setting equal (in
  power) to the terms due to R2 and R3
  (neglecting the R1 terms as they will be set by
  R3 and the target gain)

Solving for R2
As an approximation, let R3 R2, then using

Solving this
29
Setting the Integrator Pole

• With R2 selected from a noise control
  perspective, we can then proceed to picking C2 to
  put the integrator pole over a wide range of
  locations. Then, with 2 of the 5 passive elements
  selected, the target filter shape can be set with
  the remaining 3.
• It is best to look at the (1/R2C2) issue from a
  noise gain control standpoint. The following
  circuit is the feedback analysis circuit for the
  MFB filter where an added capacitor (CT) is
  included at the inverting node this will be
  either a parasitic that needs to be included or a
  tuning capacitor for phase margin control. It has
  no direct impact on the desired filter transfer
  function but can impact loop gain phase margin
  significantly.

30
Noise Gain Transfer Function

• The following equation is the gain from Vo to V-.
  This is often called ß in the control theory
  literature. The noise gain (1/ß) is also given
  below.

As is always the case, the poles of the noise
gain are the same as the desired filter poles. It
is useful to re-write this 1/ß in terms of the
target filter elements (letting CT 0 to
simplify)
31
Noise Gain Transfer Function

• Re-writing the Noise Gain (1/ß) in terms of the
  desired filter design terms gives (where that
  equation is simplified by letting CT0, for now)
• The poles are again the desired filter ?o and Q
  while the zeroes are also set by these terms plus
  an added (1/R2C2) in the linear term.
• Important points
• At DC (s0), the noise gain is 1 Av
• At s ?8, the noise gain becomes 1 CT/C2 (from
  the previous full eq.)
• The 2 zeroes and 2 poles control the transition
  between these two gains.
• The only added degree of freedom in setting the
  zeroes is the integrator pole location
  everything else is already determined by the
  desired filter shape.
• It can be proven that the zeroes are always real
  it is not possible to get complex zeroes in
  this equation.
• Setting the 1/R2C2 becomes the focus of the
  design from here.

32
MFB Filter Design Methodology

• Stepping through some algebra to get an isolated
  solution for C1, the following expression results
  that only leaves us to select C2 (if R2 is
  already chosen)
• The wo (R2C2) term is of some interest. This is
  the ratio of the target ?o to the embedded
  integrator pole. The equation above will only
  solve for a non-negative C1 if the term in the
  denominator is positive.
• This sets a limit to the maximum ratio of wo to
  the integrator pole. Moving the R2C2 term around
  (always satisfying the constraint implied by the
  above equation), will be changing the noise gain
  zeroes as shown on the previous slide which will
  then be changing the loop gain

33
Setting the Range on the Integrator Pole

• It is a bit simpler to work with this ?o (R2C2)
  term inverted. That then becomes the ratio of the
  integrator pole to the desired filter
  characteristic frequency and normally will be a
  ratio gt1. Doing that gives a minimum limit on
  this ratio of
• This shows that the integrator pole must be set
  at least this Q(1AV) greater than the target ?o
  to get a valid solution for C1. In the limit,
  where we do solve for C18, we also get R3 0O.
  As we move the target 1/R2C2 term up, the noise
  gain zeroes will spread apart with one going up
  with 1/R2C2 and the other coming down. Also R3
  will increase from 0O and C1 will come down from
  8. One interesting point on this continuum is
  where R3 R2. That will result when the
  following relationship is set to equality.
• This is showing Q(12Av) as a maximum limit to
  the ratio of the integrator pole to ?o that is
  only if R3 R2 is desired from a total output
  noise perspective. Valid solutions will result
  moving the integrator pole further out (R3gtR2),
  but will give higher noise (due to the higher R3
  value) and reduced SFDR as the noise gain will
  start to peak at frequencies below ?o when the
  lower noise gain zero drops below ?o

34
Summary of MFB Design Methodology

• Set your filter design targets
• Select a possible amplifier and get its noise
  numbers
• The higher the Gain Bandwidth Product, the higher
  the loop gain will be at a particular frequency.
  Also, some GBW margin is needed to hit the
  desired pole locations. FilterPro suggests the
  gain bandwidth product be 100QAVFo The AV
  term is correct for Sallen Key using VFB
  amplifiers but for MFB, we go unity gain at
  high frequencies and this is too restrictive
• Compute an initial value for R2 to not be a
  dominate noise source at the output
• Select the ratio of 1/R2C2 to ?o to give an R3R2
• Compute C1 using the equation shown earlier
• Compute R3 using the following expressions
• Set R1 to get the gain
• Check loop gain and phase margin in the design
• Add CT if phase margin too low
• This is all set up in a design spreadsheet
  available with an application note Design
  Methodology for MFB Filters in ADC Interface
  Applications SBOA114 on the TI web site.

35
Example Designs using Spreadsheet

• Target a 3rd order Butterworth with F-3dB
  1.2Mhz with a gain of -4V/V
• Go into Filter Pro to get the pole locations
• Real pole at 1.2Mhz, Complex poles at 1.2Mhz Fo
  and Q 1.
• 3. Select the amplifier Consider amplifier with
  a GBW gt 100FoQ to get accurate filter results
  this would be gt120Mhz gain bandwidth product
• 4. Assume we are driving a 16bit converter with a
  4Vpp input range and do not want the integrated
  noise to exceed ½ LSB in an RMS sense. Estimate
  Noise Power Bandwidth as 1.2F-3dB 1.44Mhz.
• Then eo lt (4Vpp/(217))/(v1.44Mhz) 25.2nV/vHz
• Then input referred en should be lt 25.2/4
  6.3nV/ vHz
• (analysis from Noise Analysis for High Speed Op
  Amps SBOA066)
• So we need GBW gt 120Mhz and en lt6.3nV/vHz total
  including resistor noise
• Allow the amplifier to be up to ½ of this total
  giving an allowed input of 3.15nV/vHz for just
  the amplifier en.

36
Example Designs using Spreadsheet

• Going into the selection table, we find this is a
  pretty tough requirement, The only single channel
  amplifiers with low enough noise and high enough
  GBW are listed below. The OPA2613 dual and
  THS4131 FDA would also meet this if differential
  I/O was an eventual target for the design
• From this, lets first try the OPA820 and then
  the OPA846

The amplifier will be used to get the complex
poles with Q 1 and Fo 1.2Mhz. The real pole
at 1.2Mhz will be added as a post RC filter
37
Initial Design Example using OPA820

38
Design Example using OPA820 Loop Gain

39
First Example Circuit

Real 1.2Mhz pole at output designed by targeting
the noise of voltage of the series resistor to be
1/10 the noise at the OPA820 output. The 540O on
the V input gets bias current cancellation.
40
Summary Details on the OPA820 Design

• This design set R2300O and R3 300O by setting
  the ratio of the integrator pole/Fo at the
  suggested value of 9x.
• This gave the desired filter design with a total
  input referred en 4.95nV/vHz (lower than the
  target 6.3nV/vHz)
• Only parasitic CT on the inverting node was used
  (3pF) since the OPA820 is unity gain stable. We
  estimate 53deg. phase margin.
• C2 49.1pF and C1 995pF gave the desired
  filter shape.
• Noise gain zeroes at 633kHz and 10.7Mhz
• Loop gain at Fmax 1Mhz was 29dB
• Simulated distortion for 4Vpp output at RC filter
  output
• At 200kHz input HD3 -95dBc
• At 1Mhz input HD3 -89dBc (3rd falling at 3Mhz,
  getting rolled off.)

41
Impact of Higher Integrator Pole

• Now take this design and intentionally increase
  the integrator pole location beyond the point
  that an R3 R2 design would result. (gt than the 9
  ratio shown in the spreadsheet)
• This will have the effect of splitting the zero
  frequencies wider apart, moving one much lower in
  frequency and the other higher. It will also then
  solve for an R3gtR2 which is good for increasing
  the input impedance but will increase output
  noise.
• The original OPA820 design set the 1/R2C2 at 9X
  the target Wo as computed in the spreadsheet to
  get R3 R2.
• Overriding this and setting that Ratio to 20X
  puts the integrator pole at 201.2Mhz 24Mhz.
  This puts the noise gain zeroes at 288kHz and
  22Mhz causing added noise gain peaking below the
  1.2Mhz cutoff.

42
Modified OPA820 Design with Lower Noise Gain
Zero Peaking lt F-3dB

43
Modified OPA820 Circuit With Noise Gain Peaking

Real 1.2Mhz pole at output designed by targeting
the noise of voltage of the series resistor to be
1/10 the noise at the OPA820 output. The 1.19kO
on the V input gets bias current cancellation.
44
Summary Details on Modified OPA820 Design

• This design set R2300O and R3 1.12kO by
  targeting the integrator pole/Fo ratio at 20X.
• This gave the desired filter design with a total
  input referred en 6.8nV/vHz (gt than the 4.95nV
  before andgt target max. of 6.3nV/vHz)
• Only parasitic CT on the inverting node was used
  (3pF) since the OPA820 is unity gain stable. We
  estimate an improved 58deg. phase margin.
• C2 22pF and C1 589pF gave the desired filter
  shape.
• Noise gain zeroes at 288kHz and 22Mhz
• Loop gain at Fmax 1Mhz was 23.5dB (5.5dB less
  than before)
• Simulated distortion for 4Vpp output at output of
  the RC stage
• At 200kHz input HD3 -91.5dBc (vs. -95dBc
  previously)
• At 1Mhz input HD3 -84dBc (vs. -89dBc
  previously)

45
Filter Design Using Higher Gain Bandwidth Op Amp

• Now repeat this same filter design using a much
  higher gain bandwidth amplifier than the OPA820
• In this case, the OPA846 will be used this
  gives the following benefits.
• 1. Lower input noise voltage (1.2nV vs. 2.5nV)
• 2. Higher Gain Bandwidth (1750MHz vs. 280Mhz)
• 3. Higher Slew Rate (645V/µsec vs. 240V/µsec)
• However, the OPA846 is non-unity gain stable
  so, once the C2 capacitor is chosen to get the
  desired filter shape, an added CT on the
  inverting node must be added to get a high
  frequency noise gain that is close to the stated
  minimum stable gain (7V/V). This can be done just
  by trial and error observing the reported phase
  margin as CT is updated. I targeted about 45deg.
  Minimum level here. Increasing CT further does
  hurt output noise and loop gain at band edge.
• To take advantage of the lower input noise
  voltage of the OPA846, lower R2 and R3 resistor
  values are needed. Here a design using R3 lt R2
  will be done initially remember R3 will be in
  the input impedance to the filter.

46
Higher Loop gain Design Using the OPA846

47
2nd Design Example using OPA846

48
Higher Loop Gain Example Design

Real 1.2Mhz pole at output designed by targeting
the noise voltage of the series resistor to be
1/10 the noise at the OPA846 output. The 280O on
the V input gets bias current cancellation.
49
Summary Details on the OPA846 Design

• This design set R2200O and R3 100 O. Noise
  analysis suggested R2 81O but I wanted to set
  R3 lt R2 here so I increased R2 to 200O and
  reduced the target ratio of the integrator
  pole/Fo from the 9X (shown to get to R3R2) to a
  7X target which gave the R3 100O
• This gave the desired filter design with a total
  input referred en 3.2nV/vHz
• Added 450pF on the inverting node since the
  OPA846 is not unity gain stable. Estimating
  46deg. phase margin with this tuning element in
  place.
• C2 95pF and C1 2300pF gave the desired filter
  shape.
• Noise gain zeroes at 611kHz and 20.5Mhz
• Loop gain at Fmax 1Mhz was 42dB
• Simulated distortion for 4Vpp output at the RC
  filter output was -
• At 200kHz input HD3 -138dBc
• At 1Mhz input HD3 -128dBc (3rd falling at 3Mhz,
  getting rolled off.)

50
Design Using the OPA846 with lower noise gain
zero reducing in band loop gain.

51
OPA846 design with lower noise gain zero

52
OPA846 with Lower Noise Gain Zeroes

Real 1.2Mhz pole at output designed by targeting
the noise voltage of the series resistor to be
1/10 the noise at the OPA846 output. The 800O on
the V input gets bias current cancellation.
53
Summary Details on the OPA846 Design having lower
noise gain Zero

• This design set R2200O and R3 750 O. This
  results from setting the target integrator
  pole/Fo 20X.
• This gave the desired filter design with a total
  input referred en 5.5nV/vHz
• Added 150pF on the inverting node since the
  OPA846 is not unity gain stable. Estimating
  43deg. phase margin with this tuning element in
  place.
• C2 33pF and C1 884pF gave the desired filter
  shape.
• Noise gain zeroes at 246kHz and 5.3Mhz
• Loop gain at Fmax 1Mhz was 36dB (6dB lower than
  previous OPA846 ckt)
• Simulated distortion for 4Vpp output at the RC
  filter output was -
• At 200kHz input HD3 -127.3dBc (vs. -138dBc
  previously)
• At 1Mhz input HD3 -120.4dBc (vs. -128dBc
  previously)

54
Filter Design Using a Low Noise FDA

• Now repeat this same filter design using an FDA
  to implement a differential in to differential
  out design.
• In this case, the THS4130 will be used
• Low noise (1.3nV/vHz)
• Good Gain Bandwidth (180Mhz)
• Relatively Low Slew Rate (52V/usec)
• 4Vpp output at 1.2Mhz requires 15V/usec slew
  rate. Extremely low distortion cannot be
  expected at 1.2MHz with such a low design
  margin.
• FDAs that are quoted as unity gain stable, are
  really operating at a noise gain of 6dB. The FDA
  topology presents a true unity noise gain at high
  frequencies due to the feedback cap. Hence, lower
  phase margin than might be expected results. Here
  an added cap. across the inputs was used to
  improve the phase margin.

55
Design Using the THS4130 FDA to get a
Differential I/O MFB Filter.

56
THS4130 Loop Gain Plot

57
THS4130 Differential I/O MFB Filter Design for a
3rd order 1.2Mhz Butterworth

Real 1.2Mhz pole at output designed by targeting
the noise voltage of the series resistor to be
1/10 the noise voltage at the THS4130 output.
58
Summary Details on the THS4130 FDA Design for a
1.2Mhz 3rd Order Butterwoth

1. The spreadsheet recommended R2 104O but I used
   200O to increase the resistors somewhat to limit
   loading related distortion degradation. Total
   input referred noise estimated to be 3.44nV/vHz
   for single side need to take v2 3.44nV
   4.85nV vHz to get total differential input
   referred noise.
2. Selected R3 R2 by setting the integrator pole
   at 9Fo.
3. Since the THS4130 is compensated for 0dB signal
   gain (6dB noise gain) and, the C2 feedback cap
   takes this circuit a true 0dB noise gain at high
   frequencies we saw lt 40deg nominal phase margin
   with no CT in place. With C2 set to 74pF, I added
   20pF CT and increased phase margin to 54deg.
4. Loop gain at Fmax 21.4dB.
5. Collapsed CT and output real pole capacitor into
   1 differential value by connecting across the two
   circuit halves with ½ the value. Kept C1s
   separate to get common mode filtering in the
   forward path.
6. Distortion performance unknown but should give
   great HD2. Still need to test and/or simulate
   this circuit.

59
Summary MFB Filter Design Suggestions

• Set targets Use the MFB for relatively low Q
  requirements
• Pick an amplifier from noise, Gain Bandwidth
  requirements
• Start design by picking R2 close to spreadsheet
  suggested value
• Set 1/R2C2 by picking a ratio of this to ?0
  value required to get R3 R2. This will control
  noise contribution due to R3 and keep the noise
  gain zeroes placed relatively high to avoid in
  band noise gain peaking and loop gain loss.
• Complete design, check phase margin and loop gain
  at max. operating frequency. Check that prior
  stage can drive R3 without too much loss in
  distortion performance.
• Check design in Pspice or Tina check for filter
  shape as desired compare to spreadsheet plot
  for ideal filter shape and if way off, use a
  faster amplifier or adjust R3 up. Slow amplifiers
  mainly reduce the Q but do not change the ?0 very
  much in the MFB topology. Increasing R3 will
  increase Q but will not move the ?0 while also
  reducing gain.
