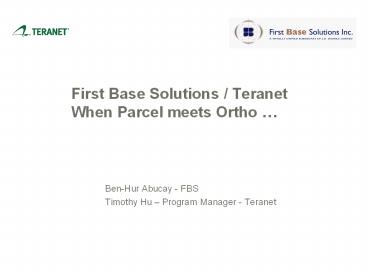

First Base Solutions / Teranet When Parcel meets Ortho

1
First Base Solutions / Teranet When Parcel meets
Ortho

• Ben-Hur Abucay - FBS
• Timothy Hu Program Manager - Teranet

2
GEOSPATIAL PERSONAL AD About Me Name Parcel
Fabric Status Single but can be split and
consolidated. Very structured but can change on
you at the drop of a dime. Descripton Slim
outline with distinct identifier. Not very
attractive by itself but has a lot of internal
qualities that are not shown in the map.
Looking For Possible relationship with other
data to complement slim figure. Easily found
using address / name based searching.
3

GEOSPATIAL PERSONAL AD About Me Name Ortho
Image Status Single Requires a lot of time
and preparation to get ready. Not a cheap
date! Descripton Very attractive full colour
image with WOW factor. Provides a lot of
context but is not easily found without
relationship with other data. Looking For
Relationship with other data to find myself.
Looking for new markets to show off my 20cm
resolution!
4
When Parcel meets Ortho

• Relationship Build
• Need to find users
• Need to have application
• Need to maintain autonomy
• Need to maintain image of togetherness but
  really live separate lives.

5
The Results Zoom2It Plus
6
Agenda

• GeoWarehouse Online Overview
• Application Integration?
• Managing the Partnership
• Ortho Image Technology Update

7

• Web application (www.geowarehouse.ca)
• Provides access to Ownership information to over
  4 million properties in POLARIS.
• Title Data contained in the GeoWarehouse database
  is updated every 10 business days
• Map Data is updated daily
• Currently 40,000 registered users
• Demo www.geowarehouse.ca

8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
How it Works

• HTTP request
• Security
• Time
• User Information
• PIN

19
Benefits of this approach

• Simple HTTP request
• We use the PIN as the common link to pass back
  and forth between applications
• Applications and Data are separate
• Less need to coordinate upgrades/ changes to
  applications
• Users dont know it is a different website /
  server

20
Lessons Learned

• Integration applications should not be reliant
  on other side being available.
• All applications change try to put together an
  environment which upgrades can be done
  independently
• Introduction of new content to the spatially
  challenged should use the KISS principle
• Always remember the target audience
• Nothing beats having good people to work with

21
The Results Win-Win-Win
22
Summary Keys to Success

• Fair distribution of risk, responsibility and
  reward
• Solve the business issues then write the legal
  agreements with good lawyers
• Ensure all parties have necessary resources to
  work toward the goals
• Be sensitive to differing agendas
• Develop win-win solutions
• Maintain good governance through open
  communications

23
The Results Win-Win-Win

• First Base Solutions
• Utilize GeoWarehouse functionality to locate
  (Address / Owner Name)
• Access to new user base resulting in new revenues
• No need to establish market presence it already
  existed
• Teranet
• Extended service offering to users
• Interactive Map Viewer with Ortho imagery
• Additional subscription revenue
• GeoWarehouse Users
• Access to aerial imagery integrated with sales
  and parcel data
• Ability to navigate between maps and ownership
  information
• Ability to purchase imagery and parcel

24
(No Transcript)
25
Parcel Processing for Zoom2it

• Re-project parcels to UTM Nad83
• Create a join between the parcel shapefile and
  the basic property report
• Add additional information
• Create a spatial index for speed
• Update shapefiles on each web cluster

26
Large-Format Digital Aerial Camera System
Ben-Hur Abucay Tel [phone] Fax
905-477-0892 babucay_at_firstbasesolutions.com
27
Digital Advantages

• Technical Advantages
• Better Accuracy
• Better Automation
• Better Images
• Business Advantages
• Lower Costs
• New Data Products
• More flying days/hours
• Faster Turn-Around

28
UltraCam Design

• How does it work?

29
The UltraCam Digital Camera System
30
Master Cone
4 Color Cones
Panchromatic
31
UltraCam Geometry - 1
Full Scene
Master Cone with 4 Fiducial CCDs
32
UltraCam Geometry - 2
1st Slave Cone with 2 CCDs
33
UltraCam Geometry - 3
2nd Slave Cone with 2 CCDs
34
UltraCam Geometry - 4
3rd Slave Cone with 1 CCD
35
Online Self-Calibration
Tie Points in all overlapping areas
36
Syntopic Imaging

• Why there is only one perspective center for all
  sub-images

37
Synchronous Exposure would create geometric
problems
8 cm
24 cm
38
Syntopic Imaging Utilizes airplane motion to
expose the four camera cones at identical
positions in space (Syntopic exposure)
1 msec
39
Time t1 (t1 0 msec) Start Exposure Cone 1
40
Time t2 (t1 1 msec) Plane has moved 8cm Start
Exposure Cone 2
41
Time t3 (t1 2 msec) Plane has moved 8 more
cm Start Exposure Cone 3
42
Time t4 (t1 3 msec) Plane has again moved 8
cm Start Exposure Cone 4
43
Full Frame T1 3 msec Cones 1234
44
Pixel Correlation

• Better Matching
• Better Classification
• More Redundancy

Correlation is 2x better than with film
45
Analog Mapping Workflow
Air PhotoOperation
Aerial Film Camera
Photo Lab
Film Archive
Scanning
Digital Media
Digital Image Archive
Map Production Operation
Softcopy Production Tools
Product Archive
46
Digital Mapping Workflow
Air Photo MappingOperation
Aerial Film Camera
Photo Lab
UltraCam
Post- Processing
Digital Archive
Images
Products
Softcopy Production Tools
47
Black-and-White Film
Agfa CN100 film Scanned 10 µm, GSD 15 cm
48
Black-and-White Digital
UltraCam Digital GSD 17 cm
49
Color Film
Collection two weeks apart film camera vs.
UltraCam
Color Film scanned at GSD 15 cm
50
Color Digital
Collection two weeks apart film camera vs.
UltraCam
UltraCam Digital GSD 17 cm
51
Before
52
After
53
Thank You
Ben-Hur Abucay Tel [phone] Fax
905-477-0892 babucay_at_firstbasesolutions.com
54

• Questions?
