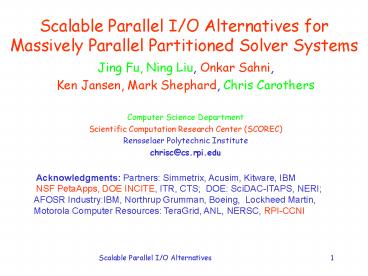

Scalable Parallel I/O Alternatives for Massively
Parallel Partitioned Solver Systems

• Jing Fu, Ning Liu, Onkar Sahni,
• Ken Jansen, Mark Shephard, Chris Carothers
• Computer Science Department
• Scientific Computation Research Center (SCOREC)
• Rensselaer Polytechnic Institute
• chrisc_at_cs.rpi.edu

Acknowledgments Partners Simmetrix, Acusim,
Kitware, IBM NSF PetaApps, DOE INCITE, ITR, CTS
DOE SciDAC-ITAPS, NERI AFOSR IndustryIBM,
Northrup Grumman, Boeing, Lockheed Martin,
Motorola Computer Resources TeraGrid, ANL,
NERSC, RPI-CCNI
2
Outline

• Motivating application CFD
• Blue Gene Platforms
• I/O Alternatives
• POSIX
• PMPIO
• syncIO
• reduce blocking rbIO
• Blue Gene Results
• Summary

3
PHASTA Flow Solver Parallel Paradigm

• Time-accurate, stabilized FEM flow solver
• Input partitioned on a per-processor basis
• Unstructured mesh parts mapped to cores
• Two types of work
• Equation formation
• O(40) peer-to-peer non-blocking comms
• Overlapping comms with comp
• Scales well on many machines
• Implicit, iterative equation solution
• Matrix assembled on processor ONLY
• Each Krylov vector is
• qAp (matrix-vector product)
• Same peer-to-peer comm of q PLUS
• Orthogonalize against prior vectors
• REQUIRES NORMSgtMPI_Allreduce
• This sets up a cycle of global comms. separated
  by modest amount of work

4
Parallel Implicit Flow Solver
IncompressibleAbdominal Aorta Aneurysm (AAA)

Cores (avg. elems./core) IBM BG/L RPI-CCNI
t (secs.) scale factor
512 (204800) 2119.7 1 (base)
1024 (102400) 1052.4 1.01
2048 (51200) 529.1 1.00
4096 (25600) 267.0 0.99
8192 (12800) 130.5 1.02
16384 (6400) 64.5 1.03
32768 (3200) 35.6 0.93
32K parts shows modest degradation due to 15
node imbalance
5
AAA Adapted to 109 ElementsScaling on Blue Gene
/P
New _at_ 294,912 cores ? 82 scaling But getting
I/O done is a challenge
6
Blue Gene /L Layout

• CCNI fen
• 32K cores/ 16 racks
• 12 TB / 8 TB usable RAM
• 1 PB of disk over GPFS
• Custom OS kernel

7
Blue Gene /P Layout

• ALCF/ANL Intrepid
• 163K cores/ 40 racks
• 80TB RAM
• 8 PB of disk over GPFS
• Custom OS kernel

8
Blue Gene/ P (vs. BG/L)
9
Blue Gene I/O Archiectures

• Blue Gene/L _at_ CCNI
• 1 2-core I/O node per 32 compute nodes
• 32K system has 512, 1 Gbit/sec network interfaces
• I/O nodes connected 48 GPFS file servers
• Servers 0, 2, 4, and 6 are metadata servers
• Server 0 does RAS and other duties
• 800 TB of storage from 26 IBM DS4200 storage
  arrays
• Split into 240 LUNs, each server has 10 LUNs (7 _at_
  1MB and 3 _at_ 128KB)
• Peak bandwidth is 8GB/sec read and 4 GB/sec
  write
• Blue Gene/P _at_ ALCF
• Similar I/O node to compute node ratio
• 128 dual core fileservers over Myrinet w/ 4MB
  GPFS block size
• Metadata can be done by any server
• 16x DDN 9900 ? 7.5 PB (raw) storage w/ peak
  bandwidth of 60 GB/sec.

10
Non-Parallel I/O A Bad Approach

• Sequential I/O
• All processes send data to rank 0, and 0 writes
  it to the file

Lacks scaling and results in excessive memory use
on rank 0Must think parallel from the start,
but that implies data/file partitioning
11
1 POSIX File Per Processor (1PFPP)

• Pros
• parallelism, high performance at small core
  counts
• Cons
• lots of small files to manage
• LOTS OF METADATA stress parallel filesystem
• difficult to read back data from different number
  of processes
• _at_ 300K cores yields 600K files
• _at_ JSC ? kernel panic!!
• PHASTA currently uses this approach

12
New Partitioned Solver Parallel I/O Format

• Assumes data accessed in a coordinated manner
• File master header series of data blocks
• Each data block has header and data
• Ex 4 parts w/ 2 fields per part
• Allows for different processor config
• (1 core _at_ 4 parts),
• (2 core _at_ 2 parts)
• (4 cores _at_ 1 part)
• Allows for 1 to many files to control metadata
  overheads

13
MPI_File alternatives PMPIO

• PMPIO ? poor mans parallel I/O from silo
  mesh and field library
• Divides app into groups of writers
• w/i a group only 1 writer at a time to a file
• Passing of a token ensures synchronization w/i
  a group
• Support for HDF5 file format
• Uses MPI_File_read/write_at routines

14
MPI_File alternatives syncIO

• Flexible design allows variable number files and
  procs/writers per file
• Within a file, can be configured to write on
  block size boundries which are typically 1 to
  4MB.
• Implemented using collective I/O routines e.g.,
  MPI_File_write_at_all_begin

15
MPI_File alternatives rbIO

• Rb ? reduced blocking
• Targets checkpointing
• Divides application into workers and writers with
  1 writer MPI task per group of workers.
• Workers send I/O to writers over MPI_Isend and
  are free to continue
• e.g., hides the latency of blocking parallel I/O
• Writers then perform blocking MPI_File_write_at
  operation using MPI_SELF communicator

16
BG/L 1PFPP w/ 7.7 GB data
17
BG/L PMPIO w/ 7.7 GB data
HDF5 Peak 600MB/sec
RAW MPI-IO Peak 900 MB/sec
18
BG/L syncIO w/ 7.7 GB data
Write Performance Peak 1.3 GB/sec
Read Performance Peak 6.6 GB/sec
19
BG/P syncIO w/ 60 GB data
20
BG/L rbIO actual BW w/ 7.7 GB data
21
BG/L rbIO perceived BW w/ 7.7 GB data
22 TB/sec
11 TB/sec
22
BG/P rbIO actual BW w/ 60 GB data
17.9 GB/sec
23
BG/P rbIO perceived BW w/ 60 GB data
21 TB/sec
24
Related Work

• A. Nisar, W. Liao, and A. Choudhary, Scaling
  Parallel I/O Performance through I/O Delegate and
  Caching System, in Proceedings of the 2008
  ACM/IEEE conference on Supercomputing, 2008.
• Performance rbIO inside MPI via threads and
  using upto 10 compute cores as I/O workers
• Benchmark studies (hightlight just a few)
• H Yu et al 18 BG/L 2 GB/sec _at_ 1K
• Saini et al 19 512 NEC SX-8 cores I/O was
  not scalable when all processors access a shared
  file.
• Larkin et al 17 large performance drop at 2K
  core count for CrayXT3/XT4
• Lang et al 30 large I/O study across many
  benchmarks on Intrepid/BG-P. Found 60 GB/s read
  and 45 GB/s write. In practice, Intrepid has a
  peak I/O rate of around 35 GB/sec

25
Summary and Future Work

• We examine several parallel I/O approaches..
• 1 POSIX File per Proc lt 1 GB/sec on BG/L
• PMPIO lt 1 GB/sec on BG/L
• syncIO all processors write as groups to
  different files
• BG/L 6.6 GB/sec read, 1.3 GB/sec write
• BG/P 11.6 GB/sec read, 25 GB/sec write
• rbIO gives up 3 to 6 of compute nodes to hide
  latency of blocking parallel I/O.
• BG/L 2.3 GB/sec actual write, 22 TB/sec
  perceived write
• BG/P 18 GB/sec actual write, 22 TB/sec
  perceived write
• Good trade-off on Blue Gene
• All procs to 1 file does not yield good
  performance even if aligned.
• Performance sweet spot for syncIO depends
  significantly on I/O architecture and so file
  format must be tuned accordingly
• BG/L _at_ CCNI has a metadata bottleneck and must
  adjust of files according e.g., 32 to 128
  writers
• BG/P _at_ ALCF can sustain much higher performance,
  but requires more files e.g., 1024 writers
• Suggest collective I/O is sensitive to underlying
  file system performance.
• For rbIO, we observed that 1024 writers was the
  best performance so far for both BG/L and BG/P
  platforms..
• Future Work impact on performance of different
  filesystems
• Leverage Darshan logs _at_ ALCF to better understand
  Intrepid performance
• More experiments on Blue Gene/P under PVFS,
  CrayXT5 under Lustre
