Wireless LAN Technologies and Products

1

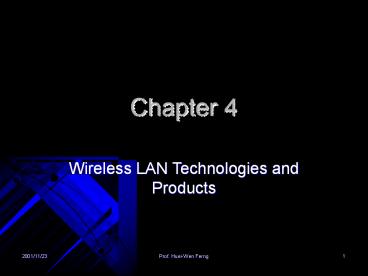

Chapter 4

• Wireless LAN Technologies and Products

2
Wireless LAN Products
3
Choosing a WLAN

• What are the applications? Is mobility required?
• What level of performance is acceptable?
• Will infrared satisfy the needs?
• To what backbone networks do we need to connect?
• With what network OS do we need to work?
• Is it secure?
• How easy is it to install? To use? To manage?
• How much does it cost? (500)

4
Current Applications

• Wire replacement applications
• Mobile computing applications

5
(No Transcript)
6
Lucent WaveLAN
7
Product Line
8
Network Topology
9
Components of AP

• A wireless LAN adaptor to communicate with the
  wireless nodes
• A wired adaptor to communicate over the backbone
• MAC layer bridging software to filter traffic
  from the backbone to the wireless subnet

10
System Engineering Spec.

• The radio
• 902-928 MHz ISM band
• 2.4-2.483 GHz ISM band
• 250 mw power output in 900 MHz band, 100 mw in
  the 2.4 GHz band
• MAC
• CSMA/CA

• Modulation
• DSSS
• DQPSK
• Protocols supported
• Novell NetWare 2.x and 3.x
• TCP/IP
• LAN manger
• Windows for workgroups
• Banyan VINES

11
APs Functions

• MAC layer transparent bridge (IEEE 802.1D)
• Filtering/forwarding
• Automatic learning and aging
• Spanning tree algorithm
• SNMP management
• Radio path diagnostics
• Access control
• Net ID

12
Supported PHY Types of Ethernet

• 10BaseT
• Twisted pair Ethernet
• 10Base2
• Thin wire Ethernet
• 10Base5
• Thick wire Ethernet

13
DEC
14
Product Line
15
Protocols Supported

• Pathworks V4.1
• Novell NetWare 2.x and 3.x
• TCP/IP
• LAN manager
• Windows for workgroups
• Banyan VINES

16
Products in the World
17
Products

• DECtransporter for the MS-DOS/MS-Windows
• A TCP/IP package
• Enables cellular connection with appropriate
  modem, or a wired connection with appropriate
  modem
• DECtransporter for OpenVMS VAX
• A TCP/IP to packet radio network gateway
• Enables connection to a private network over a
  public packet radio network such as Mobitex or
  ARDIS

18
Remote Connectivity Configuration
19
Solectek AIRLAN
20
Protocols Supported
21
Proxim RangeLAN 2
22
Product Line
23
Network Topology
24
System Technology

• FHSS
• 2.4-2.483 GHz ISM band
• 15 independent channels
• CSMA/CA
• 100 mw transmitted power
• GaAs semiconductor
• Power from computers internal battery

25
APs Capabilities

• MAC layer bridge
• Spanning tree protocol
• Roaming from one bridge to another
• Transparent to all Ethernets
• SNMP agent provided
• Diverse protocols supported
• Novell NetWare 2.x, 3.x, 4.x, Lite
• LAN manager
• Windows for Workgroups

26
ISA Equipment

• Interface card
• Antenna
• Software
• Manual

27
Installation

• Hardware
• Confirm default setting on card
• Install card in computer
• Screw antenna onto connector in back of card

• Software
• Copy configured IPX.COM driver to hard disk
• Load the IPX driver and DOS shell, NETX
• Copy the LOGIN.EXE file

28
Xircom Netwave
29
Product Line
30
Technology

• FHSS
• 50 mw power output
• 2.4-2.483 GHz ISM band
• Hop every 0.1s
• Synchronized system

31
Network Topology
32
Two Kinds of Ad Hoc Nets

• Public hoc networks
• Anyone in range can join a public ad hoc network
• Named ad hoc networks
• One station must start a named network
• Other stations join if they specify the name
• Optional encryption is available

33
IBM Wireless LAN
34
Technology

• FHSS in the 2.4 GHz band
• 100 mw power output
• Antenna receive polarization diversity
• TDMA MAC layer (FCFS)
• Ethernet and Token Ring compatibility
• SNMP agent

35
Administration Function

• Authentication and privacy
• Users are registered with WNA (wireless network
  administrator) and provided secret keys
• Registered stations are authenticated by AP
• Optional encryption is available
• Interference management through change of hopping
  pattern

36
Motorola Altair
37
Technology

• Not SS
• In the 18 GHz band
• Low power- 25 mw
• Comprised of a control module (CM) and a user
  module (UM)
• 8x11.5x3 inches in size
• Antenna internal to module
• Packaging similar for both modules

38
Network Topology
39
Windata
40
Product Line
41
The Hub Functions

• Connectivity of transceivers
• Synchronization
• Access security
• Power control
• Network management

42
SNMP Functions

• Enabling and disabling transceivers
• Adding and deleting access to stations
• Monitoring performance
• Checking status of radio link

43
Network Topology
44
RadioLAN
45
Product Line

• ISA card
• Parallel port version
• RadioLAN/10 Access Unit
• Radio transceiver
• Base station

46
OS and Driver Support
47
Photonics
48
Product Line (for PC)

• PCMCIA II card
• ISA card
• Collaborative parallel option
• AP
• External transceiver

49
IR Transceiver
50
Diffuse IR
51
Network Topology
52
Spectrix
53
Network Topology
54
Network Block Diagram
55
InfraLAN
56
Directed IR Transceiver
57
Network Topology (Token Ring)
58
Network Topology (Ethernet PTP)
59
Network Topology (Ethernet Hub)
60
Comparisons (Mobile)
61
Comparisons (Wire Replacement)
62
References

• Rifaat A. Dayem, Mobile Data Wireless LAN
  Technologies, Chapter 7.
