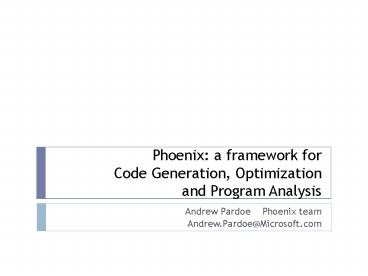

Phoenix a framework for Code Generation,
Optimization and Program Analysis

• Andrew Pardoe Phoenix team
• Andrew.Pardoe_at_Microsoft.com

2
What is Phoenix?

• Phoenix is Microsofts next-generation, state of
  the art infrastructure for program analysis and
  transformation
• We wanted to
• Develop an industry-leading compilation and tools
  framework
• Foster a rich ecosystem for
• Academic
• Research
• Industry
• With an infrastructure that is robust,
  retargetable, extensible, configurable and
  scalable
• Phoenix is built on C/CLI and compiles either
  as managed or native code

3
Building a program with C/CLI

• Microsoft C compiler
• Input program source code
• Ouput COFF object file
• COFF files are linked with system libraries into
  PEs

Driver (CL)
C Source
Frontend (C1)
Backend (C2)
Obj File
4
Roles of C1 (C1xx) and C2

• C1 or C1xx

• C2

• Preprocessing
• Tokenization
• Parsing
• Semantic processing
• CIL emission
• Types and symbol debug info
• Metadata for managed code

• CIL reading
• Program analysis
• Optimization
• Lowering to target
• COFF emission
• Source level debug info

5
Why we built Phoenix

• Code generation technology now appears in many
  different forms
• Large-scale optimizers (PreJIT or Cs LTCG)
• Fast code generation (.NETs JIT, C debug mode,
  C)
• Custom code generators (fast conditional
  breakpoints, SQL expression optimizers)
• Code generators in Microsoft target many
  different computer architectures
• PC platforms (x86, x64, IA64)
• Game consoles (x86, PPC)
• Handheld devices (ARM)

6
And another set of reasons

• Microsoft builds sophisticated analysis tools
• VS 2005s C compiler contains an /analyze
  switch to perform static analysis for code
  defects
• The .NET coding guidelines are enforced by FxCop
• We have tools for defect, security and race
  detection
• These tools are often developed in a manner that
  work for one specific product. This limits
• Retargeting the tool for other applications
• Ability to adopt the best-of-breed technology
• Ability to move forward as technology changes

7
Why the rest of the world needs Phoenix ?

• Research
• Research often spends too much time handling
  routine work instead of exploring the novel ideas
  that inspired the research
• If research doesnt build on a world-class
  framework it often cannot handle real-world
  problems
• Industry
• Much effort is spent on deciphering poorly
  documented formats and interfaces (Microsofts
  CIL or PE file formats)
• There is an inherent fragility in working without
  specifications or promises of future
  compatibility
• Industry mistakes end up costing Microsoft as
  well
• Academic
• Attempts to provide common infrastructures have
  had limited success in the past
• By using Phoenix, educators can start with big
  problems and leave the routine work to us

8
AST Tools

• Static Analysis Tools
• Next Gen Front-Ends
• R/W Global Program Views

.Net CodeGen
MSR Adv Lang

• Language Research
• Direct xfer to Phoenix
• Research Insulated from code generation

• Runtime JITs
• Pre-JIT
• OO and .Net optimizations

Phoenix Infrastructure
Native CodeGen
MSR Partner Tools

• Advanced C/OO Optimizations
• FP optimizations
• OpenMP

• Built on Phoenix APIs
• Both HL and LL APIs
• Managed APIs
• Program Analysis
• Program Rewrite

Retargetable
Academic RDK

• Machine Models
• 3 months -Od
• 3 months -O2

• Full sources (future)
• Managed APIs
• IP as DLLs
• Docs

Chip Vendor CDK

• 6 month ports
• Sample port docs
• Key ports (Xscale) done at msft

9
Key features of Phoenix

• Written in C but usable by any .NET language
• Samples provided in C and C/CLI
• Phase and Plug-In model for third-party
  extensions to
• C compiler backend, JIT/PreJIT
• Static analysis tools, binary analysis and
  manipulation
• Plug-Ins and extensions to the Phoenix
  architecture
• Single, strongly-typed, explicit dataflow/control
  flow IR used throughout all phases of the
  framework
• IR and Type system are capable of processing
  native and managed code
• Strong inter-phase consistency checking

10
Compilers
Tools
Browser
Visualizer
Lint
HL Opts
LL Opts
Code Gen
HL Opts
LL Opts
LL Opts
HL Opts
Code Gen
Formatter
Obfuscator
Refactor
Xlator
Profiler
SecurityChecker
Phx APIs
Phoenix Core AST IR Syms Types
CFGraph SSA Dataflow Alias EH
Readers Writers
Native Image
C IL
.NETassembly
CAST
Profile
Phx AST
C
PreFast
Lex/Yacc
C
VB
C
Delphi
Cobol
Eiffel
Tiger
11
Dynamic Tools
Locaity opts
12
Phoenix Architecture

• Core set of extensible classes to represent
• IR (intermediate representation of code stream)
• Symbols, Types, Function units, Basic blocks,
  Graphs, Trees, Aliasing information
• Layered set of analysis and transformation
  components
• Data flow analysis, Loop analysis, Alias
  analysis, Dead code removal, Redundant code
  detection
• Global optimizations built on reusable analysis
  lattices
• Common input/output library for binary formats
• PE, LIB, OBJ, CIL, MSIL, PDB
• Phoenix both reads and writes binary formats

13
Simple example

• void main (int argc, char argv)
• char message
• if (argc gt 1)
• message Hello, world!\n
• else
• message Goodbye, world!\n
• printf (message)

14
Resulting Phoenix IR
?
15
View inside a Phoenix-based C2
S O U R C E
O B J E C T
CI L
HIR
AST
MIR
LIR
EIR
CIL Reader Type Checker
MIR LowerSSA Const SSA Dest Canon Addr Modes
Lower Reg Alloc EH Lower Stack Alloc Frame
Gen Switch Lower Block Layout Flow Opts
Encode Lister
C2
C1
16
Types of IR

• High-level IR Architecture and runtime
  independent. Object model instructions, array
  indices, full aliasing
• Mid-level IR Architecture independent, runtime
  dependent. Lowered to calls and address
  arithmetic
• Low-level IR Architecture and runtime dependent.
  Lowered to machine instructions
• Encoded IR Binary format. Lowered to encoded
  data instructions
• IRs contain Instructions and Operands of various
  types at each IR level

17
IR states during compilation

• Phases transform IR either within a state or from
  one state to a contiguous state
• For example, lower phase transforms MIR into LIR.
  Optimizations usually work within a single phase.

Abstract
Concrete
Lowering
Raising
18
Extending a Phoenix-based compiler

• The VC optimizer is just a Phoenix client
• All Phoenix clients can host Plug-Ins
• Plug-Ins can
• Add new components
• Extend existing components
• Reconfigure clients
• Extensibility relies upon
• Reflection
• Events and delegates

19
Component extensibility

• Most objects in the system support observers by
  deriving from the Phoenix class Extensible Object
• Observer classes can register delegates so that
  they are notified when the host object undergoes
  certain events. For example, if the host object
  is copied it will notify registered delegates
• Phoenix provides a standard plug-in discovery and
  registration mechanism
• Plug-ins can reconfigure the client, such as
  replacing the register allocator
• Plug-ins can also use Phoenixs analyses to do
  their own analyses and transformations

20
Extensibility example birth tracking

• // Called from Instruction ctor
• PlugInNewInstructionEventHandler
• (
• PhxIRInstruction instruction
• )
• InstructionBirthExtensionObject
  extensionObject
• gcnew InstructionBirthExtensionObject()
• extensionObject-gtBirthPhase instruction
• -gtFunctionUnit-gtPhase
• instruction-gtAddExtensionObject(extensionObject
  )
• // Called from Instruction dtor
• void
• PlugInDeleteInstructionEventHandler
• (
• PhxIRInstruction instruction
• )

• // Attach a note to each instruction with the
  birth
• // phase for reference later
• public ref class InstructionBirthExtensionObject

• public PhxIRInstructionExtensionObject
• public
• property PhxPhasesPhase BirthPhase
• property SystemString BirthPhaseText
• SystemString get ()
• if (BirthPhase ! nullptr)
• return BirthPhase-gtNameString

21
Plug-In VS Integration
?

• Plug-Ins can be created via Visual Studio Wizards
• RDK is downloadable and works with free VS
  Express Editions (though you probably want the VS
  Team System Edition for your work )

22
Example Unitialized local detection

• We would like to warn the user that x is not
  initialized before use
• To do this we need to perform dataflow analysis
• Well use a plug-in to add this phase to the
  existing Phoenix-based C2

• int foo()
• int x
• return x

23
May and Must examples

• message must be used before it is defined

• message may be usedbefore it is defined

• void main()
• char message
• if ()
• message Hello
• printf(message)

• void main()
• char message
• char other
• if ()
• other Hello
• printf(message)

24
IR for detecting uninitialized locals
25
Detecting an uninitialized use

• For each local variable v
• Examine all paths from the entry of the method to
  each use of v
• If on every path v is not initialized before the
  use
• v must be used before it is defined
• If there is some path where v is not initialized
  before the use
• v may be used before it is defined
• Classic solution is to build a control flow graph
  and solve the data flow problem.
• State is unknown at the start of each block.
  Transfer states between blocks and combine them
  as you traverse the control flow graph

26
Code sketch using classic dataflow

• bool changed true
• while (changed)
• for each (PhxGraphsBasicBlock block in
  function)
• STATE inState inStatesblock
• bool firstPred true
• for each(PhxGraphsBasicBlock
  predecessorBlock in block-gtPredecessors)
• STATE predecessorState
  outStatespredecessorBlock
• inState meet(inState,
  predecessorState)
• inStatesid inState
• STATE newOutState gcnew STATE(inState)

Update input state
Compute output state
Check for convergence
27
Can we make this easier?

• Dataflow solution computes the state for the
  entire graph, even at places where v is never
  referenced
• An alternate model is known as Static Single
  Assignment form, or SSA. It directly connects
  definitions and uses.
• Phoenix uses SSA and builds flow graphs when
  necessary
• We can rewrite this code letting Phoenix do most
  of the routine work

28
Code sketch using Phoenix
?

• for each (PhxIROperand destinationOperand
  in
• PhxIROperandIteratorDestinations(firstInstr
  uction))
• if (destinationOperand-gtIsMemoryModification
  Reference)
• for each (PhxIROperand useOperand
  in
• PhxIROperandIteratorUse(destinationOperan
  d))
• if (useOperand-gtInstruction-gtOpcode
  ! PhxCommonOpcodePhi
• useOpnd-gtIsVariableOpnd)
• PhxSymbolsSymbol symbolUse
  useOperand-gt
• AsVariableOpnd-gtSymbol
• if (symbolUse ! nullptr
  !mustList.Contains(symbolUse))
• mustList.Add(symbolUse)

29
Uninitialized local plug-in

• Plug-in is loaded at runtime by Phoenix-based C2

UninitializedLocal.cpp
Test.cpp
C/CLI
C1
Phx-C2
UninitialzedLocal.dll
Test.obj
30
Phoenix C2 with our plug-in added

• This complete plug-in is provided as a sample in
  the Research Development Kit
• It is only 400 lines of code to add a key
  warning to the C2 compiler
• Other types of checking can be added just as
  easily
• A demonstration of the warnings being emitted

31
Phoenix PE Reading

• Phoenix can read and write PE files directly
• You can implement your own compiler or linker
• You can create post-link tools for analysis,
  instrumentation or optimization
• Binaries can be read in, raised into IR, changed
  and rewritten as new, working binaries
• Phoenix Explorer is only 800 lines of code on
  top of the Phoenix binary reading-writing library

32
Phoenix explorer is like ILDasm to IR
33
Binary rewriting with Phoenix

• mtrace utility injects tracing code into managed
  applications
• You dont need the source code to do this (you do
  need the PDB)
• mtrace shows functions being entered and exited

34
How do I get Phoenix?

• Early access RDKs are available to selected
  universities
• Sample projects include aspect oriented
  programming, code obfuscation, profiling
• Contact phxap_at_microsoft.com for Academic early
  access requests
• Early access CDK is available to selected
  industry partners
• Contact phxcp_at_microsoft.com for commercial early
  access requests
• Phoenix RDK/CDKs release about every 6 months
• Phoenix will be the next MS compiler backend
• We build the next-generation Windows every night

35
More information
?

• http//research.microsoft.com/phoenix
