Title: FINITE STATE MACHINES - II

1

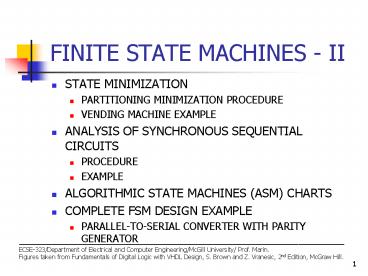

FINITE STATE MACHINES - II
• STATE MINIMIZATION
• PARTITIONING MINIMIZATION PROCEDURE
• VENDING MACHINE EXAMPLE
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
• PROCEDURE
• EXAMPLE
• ALGORITHMIC STATE MACHINES (ASM) CHARTS
• COMPLETE FSM DESIGN EXAMPLE
• PARALLEL-TO-SERIAL CONVERTER WITH PARITY GENERATOR

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
2
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• PARTITIONING MINIMIZATION PROCEDURE
• DEFINITION Two states Si and Sj are said to be
equivalent if and only if for every input
sequence , the same output sequence will be
produced regardless of whether Si or Sj are the
initial states.
• DEFINITION OF 1-SUCCESSOR If the machine moves
from state Si to state Sv when input w 1, then
we say that Sv is a 1-successor of Si
• DEFINITION OF 0-SUCCESSOR If the machine moves
from state Sj to state Su when input w 0, then
we say that Su is a 0-successor of Si
• IF STATES Si AND Sj ARE EQUIVALENT, THEN THEIR
• CORRESPONDING K-SUCCESSORS (FOR ALL K) ARE ALSO
• EQUIVALENT.

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
3
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• PARTITIONING MINIMIZATION PROCEDURE (CONTINUES)
• DEFINITION A PARTITION CONSISTS OF ONE OR MORE
BLOCKS, WHERE EACH BLOCK COMPRISES A SUBSET OF
STATES THAT MAY BE EQUIVALENT, BUT THE STATES IN
A GIVEN BLOCK ARE DEFINITELY NOT EQUVALENT TO THE
STATES IN THE OTHER BLOCK.

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
4
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• PARTITIONING MINIMIZATION PROCEDURE (CONTINUES)
• PROCEDURE
• 1) ALL STATES BELONG TO THE INITIAL PARTITION P1
• 2) P1 IS PARTITIONED IN BLOCKS SUCH THAT THE
STATES IN EACH BLOCK GENERATE THE SAME
OUTPUT.
• 3) CONTINUE TO PERFORM NEW PARTITIONS BY TESTING
WHETHER THE K-SUCCESSORS OF THE STATES IN EACH
BLOCK ARE CONTAINED IN ONE BLOCK. THOSE STATES
WHOSE K-SUCCESSORS ARE IN DIFFERENT BLOCKS
CANNOT BE IN ONE BLOCK.
• 4) PRCEDURE ENDS WHEN A NEW PARTITION IS THE SAME
AS .THE PREVIOUS PARTITION

5
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• PARTITIONING MINIMIZATION PROCEDURE (CONTINUES)
• EXAMPLE Consider the following state transition
table
• P1 (ABCDEFG)
• P2 (ABD)(CEFG) Diff. Outputs.
• Because (CEFG) 0-successors are (FFEF) in
same block,
• (CEFG) 1-successors are (ECDG)
in diff. block,
• F must be different from C, E and G
• P3 (ABD)(CEG)(F)
• Same process for (AD) and (CEG) gives
• P5 P4

6
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• PARTITIONING MINIMIZATION PROCEDURE (CONTINUES)
• EXAMPLE (CONTINUES) MINIMAL STATE TRAMSITION
TABLE
• ORIGINAL TABLE
• P4

• MINIMIZED TABLE

7
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• VENDING MACHINE EXAMPLE
• Design an FSM that will dispense candy under the
following
• conditions
• 1.- The machine accepts nickels and dimes
• 2.- 15 cents releases a candy from the machine
• 3.- If 20 cents is deposited, the machine will
not return the change, but it credit the buyer
with 5 cents and wait for the buyer to make a
second purchase

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
8
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• VENDING MACHINE EXAMPLE (Continues)

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
9
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• VENDING MACHINE EXAMPLE (Continues)

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
10
FINITE STATE MACHINES - II
• STATE MINIMIZATION VENDING MACHINE EXAMPLE
(Continues)

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
11
FINITE STATE MACHINES - II
• STATE MINIMIZATION
• VENDING MACHINE EXAMPLE (Continues)
• P1 (S1, S2, S3,
S4, S5, S6, S7, S8, S9)
• P2
(S1, S2, S3, S6)(S4, S5, S7, S8, S9)

• P3 (S1)(S3)(S2, S6)(S4, S5, S7, S8, S9)

• P4 (S1)(S3)(S2, S6)(S4, S7, S8)(S5,S9)

• P5 (S1)(S3)(S2, S6)(S4, S7, S8)(S5,S9)

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
12
FINITE STATE MACHINES - II
• STATE MINIMIZATION VENDING MACHINE EXAMPLE
(Continues)
• MINIMIZED STATE TRANSITION TABLE AND DIAGRAM

13
FINITE STATE MACHINES - II
• STATE MINIMIZATION VENDING MACHINE
EXAMPLE (Continues)
• MINIMIZED STATE TRANSITION DIAGRAM Moore-type
versus Mealy-type
• MOORE-TYPE
MEALY_TYPE

14
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
• PROCEDURE is the reverse of the synthesis
process.
• 1.- OUTPUTS OF FLIP-FLOPS ARE THE INTERNAL
STATES.
• 2.- INPUT EQUATIONS TO FLIP-FLOPS DETERMINE
NEXT INTERNAL
• STATE.
• 3.- EXCITATION TABLE IS CONSTRUCTED FROM THESE
INPUT
• EQUATIONS TO FLIP-FLOPS. OUTPUT
EQUATIONS ARE PRODUCED.
• 4.- THE STATE-ASSIGNED TABLE IS PRODUCED FROM
THE EXCITATION TABLE
• 5.- THE STATE-TRANSITION TABLE IS PRODUCED BY
ASSIGNING A STATE
• IDENTIFICATION LETTER TO EACH ASSIGNED
STATE.
• 6.- THE STATE-TRANSITION DIAGRAM IS PRODUCED
FROM THE STATE-
• TRANSITION TABLE.

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
15
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
• EXAMPLE ANALYZE THE FOLLOWING CIRCUIT
• Exitation equations DY1 w !y1 w y2

• DY2 w y1 w y2

• z y1 y2
• Next state
equations

• Y1 DY1 w !y1 w y2

• Y2 DY2 w y1 w y2

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
16
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
EXAMPLE (Continues)

Exitation equations
DY1 w !y1 wy2 DY2
w y1 w y2 z
y1 y2 Next state equations
Y1 DY1 w !y1 w y2
Y2 DY2 w y1 w y2
__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
17
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
EXAMPLE (Continues)

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
18
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
ANOTHER EXAMPLE Analyze the following circuit

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
19
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
ANOTHER EXAMPLE (Continues)

• Excitation Equations

• J1 w

• K1 !w !y2

• J2 w y1

• K2 !w
• z y1 y2

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
20
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
ANOTHER EXAMPLE (Continues)
• Excitation Equations
• J1 w
• K1 !w !y2
• J2 w y1
• K2 !w
• z y1 y2

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
21
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
ANOTHER EXAMPLE (Continues)
• EXCITATION TABLE
STATE-ASSIGNED TABLE

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
22
FINITE STATE MACHINES - II
• ANALYSIS OF SYNCHRONOUS SEQUENTIAL CIRCUITS
EXAMPLE (Continues)

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
23
FINITE STATE MACHINES - II
• ALGORITHMIC STATE MACHINES (ASM) CHARTS
• DEFINITION An ASM is a type of flowchart that
can be used to represent the state transitions
and generated outputs for LARGE FSMs.
• THREE TYPES OF ELEMENTS
• STATE BOX, DECISION BOX, CONDITIONAL OUTPUT BOX.

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
24
FINITE STATE MACHINES - II
• ALGORITHMIC STATE MACHINES (ASM) CHARTS
(Continues)
• Example Moore-type

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
25
FINITE STATE MACHINES - II
• ALGORITHMIC STATE MACHINES (ASM) CHARTS
(Continues)
• EXAMPLE (Mealy-type)

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
26
FINITE STATE MACHINES - II
• ALGORITHMIC STATE MACHINES
(ASM) CHARTS (Continues)
• ANOTHER EXAMPLE (ARBITER MOORE-TYPE FSM) FSM
THAT CONTROLS THE ACCESS BY VARIOUS DEVICES TO A
SHARED
• RESOURCE IN A GIVEN SYSTEM. ONLY ONE DEVICE CAN
USE THE RESOURCE AT A TIME.

27
FINITE STATE MACHINES - II
• COMPLETE FSM DESIGN EXAMPLE
• PARALLEL-TO-SERIAL CONVERTER WITH PARITY
GENERATOR
• Word description
• Design a digital systems that will convert an
8-bit parallel message, (b7 , b6 , b5 , b4 , b3
, b2 , b1 , b0), composed of 7-bit ASCII
character plus an initially set to 0 parity bit,
into an 8-bit serial message with the correct
parity bit set into bit b7 .

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
28
FINITE STATE MACHINES - II
• COMPLETE FSM DESIGN EXAMPLE
• PARALLEL-TO-SERIAL CONVERTER WITH PARITY
GENERATOR
• BLOCK DIAGRAM (Data Path and Control Unit)

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
29
FINITE STATE MACHINES - II
• COMPLETE FSM DESIGN EXAMPLE
• PARALLEL-TO-SERIAL CONVERTER WITH PARITY
GENERATOR
• STATE TRANSITION TABLE

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
30
FINITE STATE MACHINES - II
• COMPLETE FSM DESIGN EXAMPLE
• PARALLEL-TO-SERIAL CONVERTER WITH PARITY
GENERATOR
• STATE-ASSIGNED TABLE
• CHOICE OF FLIP-FLOPS AND EXCITATION EQUATION
• Dy Y w ? y

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
31
FINITE STATE MACHINES - II
• COMPLETE FSM DESIGN EXAMPLE
• PARALLEL-TO-SERIAL CONVERTER WITH PARITY
GENERATOR
• CIRCUIT

__________________________________________________
ECSE-323/Department of Electrical and Computer
Engineering/McGill University/ Prof.
Marin. Figures taken from Fundamentals of Digital
Logic with VHDL Design, S. Brown and Z. Vranesic,
2nd Edition, McGraw Hill.
