Making Reliable and Restorable Backups

1

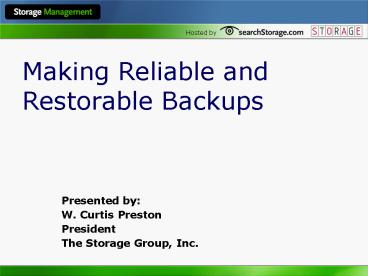

Making Reliable and Restorable Backups

• Presented by
• W. Curtis Preston
• President
• The Storage Group, Inc.

2
Making good on your investment

• Many SANs are built in order to simplify backup,
  yet often fail for lack of good design, processes
  and procedures.
• There are several common mistakes that people
  make when building a backup system
• Avoiding these mistakes and taking proper action,
  can create a backup system that is reliable and
  restorable

3
What will we cover?

• Common Backup Configuration Mistakes
• How to Avoid Them
• Sizing your backup system
• Configuration examples for NetBackup
• Configuration examples for NetWorker

4
Common Backup Configuration Mistakes
5
Where do these lessons come from?

• Audits of real backup and recovery systems
• Lessons learned from real horror stories
• Many, many sleepless nights

6
Too little power

• Not enough tape drives
• Tape drives that arent fast enough
• Not enough slots in the tape library
• Not enough bandwidth to the server

7
Too much power

• Streaming tape drives must be streamed
• If you dont, you will wear out your tape drives
  and decrease aggregate performance
• Must match the speed of the pipe to the speed of
  the tape
• You can actually increase your throughput by
  using fewer tape drives

8
Not using multiplexing

• Defined Sending multiple backup jobs to the same
  drive simultaneously
• Again, drives must be streamed
• Multiplexing will impact restore performance, but
  not as much as you might think
• Multiplexing can actually help your restore just
  as it can help your backups
• Using multiplexing can greatly increase the
  utilization of your backup hardware

9
Not using multistreaming

• Defined Sending multiple simultaneous backup
  jobs from a single client
• Large systems cannot be backed up serially
• Multistreaming creates a different job for each
  filesystem

10
Using include lists

• Most major backup software supports file system
  discovery
• Still, many administrators use manually created
  include lists
• Any perceived value is significantly outweighed
  by the risk it creates

11
Too many full backups

• If you are using a commercial backup and recovery
  product with automated media management and
  multiple levels, weekly full backups are a waste
  of tape, time, and money
• Monthly full backups, weekly cumulative
  incrementals (1), and daily incrementals (9) work
  just as well and use ¼ as much tape
• Depending on the level of incremental activity,
  quarterly backups can work just as well.

12
Not standardizing

• Creating custom configurations for each client is
  easier, but much riskier
• Creating a standard backup client configuration
  can significantly decrease risk
• Create a standard exclude list, etc. and push it
  out to each client

13
Not even noticing!

• Backups go ignored so often. Its like theyre
  the bill collector nobody wants to talk to
• Backup reporting products can really help
  automate easy reporting
• Dont ignore backups. They will bite you.

14
Its just backups, right?

• Im an experienced, seasoned systems
  administrator. This is just backups. How hard can
  they be?
• The data being backed up has become very complex,
  and the complexity of backup systems have matched
  that complexity with functionality that also
  happens to be complex

15
Not thinking about disk

• Tape is not as cheap as you thought
• Lets examine a 4 TB library
• 20 slots, 2 drives 17K
• 20 tapes, 70 apiece 14K
• Robotic license 10K
• Total 41K
• (does not include labor costs)
• Thats about 10/GB

16
Disk is cheaper than you thought

• ATA-based storage arrays as low as 5/GB(disk
  only, needs filesystem)
• Special function arrays
• Quantum DX-30 looks and behaves like a Quantum
  P1000. Can be used as target for tape-based
  backups (3 usable TB, 55K list, or 18/GB)
• NetApp R100 looks like other NetApp filer.
  Target for SnapVault and disk-based backups,
  source for SnapMirror (9 usable TB, 175K list,
  or 18/GB)
• ATA disks not suited for heavy, random access,
  but perfect for large block I/O (e.g. backups!)

17
You can do neat things with disk

• Incremental backups are one of the greatest
  backup performance challenges
• Use as a target for all incremental backups.
  (Full, too, if you can afford it)
• For off-site storage, duplicate all disk-based
  backups to tape
• Leave disk-based backups on disk

18
Now that I know

• Building a reliable
• and restorable backup system

19
Sizing the backup system
20
Server Size/Power

• I/O performance more important than CPU power
• CPU, memory, I/O expandability paramount
• Avoid overbuying by testing prospective server
  under load
• If you use Suns, youve got snoop and truss

21
Catalog/database Size

• Determine number of files (n)
• Determine number of days in cycle (d)
• (A cycle is a full backup and its associated
  incremental backups.)
• Determine daily incremental size (i n .02)
• Determine number of cycles on-line (c)
• 150-250 bytes per file, per backup
• Use a 1.5 multiplier for growth and error
• Index Size (n (id)) c 250 1.5

22
Library Size - drives

• Network Backup
• Buy twice as many backup drives as your network
  will support
• Use only as many drives as the network will
  support (You will get more with less.)
• Use the other half of the drives for duplicating

23
Library Size - drives

• Local Backup
• Most large servers have enough I/O bandwidth to
  back themselves up within a reasonable time if
  youre using NetBackup
• Usually a simple matter of mathematics
• 8 hr window, 8 TBs 1 TB/hr 277 MB/s
• 30 10 Mb/s drives, 15 20 MB/s drives
• Must have sufficient bandwidth to tape drives
• Filesystem vs. raw recoveries
• Allow drives and time for duplicating!

24
Library Size - slots (all tape environment)

• Should hold all onsite tapes
• On-site tapes automatically expire and get reused
• Only offsite tapes require phys. mgmt.
• Should monitor library via a script to ensure
  that each pool has enough free tapes before you
  go home
• Watch for those downed drive messages

25
Library Size - slots (disk/tape environment)

• Do incremental backups to disk
• Library only needs to hold on-site full tapes and
  the latest set of copies.
• On-site tapes and disk-based backups
  automatically expire and get reused
• Only offsite tapes require phys. mgmt.
• Should monitor library and disk via a script to
  ensure that each pool has enough free tapes
  before you go home
• Watch for those downed drive messages

26
Local or Remote Backup?

• Throughput (in 8hrs), if you own the wire
• 10 Mb 20 GB, 100 Mb 200 GB
• GbE 500 GB 1 TB (Also must own the box.)
• Greater than 500 GB should be local
• Lan-free backups allow you to share a large tape
  library by performing local backups to a
  remote, shared device
• More than one 500 GBserver, buy a SAN!
• Only one 500 GB server, plan for a SAN!
• (NetBackup SSO, NetWorkerDDS)

27
Multistreaming - NetBackup

• Defined Starting multiple simultaneous backup
  jobs from a single client
• Maximum jobs per client gt 1
• Check Allow multiple data streams
• ALL_LOCAL_DRIVES, or multiple entries in file
  list
• Maximum jobs per policy gt 1 or unchecked
• Need storage unit with more than one drive, or
  one drive with multiplexing enabled
• Can change max jobs per client using the Server
  Properties -gt Clients tab (4.5)
• By default, will not exceed one job per
  filesystem, but can bypass this if you make your
  own file list

28
Multistreaming (Parallelism) - NetWorker

• Use All saveset or multiple entries in the
  saveset list
• Set the parallelism setting for server and, if
  necessary, the storage node
• Set client parallelism value in client attributes
• Must have multiple drives available, or one drive
  with target sessions set higher than one
• Will not exceed number of disks or logical
  volumes on the client (see maximum-sessions in
  manual)

29
Multiplexing NetWorker

• Set target sessions per device, allocating how
  many sessions may be sent to that device.
• Global setting for all backups that go to that
  device

30
Multiplexing - NetBackup

• Max multiplexing per drive in storage unit
  configuration gt 1
• Media multiplexing in schedule gt 1
• Use higher multiplexing for incremental backups
  if going to tape (6-8)
• Use lower multiplexing for local backups (2)
• No need to multiplex disk storage units
• Multiple policies can multiplex to the same
  drive,
• but multiple media servers cannot

31
Using Include lists -- not

• NetBackup ALL_LOCAL_DRIVES in file list
• NetWorker All in saveset field
• Automatically excludes NFS/CIFS drives
• Does not include dynamically mounted drives not
  in /etc/fstab

32
What about database clients?

• Use scripts that parse lists of databases
• /var/opt/oracle/oratab for Oracle
• MS-SQL list in registry
• Master database in Sybase
• Some backup products support All for databases
• Remember to write standardize script with
  parameters to backup databases.

33
Incremental backups - NetBackup

• Create staggered monthly full backups using
  calendar-based scheduling
• Create staggered weekly cumulative incrementals
  using CBS
• Create daily incremental backups using frequency
  based backups
• (Check Allow after run day.)
• Delete window from previous day for CBS

34
Incremental backups - NetWorker

• Do not use the Default schedule!
• Create 28 schedules with a monthly full, weekly
  level 1, and daily incremental, name them after
  the full day
• Do not specify a schedule for the Group
• Assign the 28 schedules evenly across all clients
  based on size

35
Standardization NetWorker

• Use All saveset entry
• To exclude files, use standard directives for all
  clients

36
Standardization - NetBackup

• Use ALL_LOCAL_DRIVES
• Non-Windows clients - Use standard exclude list
  and push out from master using bpgp
• Windows clients Use standard exclude list and
  push out from master using bpgetconfig M and
  bpsetconfig h

37
Backup Reporting - NetBackup

• Watch activity and device monitors
• bperror
• bpdbjobs -report
• bpdbjobs report all_columns
• /usr/openv/netbackup/logs
• /usr/openv/logs
• /usr/openv/volmgr/logs

38
Backup Reporting NetWorker

• Watch nwadmin screens
• mminfo
• nsrinfo
• mmlocate
• nsrmm
• /nsr/logs

39
Disk-to-disk Backup - NetWorker

• If using regular disk, use file type device
• Disk backup extra cost with options
• If using virtual tape library, treat it like a
  tape library
• Use cloning to duplicate disk-based backups to
  tape and send them off-site

40
Disk-to-disk Backup - NetBackup

• If using regular disk, use disk-based storage
  unit
• (No extra cost for disk storage units!)
• If using virtual tape library, treat it like a
  tape library
• Use vault to duplicate disk-based backups to tape
  and send them off-site

41
What about my SAN and NAS?
42
SAN LAN-free, Client-free, and Server-free
backupNAS NDMP filer to self, filer to filer,
filer to server, server to filer
43
LAN-free backups

• How does this work?
• SCSI Reserve/Release
• Third-party queuing system

• Levels of drive sharing
• Restores

44
How client-free backups work
Backup transaction logs to disk
Establish backup mirror
Split backup mirror and back it up
45
How client-free recoveries work
Restore backup mirror from tape
Restore primary mirror from backup mirror
Replay transaction logs from disk
46
Server-free backups

• Server directs client to take a copy-on-write
  snapshot
• Client and server record block and file
  associations
• Server sends XCOPY request to SAN

47
Server-less Restores

• Changing block locations
• Image levelrestores
• File levelrestores

48
NDMP Configurations

• Filer to self
• Filer to filer
• Filer to server
• Server to filer

49
Using NDMP

• Level of functionality depends on the DMA you
  choose
• Robotic Support
• Filer to Library Support
• Filer to Server Support
• Direct access restore support

50
Resources
51
Resources

• Directories of products to help you make a better
  backup system
• http//www.storagemountain.com
• Send questions to
• curtis_at_thestoragegroup.com
