Title: 530.352 Materials Selection


1

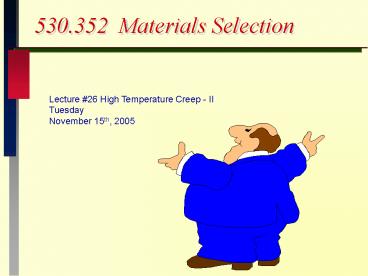

530.352 Materials Selection
Lecture 26 High Temperature Creep - II
TuesdayNovember 15th, 2005
2
Sherby-Dorn Equation
.
?ss C ??n exp (- Qdiffusion / RT)
Temperature dependence
Stress dependence
Constants
Use this equation to calculate creep rate at any
given or new stress or temperature !!
3
Example of creep based design
  • Ni-base superalloys that are used for jet turbine
    applications exhibit Qcreep 320 kJ/mol and
    n5.
  • What is the creep rate at 925 oC and 350 MPa if
    C1.7x10-7 and R8.314 J/mol-oC ?
  • What would the creep rate be if the stress were
    increased by 25 MPa ?
  • What would the creep rate be if the temperature
    were increased by 25 oC ?
  • If your boss wanted to increase the operating
    temperature by 50 oC, how much would you have to
    decrease the stress to maintain the same creep
    rate ?

4
Creep rate T925 oC and s350 MPa
.
?ss C ??n exp (- Q / RT)
.
?ss 1.7x10-7 3505 exp( -320,000/8.314 x
1198 K ) 1.7x10-7 x 5.25x1012 x
11.1x10-15 10-8 sec-1
5
Is 10-8 sec-1 fast ?
Is short for a service life but long for a
graduate student -- must extrapolate from short
tests to long times !!
6
Increasing by 25 MPa
.
.
?1 / ?2 (?1/ ?2 )n (350/375)5 0.708 ?2
1.4 x 10-8 sec
.
7
Increasing by 25 oC
?2 1.92 x 10-8 sec
8
Changing both T and s
9
Creep Mechanisms (metals and ceramics)
  • Diffusion creep
  • Dislocation creep (power-law creep)
  • Stress Relaxation
  • Creep Fracture

10
Diffusion creep
?
grain boundary diffusion ????d??
?
bulk crystal diffusion ????d??
?
11
Dislocation creep
Diffusion assisted climb important
1. Annihilation
poof !
2. By passing obstacles
12
Dislocation Climb
13
Stress Relaxation
.
.
?total ?el ?pl 0 so ?el - ?pl ?el ?
/ E and ?pl ?c A ?n (_at_ cont. T) ??-n d?
- A E dt ?1-n ? - A E t 0
.
.
.
.
t
s
o
?p
?
?
?el
time
time
14
Tertiary creep
15
Design against creep (metals)
  • Minimize T / Tmelting to slow diffusion, climb,
    and creep.
  • Arrange for large grain sizes to slowdiffusion.
  • Use precipitates (oxide particles) and solid
    solutions to slow dislocations.

16
Creep in ceramics
  • Very little dislocation motion - mostly diffusion
    creep or something else.
  • Glassy phases (oxides) that form at grain
    boundaries soften and high T and lead to grain
    boundary sliding.

17
Design against creep (ceramics)
  • Similar to metals, reduce diffusion and
    dislocation motion, but must also ...
  • Reduce/control grain boundary phases.

18
Creep Mechanisms (polymers)
  • Tg replaces Tm at the critical T and Tg is often
    close to RT !!!
  • Viscous flow is like creep ? C ?1 exp (-Qv /
    RT)
  • Qviscous not QDiffusion, Qvicsous is Q slide
    lumpy molecules past one another
  • n 1 for Newtonian viscous flow

.
19
Design Against Creep (polymers)
  • Increased degree of cross-linking -gtincreased Tg
    and less creep.
  • High molecular weight -gt high viscosity-gt low
    creep rate.
  • Crystalline polymers better than glassy.
  • Add fibers or particles to make composites !!
