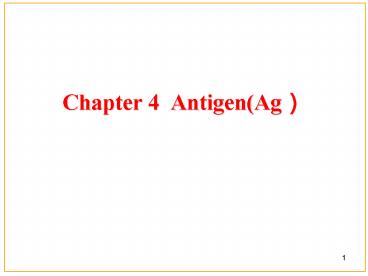

Chapter 4 Antigen(Ag)

1

• Chapter 4 Antigen(Ag)

1
2
Contents

• Part? Introduction
• Part? Factors Affecting Immunogenicity
• Part? Specificity and Cross-Reaction of Antigens
• Part? Classification of Antigens
• Part? Important Antigens in Medicine
• Part? Superantigen and Adjuvants

3
Part? Introduction

• ?. Definition
• Antigen(Ag) An antigen is a substance that can
  stimulate immune system to produce a specific
  immune response, and can react specifically with
  the products of the immune response in vitro or
  in vivo.
• Products of the immune response antibodies
  and/or effector lymphocytes.

4

• B cells Antibody
• Ag
• T cells Effector T
  cells

5
Key points

• Stimulate immune system to produce a specific
  immune response.
• React specifically with the products of the
  immune response in vitro or in vivo.

6

• ?. Properties of antigens
• 1. Immunogenicity
• An ability to stimulate the body to evoke a
  specific immune response.
• Immunogens substances with immunogenicity
• 2. Immunoreactivity
• Antigenicity
• An ability to combine with
  corresponding Ab or sensitized T lymphocyte.

7

1.Immunogenicity to induce the specific immune
response.
T
T
Ag
B
8
2. Immunoreactivity to combine with
corresponding Ab or sensitized T lymphocyte

9

• ?. Complete antigen and hapten
• 1. Complete antigen
• Both Immunogenicity and Immunoreactivity.
• 2. Hapten
• Only Immunoreactivity.
• Haptencarrier complete antigen
• Carrier enhance the immunogenicity of hapten

10

• ?. Tolerogen and allergen
• Tolerogen substances to induce specific
  tolerance.
• Allergen substances to induce hypersensitivity
  (type I)

11
Part ? Factors affecting immunogenicity

• ?. Factors related to antigens
• ?. Factors related to host
• ?. Methods of immunization

12
?. Factors related to antigens

• Foreignness
• According to Burnet, foreignness means substances
  which never contact with embryonic lymphocytes.

13
?. Factors related to antigens

• 1. Foreignness Non-selfsubstances and self
  components
• Xeno-substances various pathogens and their
  products, xeno-protein, etc.
• Allo-substances ABO blood type, HLA, etc.
• Self components
• - release of sequester antigen
• - degeneration

14
2. Physical and chemical properties

• (1) Molecular weight
• reasonable large molecule( gt10.0 kd)
• more stationary
• more surface structure for lymphocyte to recognize

15

• (2) Chemical composition and structure
• Proteins gtPolysaccharides gtNucleic Acids gtLipids
• aromatic ring
• ring gt linear
• (3) Physical nature
• Polymer gt monomer
• Particulate gt Soluble

16
?. Factors related to host

• 1. Genetic background (Species, Individual)
• 2. Age, sex and healthy status

17
?. Pathway of immunization

• 1. Dosage of antigen
• 2. Times of injection
• 3. Ways
• Intracutaneousgtsubcutaneousgtmusclegtintravenousgtora
  l
• 4. Adjuvant
• Certain substances which can enhance the Ir or
  change the type of Ir

18

• What measures can be taken to increase the titers
  of antibody when preparing antibodies against
  sheep red blood cells in mice? Why?

19
Part ?. Specificity and cross reaction of
antigen

• Specificity
• Exist in both immunogenecity and immunoreactivity
• The basis of immunologic diagnosis and
  immunologic therapy

20
?. Antigenic determinant

• 1. Antigen determinants (epitope) are small
  particular chemical groups existing in antigen
  which combine with TCR/BCR or Ab.
• Polypeptide antigen----5-23 amino acid
  residues
• Polysaccharide antigen----5-7 monosaccharides
• Nuclear acid antigen----6-8 nucleotide

21
(No Transcript)
22
(No Transcript)
23

• 2. Antigenic valence Total number of
  determinants which can be bound by antibody or
  antigenic receptor of lymphocytes.
• Most natural antigens are polyvalence antigen.
• Hapten is monovalence antigen.

24
?. Classification of antigenic determinant

• 1. According to the site and structure of Ag
  determinants
• Conformational determinants

• Sequential (or linear) determinants

25
Conformational determinants

• Conformational determinants are formed by amino
  acid residues that arent in a sequence but
  become spatially juxtaposed in the folded
  protein.
• They are normally exist on the surface of antigen
  molecules.
• They are recognized by B cells or antibody.

26
Sequential (or linear) determinants

• Epitopes formed by several adjacent amino acid
  residues are called linear determinants.
• They are exist on the surface of antigen
  molecules or inside molecules.
• They are mainly recognized by T cells, but some
  also can be recognized by B cells.

27
(No Transcript)
28
B
T/B
29

• 2. According to types of cells recognizing
  antigenic determinants
• T cell determinants (T cell epitopes) TCR
• B cell determinants (B cell epitopes) BCR
• Functional determinants
• Hidden determinants

30
T cell epitope

• Antigenic determinants recognized by T cells
  (TCR)
• Composition
• Peptides
• Sequential determinants(Exist in anywhere of Ag)
• Processed (APC)
• MHC presentation
• Size
• 8-23 residues

31
B cell epitope

• Antigenic determinants Recognized by B
  cells(BCR)and Ab
• Composition
• Peptide, polysaccharides, nucleic acids
• Conformational determinants or Sequential
  determinants (existed on the surface of Ag)
• Recognized directly
• No APC and MHC
• Size
• 5-15 residues

32
B
B/T
??
??
33
Comparison T cell epitope and B cell epitope

•
  T cell epitope
  B cell epitope
• Structure linear epitope
  conformational epitope
•
  or linear epitope
• Receptor TCR
  BCR
• Features proteins
  proteins, polysaccharides
• Size 5-23 amino acid residues
  5-15 amino acid residues
•
  or 5-7 monosaccharides
•
  or 5-8 nucleotides
• Location any part of antigen
  mostly exist on the surface of
•
  antigen
• MHC molecules yes
  no
• APC yes
  no

34

• Functional determinant epitope existed on the
  surface of Ag which can be recognized by BCR or
  combined with Ab easily.
• Immunodominant epitopes specially important
  determinant.
• Hidden determinant epitope existed inside of Ag
  which can not be recognized by BCR or combined
  with Ab easily.

35
?. Common antigen and cross reaction

• Commom antigen different Ag own the same epitope
  or their epitope have similar structure, these
  epitopes are called common antigen.
• Species antigen
• Heterophilic antigen common antigen among human,
  animal or microbes.

36

• Cross reaction reaction between the same Ab and
  different Ag with same similar determinants.

37

• Mechanism of cross reaction
• ---common Ag determinant.
• ---similar structure of Ag determinant.
• Significance
• ---Because there are some common antigen
  determinants between different microbes, so the
  antiserum against one kind of Ag can also react
  with another Ag and cause a cross reaction.
• ---In clinic, existence of cross reaction may
  lead to wrong diagnosis.

38
Part ?. Classification of Ag

• ?. According to immunogenicity of Ag
• ?. According to dependence of T cells
• ?. According to source of Ag
• ?. Others

39

• ?. According to immunogenicity of Ag
• ----Complete Ag
• ----Hapten

40
?. According to dependence of T cells

• 1. TD-Ag (thymus dependent Ag ) TD-Ag can
  stimulate B cells to produce Ab only with
• the help of T cells.
• Most TD-Ags are protein
• More kinds of determinant, each kind with less
  number
• Induce HI and CMI
• Stimulate B cell to produce IgG, IgM, IgA
• Immune memory

41

• 2. TI-Ag (thymus independent Ag) stimulate B
  cells to produce Ab without the help of T cell.
• Most are polysaccharide
• There is more same repeat determinant
• Can not induce CMI
• Only induce B cell to produce IgM
• No memory

42
Comparison of TD-Ag and TI-Ag
TD-Ag TI-Ag
Component Protein, more kinds Polysaccharide, repeat epitope
Help of T cell Yes No
Immune reponse HI and CMI HI
Type of Ab more,IgG IgM
Affinity of Ab High Low
Immune memory Yes No
43

• ?. According to source of Ag
• Xenoantigen
• Alloantigen
• Autoantigen
• Heterophilic Ag

44
?. Others

• l  Chemical component
• protein gtpolysacchride gt nucleic acid gtlipid
• l   Natural Ag and artificial Ag

45
Part ?. Important Ags in medicine

• ?. Heterogenous Ag (xeno-antigen)
• 1. Pathogens Surface antigen Vi Ag
• Somatic Ag O Ag
• Flagellar Ag H Ag

46
(No Transcript)
47

• 2. Exotoxin and toxoid
• Exotoxin Produced by G bacteria,
• Strong immunogenicity and pathogenicity.
• Toxoid Under suitable conditions, exotoxin loss
  its toxicity without affecting its
  immunogenicity, then the exotoxin turned into
  toxoid.
• Anti-toxin

48

• ?. Immune serum animal serum contains Abs after
  immunized by some Ag
• Neutralize exotoxins
• Serum disease

49

• ?. Heterophilic Ag (forssman Ag)
• -Common Ags are shared by different species
• -No specificity of species
• - Significance immunopathology
• Diagnosis

50
?. Alloantigen

• 1. Antigen of red blood cell (blood typing)
• ABO system
• -very important in transfusion
• Rh system (in Chinese gt99RH)
• -heamolytic disease of the newborn
• 2. Human leukocyte antigen, HLA system
• -relate to transplantation
• -very important in immune regulation

51
?. Autoantigen

• 1. Release of sequestered Ag
• 2. Modified of protein

52
?. Tumor antigen

•  Tumor specific Ag (TSA)
• --Only express on the tumor cells but normal
  cells
•  Tumor associated Ag (TAA)
• --Its express is high on tumor cells but low
  on normal cells, eg. AFP CEA

53
Part ?. Superantigen and adjuvant

• ?. Superantigen (SAg) Antigens that can
  non-specifically stimulate a plenty of T/B cells
  and induce a very strong Ir with a extremely low
  concentration.

54
The mechanism of SAg is different from that of
Ags or mitogen.
55
The mechanism of SAg is different from that of
Ags or mitogen.
56

• T cell SAg exotoxin, protein of reverse
  transcript virus
• B cell SAg SPA(staphylococcal protein A)
  HIVgp120

57

• ?. Adjuvant
• ----Adjuvant is certain substance which can
  enhance the Ir or change the type of Ir when it
  is injected before or together with the antigens.

58

• Classification of adjuvant
• Organic adjuvants BCG
• Inorganic adjuvants Al(OH)3
• Synthesized adjuvants polyIC
• New adjuvants nanomes, CpG,etc
• Common adjuvant
• Incomplete Freunds adjuvant (IFA)
• Complete Freunds adjuvant (CFA)

59

• Mechanisms of adjuvant
• Change the chemical and physical characters of Ag
• Improves the Ag process and presentation ability
  of macrophages
• Stimulates proliferation of lymphocytes

60
What you should know by the end of this lecture?

• Definition and characteristics of antigen
• Definition of antigenic determinants,conformationa
  l determinants and linear determinants
• Difference between T cell epitopes and B cell
  epitopes
• Definition of common antigen and cross reaction
• Difference between TD-Ag and TI-Ag
• How can you classify different Ag?
• what is TSA,TAA, hetreophilic Ag?
• Important antigens in medicine
• Adjuvant
