Foam Fractionation versus Ozone Contacting:

1

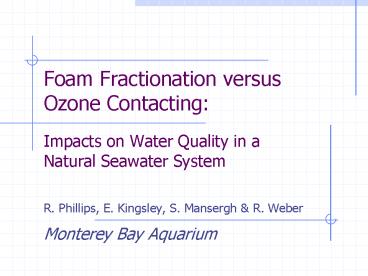

Foam Fractionation versus Ozone Contacting

• Impacts on Water Quality in a Natural Seawater
  System
• R. Phillips, E. Kingsley, S. Mansergh R. Weber
• Monterey Bay Aquarium

2
(No Transcript)
3
Outer Bay Exhibit

• Opened in 1995
• 1.2 million gallons (4,540 m3)
• 21 m long 9 m wide11 m deep

4
Outer Bay Life Support System
5
Outer Bay Exhibit Turbidity
6
Pilot-Scale System
7
Pilot-Scale System
8
Pilot-Scale Testing Parameters
9
Water Quality Parameters

• Turbidity (mNTU)
• Bacterial Densities
• Oxidation-Reduction Potential (ORP)
• Residual Ozone
• Hypobromite Bromate
• Free Chlorine (DPD)
• Dissolved Oxygen
• pH

10
Contactor. Change in Turbidity vs. Ozone Dose
11
Fractionator. Change in Turbidity vs. Ozone Dose
12
Bacterial Densities

• Heterotrophic Plate Counts on Marine Agar
• Live cells, underestimates population
• Flow Cytometry
• Live and dead cells, double-stranded DNA stain
• Sodium Thiosulfate added to sterile sample
  bottles to neutralize residual oxidants
• Log10 Reduction
• Log10 exhibit SW Log10 treated SW
• Log10 reduction of 1 1 order of magnitude

13
Contactor. Log10 Reduction of Bacteria (HPC) vs.
Ozone Dose
14
Fractionator. Log10 Reduction of Bacteria (HPC)
vs. Ozone Dose
15
Change in ORP vs. Ozone Dose
16
Hypobromite vs. Ozone Dose
17
Free Chlorine vs. Ozone Dose
18
Hypobromite vs. Free Chlorine
19
ORP and Hypobromite
20
Summary of Results
21
(No Transcript)
22
Acknowledgements

• Mark Fisher and John Overby, Ozone Water Systems,
  Inc.
• Jeffrey Keaffaber, JK Associates, Inc.
• Michael Alden, Bechman Coulter
• MBA Facilities and Husbandry Staff
• Monterey Bay Aquarium

23
Outline

• The Outer Bay Exhibit
• Turbidity patterns in the OB system
• Pilot-scale testing of an ozone contactor and a
  foam fractionator
• Water quality results from pilot-scale testing
• Summary

24
Hypobromite Bromate

• O3 Br- ? O2 OBr- (Hypobromite)
• 2 O3 OBr- ? 2 O2 BrO3- (Bromate)

25
Total Particle Counts 0.6-20.0 um
26
Total Organic Carbon
Ozone Contactor
Foam Fractionator
27
Bromate vs. Ozone Dose
28
Pilot-Scale System
29
Contactor Fractionator
30
Pilot-Scale System
31
Design Criteria Water Quality
32
Ozone Contactor and Deaeration Tower
33
Deaeration Tower

• Designed for 10,000 gpm at a velocity of 0.084
  ft/sec.
• Modify existing distributors
• Possibly add perf distribution plate at media
  surface
• Replace Nupak 4 with Brentwood media

34
Deaeration Tower Blowers
35
