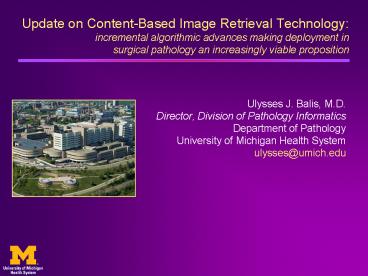

Update on Content-Based Image Retrieval
Technologyincremental algorithmic advances
making deployment insurgical pathology an
increasingly viable proposition

• Ulysses J. Balis, M.D.
• Director, Division of Pathology Informatics
• Department of Pathology
• University of Michigan Health System
• ulysses_at_umich.edu

2
Disclosures

• Aperio
• Technical Advisory Board and Shareholder

Listed for completeness only this presentation
does not contain proprietary or commercial vendor
content.
3
Thesis Statement

• The availability of digital whole slide data sets
  represent an enormous opportunity to carry out
  new forms of numerical and data- driven query, in
  modes not based on textual, ontological or
  lexical matching.
• Search image repositories with whole images or
  image regions of interest
• Carry our search in real-time via use of scalable
  computational architectures

Extraction from Image repositories based
upon spatial information
001011010111010111..
Analysis of data in the digital domain
4
Overview

• Brief Overview and History of the CBIR Realm
• Some Specific Discussion on Model-Free Pattern
  Recognition
• An update from where the field stood last year
• Computational realities performance
  improvements
• Specific examples
• Interactive exploration of image searching with
  Model-Free tools
• HistoQuery
• HistoMine

5
A Quick History ofContent-Based Image Retrieval

• 1970s Corona Satellite Remote Sensing
  Initiative
• Film-based
• Resultant analog content, when digitized,
  represented Gigabytes of data (consider the
  computational burden for 1972
• Several numerical approaches devised to quickly
  crunch data
• Many approaches based on conventional image
  analysis one or more specific algorithms
  developed for each feature to be extracted /
  identified
• Technically challenging
• Time consuming
• Computationally expensive
• The term CBIR first coined in 1992 by T. Kato to
  describe automatic retrieval of images from a
  database.
• Many CBIR modalities

6
Present Commercial Use of CBIR

• Not to identify image matches but to exclude
  classes of imagery in web-based image searching
• Google Image Search with Safe mode activated
• Easier to exclude whole classes of images than to
  select specific precise matches
• Reduced to practice for small-scale real time
  search
• 102 images queried per submission (post lexical
  selection)

7
(No Transcript)
8
CBIR Techniques (model-based)

• Color Operators
• Texture operators
• Shape
• Spectral information
• Frequency and phase domain information

There are at least several thousand major classes
of conventional image analysis operations, with
most exhibiting the common trait of requiring
some degree of application tuning for the
intended use-case. Hence, this class of
approaches should not be generally viewed as
turnkey solutions.
9
CBIR Techniques (model-free)

• Genetic Image Exploration
• Originally designed to analyze multispectral
  satellite data
• Semi-autonomous systems that employ a
  decision-tree to search a known repertoire of
  conventional image analysis algorithms for the
  most sensitive and specific combination of
  algorithms that fits the query predicate
• is representative
• (Los Alamos National Labs)
• Open Microscopy Environment (OME) Ilya Goldberg
  NIA
• Autonomous operation comes at a price the need
  for significant computational throughput in
  training mode (e.g. slow)

10
(No Transcript)
11
From http//openmicroscopy.org/site/support/omero
4
12
CBIR Sub Modalities

• QBVE (Query by visual example)
• searches for a near-exact example
• QBVP (Query by visual prototype)
• Searches for a region with similar sub-regions as
  the predicate
• MPE (Minimum probability of error)
• Search for the statistical minimum of cumulative
  difference errors for each constitutive component
  feature

All of the above search modalities can be carried
out with either model-based or model-free
approaches.
13
CBIR Operational Modes

• Query by Example
• Find pictures that contain this snippet / ROI
• Semantic Retrieval
• Find pictures like adenocarcinoma
• Like this adenocarcinoma
• Multimodal Retrieval
• Search for matches based on imagery data combined
  with other search metrics
• High-throughput omics data, etc.
• Patient clinical outcomes and therapeutic
  response data
• Other imaging modalities

14
Definition

• Content-Based Image Retrieval (CBIR)
• Within the context of an image-based repository,
  searching for matching predicates with
  image-based operators in lieu of text matching
• Reverse Metadata Lookup (RML)
• Using the cohort of returned images from a CBIR
  query to generate a list of associated metadata
  concept terms
• Anatomic frame of reference
• Prior diagnoses
• Differential Diagnosis

15
CBIR Techniques

• Model-Based Algorithmic approaches
• Specific to intended subject matter
• Brittle
• May require deep domain programming knowledge
• Model-free approaches
• Agnostic to underlying subject matter
• Robust
• Domain programming knowledge is not required
• Ideal for ground truth operations

16
Conventional Image Analysis

• At present, confined to specific use-cases
• Quantitative IHC
• FDA validation linked to each use-case
• Not reduced to practice as an integral tool of
  the pathologists workstation
• Not capable of searching 1 million or more whole
  slide images in real-time

17
The Challenge That IsPathology CBIR

• Start with some conservative initial assumptions,
  concerning a prototypic image repository, in
  terms of search potential
• Ability to search 10 years of data
• 1000 slides day ? 200,000 slides/year
• 500 Mb of compressed whole slide data/slide
• Operational goal of being able to
• Search in real-time
• Re-index the database every evening, such that
  searches carried out the next day are current

18
The Challenge That IsPathology CBIR

• Net storage required for ten years worth of
  data
• 1 Billion Megabytes
• 106 Gigabytes
• 103 Terabytes
• 100 Petabytes ? 1 Petabyte
• Current conservative enterprise storage is 2000/
  Terabyte
• The full Petabyte would cost 2M
• A single Genetic-type search across all images,
  assuming 5-50 seconds of computation / slide,
  would be
• 200,000 slides 10 years 5 seconds/slide? 10
  million seconds
• This is 6 log too slow
• 8.27 weeks or about 6 searches per year
• (original Apple 2e 78 years)
• So we would need to save our queries for those
  really important image searches.
• Conventional Vector Quantization (VQ), which is
  100 times faster, is still not fast enough 13.8
  hours per feature search
• Yet another 4-5 log of performance is required
• Two ways to address this
• 10,000-100,000 parallel processors or
• better algorithms

19
On Current Technology

• Modern computational throughput continues to
  increase, with this capability representing an
  opportunity for perhaps 1-2 log performance
  increase in the next decade
• With a one-log increase, we are still left with a
  five-log gap that needs to be made up by improved
  algorithmic performance.

20
A Brief OverviewConventional Vector
Quantization (VQ)
Original Image
Division of image into local domains
Extraction of Local Domain Composite Vectors
?
VKSLx0y0Order , LxnymOrder
Vectorization of each local kernel
Individual assessment of each vector dimension
38857448643
21
Conventional Vector Quantization
VKSLx0y0Order , LxnymOrder
Established Vocabulary
Query Against library (Vocabulary) of Established
Vectors
Novel Vector
Previously Identified Vector
Assignment of a unique serial number and
inclusion into global vocabulary
Assembly of compressed dataset
38857448643
22
VQ-Based Image Compression as the Original
Predicate for Carrying OutImage-Based Search
Raw Data
Restored Data
Compressed data The spatially-preserved
organization of the encoded data represents a
many-fold decrease in overall search dataset
size, thus providing a significant computational
opportunity for accelerated search. Additionally,
the vectors identified as contributing to a
match may be visually interrogated for
confirmation of their predictive morphologic
content.
23
Recent Model-Free Approach Developments

• A number of promising algorithms being developed
• Genetic image analysis algorithm selection
• Support Vector Machines (SVM)
• Principle Component analysis
• High-dimensional reduction approaches
• Spatially-invariant VQ (SiVQ)

24
VQ Revisited and SiVQ

• Q What is conventional VQs greatest weakness
• A Too many required vectors to represent a
  single atomic morphologic feature
• (promiscuity of vector set growth with continued
  training)

25
Conventional VQ Vector Growth during training
26
A Matter of Degrees of Freedom
How many ways can this be sampled?
27
How Many Ways Can A Candidate Feature Be Matched
During Training?
Y Translational Freedom
X Translational Freedom
Rotational Freedom
28
In VQ it may be the same feature but there are
excessively enumerable ways to sample

• Typical Feature Vector
• 25 x 25 pixels (x by y) or larger
• ? 625 translational degrees of freedom
• Effective radius of 12.5 pixels
• After Nyquist rotational sampling (2x spatial
  frequency)
• 2 x (2 x 12.5 x p) ? 79 separate rotations
• 3 color planes
• 2 mirror symmetries
• At least 20 possible semi-discreet length-scale
  Nyquist samples
• All together, there are at least 625 x 79 x 3 x 2
  x 20? 5,925,000 possible ways to represent one
  possible vector (assuming twenty fixed
  magnifications in use)
• This explains the non-asymptotic (unbounded)
  vector growth observed of some histology
  patterns.
• Multispectral data (e.g. 28 vs. 3 bands) will
  further multiply the diagnostic power of SiVQ
  vectors (55,300,000 degrees of freedom / vector)

29
Update from 2008

• Faster performance possible
• Ground truth cancer detection possible
• True model-free operation demonstrated
• (works on any subject matter)
• Additional reduction in degrees of freedom
• faster

30
Transformation of the coordinate system

• Adjacency Problem
• New system with two degrees of freedom
• Rotational
• Mirror image

31
Transformation of the coordinate system
32
i,j?i?,j?
T360o/32
aij ai1,jx ai,j1y ai2,jx2 ai1,j1xy
ai,j2y2 ai2,j1x2y ai1,j2xy2
ai2,j2x2y2 ai3,jx3 ai,j3y3 ai3,j1x3y
ai1,j3xy3 ai3,j2x3y2 ai2,j3x2y3
ai3,j3x3y3
33
Degree of Freedom IRecognition Across Mirror
Symmetries
34
Degree of Freedom IIRotationally Invariant
Recognition
35
Rotationally Invariant Recognition
36
Further Possible Reductions in Degrees of Freedom
(2009)

• Length Scale
• Up to 20x impact on search space (402
  magnification ratio)
• Dynamic Range (contrast)
• 3x impact on search space
• Black Level Offset (brightness)
• 5x impact on search space
• Biased distortion ellipsoid compression of
  fundamental circular vectors
• 30x (both angle of axis and degree of distortion)

• Total further reductions at least 9000, or
  approximately 4 orders or magnitude.

37
Total Realized Search Space Reductions (2009)

• RGB Images
• 5,925,000 104 60 109
• (60 billion equivalent Cartesian vectors)
• Multispectral/multiplanar images
• 55,300,000 104 553 109
• (553 billion equivalent Cartesian vectors)
• Computational performance is improved linearly by
  the reduction of required comparisons for each
  matching class (at least 60 billion times faster
  search for the predicate or interest)
• In many cases, a complete feature descriptor can
  be described with as few as even a single vector.

38
Simple Use Case Already Reduced to
PracticeGround Truth Cancer Mapping

• Useful for precisely identifying all areas of a
  whole-slide image that are involved by malignancy
• Tumor quantization
• Automated gating for LCM
• Fiduciary mapping for multi-modality fusion
  studies
• As vectors are internally derived for each case,
  inter-slide variability from fixation and
  staining becomes inconsequential

39
Colon Cancer
40
Malignant Epithelium One vector
41
Stroma One Vector
42

• Use-case Automated bone marrow aspirate
  differential counting via model-free tools to
  attain speed and accuracy
• Band detection with a single vector
• Resistant to cell segmentation issues encountered
  with traditional image analysis

43
Some Additional Interactive Demonstrations
44
Consequences of SiVQ

• Use one spatially-invariant vector to do the work
  of millions or billions of spatially-constrained
  vectors
• Millions or billions of times faster than
  conventional image matching
• Enormously fewer vectors to store per feature
  archetype
• 6-9 log increase in algorithmic performance (we
  only needed 4 log, so we have CPU to burn)
• Implies an operational solution to the real-time
  requirement for large datasets
• CBIR is essentially reduced to practice for a
  sizable contingent of textural-based whole slide
  image-retrieval use-cases
• Emergent property SiVQ works equally-well on all
  structurally-repetitive data sets (e.g. remote
  sensing, Google-like image searches of the Web)

45
Opportunities and Future Work

• CBIR development will continue
• Many groups already demonstrating feasibility of
  real-time query capability
• Activity at Rutgers, U. of Pittsburgh and Cal
  Tech
• For the UofM Group
• Rapid dissemination of the algorithm and
  libraries via peer-reviewed publications and/or
  e-pubs
• Extension of the discovery tool suite to support
  multiple-vector classification, similar to the
  approaches taken for prior VQ systems, with rapid
  follow-on publications
• Ground-Truth Engine for integrative
  multimodality studies
• Markov analysis module for automated
  identification of sets of vectors that optimize
  both sensitivity and specificity over a single
  vector
• Activation of an open-architectures website that
  will provide a downloadable tool suite and a
  Web-Based, real-time decision support environment
  for submitted images, operating in two general
  use-cases
• Surface classification with rare event detection
  (anything not classified as normal)
• Differential diagnosis generation with return of
  matching images and associated metadata
• Generation of a classification library of
  extensive normal SiVQ vectors for each organ
  system
• Actively pursue collaboration to form a core team
  to adjudicate needed normal and abnormal vector
  classes

46
Closing Remarks

• CBIR will continue to improve in performance and
  accuracy
• Contemporary computation speed is, actually,
  quite adequate for many CBIR tasks
• Much work remains to realize its full potential
• SiVQ will likely be one of a plurality of
  compelling solutions in the Image Query /
  Decision-support armamentarium

47
Acknowledgements

• Jerome Cheng, U. of Michigan
• Funding NIH CTSA (University of Michigan)
