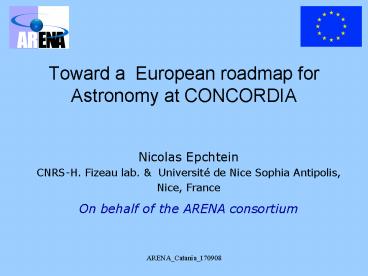

Title: Toward a European roadmap for Astronomy at CONCORDIA
1Toward a European roadmap for Astronomy at
CONCORDIA
- Nicolas Epchtein
- CNRS-H. Fizeau lab. Université de Nice Sophia
Antipolis, - Nice, France
- On behalf of the ARENA consortium
2Antarctica is a continent exclusively dedicated
to peaceful Scientific Research(Antarctic Treaty
and Madrid Protocol, SCAR) This status should
be preserved thanks to a permanent presence of
researchers engaged in collaborative scientific
and multidisciplinary programmes of excellence.
3- Antarctica a very promising site for ground
based astronomy in the future in a wide spectral
range - Unique environmental properties (? E. Fossat)
- Dome C, best Antarctic site offering a high
level of operations/logistics capability thanks
to IPEV PNRA - Research efforts scattered (site testing,
projects, vision..) - Foster European and international and
multidisciplinary collaborations - Gather critical mass of teams
- Sweep away prejudices and myths about Polar
conditions - Reach a consensus for a roadmap of ambitious
developments - Awareness of funding Agencies, including ESO
(ASTRONET) - Requires better international organization at the
researchers level, not just agencies - Bottom-up action of the EC? ARENA
4http//arena.unice.fr
5ARENA Outreach pages (A. Surdej, Liège C.
Baudouin, M.-L. Péronne, CNRS) (http//www.arena.u
lg.ac.be/)
6- Main features and achievements of the
- ARENA network
- Coordination action of the 6th Framework
Programme (RI, integrating Activity) (see
website http//arena.unice.fr) - Submitted in March 2005 granted June 2005
started Jan. 2006 - Overall Budget 1.335 M
- 4-year contract (2006-2009) . Conclusions will
be released in 2009 - 22 partners, incl. Polar Agencies (IPEV and
PNRA), industrial companies, ESO, in 7 EU
countries (Be, De, Fr, It, Sp, Pt, UK) and
Australia - Contract management and coordination (NA1 N.
Epchtein/M.-L Péronne, Nice, Fr) - Information and Communication Unit (ICU) in
charge of public outreach see
(http//www.arena.ulg.ac.be/) (A. Surdej) - Executive Committee (CMC) (9 members agencies,
observer) - 4 meetings- 5th next Monday Sept. 22, 2008
- Scientific Advisory Board (SAB)
7- Partners of ARENA
- CNRS (H. Fizeau, IAP, LAM/OAMP, France)
coordinator, - INAF (several observatories, Italy),
- MPIA, Heidelberg (Germany),
- Astrophysikalisches Institut Potsdam (Germany),
- University of Granada (and University Autonoma
of Madrid) (Spain), - CSIC, Barcelona (Spain),
- Instituto de Astrofisica de Canarias (Spain),
- University of Exeter (UK),
- University of Perugia (Italy),
- Institut Paul Emile Victor (France),
- DLR, Berlin (Germany),
- Paris Observatory (France),
- CEA/SAp, Saclay (France),
- University of Liège (Belgium),
- Programma Nazionale di Ricerche in Antartide
(Italy), - University of New South Wales, Sydney
(Australia), - SHAKTIWARE, Marseilles (France),
8Networking activities
- Four main networking activities subdivided into
tasks (3 to 5 per NA) - NA2 site qualification (R. Gredel, Heidelberg,
De) - Access to seeing and radiosounding balloons data
from Fizeau. More to come. - NA3 Instrumentation in polar environment
(J.-P. Swings, Liège, Be) - NA4 Logistics/operations (M. Candidi, Roma, It)
(report in Dec 2008). Internet connection ! - NA5 Astrophysical Science Case (H. Zinnecker,
Potsdam, De) - NA5.3 ? time variabilities
- Roscoff ARENA1 Conference, Epchtein Candidi,
2007, Proc. EDP EAS vol25 - Potsdam ARENA2 Conference, Zinnecker, Epchtein,
Rauer, 2008, Proc. in press EDP EAS vol 33
9ARENA Working groups
- 6 dedicated Working Groups (created at Potsdam,
Sept. 2007)to replace the Technical
Committee - Wide Field Optical/IR Astronomy (D. Burgarella,
M. Burton) - Submillimetric Astronomy (V. Minier, L. Olmi)
- Optical/IR Interferometry (V. Coudé du Foresto ,
J. Surdej) - Time-series observations (H. Rauer, H. Deeg)
- Cosmic Microwave background experiments (P. De
Bernardis, Y Giraud-Héraud) - High Angular Solar physics (L. Damé, Andrate)
- Aimed to document the final recommendation book
10Long time series observations from Antarctica
- Great benefit from long continuous dark periods
(3-4 months) ? better sampling - Easier to manage than arrays of telescopes across
the world - Several hot astronomical topics
- Asteroseismology and internal structure/evolution
of stars - Stellar activity (spots, rotation)
- Direct identification of exoplanets transits
- gravitational lensing
11Requirements
- Needs long observing times during several seasons
? specific instrument - ? basically one instrument per programme
- ? thus modest budget
- Interest for a 2m 3 m class telescope?
12ARENA Task 5.3 Time variability
- New domains for ground based high precision and
long duration time-series photometry and
spectroscopy . Task Leader DLR, (H. Rauer) - (1) An evaluation of Dome C's capabilities
(atmospheric stability, long polar night) for
high-precision and long-duration time-series
observations, with particular emphasis on stellar
and planetary research - (2) An evaluation of the synergy with the COROT
and Kepler space missions.
13- Task 5.3.1 Helio and asteroseismology, leader
E. Fossat (CNRS) - better helioseismology at Dome C
- unique advantages of Dome C for asteroseismology
of low-mass stars. - design a compact imaging seismometer
(SIAMOIS?B. Mosser) - Task 5.3.2 Photometric search for extrasolar
planets, leader H. Deeg (IAC, Tenerife ) - site assessment (a-Step, small-IRAIT) (talks by
N. Crouzet, J.-B. Daban, K. Strassmeier) - wide-field robotic telescope for an intensive
search for Earth-mass planets in the habitable
zone via microlensing. (a-Step, Ice-T) - Task 5.3.3 Solar-stellar connection, leader
K. Strassmeier (AIP) - continuous photometric monitoring of stellar
cyclic activity - which spectroscopic monitoring of line
variations benefits from Dome C conditions (to
reconstruct stellar differential rotation), - the parameters of a robotic optical/near-IR
telescope and data transfer rates to achieve the
above goals of photometry and spectroscopy. ?
(IceT) (ARENA Workshop on Robotization, Tenerife,
March 2007, Astr. Nachr. 328, 451)
14instrumental projects at DomeC
- Small size (lt1m)
- In operations
- Cochise (2.5 m), BRAIN CMB polarization
- In construction
- IRAIT (2009-10) 80 cm IR imaging
- A-Step (2009-10) 40 cm optical imaging/high
precision photometry - In project (phase A)
- Ice-T (2012?) 2 x 60 cm optical imaging/high
precision photometry - Siamois (2012?) 40 cm optical/FTS tachometer
- Medium size (1- 10 m)
- In project, phase A
- PILOT (phase A) 2.5 m optical/IR pathfinder
(2013-14) - Aladdin 2x 1 m pathfinder for interferometry (?)
- Concept study
- Submillimeter antenna 12 m (?), ASO, Seefira
- Solar corona telescope, interferometer A-Fourmi
- Large projects (gt12m)
- Km array interferometers (THz array and
optical/IR KEOPS) - ELTs (Antarctic GMT)
15Conclusions and agenda 1/2
- Dome C is likely to be a great site for
Time-series observations - More site testing data are needed.
- Political situation rather intricate, ARENA helps
to foster collaborations and to draw out a
roadmap - The conclusions of ARENA will be considered by
national agencies, and international
organizations (ESO, EC) for future long term
evaluations and decisions about antarctic
astronomy. - ARENA is just the beginning of a long story next
step is to coordinate RD actions (FP7, March
2010) - 2009 is an important year (end of IPY and
IYA2009). Outreach action ANR in France. - Importance to maintain pressure to secure Dome C
operations (funding problems)
16Conclusions and agenda (2/2)
- Try to coordinate effort
- centralizing requests to Polar Agencies
(logisics, equipments, ) - mutualizing technical solutions and logistics
requirements - Contributing to multipurpose pathfinder
telescopes (express interest in the PILOT
project ? phase B) - Working groups should be prepared to present
their preliminary conclusions on 12 December 2008
to the ARENA CMC - NA4 meeting (December) to coordinate and forward
logistics requirements of the WG and tasks to
Polar Agencies. - Synthetical presentations at ARENA3 Conference
(Frascati, 11 May 2009) - Write their recommendations for the conclusions
book (10-20 pages in all), based on conclusions
of this workshop ? end 2009
17 3rd ARENA Conference "An astronomical
Observatory at CONCORDIA (Antarctica) for the
next decade" Chair/co-chair L. Spinoglio N.
Epchtein Frascati (Italy) - May 11-15,
2009 Registration will open soon
Special Session of the IAU General Assembly
Astronomy in Antarctica Chairman M. Burton
(UNSW, Australia) Rio de Janeiro (Brazil) ,
August 6-7, 2009
18- Many thanks to the organizers of this workshop
(LOC and SOC) and, in particular, to Giuseppe
Cutispoto - and the
- Catania Observatory
- And to Alitalia!
- Thank you for your attention!
- And lets have a fruitful discussion
