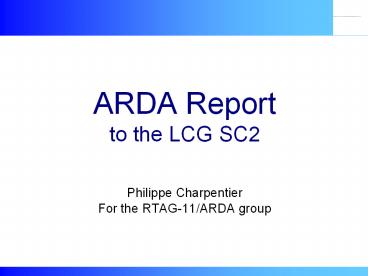

ARDA Reportto the LCG SC2

• Philippe Charpentier
• For the RTAG-11/ARDA group

2
Repeats of last talk emphasizing main points
3
ARDA roadmap to distributed analysis

• Analysis model
• How to implement Hepcal-II use cases
• Ev. Proviso for Hepcal-II use cases?

4
API to Grid services

• Importance of API to interface
• Exp. framework
• Analysis shells, e.g. ROOT
• Grid portals and other forms of user interactions
  with environment
• Advanced services e.g. virtual data, analysis
  logbooks etc
• Exp. Specific services e.g. data and meta data
  management systems

5
ARDA and Grid services arch

• OGSI gives framework in which to run LHC/ARDA
  services
• Addresses architecture for
• -- communication, lifetime support, whatever,
• Provides framework for advanced interactions with
  Grid
• This is outside of the analysis services API,
  but to be implemented in standard ways
• Need to address issues of OGSI performance and
  scalability up-front
• Importance of modeling, plan for scaling up,
  engineering of underlying services i/s

6
Roadmap to a Grid Services Architecture for the
LHC

• Transition to grid services explicitly addressed
  in several existing projects
• Clarens and Caltech GAE, MonaLisa
• Based on web services for communication,
  Jini-based agent architecture
• Dirac
• Based on intelligent agents working within
  batch environments
• AliEn
• Based on web services and communication to dbase
  proxy
• Initial work on OGSA within LCG-GTA
• GT3 prototyping
• No evolutionary path from GT2-based grids, but
  augmenting LCG-1 and other grid services
• Grid services interface to CE, SE, VO management
  interfaces
• OGSI-based services speak JDL, DAGman etc
• ARDA provides decomposition into those services
  that address the LHC distributed analysis use
  cases

7
ARDAs model of interfacing the Applications to
the Grid UI/API

• Stress importance to providing an API that others
  can project against
• Benefits of common API to framework
• Goes beyond traditional UIs à la GANGA, Grid
  portals, etc
• Benefits in interfacing to physics applications
  like ROOT et al
• Process to get a common API b/w experiments --gt
  prototype

8
ARDA Roadmap for Prototype

• Prototype provides the initial blueprint -- do
  not aim for a full specification of all the
  interfaces
• 4-prong approach
• re-factoring of AliEn web services into ARDA
• Initial release w/ OGSIlight/GT3 proxy,
  consolidation of API, release
• implementation of agreed interfaces, testing,
  release
• GT3 modeling and testing, ev. quality assurance
• Interfacing to POOL, analysis shells,
• Also opportunity to early interfacing to
  complementary projects
• Interfacing to experiments frameworks
• metadata handlers, exp. specific services
• Provide interaction points with community
• early releases and workshops every few months
• Early strong feedback on API and services
• Decouple from deployment issues

9
Experiments and LCG Involved in Prototyping

• ARDA prototype would define the initial set of
  services and their interfaces
• Important to involve experiments and LCG at the
  right level
• Initial modeling of GT3-based services
• Interface to major cross-exp packages POOL,
  ROOT, PROOF, others
• Program experiment frameworks against ARDA API,
  integrate with experiment environments
• Expose services and UI/API to other LHC projects
  to allow synergies
• Spend appropriate effort to document, package,
  release, deploy
• After the prototype is delivered, in Spring 2004,

• Scale up and re-engineer as needed OGSI,
  databases, information services
• Deployment and interfaces to site and grid
  operations, VO management etc
• Build higher-level services and experiment
  specific functionality
• Work on interactive analysis interfaces and new
  functionalities

10
Possible Strawman

• Strawman workplan for ARDA prototype

11
Synergy with and Engagement of other Projects

• e.g. GANGA --gt Rob

12
Action Items

• Develop ARDA work plan, schedule, milestones
• Identify effort and build team(s)
• Develop plan for interfacing to and engaging of
  LHC and Grid community
• Release ARDA RTAG document

13
Slides from previous presentations
14
ARDA Mandate

15
ARDA Mandate
Long list of projects being looked at, analyzing
how their components and services would map to
the ARDA services, synthesized to provide
description of ARDA components

GAG discussed an initial internal working draft,
GAG to follow up
Both of these are in progress --- will provide a
technical annex that documents these
This is a main thrust of the ARDA roadmap
Will be part of the technical annex -- e.g.
security, auditing etc
Main deliverable of ARDA, approach to be
described in this talk
16
Makeup of ARDA RTAG

• Requirements and Technical Assessment Group of
  the SC2
• Give recommendations to the SC2, thus the LCG and
  the four experiments
• Members
• Alice Fons Rademakers and Predrag Buncic
• Atlas Roger Jones and Rob Gardner
• CMS Lothar Bauerdick and Lucia Silvestris
• LHCb Philippe Charpentier and Andrei
  Tsaregorodtsev
• LCG GTA David Foster, stand-in Massimo Lamanna
• LCG AA Torre Wenaus
• GAG Federico Carminati (CMS members in GAG
  Rick, Claudio)

17
ARDA mode of operation

• constructive and open-minded committee
• Series of weekly meetings July and August,
  mini-workshop in September
• Invited talks from existing experiments
  projects
• Summary of Caltech GAE workshop (Torre)
• PROOF (Fons)
• AliEn (Predrag)
• DIAL (David Adams)
• GAE and Clarens (Conrad Steenberg)
• Ganga (Pere Mato)
• Dirac (Andrei)
• Cross-check w/ other projects of emerging ARDA
  decomposition of services
• Magda, DIAL -- Torre, Rob
• EDG, NorduGrid -- Andrei, Massimo
• SAM, MCRunjob -- Roger, Lothar
• BOSS, MCRunob -- Lucia, Lothar
• Clarens, GAE -- Lucia, Lothar
• Ganga -- Rob, Torre
• PROOF -- Fons
• AliEn -- Predrag

18
Initial Picture Distributed Analysis (Torre,
Caltech w/s)
19
Hepcal-II Analysis Use Cases

• Scenarios based on GAG HEPCAL-II report
• Determine data sets and eventually event
  components
• Input data are selected via a query to a metadata
  catalogue
• Perform iterative analysis activity
• Selection and algorithm are passed to a workload
  management system, together with spec of the
  execution environment
• Algorithms are executed on one or many nodes
• User monitors progress of job execution
• Results are gathered together and passed back to
  the job owner
• Resulting datasets can be published to be
  accessible to other users
• Specific requirements from Hepcal-II
• Job traceability, provenance, logbooks
• Also discussed support for finer-grain access
  control and enabling to share data within physics
  groups

20
Analysis Scenario

• This scenario represents the analysis activity
  from the user perspective. However, some other
  actions are done behind the scene of the user
  interface
• To carry out the analysis tasks users are
  accessing shared computing resources. To do so,
  they must be registered with their Virtual
  Organization (VO), authenticated and their
  actions must be authorized according to their
  roles within the VO
• The user specifies the necessary execution
  environment (software packages, databases, system
  requirements, etc) and the system insures it on
  the execution node. In particular, the necessary
  environment can be installed according to the
  needs of a particular job
• The execution of the user job may trigger
  transfers of various datasets between a user
  interface computer, execution nodes and storage
  elements. These transfers are transparent for the
  user

21
Example Asynchronous Analysis

• Running Grid-based analysis from inside ROOT
  (adapted from AliEn example)
• ROOT calling the ARDA API from the command prompt
• // connect authenticate to the GRID Service
  arda as lucia
• TGrid arda TGridConnect(arda",lucia,"",""
  )
• // create a new analysis Object ( ltunique IDgt,
  lttitlegt, subjobs)
• TArdaAnalysis analysis new TArdaAnalysis(pass
  001",MyAnalysis",10)
• // set the program, which executes the Analysis
  Macro/Script
• analysis-gtExec("ArdaRoot.sh,"file/home/vincenzo
  /test.C") // script to execute
• // setup the event metadata query
• analysis-gtQuery("2003-09/V6.08.Rev.04/00110/gjet
  met.root?ptgt0.2")
• // specify job splitting and run
• analysis-gtOutputFileAutoMerge(true) // merge
  all produced .root files
• analysis-gtSplit() // split the task in subjobs
• analysis-gtRun() // submit all subjobs to the
  ARDA queue
• // asynchronously, at any time get the (partial
  or complete) results
• analysis-gtGetResults() // download
  partial/final results and merge them
• analysis-gtInfo() // display job information

22
Asynchronous Analysis Model

• Extract a subset of the datasets from the virtual
  file catalogue using metadata conditions provided
  by the user.
• Split the tasks according to the location of data
  sets.
• A trade-off has to be found between best use of
  available resources and minimal data movements.
  Ideally jobs should be executed where the data
  are stored. Since one cannot expect a uniform
  storage location distribution for every subset of
  data, the analysis framework has to negotiate
  with dedicated Grid services the balancing
  between local data access and data replication.
• Spawn sub-jobs and submit to Workload Management
  with precise job descriptions
• User can control the results while and after data
  are processed
• Collect and Merge available results from all
  terminated sub-jobs on request
• Analysis objects associated with the analysis
  task remains persistent in the Grid environment
  so the user can go offline and reload an analysis
  task at a later date, check the status, merge
  current results or resubmit the same task with
  modified analysis code.

23
Synchronous Analysis

• Scenario using PROOF in the Grid environment
• Parallel ROOT Facility, main developer Maarten
  Ballintjin/MIT
• PROOF already provides a ROOT-based framework to
  use a (local) cluster computing resources
• balancing dynamically the workload, with the goal
  of optimizing CPU exploitation and minimizing
  data transfers
• makes use of the inherent parallelism in event
  data
• works in heterogeneous clusters with distributed
  storage
• Extend this to the Grid using interactive
  analysis services, that could be based on the
  ARDA services

24
ARDA Roadmap Informed By DA Implementations

• Following SC2 advice, reviewed major existing DA
  projects
• Clearly AliEn today provides the most complete
  implementation of a distributed analysis
  services, that is fully functional -- also
  already interfaces to PROOF
• Implements the major Hepcal-II use cases
• Presents a clean API to experiments application,
  Web portals,
• Should address most requirements for upcoming
  experiments physics studies
• Existing and fully functional interface to
  complete analysis package --- ROOT
• Interface to PROOF cluster-based interactive
  analysis system
• Interfaces to any other system well defined and
  certainly feasible
• Based on Web-services, with a global (federated)
  database as a backend to give state and
  persistency to the system
• ARDA approach
• Re-factoring AliEn, using the experience of the
  other project, to generalize it in an
  architecture Consider OGSI as a natural
  foundation for that
• Confront ARDA services with existing projects
  (notably EDG, SAM, Dirac, etc)
• Synthesize service definition, defining their
  contracts and behavior
• Blueprint for initial distributed analysis
  service infrastructure
• ARDA services blueprint gains credibility w/
  functional prototypical implementation

25
ARDA Distributed Analysis Services

• Distributed Analysis in a Grid Services based
  architecture
• ARDA Services should be OGSI compliant -- built
  upon OGSI middleware
• Frameworks and applications use an ARDA API with
  bindings to C, Java, Python, PERL,
• interface through UI/API factory --
  authentication, persistent session
• Fabric Interface to resources through CE, SE
  services
• job description language, based on Condor
  ClassAds and matchmaking
• Database(ses) backend provide statefulness and
  persistence (accessed through proxy)
• We arrived at a decomposition into the following
  key services
• API and User Interface
• Authentication, Authorization, Accounting and
  Auditing services
• Workload Management and Data Management services
• File and (event) Metadata Catalogues
• Information service
• Grid and Job Monitoring services
• Storage Element and Computing Element services
• Package Manager and Job Provenance services

26
AliEn (re-factored)

27

28
ARDA Key Services for Distributed Analysis
Framework
29
API and User Interface

30
API and User Interface

• ARDA services present an API, called by
  applications like the experiments frameworks,
  interactive analysis packages, Grid portals, Grid
  shells, etc
• allows to implement a wide variety of different
  applications. Examples are command line interface
  similar to a UNIX file system. Similar
  functionality can be provided by graphical user
  interfaces.
• Using these interfaces, it will be possible to
  access the catalogue, submit jobs and retrieve
  the output. Web portals can be provided as an
  alternative user interface, where one can check
  the status of the current and past jobs, submit
  new jobs and interact with them.
• Web portals should also offer additional
  functionality to power users Grid
  administrators can check the status of all
  services, monitor, start and stop them while VO
  administrators (production user) can submit and
  manipulate bulk jobs.
• The user interface can use the Condor ClassAds as
  a Job Description Language
• This will maintain compatibility with existing
  job execution services, in particular LCG-1.
• The JDL defines the executable, its arguments and
  the software packages or data and the resources
  that are required by the job
• The Workload Management service can modify the
  jobs JDL entry by adding or elaborating
  requirements based on the detailed information it
  can get from the system like the exact location
  of the dataset and replicas, client and service
  capabilities.

31
File Catalogue and Data Management

• Input and output associated with any job can be
  registered in the File Catalogue, a virtual file
  system in which a logical name is assigned to a
  file.
• Unlike real file systems, the File Catalogue does
  not own the files it only keeps an association
  between the Logical File Name (LFN) and (possibly
  more than one) Physical File Names (PFN) on a
  real file or mass storage system. PFNs describe
  the physical location of the files and include
  the name of the Storage Element and the path to
  the local file
• This could be extended to the more general case
  of object collections, that are denoted to by a
  metadata system (Dirk Düllmann)
• The system supports file replication and caching
  and will use file location information when it
  comes to scheduling jobs for execution.
• The directories and files in the File Catalogue
  have privileges for owner, group and the world.
  This means that every user can have exclusive
  read and write privileges for his portion of the
  logical file namespace (home directory).
• Etc pp

32
Job Provenance service

• The File Catalogue is not meant to support only
  data sets this is extended to include
  information about running processes in the system
  (in analogy with the /proc directory on Linux
  systems) and to support virtual data services
• Each job sent for execution gets an unique id and
  a corresponding /proc/id directory where it can
  register temporary files, standard input and
  output as well as all job products. In a typical
  production scenario, only after a separate
  process has verified the output, the job products
  will be renamed and registered in their final
  destination in the File Catalogue.
• The entries (LFNs) in the File Catalogue have an
  immutable unique file id attribute that is
  required to support long references (for instance
  in ROOT) and symbolic links.

33
Package Manager Service

• Allows dynamic installation of application
  software released by the VO (e.g. the experiment
  or a physics group).
• Each VO can provide the Packages and Commands
  that can be subsequently executed
• Once the corresponding files with bundled
  executables and libraries are published in the
  File Catalogue and registered, the Package
  Manager will install them automatically as soon
  as a job becomes eligible to run on a site whose
  policy accepts these jobs.
• While installing the package in a shared package
  repository, the Package Manager will resolve the
  dependencies on other packages and, taking into
  account package versions, install them as well.
• This means that old versions of packages can be
  safely removed from the shared repository and, if
  these are needed again at some point later, they
  will be re-installed automatically by the system.

• This provides a convenient and automated way to
  distribute the experiment specific software
  across the Grid and assures accountability in the
  long term.

34
Computing Element

• Computing Element is a service representing a
  computing resource. Its interface should allow
  submission of a job to be executed on the
  underlying computing facility, access to the job
  status information as well as high level job
  manipulation commands. The interface should also
  provide access to the dynamic status of the
  computing resource like its available capacity,
  load, number of waiting and running jobs.
• This service should be available on a per VO
  basis.

35
Workload Management

• pull approach, with jobs submitted to the
  central task queue
• central service component manages all the tasks
  (described by JDL)
• computing elements are defined as remote
  queues, to provide access to a cluster of
  computers, to a single machine dedicated to run a
  specific task, or even an entire foreign Grid
• Workload manager optimizes the task queue taking
  into account JDL
• JDL describes job requirements like input files,
  CPU time, architecture, disk space etc.
• Makes job eligible to run on one or more
  computing elements
• Active nodes fetch jobs from central task queue
  and start
• Job Monitoring service to access job progression
  and stdout, stderr
• Optimizers inspect JDL and try to fulfill
  requests and resolve conflicts
• results in triggering file replication, etc
• Other optimizers can be constructed for special
  purposes
• E.g. implement policy monitors to enforce VO
  policies by altering job priorities
• E.g. estimate time to complete work, taking into
  account other work going on, resolve specific
  conflicts or optimize in a heuristic or neural
  net way etc.

36
Auditing Services

• The auditing services provides a central syslog
• can be queried by monitors or agents with
  specific intelligence
• Should allow to implement Event Handling" or
  fault recovery
• Together with monitoring services, allows to
  implement specific tools and approaches for
  operation and debugging

37
Etc. pp

38
General ARDA Roadmap

• Emerging picture of waypoints on the ARDA
  roadmap
• ARDA RTAG report
• review of existing projects, component
  decomposition re-factoring, capturing of common
  architectures, synthesis of existing approaches
• recommendations for a prototypical architecture
  and definition of prototypical functionality and
  a development strategy
• development of a prototype and first release
• Re-factoring AliEn web services, studying the
  ARDA architecture in a OGSI context, based on
  existing implementation
• POOL and other LCG components (VO, CE, SE, )
  interface to ARDA
• Adaptation of specific ARDA services to
  experiments requirements
• E.g. File catalogs, package manager, metadata
  handling for different data models
• Integration with and deployment on LCG-1
  resources and services
• This will give CMS a (initially ROOT based)
  distributed analysis environment
• including PROOF-based interactive analysis
• Re-engineering of prototypical ARDA services, as
  required
• Evolving services scaling up and adding
  functionality, robustness, resilience, etc

39
Talking Points

• Horizontally structured system of services with a
  well-defined API and a database backend
• Can easily be extended with additional services,
  new implementations can be moved in, alternative
  approaches tested and commissioned
• Interface to LCG-1 infrastructure
• VDT/EDG interface through CE, SE and the use of
  JDL, compatible with existing i/s
• ARDA VO services can build on emerging LCG VO
  management infrastructure
• ARDA initially looked at file based datasets, not
  object collection
• talk with POOL how to extend the file concept to
  a more generic collection concept
• investigate experiments metadata/file catalog
  interaction
• VO system and site security
• Jobs are executed on behalf of VO, however users
  fully traceable
• How do policies get implemented, e.g. analysis
  priorities, MoU contributions etc
• Auditing and accounting system, priorities
  through special optimizers
• accounting of site contributions, that depend
  what resources sites expose
• Database backend for the prototype
• Address latency, stability and scalability issues
  up-front good experience exists
• In a sense, the system is the database (possibly
  federated and distributed) that contains all
  there is to know about all jobs, files, metadata,
  algorithms of all users within a VO
• set of OGSI grid services provide
  windows/views into the database, while the
  API provides the user access
• allows structuring into federated grids and
  dynamic workspaces

40
Major Role for Middleware Engineering

• ARDA roadmap based on a well-factored prototype
  implementation that allows evolutionary
  development into a complete system that evolves
  to the full LHC scale
• David Foster lets recognize that very little
  work has so far been done on the underlying
  mechanisms needed to provide the appropriate
  foundations (message passing structures, fault
  recovery procedures, component instrumentation
  etc)
• ARDA prototype would be pretty lightweight
• Stability through using a global database as a
  backend, to which services talk through a
  database proxy
• people know how to do large databases -- well
  founded principle (see e.g. SAM for RunII), with
  many possible migration paths
• HEP-specific services, however based on generic
  OGSI-compliant services
• Expect LCG/EGEE middleware effort to play major
  role to evolve this foundation, concepts and
  implementation
• re-casting the (HEP-specific event-data analysis
  oriented) services into more general services,
  from which the ARDA services would be derived
• addressing major issues like a solid OGSI
  foundation, robustness, resilience, fault
  recovery, operation and debugging

41
Framework for evolution and end-to-end services

• The ARDA services architecture would allow
  implement end-to-end services on top, and to
  interact with the ARDA base services in
  interesting ways
• experiments and physicists doing production and
  analysis will need services that look across and
  help manage the system
• E.g. the accounting services allows to implement
  policies through optimizers
• E.g. the auditing services allows to implement
  Grid Operations and expert systems that work on
  the global syslog and intervene in case of
  problems
• That could even allow to implement artificial
  intelligence (e.g. in the form of agents) to help
  users decide what to do, and eventually take
  remedial action automatically, to deal with
  problems (that have been adequately diagnosed)
  automatically (Harveys email)
• Experiment-wide prioritization can be implemented
  and managed
• The ARDA prototype would provide an initial
  implementation of a multi session, many user,
  interactive grid
• Allows to evolve the architecture of the
  services, to scale
• Allows to evolve the OGSI services infrastructure
  functionaity
• Allows to implement views of the Grid.
  user/system interaction and eventually some
  user-initiated steering (Harveys email)

42
Conclusions

• ARDA is identifying a services oriented
  architecture and an initial decomposition of
  services required for distributed analysis
• Recognize a central role for a Grid API which
  provides a factory of user interfaces for
  experiment frameworks, applications, portals, etc
• ARDA Prototype would provide an distributed
  physics analysis environment of distributed
  experimental data
• for experiment framework based analysis
• Cobra, Athena, Gaudi, AliRoot,
• for ROOT based analysis
• interfacing to other analysis packages like JAS
  event displays like Iguana grid portals etc.
  can be easily implemented
