Approaches for Modeling Complex Processes through Integration of GoldSim and Specialized Supporting

1

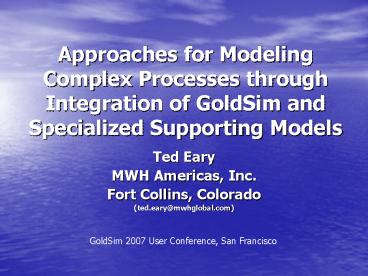

Approaches for Modeling Complex Processes through
Integration of GoldSim and Specialized Supporting
Models

• Ted Eary
• MWH Americas, Inc.
• Fort Collins, Colorado
• (ted.eary_at_mwhglobal.com)

GoldSim 2007 User Conference, San Francisco
2
Integration Approaches

• Submodel Abstraction Incorporation
• Independent Models linked through inputs and/or
  outputs
• Direct Linkage

3
Approach 1Submodel Abstraction Incorporation
Input
Specialized Supporting Models
GoldSim Model

• Geochemistry
• Hydrology
• Limnology
• Climate
• etc

Data or abstracted submodel
Simplified Submodel (Specific Process
solubility, reaction kinetics, runoff,
infiltration, evaporation, )
Output
4
ExampleWater Treatment Plant
Neutralizers, flocculants, polishing agents,
filtration, aeration, etc.
Acid Water
Clean Water
Sludge
Problem How much sludge will be produced?
5
Know Sludge mass function(amount of chemicals
added, time, pH, etc.) Solution Develop
submodels of specific processes from a
combination of experimental data and theoretical
calculations (e.g., supporting models).
Approach for Submodel Incorporation
Zinc
Gypsum
Aluminum
Iron
Create Lookup Table elements for GoldSim
6
GoldSim Model of Water Treatment System
Solubilities are defined in the fluid properties
element as Lookup Table functions, i.e.,
individual submodels.
7
SomeResults
Total Sludge
Tonnes
Lime Added
Time, days
Lime Tank
Aeration Tank
Influent
Concentration, mg/L
Effluent pH
Time, days
8
Submodel Abstraction Incorporation

• Advantages
• Simple relationships focused on the most
  important processes
• Can use a combination of empirical and
  theoretical approaches
• Disadvantages
• Potentially limited range of applicability
• Abstraction may make it difficult to understand
  relationships

9
Approach 2 Independent Models Sequentially
Linked through Inputs and/or Outputs
Input
Input
Supporting Model (e.g., Geochemistry, Hydrology,
Limnology, etc)
GoldSim Model
Output (Excel)
Output to Excel
Input
Input from Excel
Supporting Model (e.g., Geochemistry, Hydrology,
Limnology, etc)
GoldSim Model
Output
Output (Excel)
10
ExampleSolution Mixing Chemistry
Acidic pH, High metal water, Runoff (variable
flow rate)
Alkaline pH, Clean water, Constant flow rate
Mixing and Reactions
Problem How to calculate solution chemistry
after mixing and reactions?
11
Approach

• Know Mixed solution chemistry is a
  function(mixing proportions of two solutions
  one acidic and one alkaline).
• Solution
• Use the independent supporting model to calculate
  all possible outcomes and put the results in an
  Excel worksheet
• ( e.g., 1 acidic 99alkaline, 2 acidic
  98 alkaline, 3 acidic 97 alkaline, etc)
• Import the data from Excel into a Lookup Table
  element.
• Define an index in GoldSim to retrieve the
  appropriate mixed solution composition.

Specialized Supporting Model
Main Model
PHREEQC (chemistry)
GoldSim (Water Balance)
Input from Excel
Output (Excel)
12
GoldSim Model
(Details in next slide)
13
Chemistry Lookup Table (TableOfMixFractionChemistr
ies)
Species across
Mixing Index down
14
Mixing Only
Some Results
Mixing and Reaction
Al Mixing
Fe Mixing
Al Mixing and Reaction
Fe Mixing and Reaction
15
Independent Models

• Advantages
• Easy to set up and run
• Leverage most of the capabilities of the
  independent supporting models with careful design
• Disadvantages
• Limited to representing either the starting point
  or ending point
• Need to understand the system very well to make
  sure that the supporting model represents all
  possible inputs or outcomes

16
Approach 3 Direct Linkage
Input
GoldSim Model

• Data transfer for every time step. Two
  approaches
• Excel (Spreadsheet Element)
• Dynamic Link Library (External DLL Element)

Input
Output
Supporting Model (e.g., Geochemistry, Hydrology,
GIS, Chemical Processing,)
Output
17
DLL Data Flow Between GoldSim and the External
Model
GoldSim Model
External DLL Program
External DLL Element

• DLL Functions
• Receive and format input data
• Run Supporting Model
• Get Output from Supporting Model
• Return output to GoldSim

Each time step
Supporting Model
Output
18
Same ExampleSolution Mixing Chemistry
Acidic pH, High metal water, Runoff (variable
flow rate)
Alkaline pH, Clean water, Constant flow rate
Mixing and Reactions
Problem How to calculate solution chemistry
after mixing and reactions? Solution Use DLL to
link to the PHREEQC geochemical model.
19
GoldSim Model
DLL Element
20
Inside the DLL Interface tab
Inputs to external DLL
Outputs from external DLL
21
Mixing Only
Some Results
Mixing and Reaction
Al Mixing
Fe Mixing
Al Mixing and Reaction
Fe Mixing and Reaction
22
Direct Linkage through Dynamic Link Libraries
(DLLs)

• Advantages
• Supporting model used each time step
• Leverage most of the capabilities of the
  independent supporting models
• Disadvantages
• Execution time increased
• Custom software code needed to construct the
  correct interface to the supporting model

23
Relative Speed(Solution Mixing, 5-year, 1-day
time step)
24
Summary

• Many ways to model complex processes
• Advantages and disadvantages for each approach
  and
• Choice of approach depends on the system
  simulated and goals of the model.

25
Thanks
Examples available for downloads http//www.gold
sim.com/ModuleSiteMap.asp Model ID 57 Linking
Geochemical Codes to GoldSim Model ID69 -
Simulation of Water Treatment for Acid Mine
Drainage Model ID70 - Calculating the
Solubility Using Equilibrium Chemistry
