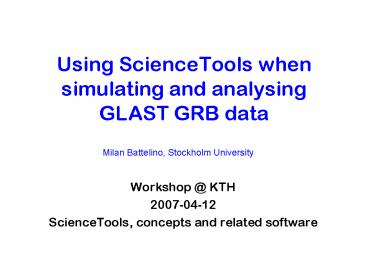

Title: Using ScienceTools when simulating and analysing GLAST GRB data


1
Using ScienceTools when simulating and analysing
GLAST GRB data
Milan Battelino, Stockholm University
  • Workshop _at_ KTH
  • 2007-04-12
  • ScienceTools, concepts and related software

2
Outline
  • Introduction to main tools used gtobssim GBM
    Tools
  • Installation and preparation of ScienceTools for
    GRB simulations
  • Simulation of GRBs producing LAT and GBM data
    using ScienceTools and related software
  • gtobssim
  • GBM Tools
  • Using ScienceTools to prepare LAT and GBM data
    for spectral analysis
  • LAT Data
  • gtselect
  • gtbin
  • gtrspgen
  • GBM data
  • gtbin
  • Analysis of LAT and GBM data
  • XSPEC
  • FTOOLS
  • Demo if time allows

3
1. Introduction to main tools used gtobssim GBM
Tools
4
LAT Simulations (ScienceTools)
gtobssim
Based on BATSE phenomenological data
Based on Fireball Model Physics
Reads Spectrum From An ASCII file
High-level model simulators
Common tool to Interface models with LAT
software
LAT simulators (C)
GLAST LAT Full Simulation (Monte Carlo)
GLAST LAT Fast Simulation with Parameterized IRF
Event Data
adapted from N. Omodei, 2006
5
GBM (NaIBGO) Simulations
Based on BATSE phenomenological data
SBM
GRB Physical Model (GRB)
GRB Phenomenological Model (GRBObs)
ScienceTools
Band Parameters
ASCII histogram files (NaI and BGO)
GBM Tools
GridDataReader
IDL Code separate from ScienceTools written in
C
NaI 5keV - 1MeV BGO 150keV - 30 MeV
Event Data
12 NaI 2 BGO Detectors
6
Band Function
Band, D. et al.1993 ApJ 413, 281
Excellent fit for majority of Prompt GRB
spectra in BATSE energy window
a, b, Ec , Aband
7
2. Installation and preparation of ScienceTools
8
Installation of ScienceTools
  • GLAST SAS User Workbook
  • http//glast-ground.slac.stanford.edu/workbook/sci
    Tools_Home.htm
  • A Crash Course in the Analysis of LAT Data
  • http//glast.gsfc.nasa.gov/ssc/dev/Analysis_Tools_
    Documentation/Analysis_threads/crash_course.html
  • Standard Analysis Environment (SAE)
  • Extension of FTOOLS environment
  • Supported platforms
  • Red Hat Enterprise Linux 3, Fedora Core 1,
    Scientific Linux 3
  • Red Hat Enterprise Linux 4, Scientific Linux 4
  • Mac OS X (Tiger)
  • Windows XP

9
Preparing ScienceTools
  • Installing GRBtemplate
  • Tar-ball
  • http//www-glast.stanford.edu/cgi-bin/viewcvs/cele
    stialSources/GRBtemplate.tar.gz?viewtarpathrevH
    EAD
  • Install instructions
  • https//confluence.slac.stanford.edu/display/SCIGR
    PS/GRBtemplateHowTo
  • Compile and link gtobssim
  • Linux
  • cd HOME/ScienceTools/v7r5/observationSim/v6r3p5/c
    mt
  • cmt broadcast make clean
  • cmt broadcast make all
  • All gtobssim dependencies, including GRBtemplate,
    are (re)compiled and linked.

10
3. Simulation of GRBs gtobssimGBM Tools
11
Simulation of GRBs
  • gtobssim
  • fast and flexible observation simulator using the
    instrument response file (IRFs)
  • generate photon events from astrophysical sources
    and process those photons according to the
    specified IRF

12
GRBtemplate
  • Photon Histogram
  • Number of energy bins (columns)
  • Min Energy
  • Max Energy
  • Number of time bins (rows)
  • Timebinwidth
  • Energy binning

13
Prepare for gtobssim run
  • Prepare source XML definition library file
  • GRBtemplate_user_library.xml
  • ltsource_library title"GRBtemplate_library"gt
  • ltsource name" GRB960530005 "gt
  • ltspectrum escale"MeV"gt
  • ltSpectrumClass name"GRBtemplateManager"
  • params"/home/milan/GLAST/DAT/LAT_GRB_9110
    16001.dat,
  • 0.0, 10.0 , 1, 0.0"/gt
  • ltuse_spectrum frame"galaxy" /gt
  • lt/spectrumgt
  • lt/sourcegt
  • Prepare list of XML definition files (optional)
  • xmlFiles.dat

14
Run gtobssim
  • Interactively (command-line)
  • gt HOME/Glast/ScienceTools-v7r5/observationSim/v
    6r3p5/rh9_gcc32/gtobssim.exe
  • File of flux-style source definitions none
    ../GRBtemplate_user_library.xml
  • File containing list of source names none
    ../source_names.dat
  • Pointing history file none
  • Prefix for output files test 960530002
  • Simulation time (seconds) lt1 - 4e7gt 86400
  • Simulation start date 2001-01-01 000000
    2001-05-30 000000
  • Apply acceptance cone? no
  • Response functions ltDC2DC1AG25gt DC1A DC2
  • Random number seed 20648
  • Input filename /home/milan/GLAST/DAT/LAT_GRB_9605
    30002.dat
  • Start time 1.28736e07
  • Min photon energy 10000
  • m_GenerateGBMOutputs 0
  • m_theta_fow 0
  • Theta 89.4904 deg. Theta 90 -gt XY-plane,
    Theta 0 -gt Z.
  • Phi 117.805 deg.

15
Run gtobssim
  • Single command-line
  • HOME/Glast/ScienceTools-v7r5/observationSim/v6r
    3p5/rh9_gcc32/gtobssim.exe
  • xml_source_file"../GRBtemplate_use
    r_library.xml" \
  • source_list"../source_names.dat"
    \
  • scfile"none" \
  • outfile_prefix"960530002" \
  • simulation_time"86400" \
  • start_date"2001-05-30 000000" \
  • use_acceptance_cone"no" \
  • rspfunc"DC2" \
  • random_seed"20648"
  • Input filename /home/milan/GLAST/DAT/LAT_GRB_9605
    30002.dat
  • Start time 1.28736e07
  • Min photon energy 10000
  • m_GenerateGBMOutputs 0
  • m_theta_fow 0
  • Theta 89.4904 deg. Theta 90 -gt XY-plane,
    Theta 0 -gt Z.
  • Phi 117.805 deg.

16
Run gtobssim
  • ObsSim GUI
  • This tool drives the gtobssim application and
    provides a convenient means of navigating the
    various libraries of sources available for
    simulation by gtobssim or GLEAM.

17
Produced LAT data
  • 960530002_events_0000.fits
  • 960530002_scData_0000.fits
  • 960530002_srcIds.txt
  • GRBTMP_010530000_DEF.txt

18
Event data 960530002_events_0000.fits
FT1 (LAT Event Summary) Format
19
Science Flight Data 960530002_scData_0000.fits
FT2 (LAT pointing livetime history) Format
20
GBM Definition file GRBTMP_010530000_DEF.txt
  • BURST DEFINITION FILE
  • Burst Name
  • 010530000
  • RA,DEC (deg)
  • 358.754 11.8625
  • S/C azimuth, elevation (deg)
  • 117.805 89.4904
  • Trigger Time (s)
  • 10

21
GBM Tools
  • IDL Code
  • http//www.astro.su.se/milan/GBM_Tools_modified_0
    70322.tgz
  • GBM Tools Input
  • Definition File
  • Band Parameter file
  • or
  • NaI BGO Histogram files
  • Data binned in time (rows) and energy (columns)
    according to energy grids
  • http//www.astro.su.se/milan/NaI_energy_grid.dat
  • http//www.astro.su.se/milan/BGO_energy_grid.dat
  • Not limited to GRB data!

22
Running GBM Tools
  • Interactively
  • Input files
  • NaI_090101011.lc
  • BGO_090101011.lc
  • 090101011.def
  • IDLgt simulate_one_burst
  • SIMULATION OF THE GBM DATA FOR ONE GAMMA-RAY
    BURST

  • Input the root of the filenames
  • 090101011
  • Simulation (0) or generate energy grid files (1)?
  • 0
  • Use light curve file with
  • Band parameters (0),
  • photon flux matrix with logarithmic energy
    bins (1)
  • photon flux matrix with detector energy grid
    bins (2)
  • Calculate detection probabilities
  • Generate burst photons
  • Fetching photon list
  • Compiled module READ_GRID_16MS.
  • TimeBins 10
  • Read in photon matrix.
  • Begin processing 10 time bins
  • Photons fetched
  • 2199 photons created between energies 2.00000 -
    20000.0
  • and times 0.00000 - 0.160000 from 2 detectors
  • Apportion and detect burst photons
  • Detector 1( 2)
  • Number of photons 1083
  • Another 10000 done 0.00063232583 0
  • Detector 2( 2)
  • Number of photons 1116
  • Another 10000 done 5.0458031e-05 0

23
Running GBM Tools
  • Script
  • Input files
  • GRB_OBS/NaI_090101011.lc
  • GRB_OBS/BGO_090101011.lc
  • GRB_OBS/090101011.DEF
  • GRB_LIST
  • gt ./GBM.sh GRB_LIST 12345
  • spawn idl
  • IDL Student Edition 5.6 (linux x86 m32). (c)
    2002, Research Systems, Inc.
  • Installation number 001.
  • Licensed for use by IDL Student Version
  • IDLgt .compile channel_boundaries.pro
  • .
  • .
  • .

Fetching photon list TimeBins 10
Read in photon matrix. Begin processing
10 time bins Photons fetched 2199 photons created
between energies 2.00000 - 20000.0 and times
0.00000 - 0.160000 from 2 detectors Apportion and
detect burst photons Detector 1(
2) Number of
photons 1083 Another 10000 done
0.00063232583 0 Detector 2(
2) Number
of photons 1116 Another 10000 done
5.0458031e-05 0 Checked error is
1.77123 Calculate detection probabilities Generate
burst photons Fetching photon list TimeBins
10 Read in photon matrix. Begin
processing 10 time bins Photons
fetched 1827 photons created between energies
15.0000 - 100000. and times 0.00000 - 0.160000
from 2 detectors Apportion and detect burst
photons Detector 1(
2) Number of
photons 883 Another 10000 done
0.00060495438 0 Detector 2(
2) Number
of photons 944 Another 10000 done
0.0023189511 0
24
Produced GBM data
  • GLG_TTE__BN090101011_V02.FIT
  • GLG_BCK__BN090101011_V02.BAK
  • GLG_CSPEC__BN090101011_V02.RSP
  • GLG_CTIME__BN090101011_V02.FIT
  • GLG_CSPEC__BN090101011_V02.FIT
  • N0-NB or B0-B1
  • Note that GBM consists of 12 NaI and 2 BGO
    detectors!

25
4. Preparation of produced data for further
analysis
26
XSPEC
  • Command-driven, interactive, X-ray
    spectral-fitting program that is
    detector-independent.
  • CGRO
  • Chandra
  • XMM-Newton
  • GLAST

27
Preparing LAT and GBM data for XSPEC
  • Files required by XSPEC
  • PHA-I or PHA-II (LATGBM)
  • Response files (LATGBM)
  • Background (GBM)
  • ScienceTools available
  • gtselect (LAT)
  • gtrspgen (LAT)
  • gtbin (LAT GBM)

28
Converting LAT/GBM data for XSPEC
EVENT (FT1)
gtobssim
gtselect
SELECT (TTE)
SC DATA
GBM Tools
gtrspgen
gtbin
PHA-I
PHA-II
BAK
RSP
29
gtselect
Performs sub-selections of event data. Creates a
new FITS file of selected rows in an input event
data file based on cuts that are applied to the
values in each row of the input file. This
application enables more detailed selections to
be made on data obtained from the GSSC data
server or generated using gtobssim.
  • Example
  • DATASUBSELECTORROOT/rh9_gcc32/gtselect.exe
  • Input FT1 file test_events_0000.fits
    960530002_events_0000.fits
  • Output FT1 file test_select.fits
    960530002_select.fits
  • RA for new search center (degrees) lt0 - 360gt
    0.0 358.754
  • Dec for new search center (degrees) lt-90 - 90gt
    0.0 22.8625
  • radius of new search region (degrees) lt0 - 180gt
    20 20
  • start time (MET in s) 0 12873605
  • end time (MET in s) 5 12873665
  • lower energy limit (MeV) 30 30
  • upper energy limit (MeV) 200000 200000
  • Event classes (-1all, 0FrontA, 1BackA,
    2FrontB, 3BackB, 4class A) lt-1 - 4gt 4 -1
  • Done.

30
gtselect
Use fv to pinpoint sky position of burst
Use result as input To gtselect
31
Event Classes
  • Class A
  • Best PSF
  • Lowest background contamination
  • Class B
  • Events that belong to All but are not Class A
    events
  • All
  • More effective area
  • More background...
  • Back and Front
  • Front or back section of LAT

32
gtbin
Bins an event list in time, energy, or space and
results in spectra (PHA), lightcurves (LC), or
a count map (CMAP).
  • Example PHA-I
  • gt gtbin.exe
  • This is gtbin version v1
  • Type of output file ltCCUBECMAPLCPHA1PHA2gt
    CMAP PHA1
  • Event data file name 960530002_select.fits
    GLG_TTE_NB_BN960530002_V02.FIT
  • Output file name 960530002.cmap
    GRB960530002_NB.pha
  • Spacecraft data file name 960530002_scData_0000.f
    its none
  • Example PHA-II
  • gt gtbin.exe
  • This is gtbin version v1
  • Type of output file ltCCUBECMAPLCPHA1PHA2gt
    CMAP PHA2
  • Event data file name GLG_TTE_N1_BN960530002_V02.F
    IT GLG_TTE_NB_BN960530002_V02.FIT
  • Output file name test.pha2 GRB960530002_NB_5s.
    pha2
  • Spacecraft data file name none none
  • Algorithm for defining time bins ltFILELINSNRgt
    LIN LIN
  • Start value for first time bin 12873605
    3010868200
  • Stop value for last time bin 12873665
    3010868230
  • Width of linearly uniform time bins 0.1 5

33
CMAP
34
LC
35
gtrspgen
Creates an RSP file from the multi-dimensional
response functions.
  • gt RSPGENROOT/rh9_gcc32/gtrspgen.exe
  • This is gtrspgen version v1r2p3
  • Response calculation method (GRB, PS) ltGRBPSgt
    PS GRB
  • Spectrum file name test.pha 960530002.pha
  • Spacecraft data file name test_scData_0000.fits
    960530002_scData_0000.fits
  • Output file name test.rsp 960530002.rsp
  • Time of GRB (s) 10 12873605
  • Response function to use, DC2DC2ADC2FADC2BADC2
    FBDC2BBDC1AG25 etc DC1A DC2
  • Algorithm for defining true energy bins
    ltFILELINLOGgt LIN LOG
  • Start value for first energy bin 20 30
  • Stop value for last energy bin 300000 200000
  • Number of logarithmically uniform energy bins
    100 100

36
5. Analysis of GLAST data using XSPEC
37
XSPEC analysis
  • Input files
  • PHA-I or PHA-II
  • Background
  • Response
  • Procedure
  • Load Data files
  • Load Background files
  • Load Response files
  • Define good energy range
  • Define model
  • Perform spectral fit
  • Determine error range

38
XSPEC analysis exampleLoad Data
  • XSPEC12gtquery yes
  • XSPEC12gtdata GRB_960530002_N9_05_00s.pha21
    GRB_960530002_NB_05_00s.pha21
    GRB_960530002_B1_05_00s.pha21
    960530002_05_0s.pha21
  • Source File GRB_960530002_N9_05_00s.pha21
  • Net count rate (cts/s) for Spectrum1
    4.970e02 /- 1.004e01
  • Assigned to Data Group 1 and Plot Group 1
  • Noticed Channels 1-128
  • Telescope GLAST Instrument GBM Channel Type
    PI
  • Exposure Time 4.954 sec
  • No response loaded.
  • Source File GRB_960530002_NB_05_00s.pha21
  • Net count rate (cts/s) for Spectrum2
    5.047e02 /- 1.010e01
  • Assigned to Data Group 1 and Plot Group 2
  • Noticed Channels 1-128
  • Telescope GLAST Instrument GBM Channel Type
    PI
  • Exposure Time 4.967 sec
  • No response loaded.
  • Source File GRB_960530002_B1_05_00s.pha21

39
XSPEC analysis exampleLoad Response
  • XSPEC12gtresp GRB_960530002_N9.rsp
    GRB_960530002_NB.rsp GRB_960530002_B1.rsp
    960530002.rsp
  • Response successfully loaded.
  • Response successfully loaded.
  • Response successfully loaded.
  • Response successfully loaded.
  • XSPEC12gtignore 11000.0-
  • 22 channels (107-128) ignored in source
    1
  • XSPEC12gtignore 21000.0-
  • 22 channels (107-128) ignored in source
    2
  • XSPEC12gtignore 3-150.0
  • 2 channels (1-2) ignored in source 3
  • XSPEC12gtignore 33e4-

40
XSPEC analysis exampleDefine Model
  • XSPEC12gtmodel bbbknpowerhighecut
  • Input parameter value, delta, min, bot, top, and
    max values for ...
  • 3 0.01 0.0001 0.01
    100 200
  • bbodykTgt50
  • 1 0.01 0 0
    1e24 1e24
  • bbodynormgt
  • 1 0.01 -3 -2
    9 10
  • bknpowerPhoIndx1gt1.42
  • 5 0.01 0 0.01
    1e06 1e06
  • bknpowerBreakEgt6e3
  • 2 0.01 -3 -2
    9 10
  • bknpowerPhoIndx2gt2.1
  • 1 0.01 0 0
    1e24 1e24
  • bknpowernormgt
  • 10 0.01 0.0001 0.01
    1e06 1e06
  • highecutcutoffEgt1e6 0.01 1e3 1e4 1e7 1e8
  • 15 0.01 0.0001 0.01
    1e06 1e06
  • highecutfoldEgt3e6 0.01 1e3 1e4 1e7 1e8

41
XSPEC analysis exampleModel Fit and Param
Estimates
  • XSPEC12gtrenorm
  • Chi-Squared 546.5629 using 344 PHA bins.
  • Reduced chi-squared 1.626675 for 336
    degrees of freedom
  • Null hypothesis probability 2.858868e-12
  • Valid fit does not exist.
  • XSPEC12gtfit 80 1.0e-4
  • .
  • .
  • .

  • Model bbodylt1gtbknpowerlt2gthighecutlt3gt Source
    No. 1 Active/On
  • Model Model Component Parameter Unit Value
  • par comp
  • 1 1 bbody kT keV
    41.8168 /- 0.836410
  • 2 1 bbody norm
    5.40653 /- 0.172398
  • 3 2 bknpower PhoIndx1
    1.48313 /- 1.47317E-02

42
Error range in XSPEC analysis
  • fit command not enough for model test and
    parameter estimates
  • Use uncertain or error command to determine
    actual 1s levels and c2

43
Problem
  • Is it correct to always use c2 statistic?
  • Not at low photon counts (lt 5 ph/bin)
  • Alternative
  • C-statistic
  • Modified version of Cash statistic
  • W.Cash, ApJ 228, 939-947 (1979)
  • Useful when low photon count (lt 5 ph/bin) but...
  • May only be used for estimation of parameter
    values, NOT model testing!

44
Solution
  • Use FTOOLS to rebin data to gt 5 ph/bin
  • bcmppha
  • convert from GBM PHA-II to PHA-I
  • modified for RATE, original only handles
  • COUNT correctly ?
  • mathpha
  • subtract background from GBM PHA-I file
  • grppha, grpph2
  • rebin the background subtracted data

45
Difference
  • Example Simulated GRB911016

Statistic Powerlaw 1 (1.42) Powerlaw 2 (2.1)
Unbinned c2 1.48 /- 0.02 2.4 /- 0.2
Binned c2 1.44 /- 0.02 2.3 /- 0.2
C 1.42 /- 0.01 2.2 /- 0.1
46
The End
Basic research is what I am doing when I dont
know what I am doing

- Wernher von Braun
Write a Comment
User Comments (0)
About PowerShow.com
