What Projects you can do in ECE 574

1

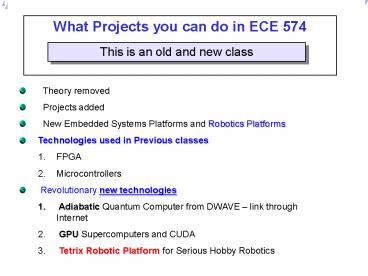

What Projects you can do in ECE 574

• This is an old and new class

• Theory removed
• Projects added
• New Embedded Systems Platforms and Robotics
  Platforms
• Technologies used in Previous classes
• FPGA
• Microcontrollers
• Revolutionary new technologies
• Adiabatic Quantum Computer from DWAVE link
  through Internet
• GPU Supercomputers and CUDA
• Tetrix Robotic Platform for Serious Hobby
  Robotics

2
Old Projects

• Spectral Transforms and DSP
• FFT Matching Sebastian Winter 2008
• Hough for Ovulo-computer
• Hough for robot PSUBOT
• Radon Transform

Some can be redesigned and improved
Logic Machines and Problem Solving LDM CCM Tautolo
gy Machine of Sasao Graph Coloring Oracle Decompos
ition Machine Rough Set Machine
Medical Ovulocomputer Cervix Cancer Teeth
measurement apparatus and patent
3
Old Projects and possible collaborations
VISION Morphological Image Processor Canny Edge
Detector Sobel Edge Detector

• Crazy Student Ideas and Interesting blocks
• Systolic Sorter
• Sorter Absorber
• Julia set Winter 2008
• Quaternions and octonions for this task
• Sharks and fish
• Strange life generator

Robotics PID controller Adaptive PID Controller
Very Old from Poland Cement Company Rolling
Machine Turing Machine Multi-Channel PID
controller Tracking camera Spy camera on
workers Plotter Interpolator
Kameyama Emotional robot Ball catching Robot
4
New FPGA/GPU/Controller Projects

• Diagnosis of Autism
• Hough for eye tracking
• Eye tracking for autism
• Prosody for autism

GPU GPU for quantum simulation GPU for GA and
Quantum GA GPU for motion of walking robot Stock
Market Predictor Many Body Dynamics simulation
Transforms Hough Radon for cancer
therapy Poisonous Mushrooms recognition Julia and
Mandelbrot set
Robot Controllers To Save Human Life Robot to put
signs on a Highway
Products for Fun and Entertainment Modern
Sculpture for your house Julia and Mandelbrot
set Generators extended to Quaternions, Octonions
and Clifford Algebras
Walking Robot Controllers for Entertainment Tetrix
FPGA Sozobot FPGA or micro
5
Simpler GPU Projects

1. Cellular Automata
2. Quantum Computer simulation or matrix-matrix and
   matrix-vector multiplication
3. Genetic Algorithm
4. World visualization
5. SAT
6. Graph Coloring
7. Constraints Satisfaction

6
Constraint Satisfaction Projects

1. Swarm
2. Emotion Recognition for DWAVE
3. Motion control for complex motions such as dances
   and gymnastics for KHR-1 or Sozobot Robots.
4. Waltz algorithm for object recognition
5. Error Correcting code design
6. Graph coloring various variants

7
Vision

1. Hough Transform for lines ovulation prediction
   application
2. Hough Transform for robot
3. Hough Transform for circles cancer of eye
   application
4. Vision processor based on morphological algebra.

8
Spectral Transforms

1. Fast Fourier
2. Cosine
3. Walsh
4. Haar
5. Linearly Independent
6. Adding/Arithmetic
7. Hough optimized
8. Radon
9. Hartley
10. Matching
11. Filtering-convolution
12. From Alan Coppola - industrial

9
Reconfigurable Computers

1. CCM
2. Neural Networks for Prof. Starzyk
3. Neuro-biologically inspired for Prof. Kameyama

10
Embedded Systems for Robots

1. Using quaternions for a robot
2. CMU cam for tracking
3. Use of ASC Controller for robot
4. Use of MSC controller
5. Advanced robot controller for Prof. Levin
6. Motion generation based on curves and their
   processing for Prof. Traczyk and Buller/De Garis
   FFT processing
7. Biped that dances
8. Sozobot control

11
Projects for Fall 2008

• Projects can be continued
• Winter 2009 in 572 class (Combinational Logic
  class)
• Spring 2009 in 573 class (Sequential Systems
  class)
• Spring 2009 in 510 Quantum Computing class.
• As Master of Science Thesis (Mathias, Vishwanath,
  everybody else)
• As PhD Thesis (Vamsi, Scott, Carlos)
• As individual projects for credit.

Seven projects as seven is a lucky number
12
Our system
QC Orion
Camera
Display
Internet
Microphone
Speaker
PC
Bluetooth
Bluetooth
FPGA board
GPU board
Robots motors and effectors
Robots sensors
13
Our system
QC Orion
Internet
Camera
Display
CS API
OpenCV
Microphone
Speaker
SAPI
SAPI
PC
Robot C
RobotC
Bluetooth
Bluetooth
VHDL
CUDA
Robots motors and effectors
Robots sensors
GPU board
FPGA board
14
Project number 1 Spectral Transforms for object
recognition with rotation, scaling and
translation Vamsi Srinivas Parasa Group
Leader, Omar Joshi Lead HDL programmer,
Sudheer G FPGA expert

• Learn and present Fast Fourier Transform (FFT)
  and other transforms that are useful for image
  matching
• Develop the concept of FPGA architecture for
  object recognition as in title.
• Present the previous work of Sebastian Schueppel
  and other students
• Learn how to take image from camera (with others
  in this class)
• Write Verilog or VHDL code for FPGA for Altera
  Board. You can reuse any software from our
  previous projects or from internet but you must
  specifically mention what is it and give it to me
  to compare.
• Download to board.
• Test the board.
• Analyze
• Write a journal and a conference papers (if
  applicable)

This project is a candidate for submission to DAC
contest in FPGA category
SPECTRAL PROJECT
15
Spectral project
QC Orion
Internet
Camera
Display
CS API
OpenCV
Microphone
Speaker
SAPI
SAPI
PC
Robot C
RobotC
Bluetooth
Bluetooth
VHDL
CUDA
Robots motors and effectors
Robots sensors
GPU board
FPGA board
16
Project number 2 Fractal Images based on higher
order algebrasScott Blakely, Vishwanath Kusugal
and Tobias Oerstein

• Learn about Mandelbrot Set and Julia sets.
  Understand concept of fractals.
• Learn how to take image from camera (with others
  in this class)
• Learn about OpenCV and image preprocessing
• Learn about complex numbers, quaternions and
  octonions as their generalizations in higher
  order algebras.
• Learn about FPGA fractal generator from last year
  project. Understand the interface
• Build a processing system that starts from
  camera, creates initial image and next processes
  it fractally, using old (complex numbers) and new
  (quaternions and octonions) theories

FRACTAL PROJECT
This project is a candidate to submission to DAC
contest in FPGA category
17
FRACTAL project
QC Orion
Internet
Camera
Display
CS API
OpenCV
Microphone
Speaker
SAPI
SAPI
PC
Robot C
RobotC
Bluetooth
Bluetooth
VHDL
CUDA
Robots motors and effectors
Robots sensors
GPU board
FPGA board
18
Project number 3 GPU and CUDAScott Storms,
Sagar Raj, one more from class, one out of class
CUDA project

• Present the architecture of GPU
• Present examples of codes in CUDA
• SAT
• Matrix Matrix multiplication
• Matrix Vector multiplication
• Emotion Recognition or Face Recognition
• Any other CS, Systolic or CA problem that can be
  done efficiently on CUDA
• Write software
• Download to coprocessor
• Test, analyze and write paper for conference

This project is a candidate to submission to DAC
contest in FPGA category
19
CUDA project
QC Orion
Internet
Camera
Display
CS API
OpenCV
Microphone
Speaker
SAPI
SAPI
PC
Robot C
RobotC
Bluetooth
Bluetooth
VHDL
CUDA
Robots motors and effectors
Robots sensors
GPU board
FPGA board
20
Project number 4 Constraint Satisfaction
Problem Interface to Adiabatic Quantum
ComputerDmitriy Labunsky, Boshra Samy and Yasuda
ORION project

• Learn and present about Constraint Satisfaction
  Problems (Samy)
• Give examples of Constraint satisfaction problems
  (Samy)
• Learn OpenCV how to acquire face image (Yasuda)
• Face recognition, Emotion Recognition or similar
  problems for human-robot interaction in real time
  as CS problems. (Yasuda and Samy)
• Learn API to interface CS problems to quantum
  computer Orion (Samy)
• Test software (Dmitriy, Yasuda and Samy)
• Analyze and write journal paper (Dmitriy, Yasuda
  and Samy)
• Think about and propose Killer Applications
  for CS/Orion

This project is a candidate to submission to DAC
contest in conceptual category
21
ORION project
QC Orion
Internet
Camera
Display
CS API
OpenCV
Microphone
Speaker
SAPI
SAPI
PC
Robot C
RobotC
Bluetooth
Bluetooth
VHDL
CUDA
Robots motors and effectors
Robots sensors
GPU board
FPGA board
22
Project number 5 Testing Reversible Logic
CircuitsCarlos Nieva

• What are reversible gates?
• What are reversible circuits?
• What is test?
• Stuck-at model and other models of faults
• Why reversible circuits are easy to test
• Previous work on testing reversible circuits
  (Markov Hayes, Patel etc)
• Work of Jeff Allen in his MS thesis.
• Your ideas of improving Jeffs model.
• Examples of testing real reversible oracles.
• Write a conference paper

This project is a candidate to submission to Test
conference contest for students
23
Project number 5 Lego NXT/Tetrix robot Quincy
Chiu
SENSORS PROJECT

• Learn RobotC language
• Learn LegoNXT/Tetrix platform
• Build a mobile robot with an arm that can grab
  items and transport them to other location.
• This project has to concentrate on programming
  sensors in a mobile robot with hand.
• The project can be continued towards Artificial
  Intelligence and new type of Neural Networks
  developed in Ohio University - collaboration

This project will be used in our collaboration
with Tears of Joy Puppet Theatre and Ohio
University
24
QC Orion
SENSORS PROJECT
Internet
Camera
Display
CS API
OpenCV
Microphone
Speaker
SAPI
SAPI
PC
Robot C
RobotC
Bluetooth
Bluetooth
VHDL
CUDA
Robots motors and effectors
Robots sensors
GPU board
FPGA board
Lego/Tetrix Robot
25
Project number 6 Emotion Learning and Mimicking
Robot Mathias Sunardi. This is individual
project but done together with Dmitriy and other
students

• This work should be included in Mathias Thesis
• This work should use all software already
  developed by Mathias
• The project has to be an illustration of
  integration of image processing, speech and
  motion generation.
• Mathias has to present his work early as a
  lecture
• Final demo at the end of the class.
• Details to be discussed in person.

DANCING PROJECT
This project will be used in our collaboration
with Tears of Joy Puppet Theatre
26
QC Orion
DANCING PROJECT
Internet
Camera
Display
CS API
OpenCV
Microphone
Speaker
SAPI
SAPI
PC
C
VHDL
CUDA
Robots motors and effectors
Robots sensors
GPU board
FPGA board
KHR-1 Robot
accelerometer
27
Project number 7 Realistic Hand motion
generation for a humanoid robot Aditya Bhutada.
This is individual project but done together with
Dmitriy and other students

• Learn about how servo works and present in class.
• Learn how stepper motor works and present in
  class.
• Learn how the ASC-16 controller works and present
  in class.
• Learn about a realistic human-like hand for
  Dmitriys big robot
• Write software for typical behaviors of the hand
  such as shaking hand, greeting a human, playing
  drum, etc.
• Analyze and conclude results. Collaborate with
  group of students who work on robot puppet.

HAND PROJECT
This project will be used in our collaboration
with Tears of Joy Puppet Theatre
28
QC Orion
HAND PROJECT
Internet
Camera
Display
CS API
OpenCV
Microphone
Speaker
SAPI
SAPI
PC
C
ASC-16 Controller
VHDL
CUDA
Robots motors and effectors
Robots sensors
GPU board
FPGA board
Dmitris Robot
Accelerometer inclinometer
29
First Project Presentations. Graded as part of
final project grade.

1. Project Spectral Wamsi Parasa - Next week.
   (others will speak later)
2. Project CUDA Scott Storms- Next week (others
   will speak later)
3. Project Orion Bosra Samy - Two weeks from
   today. (others will speak later)
4. Project Hand Aditya Bhutada two weeks from
   now
5. Project Fractal Scott Blakely, Vishwanath
   Kusugal and Tobias Oerstein two weeks from now
6. Project Sensors - Quincy Chiu two weeks from now
7. Project Dancing Mathias Sunardi next week

• You must be prepared to speak at this time,
  regardless what happened, even Martian attack on
  Oregon.
• You may be rescheduled.

30
Project Example NXT Robots Their Applications
in Machine Learning
31
Gantt Charts
Please create such charts for your project for
this quarter
Week 1 Week 2 Week 3 Week 4 Week 5 Week 6 Week 7 Week 8 Week 9 Week 10
Familiarize with hardware
Research programming environments
Learn to interface with the robots
Construction
Program robots
Program swarm autonomous robots network
Testing and Troubleshooting
Prepare for Final Presentation
Documentation
Goals
Accomplishments
Delayed
32
Project Overview

• Original project goal To Program a swarm of
  autonomous Lego NXT robots to perform a specific
  task without human interaction.
• To learn more about both the accuracy and
  functionality of sensors and motors packaged with
  the Lego NXT Robots
• To learn to program in one or all of three Lego
  oriented programming languages (Lejos, NXC, and
  Robot C)
• To apply what we know about machine learning to
  teach robots or rather to allow them to learn
  and behave based upon their environment and each
  other.

33
Approach Research

• Acquire hardware
• 4 Lego NXT kits
• 4 Bluetooth adapters
• 1.5V Batteries
• Familiarize with hardware
• Motors
• Sensors
• Brick
• Learn various programming languages
• Developed specifically for Lego NXT
• RobotC
• leJOS
• NXC
• Bluetooth compatible?

34
Approach Programming

• RobotC
• Line Tracking
• NXC
• Bitbot Program
• Stores values in arrays
• Communicates through Bluetooth
• Master -gt Slave
• Light Following
• Random Movement
• Python
• Establish Bluetooth communication

35
Technical Details

• Bluetooth
• Frequency of 2.402GHz to 2.480 GHz
• Spread Spectrum Frequency Hopping
• NXT Bluetooth capabilities
• Hardware
• CSR BlueCore 4 v2.0EDR System
• Supporting the Serial Port Profile
• Master to Slave communication only
• Bluetooth Adapter
• Kensington Bluetooth USB Adapter 2.0
• Lego NXT, Windows XP compatible
• Allows communication between PC and NXT
• Serial Connection

36
Technical Details

• Programming
• NXC
• Similar to C
• Easy to use IDE
• Limited Bluetooth capabilities
• Limited processing power
• Python
• Scripted Language
• Used in many other applications
• Communication is between PC and NXT
• Will use PC processing power

37
Technical Details

• Lego NXT Mindstorm
• Ports similar to RJ12 connectors for sensors
  motors
• Input
• Light
• Sound
• Ultrasound
• Touch
• Output
• Motors
• Brick
• Supports Bluetooth and 1 USB 2.0 port
• 32-bit ARM7 microcontroller _at_ 48MHz
• 256 KB of Flash Memory
• 64 KB of RAM
• 8-bit Atmel AVR microcontroller _at_ 4MHz
• 4 KB of Flash Memory
• 512 Bytes of RAM

38
Homework 4. Cellular AutomatonThis is the last
homework of the class

• Find any simulator of Cellular Automata on the
  WWW.
• Recommended simulators are on my webpage.
• Select your own application for simulation. You
  cannot take it from Internet but you can take and
  modify the application if you clearly mention the
  web address and you write what you modified.
• Describe the cellular automaton. It can be
  whatever you want. Here are some examples.
• Game of life with modified rules
• Sobel filter
• Any other filter, may be your invention?
• Thinning algorithm
• Two-dimensional sorter
• Logic gate simulator
• Sharks and fish simulation
• Spread of religion simulation
• Economic system simulation
• Particle simulation
• Simulate
• Change parameters
• Simulate
• Draw conclusions and write a report.
• Present in class and make it really exciting

Midterm 1 is at the end of October
39
Some slides used from Anjum Gupta, Roanne
Manzano, Eric Tsai and Jacob Robison
