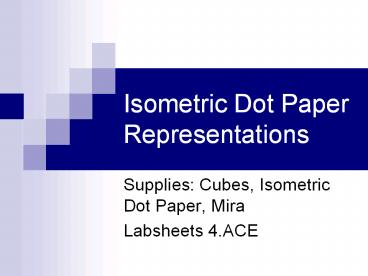

Isometric Dot Paper Representations
  • Supplies Cubes, Isometric Dot Paper, Mira
  • Labsheets 4.ACE

2
Isometric Dot paper
3
Select one point
4
Draw a line segment to each of the nearest
neighbors.
5
What do you notice about the line segments?
They are all equal length. Iso- means
equal Metric means measure
6
Drawing a cube
top
Draw a hexagon, Then Y it!
bottom
7
Right Views and Left Views
8
Make many isometric drawings of this building
from different perspectives
9
Now it is your turncreate and draw a building
with a minimum of 7 rooms and a maximum of 12.
Draw your building isometricly from 4 different
perspectives
10
Complete Labsheet 4.ACE
