The LHC Computing Project Common Solutions for the LHC

1

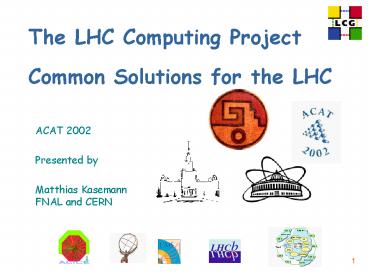

The LHC Computing ProjectCommon Solutions for
the LHC

• ACAT 2002
• Presented by
• Matthias KasemannFNAL and CERN

2
Outline

• The LCG Project goal and organization
• Common solutions
• Why common solutions
• How to
• The Run2 common projects
• The LCG Project status of planning
• Results of the LCG workshop in March 02
• Planning in the Applications Area
• For the LCG Grid see Les Robertson
  (Thursday)The LHC Computing Grid Project -
  Creating a Global Virtual Computing Center for
  Particle Physics

3
From Raw Data to Physicswhat happens during
analysis
250Kb 1 Mb
100 Kb
25 Kb
5 Kb
500 b
e
f
Z0
_
f
e-
Interaction with detector material Pattern, recogn
ition, Particle identification
Detector response apply calibration, alignment,
Fragmentation, Decay Physics analysis
Basic physics Results
Analysis
Reconstruction
Simulation (Monte-Carlo)
4
HEP analysis chain common to LHC experiments
5
Developing Software for LHC experiments

• Challenges in big collaborations
• Long and careful planning process
• More formal procedure required to commit
  resources
• Long lifetime, need flexible solutions which
  allow for change
• Any state of experiment longer than typical Ph.D.
  or postdoc time
• Need for professional IT participation and
  support
• New development, maintenance and support model
  required
• Challenges in smaller collaborations
• Limited in resources
• Adapt and implement available solutions (b-b-s)

6
CMS - CCS schedule (V33) the bottom line

• Milestones of next year delays of 9 months
• Milestones a few yrs away delays of 15 months

7
CMS - CCS Software Baseline L2 milestones

• DDD ready for OSCAR, ORCA, IGUANA
• Data model defined
• Persistent and transient representations
• Demonstrably as correct as existing CMS
  description

• Switch from Geant3 to Geant4
• Date not decided (just my estimate)
• E.g. it needs the new persistency

CCS Baseline Software for TDRs
Software Infrastructure deployed and working

• User analysis components
• Framework with coherent user interface
• Event display / interactive visualisation
• Tools for browsing / manipulating data sets
• Data presentation, histograms, numerical,

• Framework for processing CMS data
• Working for simulation, reconstruction, analysis
• Supporting persistency and data management
• Strongly dependent on LCG success

8
The LHC Computing Grid Project (LCG)

• Work Areas
• Applications Support Coordination
• Computing Systems
• Grid Technology
• Grid Deployment

• Common Solutins
• Experiments and Regional Centres agree on
  requirements for common projects

• LCG was approved in fall 2001
• resources contributed from some member states
• 1. Workshop in March 02

9
LCG - Fundamental goal

• The experiments have to get the best, most
  reliable and accurate physics results from the
  data provided by their detectors
• Their computing projects are fundamental to the
  achievement of this goal
• The LCG project at CERN was set up to help them
  all in this task
• Corollary
• Success of LCG is fundamental to success of LHC
  Computing

10
Fulfilling LCG Project Goals

• Prepare and deploy the LHC Computing Environment
• Applications - provide the common components,
  tools and infrastructure for the physics
  application software
• Computing system fabric, grid, global analysis
  system
• Deployment foster collaboration and coherence
• Not just another grid technology project
• Validate the software by participating in Data
  Challenges using the progressively more complex
  Grid Prototype
• Phase 1 - 50 model production grid in 2004
• Produce a TDR for full system to be built in
  Phase 2
• Software performance impacts on size and cost of
  production facility
• Analysis models impact on exploitation of
  production grid
• Maintain opportunities for reuse of deliverables
  outside LHC experimental programme

11
Applications Activity Areas

• Application software infrastructure
• physics software development environment,
  standard libraries, development tools
• Common frameworks for simulation and analysis
• Development and integration of toolkits
  components
• Support for physics applications
• Development, support of common software tools
  frameworks
• Adaptation of Physics Applications to Grid
  environment
• Object persistency and data management tools
• Event data, metadata, conditions data, analysis
  objects,

12
Goals for Applications Area

• Many Software Production Teams
• LHC experiments
• CERN IT groups, ROOT team, ..
• HEP software collaborations CLHEP, Geant4 , ..
• External Software python, Qt, XML,
• Strive to work together to develop and use
  software in common
• Will involve identifying and packaging existing
  HEP software for reuse as well as developing new
  components
• Each unit has its own approach to design and to
  supporting the development
• Sharing in the development and deployment of
  software will be greatly facilitated if units
  follow a common approach
• Recognise that there will be start-up costs
  associated with adapting to use new common
  products and development tools

13
Why common and when?

• Why not
• Experiments have independent detectors and
  analysis tools verify physics results
• Competition for best physics results
• Coordination of common software development is
  significant overhead
• Why common solutions
• Need mature engineered software
• Resources are scarce, in particular manpower
• Effort Common projects are a good way to become
  more efficient ( , , ,
  ?)
• Lessons need to be learnt from past experience
• For LHC experiments
• Everything non experimentspecific is a
  potential candidate for a common project

14
FNAL CDF/D0/CD - Run 2 Joint Project
Organization
Directorate
D0 Collaboration
CDF Collaboration
External Review Committee
R2JOP Steering Committee
Task Coordinators
Run II Committee
Run II Computing Project Office
Mass Storage Data Access
Reconstruction Systems
Physics Analysis Support
Basic Infrastructure
Storage Management
Serial Media Working Group
Reconstruction farm hardware
Networking hardware
Physics analysis hardware
Fermilab Class Library
Simulation
Reconstruction input pipeline
Production Management
Visualization
Configuration Management
Support Databases
MSS Hardware
Data Access
Physics Anal-ysis Software
15 joint projects defined, 4 years before start
of data taking
15
Perceptions of Common Projects

• Experiments
• Whilst may be very enthusiastic about long-term
  advantages .
• have to deliver on short term milestones
• Devoting resources to both will be difficult
• Already experience an out-flux of effort into
  common projects
• Hosting projects in experiments excellent way of
  integrating effort
• For initial phase and prototyping
• Technology groups
• Great motivation to use expertise to produce
  useful solutions
• Need the involvement of the experiments

16
Common solutions - How to do?

• Requirements are set by experiments in the SC2
  Requirements Technical Assessment Groups (RTAGs)
• Planning and implementation is done by LCG
  together with experiments
• Monitoring of progress and adherence by the SC2
• Frequent releases and testing
• Guaranteed life-time maintenance and support
• Issues
• How will applications area cooperate with other
  areas?
• Not feasible to have a single LCG architect to
  cover all areas.
• Need mechanisms to bring coherence to the project

17
Workflow around the organisation chart
WPn
PEB
SC2
RTAGm
SC2 Sets the requirements
mandate
PEB develops workplan
Prioritised requirements
requirements
2 mths
Updated workplan
Project plan
Workplan feedback
SC2 approves the workplan
PEB manages LCG resources
Release 1
Status report
time
4 mths
Review feedback
PEB tracks progress
SC2 reviews the status
Release 2
18
Issues related to partitioning the work

• How do you go from present to future without
  dismantling existing projects?
• Have to be careful that we dont partition into
  too small chunks and lose coherence of overall
  software
• We are not starting afresh, we have a good
  knowledge of what the broad categories are going
  to be
• Experiment architectures help to ensure
  coherency.

19
Coherent Architecture

• Applications common projects must follow a
  coherent overall architecture
• The software needs to be broken down into
  manageable pieces i.e. down to the component
  level
• Component-based, but not a bag of disjoint
  components
• components designed for interoperability through
  clean interfaces
• Does not preclude a common implementation
  foundation, such as ROOT, for different
  components
• The contract in the architecture is to respect
  the interfaces
• No hidden communication among components
• Starting point is existing products, not a clean
  slate

20
Approach to making workplan

• Develop a global workplan from which the RTAGs
  can be derived
• Considerations for the workplan
• Experiment need and priority
• Is it suitable for a common project
• Is it a key component of the architecture e.g.
  object dictionary
• Timing when will the conditions be right to
  initiate a common project
• Do established solutions exist in the experiments
• Are they open to review or are they entrenched
• Availability of resources and allocation of
  effort
• Is there existing effort which would be better
  spent doing something else
• Availability, maturity of associated third party
  software
• E.g. grid software
• Pragmatism and seizing opportunity. A workplan
  derived from a grand design does not fit the
  reality of this project

21
RTAG blueprint of LCG application architecture

• Mandate define the architectural blueprint for
  LCG applications
• Define the main architectural domains
  (collaborating frameworks) of LHC experiments
  and identify their principal components. (For
  example Simulation is such an architectural
  domain Detector Description is a component which
  figures in several domains.)
• Define the architectural relationships between
  these frameworks and components, including Grid
  aspects, identify the main requirements for their
  inter-communication, and suggest possible first
  implementations. (The focus here is on the
  architecture of how major domains fit together,
  and not detailed architecture within a domain.)
• Identify the high-level milestones for each
  domain and provide a first estimate of the effort
  needed. (Here the architecture within a domain
  could be considered.)
• Derive a set of requirements for the LCG
• Time-scale started in June 02, draft report in
  July, final report in August 02

22
RTAG status

• Identified and started eight Requirement
  Technical Assessments (RTAGs)
• in application software area
• Data persistency finished
• Software support process and tools finished
• Mathematical libraries finished
• Detector Geometry Materials descriptions started

• blueprint architecture of applications started
• Monte Carlo event generators started
• in compute fabric area
• mass storage requirements finished
• in Grid technology and deployment area
• Grid technology use cases finished
• regional center category and services
  definition finished

23
Software Process RTAG

• Mandate
• Define a process for managing LCG software.
  Specific tasks to include  Establish a structure
  for organizing software, for managing versions
  and coherent subsets for distribution
• Identify external software packages to be
  supported
• Identify recommended tools for use within the
  project to include configuration and release
  management
• Estimate resources (person power) needed to run
  an LCG support activity
• Guidance
• Procedures and tools will be specified
• Will be used within project
• Can be packaged and supported for general use
• Will evolve with time
• The RTAG does not make any recommendations on how
  experiment internal software should be developed
  and managed. However, if an experiment specific
  program becomes an LCG product it should adhere
  to the development practices proposed by this RTAG

24
Process RTAG Recommendations(1)

• All LCG projects must adopt the same set of
  tools, standards and procedures. The tools must
  be centrally installed, maintained and supported.
• Adopt commonly used open-source or commercial
  software where available. Try to avoid do it
  yourself solutions in this area where we dont
  have core competency.
• Concerning commercial software, avoid commercial
  software that has to be installed on individuals
  machines as this will cause well known problems
  of license agreements and management in our
  widely distributed environment. Commercial
  solutions for web-portals or other centrally
  managed solutions would be fine.

25
Process RTAG Recommendations(2)

• Release early, release often implies
• major release 2-3 times per year
• Development release every 2-3 weeks
• Automated nightly builds, regression tests,
  benchmarks
• Test and quality assurance
• Support of external software
• installation and build up of local expertise
• Effort needed for filling support roles
• Librarian
• Release manager
• Toolsmith
• Quality assurance
• Technical writer

26
Persistency RTAG

• Mandate
• Write the product specification for the
  Persistency Framework for Physics Applications at
  LHC
• Construct a component breakdown for the
  management of all types of LHC data
• Identify the responsibilities of Experiment
  Frameworks, existing products (such as ROOT) and
  as yet to be developed products
• Develop requirements/use cases to specify (at
  least) the metadata /navigation component(s)
• Estimate resources (manpower) needed to prototype
  missing components
• Guidance
• The RTAG may decide to address all types of data,
  or may decide to postpone some topics for other
  RTAGS, once the components have been identified.
• The RTAG should develop a detailed description at
  least for the event data management.
• Issues of schema evolution, dictionary
  construction and storage, object and data models
  should be addressed.

27
Persistency Near term recommendations

• to develop a common object streaming layer and
  associated persistence infrastructure.
• a common object streaming layer based on ROOT-IO
  and several related components to support it,
• including a (currently lightweight) relational
  database layer.
• Dictionary services are included in the near-term
  project specification.
• dictionary services may have additional clients
• This is first step towards a complete data
  management environment, one with enormous
  potential for commonality among the experiments.

28
RTAG math library review

• Mandate Review the current situation with math
  libraries and make recommendations
• Review the current situation of the usage of the
  various math libraries in the experiments
  (including but not limited to NagC, GSL, CLHEP,
  ROOT)
• Identify and recommend which ones should be
  adopted, which ones could be discontinued
• Suggest possible improvements to the existing
  ones
• Estimate resources needed for this activity
• Guidance The result of the RTAG should allow to
  establish a clear program of work to streamline
  the status of math libraries and find the maximum
  commonality between experiments, taking into
  account cost, maintenance and projected evolution
  of the experiment needs

29
Math Library Recommendations

• To design a support group
• to provide advice and information about the use
  of existing libraries,
• to assure their continued availability,
• to identify where new functionality is needed,
  and
• to develop that functionality themselves or by
  coordinating with other HEP-specific library
  developers.
• The goal would be to have close contact with the
  experiments and provide expertise on mathematical
  methods, aiming at common solutions,
• The experiments should maintain a data base of
  mathematical libraries used in their software,
  and within each library, the individual modules
  used.
• A detailed study should be undertaken to
  determine whether there is any functionality
  needed by the experiments and available in the
  NAG library which is not covered as well by a
  free library such as GSL.

30
RTAG Detector Geometry Materials Description

• Write the product specification for detector
  geometry and materials description services.
• Specify scope e.g. Services to define, provide
  transient access to, and store the geometry and
  materials descriptions required by simulation,
  reconstruction, analysis, online and event
  display applications, with the various
  descriptions using the same information source
• Identify requirements including end-user needs
  such as ease and naturalness of use of the
  description tools, readability and robustness
  against errors e.g. provision for named constants
  and derived quantities
• Explore commonality of persistence requirements
  with conditions data management
• Interaction of the DD with a conditions DB. In
  that context versioning and configuration
  management of the detector description,
  coherence issues
• Identify where experiments have differing
  requirements and examine how to address them
  within common tools
• Address migration from current tools

31
RTAGMonte Carlo Event Generators

• Mandate To best explore the common solutions
  needed and how to engage the HEP community
  external to the LCG it is proposed to study
• How to maintain a common code repository for the
  generator code and related tools such as PDFLIB.
• The development or adaptation of
  generator-related tools (e.g.HepMC) for LHC
  needs.
• How to provide support for the tuning, evaluation
  and maintenance of the generators.
• The integration of the Monte Carlo generators
  into the experimental software frameworks.
• The structure of possible forums to facilitate
  interaction with the distributed external groups
  who provide the Monte Carlo generators.

32
Possible Organisation of activities
Overall management, coordination, architecture,
integration, support
Architect
Activity area
Activity area
Activity area
Project
Project
Project
Project
Project leader
WP
WP
WP
WP
WP
WP
WP
WP
WP
Example
Activity area Physics data management Possible
projects Hybrid event store, Conditions DB,
Work Packages Component breakdown and work
plan lead to Work Package definitions. 1-3
FTEs per WP
33
Global Workplan 1st priority level

• Establish process and infrastructure
• Nicely covered by software process RTAG
• Address core areas essential to building a
  coherent architecture
• Object dictionary essential piece
• Persistency - strategic
• Interactive frameworks - also driven by assigning
  personnel optimally
• Address priority common project opportunities
• Driven by a combination of experiment need,
  appropriateness to common project, and the right
  moment (existing but not entrenched solutions in
  some experiments)
• Detector description and geometry model
• Driven by need and available manpower
• Simulation tools

34
Global Workplan 2nd priority level

• Build outward from the core top-priority
  components
• Conditions database
• Statistical analysis
• Framework services, class libraries
• Address common project areas of less immediate
  priority
• Math libraries
• Physics packages (scope?)
• Extend and elaborate the support infrastructure
• Software testing and distribution

35
Global Workplan 3rd priority level

• The core components have been addressed,
  architecture and component breakdown laid out,
  work begun. Grid products have had another year
  to develop and mature. Now explicitly address
  physics applications integration into the grid
  applications layer.
• Distributed production systems. End-to-end grid
  application/framework for production.
• Distributed analysis interfaces. Grid-aware
  analysis environment and grid-enabled tools.
• Some common software components are now
  available. Build on them.
• Lightweight persistency, based on persistency
  framework
• Release LCG benchmarking suite

36
Global Workplan 4th priority level

• Longer term items waiting for their moment
• Hard ones, perhaps made easier by a growing
  common software architecture
• Event processing framework
• Address evolution of how we write software
• OO language usage
• Longer term needs capabilities emerging from RD
  (more speculative)
• Advanced grid tools, online notebooks,

37
Candidate RTAGs (1)
Simulation tools Non-physics activity
Detector description, model Description tools, geometry model
Conditions database If necessary after existing RTAG
Data dictionary Key need for common service
Interactive frameworks What do we want, have, need
Statistical analysis Tools, interfaces, integration
Visualization Tools, interfaces, integration
Physics packages Important area but scope unclear
Framework services If common framework is too optimistic
C class libraries Standard foundation libraries
38
Candidate RTAGs (2)
Event processing framework Hard, long term
Distributed analysis Application layer over grid
Distributed production Application layer over grid
Small scale persistency Simple persistency tools
Software testing May be covered by process RTAG
Software distribution From central Program Library to convenient broad distribution
OO language usage C, Java (..?) roles in the future
Benchmarking suite Comprehensive suite for LCG software
Online notebooks Long term low priority
39
Common Solutions Conclusions

• Common Solutions for LHC software are required
  for success
• Common solutions are agreed upon by experiments
• The requirements are set by the experiments
• The development is done jointly by the LCG
  project and the LHC experiments
• All LCG software is centrally supported and
  maintained.
• What makes us believe that we succeed? What is
  key to success?
• The process in the LCG organization
• The collaboration between players
• Common technology
• Central resources, jointly steer-able by
  experiments and management
• Participants have prototyping experience !!

40
Backup Additional slides
41
Post-RTAG Participation of Architects Draft
Proposal (1)

• Monthly open meeting (expanded weekly meeting)
• Accumulated issues to be taken up with architects
• Architects in attendance coordinators invited
• Information has gone out beforehand, so
  architects are primed
• Meeting is informational, and decision-making
  (for the easier decisions)
• An issue is either
• Resolved (the easy ones)
• Flagged for addressing in the architects
  committee

42
Post-RTAG Participation of Architects Draft
Proposal (2)

• Architects committee
• Members experiment architects applications
  manager (chair)
• Invited computing coordinators, LCG project
  manager and CTO
• Others invited at discretion of members
• e.g. project leader of project at issue
• Meets shortly after the open meeting (also
  bi-weekly?)
• Decides the difficult issues
• Most of the time, committee will converge on a
  decision
• If not, try harder
• If still not, applications manager takes decision
• Such decisions can be accepted or challenged
• Challenged decisions go to full PEB, then if
  necessary to SC2
• PEB role of raising issues to be taken up by SC2
• We all abide happily by an SC2 decision
• Committee meetings also cover general current
  issues and exchange of views
• Committee decisions, actions documented in public
  minutes

43
Distributed Character of Components (1)

• Persistency framework
• Naming based on logical filenames
• Replica catalog and management
• Cost estimators policy modules
• Conditions database
• Inherently distributed (but configurable for
  local use)
• Interactive frameworks
• Grid-aware environment transparent access to
  grid-enabled tools and services
• Statistical analysis, visualization
• Integral parts of distributed analysis
  environment
• Framework services
• Grid-aware message and error reporting, error
  handling, grid-related framework services

44
Distributed Character of Components (2)

• Event processing framework
• Cf. framework services, persistency framework,
  interactive frameworks
• Distributed analysis
• Distributed production
• Software distribution
• Should use the grid
• OO language usage
• Distributed computing considerations
• Online notebook
• Grid-aware tool

45
RTAG? Simulation tools

• Geant4 is establishing a HEP physics requirements
  body within the collaboration, accepted by SC2 as
  a mechanism for addressing G4 physics performance
  issues
• However, there are important simulation needs to
  which LCG resources could be applied in the near
  term.
• By the design of LCG, this requires SC2
  delivering requirements to PEB
• John Apostolakis has recently assembled G4
  requests and requirements from the LHC
  collaborations
• Proposal Use these requirements as the
  groundwork for a quick 1-month RTAG to guide near
  term simulation activity in the project, leaving
  the addressing of physics performance
  requirements to the separate process within Geant4

46
RTAG? Simulation tools (2)

• Some possible activity areas in simulation, from
  the Geant4 requests/requirements received from
  the experiments, which would be input to the
  RTAG
• Error propagation tool for reconstruction
  (GEANE)
• Assembly and documentation of standard physics
  lists
• Python interface
• Documentation, tutorials, communication
• Geant4 CVS server access issues
• The RTAG could also address FLUKA support
• Requested by ALICE as an immediate priority
• Strong interest expressed by other experiments as
  well

47
RTAG? Detector geometry materials description
and modeling services

• Write the product specification for detector
  geometry and materials description and modeling
  services
• Specify scope eg. Services to define, provide
  transient access to, and store the geometry and
  materials descriptions required by simulation,
  reconstruction, analysis, online and event
  display applications, with the various
  descriptions using the same information source
• Identify requirements including end-user needs
  such as ease and naturalness of use of the
  description tools, readibility and robustness
  against errors e.g. provision for named constants
  and derived quantities
• Explore commonality of persistence requirements
  with conditions data management
• Identify where experiments have differing
  requirements and examine how to address them
  within common tools
• Address migration from current tools

48
RTAG? Conditions database

• Will depend on persistency RTAG outcome
• Refine the requirements and product specification
  of a conditions database serving the needs of the
  LHC experiments, using the existing requirements
  and products as a reference point. Give due
  consideration to effective distributed/remote
  usage.
• Identify the extent to which the persistency
  framework (hybrid store) can be directly used at
  the lower levels of a conditions database
  implementation.
• Identify the component(s) and interfaces atop a
  common persistency foundation that complete the
  conditions database

49
RTAG? Data dictionary service

• Can the experiments converge on common data
  definition and dictionary tools in the near term?
• Even if the answer is no, it should be possible
  to establish a standard dictionary service
  (generic API) by which common tools can interact,
  while leaving free to the experiments how their
  class models are defined and implemented
• Develop a product specification for a generic
  high-level data dictionary service able to
  accommodate distinct data definition and
  dictionary tools and present a common, generic
  interface to the dictionary
• Review the current data definition and dictionary
  approaches and seek to expand commonality among
  the experiments. Write the product specifications
  for common (even if Nlt4) components.

50
RTAG? Interactive frameworks

• Frameworks providing interactivity for various
  environments including physics analysis and event
  processing control (simulation and
  reconstruction) are critical. They serve end
  users directly and must match end user
  requirements extremely well. They can be a
  powerful and flexible glue in a modular
  environment, providing interconnectivity between
  widely distinct components and making the whole
  offered by such an environment much greater than
  the sum of its parts.
• Develop the requirements for an interactive
  framework common across the various application
  environments
• Relate the requirements to existing tools and
  approaches (e.g. ROOT/CINT, Python-based tools)
• Write a product specification, with specific
  recommendations on tools and technologies to
  employ
• Address both command line and GUI interactivity

51
RTAG? Statistical analysis interfaces tools

• Address requirements on analysis tools
• What data analysis services and tools are
  required
• What is and is not provided by existing tools
• Address what existing tools should be supported
  and what further development is needed
• Including long term maintenance issues
• Address role of abstract interfaces to
  statistical analysis services
• Are they to be used?
• If so, what tools should be interfaced to a
  common abstract interface to meet LHC needs (and
  how, when, etc.)
• Address requirements and approaches to
  persistency and data interchange

52
RTAG? Detector and event visualization

• Examine the range of tools available and identify
  those which should be developed as common
  components within the LCG Applications
  architecture
• Address requirements, recommendations and
  needed/desired implementations in such areas as
• existing and planned standard interfaces and
  their applicability
• GUI integration
• Interactivity requirements (picking)
• Interface to visualizing objects (eg. Draw()
  method)
• Use of standard 3D graphics libraries
• Very dependent on other RTAG outcomes

53
RTAG? Physics packages

• Needs and requirements in event generators and
  their interfaces persistency, particle property
  services,
• Scope of the LCG in this area needs to be made
  clearer before a well defined candidate RTAG can
  be developed

54
RTAG? Framework services

• While converging on a common event processing
  framework among the LHC experiments may be
  impractical at least on the near term, this does
  not preclude adopting common approaches and tools
  for Framework services
• Examples message handling and error reporting
  execution monitoring and state management
  exception handling and recovery job state
  persistence and recording of history information
  dynamic component loading interface definition,
  versioning, etc.
• Seek to identify framework services and tools
  which can be developed in common, possibly
  starting from existing products.
• Develop requirements on their functionality and
  interfaces.

55
RTAG? C class libraries

• Address needs and requirements in standard C
  class libraries, with recommendations on specific
  tools
• Provide recommendations on the application and
  evolution of community libraries such as ROOT,
  CLHEP, HepUtilities,
• Survey third party libraries and provide
  recommendations on which should be adopted and
  what should be used from them
• Merge with Framework Services candidate RTAG?

56
RTAG? Event processing framework

• There is no consensus to pursue a common event
  processing framework in the near term. There is
  perhaps more agreement that this should be
  pursued in the long term (but theres no
  consensus on a likely candidate for a common
  framework in the long term)
• This looks at best to be a long term RTAG
• Two experiments do use a common event processing
  framework kernel (Gaudi)
• Many difficult issues in growing N past 2,
  whether with Gaudi, AliRoot, COBRA or something
  else!

57
RTAG? Interfaces to distributed analysis

• Develop requirements on end-user interfaces to
  distributed analysis, layered over grid
  middleware services, and write a product
  specification
• Grid portals, but not only e.g. PROOF and Jas
  fall into this category
• A grid portal for analysis is presumably an
  evolution of tools like these
• Focus on analysis interface address the distinct
  requirements of production separately
• Production interface should probably be addressed
  first, as it is simpler and will probably have
  components usable as parts of the analysis
  interface

58
RTAG? Distributed production systems

• Distributed production systems will have much
  common ground at the grid middleware level. How
  much can be done in common at the higher level of
  end-to-end distributed production applications
  layered over the grid middleware?
• Recognizing that the grid projects are active at
  this level too, and coordination is needed
• Survey existing and planned production components
  and end-to-end systems at the application level
  (AliEn, MOP, etc.) and identify tools and
  approaches to develop in common
• Write product specifications for common
  components, and/or explicitly identify specific
  tools to be adapted and developed as common
  components
• Include end user (production operations)
  interface
• Grid portal for production

59
RTAG? Small-scale persistency databases

• If not covered by the existing persistency RTAG,
  and if there is agreement this is needed
• Write the product specification for a simple,
  self-contained, low-overhead object persistency
  service for small-scale persistency in C
  applications
• Marshal objects to a byte stream which may be
  stored on a file, in an RDBMS record, etc.
• In implementation, very likely a simplified
  derivative of the object streamer of the hybrid
  store
• For small scale persistence applications, e.g.
  saving state, saving configuration information
• Examine the utility of and requirements on a
  simple, standard, easily installed and managed
  database service complementing the persistency
  service for small scale applications
• MySQL, PostgreSQL etc are casually adopted for
  simple applications with increasing frequency. Is
  it possible and worthwhile to converge on a
  common database service

60
RTAG? Software testing tools services

• How much commonality can be achieved in the
  infrastructure and tools used
• Memory checking, unit tests, regression tests,
  validation tests, performance tests
• A large part of this has been covered by the
  process RTAG

61
RTAG? Software distribution

• May or may not be adequately addressed in the
  process RTAG
• Requirements for a central distribution point at
  CERN
• A CERN LHC Program Library Office
• Requirements on software distribution taking into
  account all tiers
• Survey and recommend on the various approaches,
  their utility, complementarity
• Tarballs (DAR)
• RPMs and other standard open software tools
• Role of AFS, asis
• Higher level automated distribution tools (pacman)

62
RTAG? Evolution of OO language usage

• Long-term evolution of C
• Role for other language(s), e.g. Java?
• Near, medium and (to the extent possible) long
  term application of other languages among LHC
  experiments
• Implications for tools and support requirements
• Identify any requirements arising
• Applications, services to be developed in common
• Third party tools to be integrated and supported
• Compilers and other infrastructure to be
  supported
• Libraries required

63
RTAG? LCG Benchmarking suite

• Below threshold for an RTAG?
• Every LCG application should come with a
  benchmarking suite, and should be made available
  and readily usable as part of a comprehensive
  benchmarking suite
• Develop requirements for a comprehensive
  benchmarking suite of LCG applications for use in
  performance evaluation, testing, platform
  validation and performance measurement, etc.
• Tools which should be represented
• Tests which should be included
• Packaging and distribution requirements

64
RTAG? Online notebooks and other remote control
/ collaborative tools

• Identify near term and long term needs and
  requirements common across the experiments
• Survey existing, planned tools and approaches
• Develop recommendations for common
  development/adaptation and support of tools for
  LHC
