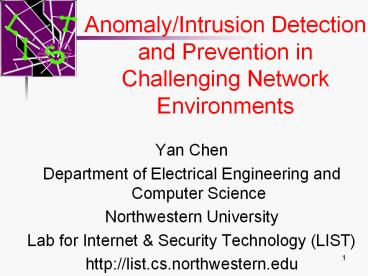

Anomaly/Intrusion Detection and Prevention in
Challenging Network Environments

• Yan Chen
• Department of Electrical Engineering and Computer
  Science
• Northwestern University
• Lab for Internet Security Technology (LIST)
• http//list.cs.northwestern.edu

2
The Spread of Sapphire/Slammer Worms
3
Current Intrusion Detection Systems (IDS)

• Mostly host-based and not scalable to high-speed
  networks
• Slammer worm infected 75,000 machines in lt10 mins
• Host-based schemes inefficient and user dependent
• Have to install IDS on all user machines !
• Mostly simple signature-based
• Inaccurate, e.g., with polymorphism
• Cannot recognize unknown anomalies/intrusions

4
Current Intrusion Detection Systems (II)

• Cannot provide quality info for forensics or
  situational-aware analysis
• Hard to differentiate malicious events with
  unintentional anomalies
• Anomalies can be caused by network element
  faults, e.g., router misconfiguration, link
  failures, etc., or application (such as P2P)
  misconfiguration
• Cannot tell the situational-aware info attack
  scope/target/strategy, attacker (botnet) size,
  etc.

5
Network-based Intrusion Detection, Prevention,
and Forensics System

• Online traffic recording
• SIGCOMM IMC 2004, INFOCOM 2006, ToN 2007
  INFOCOM 2008
• Reversible sketch for data streaming computation
• Record millions of flows (GB traffic) in a few
  hundred KB
• Small of memory access per packet
• Scalable to large key space size (232 or 264)
• Online sketch-based flow-level anomaly detection
• IEEE ICDCS 2006 IEEE CGA, Security
  Visualization 2006
• Adaptively learn the traffic pattern changes
• As a first step, detect TCP SYN flooding,
  horizontal and vertical scans even when mixed
• Online stealthy spreader (botnet scan) detection
• IEEE IWQoS 2007

6
Network-based Intrusion Detection, Prevention,
and Forensics System (II)

• Polymorphic worm signature generation detection
• IEEE Symposium on Security and Privacy 2006
  IEEE ICNP 2007
• Accurate network diagnostics
• SIGCOMM IMC 2003, SIGCOMM 2004, ToN 2007
  SIGCOMM 2006 INFOCOM 2007 (2)
• Scalable distributed intrusion alert fusion w/
  DHT
• SIGCOMM Workshop on Large Scale Attack Defense
  2006

7
Network-based Intrusion Detection, Prevention,
and Forensics System (III)

• Large-scale botnet and P2P misconfiguration event
  situational-aware forensics work under
  submission
• Botnet attack target/strategy inference
• Root cause analysis of the P2P misconfiguration/po
  isoning traffic
• NetShield vulnerability signature based NIDS for
  high performance network defense work in
  progress
• Vulnerability analysis of wireless network
  protocols and its defense work in progress

8
System Deployment

• Attached to a router/switch as a black box
• Edge network detection particularly powerful

Monitor each port separately
Monitor aggregated traffic from all ports
Original configuration
9
NetShield Matching with a Large Vulnerability
Signature Ruleset for High Performance Network
Defense
10
Outline

• Motivation
• Feasibility Study a Measurement Approach
• High Speed Parsing
• High Speed Matching for Large Rulesets.
• Evaluation
• Conclusions

11
Motivation

• Desired Features for Signature-based NIDS/NIPS
• Accuracy (especially for IPS)
• Speed
• Coverage Large ruleset

Cannot capture vulnerability condition well!
Shield sigcomm04
Regular Expression Vulnerability
Accuracy Relative Poor Much Better
Speed Good ??
Memory OK ??
Coverage Good ??
12
Vision of NetShield
13
Research Challenges

• Background
• Use protocol semantics to express vulnerability
• Protocol state machine predicates for each
  state
• Example ver1 methodput len(buf)gt300
• Challenges
• Matching thousands of vulnerability signatures
  simultaneously
• Sequential matching ? parallel matching
• High speed parsing
• Applicability for large NIDS/NIPS rulesets

14
Outline

• Motivation
• Feasibility Study a Measurement Approach
• Given a large NIDS/NIPS ruleset, what percentage
  of the rules can be improved with protocol
  semantic vulnerability signatures?
• High Speed Parsing
• High Speed Matching for Large Rulesets.
• Evaluation
• Conclusions

15
Measure Snort Rules

• Semi-manually classify the rules.
• Group by CVE-ID
• Manually look at each vulnerability
• Results
• 86.7 of rules can be improved by protocol
  semantic vulnerability signatures.
• Most of remaining rules (9.9) are web DHTML and
  scripts related which are not suitable for
  signature based approach.
• On average 4.5 Snort rules are reduced to one
  vulnerability signature.
• For binary protocol the reduction ratio is much
  higher than that of text based ones.
• For netbios.rules the ratio is 67.6.

16
Outline

• Motivation
• Feasibility Study a Measurement Approach
• High Speed Parsing
• High Speed Matching for Large Rulesets.
• Evaluation
• Conclusions

17
Observation

• PDU ? parse tree
• Leaf nodes are integers or strings
• Vulnerability signature mostly based on leaf nodes

Only need to parse the fields related to
signatures

• Traditional recursive descent parsers (BINPAC)
  which need one function call per node are too
  expensive.

18
Outline

• Motivation
• Feasibility Study a Measurement Approach
• High Speed Parsing
• High Speed Matching for Large Rulesets.
• Evaluation
• Conclusions

19
Problems Formulation

• Data representations
• For all the vulnerability signatures we studied,
  we only need integers and strings
• Integer operators , gt, lt
• String operators , match_re(.,.), len(.),
• Buffer constraint
• The string fields could be too long to buffer.
• Field dependency
• Array
• Associate array
• Mutual exclusive fields.
• PDU level protocol state machine

20
Matching Problems (cont.)

• Example signature for Blaster worm
• Single PDU matching problem (SPM)
• Multiple PDU matching problem (MPM)

21
Requirement of matching

• Suppose we have n signatures, each is defined on
  k matching dimensions (matchers)
• A matcher is a two-tuple (field, operation) or a
  four-tuple for the associate array elements.
• Challenges for SPM
• Large number of signatures n
• Large number of matchers k
• Large number of dont cares
• Cannot reorder the matchers arbitrarily (buffer
  constraint)
• Field dependency
• Array
• Associate array
• Mutually exclusive fields.

22
Observations

• Observation 1 Most matchers are good.
• After matching against them, only a small number
  of signatures can pass (candidates).
• String matchers are all good, and most integer
  matchers are good.
• We can buffer bad matchers to change the matching
  order.
• Observation 2 Real world traffic mostly does not
  match any signature. Actually even stronger in
  most traffic, no matcher is met.
• Observation 3 NIDS/NIPS will report all the
  matched rules regardless the ordering. Different
  from firewall rules.

23
Outline

• Motivation
• Feasibility Study a Measurement Approach
• Problem Statement
• High Speed Parsing
• High Speed Matching for Large Rulesets.
• Evaluation
• Conclusions

24
Evaluation Methodology

• Fully implemented and deployed to sniff a campus
  router hosting university Web servers and several
  labs.
• Run on a P4 3.8Ghz single core PC w/ 4GB memory.
• Much smaller memory usage. E.g., http 791
  vulnerability sigs from 941 Snort rules
• DFA 5.29 GB vs. NetShield 1.08MB

25
Stress Test Results

• Traces from Tsinghua Univ. (TH) and Northwestern
  Univ. (NU)
• After TCP reassembly and preload the PDU in
  memory
• For DNS we only evaluate parsing.
• For WINRPC we have 45 vulnerability signatures
  which covers 3,519 Snort rules
• For HTTP we have 791 vulnerability signatures
  which covers 941 Snort rules.

26
Conclusions

• A novel network-based vulnerability signature
  matching engine
• Through measurement study on Snort ruleset, prove
  the vulnerability signature can improve most of
  the signatures in NIDS/IPS.
• Proposed parsing state machine for fast parsing
• Propose a candidate selection algorithm for
  matching a large number of vulnerability
  signature simultaneously

27
With Our Solutions
Regular Expression Vulnerability
Accuracy Relative Poor Much Better
Speed Good Even faster
Memory OK Better
Coverage Good Similar

• Ongoing work apply NetShield on Cisco signature
  ruleset

Build a better Snort alternative
28
Backup
29
Parsing State Machine

• Studied eight popular protocols HTTP, FTP, SMTP,
  eMule, BitTorrent, WINRPC, SNMP and DNS and
  vulnerability signatures.
• Protocol semantic are context sensitive
• Common relationship among leaf nodes.

30
Example for WINRPC

• Rectangles are states
• Parsing variables R0 .. R4
• 0.61 instruction/byte for BIND PDU

31
Matching Algorithm

• Match each matcher against all the rules and
  combine the results together
• Match single matcher
• Integer range checking Binary search tree
• String exact matching Trie
• String regular expression matching DFA, XFA,
  etc.
• String length checking Binary search tree

32
Candidate Selection for SPM

• Basic algorithm pre-computation

33
Matching Illustration
34
Refinement

• SPM improvement
• Allow negative conditions
• Handle array case
• Handle associate array case
• Handle mutual exclusive case
• Report the matched rules as early as possible
• Extend to MPM
• Allow checkpoints.

35
Limitations of Regular Expression Signatures
Signature 10.01
Traffic Filtering
Internet
Our network
X
X
Polymorphism!
Polymorphic attack (worm/botnet) might not have
exact regular expression based signature
36
Reason
Shield
RE
X
Cannot express exact condition
Can express exact condition

• Regular expression is not power enough
• to capture the exact vulnerability condition!

37
Outline

• Motivation
• Feasibility Study a measurement approach
• Problem Statement
• High Speed Parsing
• High Speed Matching for massive vulnerability
  Signatures.
• Evaluation
• Conclusions

38
What Do We Do?

• Build a NIDS/NIPS with much better accuracy and
  similar speed comparing with Regular Expression
  based approaches
• Feasibility in Snort ruleset (6,735 signatures)
  86.7 can be improved by vulnerability
  signatures.
• High speed Parsing 2.712 Gbps
• High speed Matching
• Efficient Algorithm for matching a large number
  of vulnerability rules
• HTTP, 791 vulnerability signatures at 1Gbps

39
Network based IDS/IPS

• Accuracy (especially for IPS)
• False positive
• False negative
• Speed
• Coverage Large ruleset

Regular Expression Vulnerability
Accuracy Poor Much Better
Speed Good Good
Coverage Good Good
Regular expression is not power enough to capture
the exact vulnerability condition!
