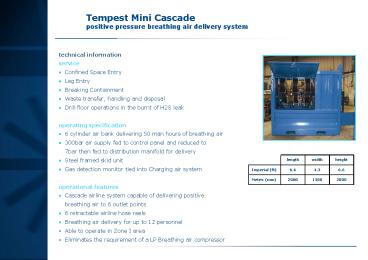

Tempest Mini Cascade positive pressure breathing air delivery system

1
Tempest Mini Cascadepositive pressure breathing
air delivery system

• technical information
• service
• Confined Space Entry
• Leg Entry
• Breaking Containment
• Waste transfer, handling and disposal
• Drill floor operations in the burnt of H2S leak
• operating specification
• 6 cylinder air bank delivering 50 man hours of
  breathing air
• 300bar air supply fed to control panel and
  reduced to
• 7bar then fed to distribution manifold for
  delivery
• Steel framed skid unit
• Gas detection monitor tied into Charging air
  system
• operational features
• Cascade airline system capable of delivering
  positive
• breathing air to 6 outlet points
• 6 retractable airline hose reels

2
Specialist Inspection Solutions

• rapid motion scanner (RMS)
• Automated Corrosion mapping UT Scan
• Applications include composites inspection and
  plate or
• corrosion mapping
• Scans in a fraction of the time required by
  existing techniques
• - scanning speed of 420mm per second
• Generates a Plan-view map showing the positions
  of any flaws
• lying in planes parallel to the surface such as
  laminations
• The produced map is termed as a C-Scan
• multiScan MS 5800 E
• Tube Inspection with Eddy Current
• Condensers
• Feedwater heaters
• Heat Exchangers
• Air conditioner
• floormapVS
• The FloormapVS tank bottom inspection system now
  provides

3
Inshore/Offshore Dive Support

• technical information
• Date Built 2000
• Manufacturer Delta Power Services - Class Delta
  95
• Vessel Type R.H.I.B complete with moulded
  shelter cabin
• Powered By Twin 240hp Yamaha Diesel
• Call Sign ZQCH2
• Category 2 Workboat Endorsement
• Diving platform installed
• MCA CAT II Yellow Brown Code 60 Miles
• Raytheon Auto Helm
• DGPS
• Depth Finder
• Cabin
• Integral Lifting Points
• Certification
• Small Commercial Vessel Certifi cate (Category 2)
• MCA Load Line Exemption Certifi cate

4
Subsea Bolt TensioningC-10 tensioner

• technical information
• standard features
• 20 mm stroke 00 Size
• 30 mm stroke 01- 08 size
• Piston Stroke Indicator
• Twin Hose port
• Non Slip Surface
• Max Tool Pressure 21750 psi
• benefits
• Subsea tensioner split nut
• Made from stainless steel
• Compatible with ANSI, API, 17D
• Suitable for many compact fl anges
• Higher Load Output
• Reduce Footprint

5
Hot Bolt Clamps

• technical information
• Maximum working pressure 689bar
• Hand pump operation
• typical application
• Working from 150 to 600 rated joints
• Temperature range up to 90C
• works in conjunction with
• Hydraulic bolt tensioning
• Hydraulic torque tightening

6
Enviropeela unique and re-usable thermoplastic
barrier coating system

• A durable, flexible material at normal
  temperatures, Enviropeel is
• melted in a specially designed mobile unit and
  sprayed in a hot stream
• on to the substrate. Built-in inhibitors are
  released on to the substrate
• as the material is sprayed, penetrating deep into
  every crevice and
• flowing into every joint. The material hardens to
  form a tough rubbery
• cocoon around the target area, sealing in the
  corrosion inhibitors and
• forming a flexible, impermeable barrier that will
  protect for the lifetime
• of the system. Enviropeel is environmentally
  friendly, easy to strip,
• re-usable and recyclable with no VOCs or harmful
  chemicals.
• benefits of use
• Immediate arrest of corrosion
• Direct reduction in wear tear
• Payback in as little as a month
• Reduced labour costs and maintenance-related
  accidents
• Extended component life
• Environmentally-friendly
• Easy to remove
• Colour-coded for monitoring
• Multiple Applications

7
PLUS 8 Scaffoldplus 8 is the fastest, safest and
most versatile system scaffold available

• technical information
• Being a market leader in the provision of safe
  and innovative access solutions to the Oil and
  Gas sector, RBG is constantly striving to supply
  our clients with the latest access systems, and
  having conducted research surveys and comparisons
  between several different system scaffolds over
  an 2 year period, RBG have established a
  partnership agreement with Turner Access Ltd for
  the supply of their equipment to both offshore
  and onshore locations.
• PlusEight is
• the fastestThe ergonomic design of PlusEight,
  combined with the utilisation of well-balanced
  components, maximises operative productivity.
• the safestPlusEight has been designed to enhance
  safety and minimise risk. Safety features
  include
• Patented coupling method providing the
  strongest and most flexible connection
• The ability to withstand vibration
• Visible safety checks possible on all joints
• Provision of a treble lattice guardrail
  incorporating diagonal members which provides
  bracing as a structure is built
• the most versatileNo structure is impossible,
  irrespective of size or shape.The unique
  PlusEight joint allows a full 360
  connection.Components, including beams and
  cantilever brackets, can be mounted at any angle
  in each cup.

8
SIGMADECK 250the answer for effortless, safe and
effective access at low levels

• technical information
• effortless access
• Assembles and dismantles in seconds with
  minimum light weight components required
• Automatic folding frames (no pins or clips to
  lose, damage or forget about when assembling)
• Compact dimensions allow the Sigmadeck to be
  moved from room to room while still assembled
• 6 rung frame for more choice in working heights
• Compact folded dimensions for easy storage and
  transportation
• safe access
• Inverted guardrail spigots ensure maximum
  height cant be exceeded
• Guardrail system provided as standard
  guaranteeing proper guardrail placement at all
  levels
• Serrated, non-slip rungs (at 250mm centres) and
  trapdoor platform for safe access to the working
  area as standard
• Weather proof, anti-skid decking provides a
  safe working area Equipped with 4 lockable
  castors
• Single piece deck made with durable aluminium
  treadplate
• Maximum platform height of 1.6m
• cost effective access
• Designed exclusively for low level access
  compatible with existing 250 range components
• additional component available
• One piece Folding toeboard set

9
ALPHASTEP 250the answer for effortless, safe and
effective access at low levels

• technical information
• effortless access
• Designed for ease of use
• Telescopic guardrail section allows access
  through standarddoor, whilst still assembled
• Access via steps and gate
• Choice of 4 platform levels gives user greater
  choice ofworking height
• Mobile with locking castors
• safe access
• Fully guardrailed platform at all times
• Designed exclusively for low level access
• Single piece deck made with durable aluminium
  treadplate
• Maximum platform height of 1.0m

10
DELTADECK 250the low level access solution that
offers complete flexibility

• technical information
• effortless access
• One person operation
• One complete unit (no pins, clips or components
  to lose, damageor forget about when assembling)
• Simple to assemble and dismantle
• Easy transportation and storage (can even be
  carried by car)
• Compact dimensions allow the Deltadeck to be
  moved fromroom to room while still assembled
• Can accommodate two people
• safe access
• Multiple platform heights (450mm, 530mm, 600mm,
  730mm 870mm)
• Fully guardrailed to ensure user safety at all
  times, at all heights
• Safe working load of 200kg
• Access and egress from either end of the platform

11
Walk on Nettingproviding an effective means of
access to a diverse range of structural locations

• technical information
• service
• Additional safety margin
• No quality compromise
• Cost-effective and rapid access
• Fall protection and dropped object protection
• Reduced installation time and manpower
• Environmental encapsulation
• Reduced structural stress and loading
• Reduced weight, portable and transportable
• Minimal storage requirement
• Total Flexibility, dimension and loading capacity
• No requirement for standby cover (once installed)
• Unaffected by weather, minimum wind loading
• specification
• Various sizes available or made to measure
• Knotless nylon netting
• Safe working load of 2.2te
• Test pieces incorporated to allow testing at
  future date

regulations All netting systems are designed
and manufactured in accordance with BS EN
1263-12002. Netting designs and applications
are in accordance with BS EN1263-22002
12
Air Float Systemthe worlds most innovative
design in modular pontoon and docking systems

• technical information
• RBGs has a range of Modular Pontoon System which
  can be
• used to provide a safe working platform with
  excellent buoyancy.
• The modular components can be passed easily
  through hatches
• and man-way prior to installation.
• The system is easy to assemble and dissemble and
  is made
• from a high density molecular weight Polyethylene
  which does
• not corrode or react with chemicals, fuels, oil
  or gasoline. For
• optimum flexibility and layout, the Modular
  Pontoon system is
• available in two sizes, double fl oat cube
  (1000x500x400 mm) and
• single floats of (500x500x400 mm).
• Applications may include tank clean outs, leg
  walk for access
• beneath gas tight floors and general
  safety/marine applications.
• The unit can also be ballasted to provide a
  barrier from very
• viscous liquids.
