Title: Formal Verification of Pipelined Processors

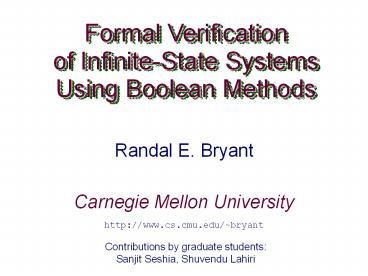

1
Formal Verification of Infinite-State
Systems Using Boolean Methods
Randal E. Bryant
Carnegie Mellon University
http//www.cs.cmu.edu/bryant
Contributions by graduate students Sanjit
Seshia, Shuvendu Lahiri
2
Outline
  • Task
  • Formally verify hardware and software systems
  • Build on success in verifying finite models
  • Infinite-State Models
  • Need logic that is suitably expressive, yet
    remains reasonably tractable
  • Verification Techniques
  • Solve problems by mapping into propositional
    logic
  • Proof engines can use powerful Boolean methods
  • Different levels of automation and capacity

3
Truly Infinite-State Systems
  • Systems where want to model real-world values
    (temperature, speed, ...)
  • Hybrid systems
  • Very difficult to verify
  • Systems with real-valued time constraints
  • E.g., timed automata
  • Somewhat easier to verify, since all clocks move
    at same rate

4
Theoretically Infinite-State Systems
  • Systems with unbounded buffers
  • Even though cant really build one

In Use



tail
head
5
Arbitrarily Large Finite-State Systems
  • Synchronization protocol that should work for
    arbitrary number of processes
  • Verify for arbitrary N
  • Circular buffer with fixed, but arbitrary
    capacity
  • Verify for arbitrary value of Max

In Use



tail
6
Very Large Finite-State Systems
  • Abstract 32-bit words as arbitrary integers
  • View memories as having unbounded capacity

7
Example HP/Compaq Alpha 21264
  • Pipeline State
  • Multiple caches
  • Instruction queues
  • Dynamically-allocated registers
  • Memory queue
  • Many buffers between stages
  • Verification Tasks
  • Does it implement the Alpha ISA?

Microprocessor Report, Oct. 28, 1996
8
Abstracting Data from Bits to Integers
x0
x1
x2
xn-1
  • View Data as Symbolic Terms
  • Arbitrary integers
  • Verification proves correctness of design for all
    possible word sizes
  • Can store in memories registers
  • Can select with multiplexors
  • ITE If-Then-Else operation

9
Abstraction Via Uninterpreted Functions
f
  • For any Block that Transforms or Evaluates Data
  • Replace with generic, unspecified function
  • Only assumed property is functional consistency
  • a x ? b y ? f (a, b) f (x, y)

10
Abstraction Via Uninterpreted Functions
F3
F2
F1
  • For any Block that Transforms or Evaluates Data
  • Replace with generic, unspecified function
  • Also view instruction memory as function

11
EUF Equality with Uninterp. Functs
  • Decidable fragment of first order logic
  • Formulas (F ) Boolean Expressions
  • ?F, F1 ? F2, F1 ? F2 Boolean connectives
  • T1 T2 Equation
  • P (T1, , Tk) Predicate application
  • Terms (T ) Integer Expressions
  • ITE(F, T1, T2) If-then-else
  • Fun (T1, , Tk) Function application
  • Functions (Fun) Integer ? Integer
  • f Uninterpreted function symbol
  • Read, Write Memory operations
  • Predicates (P) Integer ? Boolean
  • p Uninterpreted predicate symbol

12
Decision Problem
  • Logic of Equality with Uninterpreted Functions
    (EUF)
  • Truth Values
  • Dashed Lines
  • Model Control
  • Logical connectives
  • Equations
  • Integer Values
  • Solid lines
  • Model Data
  • Uninterpreted functions
  • If-Then-Else operation
  • Task
  • Determine whether formula is universally valid
  • True for all interpretations of variables and
    function symbols

13
Finite Model Property for EUF
  • Observation
  • Any formula has limited number of distinct
    expressions
  • Only property that matters is whether or not
    different terms are equal

14
Boolean Encoding of Integer Values
Expression Possible Values Bit Encoding Bit Encoding
x0 0 0 0
d0 0,1 0 b10
f (x0) 0,1,2 b21 b20
f (d0) 0,1,2,3 b31 b30
  • For Each Expression
  • Either equal to or distinct from each preceding
    expression
  • Boolean Encoding
  • Use Boolean values to encode integers over small
    range
  • EUF formula can be translated into propositional
    logic
  • Tautology iff original formula valid

15
An Out-of-order Processor (OOO)
valid tag val
D E C O D E
incr
dispatch
Program memory
valid value src1valid src1val src1tag src2valid sr
c2val src2tag dest op
result
PC
Register Rename Unit
1st Operand
result bus
retire
2nd Operand
ALU

Reorder Buffer
execute
head
tail
Reorder Buffer Fields
  • Data Dependencies Resolved by Register Renaming
  • Map register ID to instruction in reorder buffer
    that will generate register value
  • Inorder Retirement Managed by Retirement Buffer
  • FIFO buffer keeping pending instructions in
    program order

16
Access Modes for Reorder Buffer
  • FIFO
  • Insert when dispatch
  • Remove when retire
  • Content Addressable
  • Broadcast result to all entries with matching
    source tag
  • Global
  • Flush all queue entries when instruction at head
    causes exception

17
Required Logic
  • Increased Expressive Power
  • Model queue pointers
  • Increment decrement operations
  • Relative ordering
  • Ability to construct complex memory structures
  • Not just set of fixed memory types
  • Dont Go Too Far
  • Want practical decision procedures
  • Efficient reduction to propositional logic

18
EUF ? CLU
  • Terms (T )
  • ITE(F, T1, T2) If-then-else
  • Fun (T1, , Tk) Function application
  • Formulas (F )
  • ?F, F1 ? F2, F1 ? F2 Boolean connectives
  • T1 T2 Equation
  • P(T1, , Tk) Predicate application

19
EUF ? CLU (Cont.)
  • Functions (Fun)
  • f Uninterpreted function symbol
  • Read, Write Memory operations
  • Predicates (P)
  • p Uninterpreted predicate symbol

20
Modeling Memories with ?s
  • Memory M Modeled as Function
  • M(a) Value at location a
  • Initially
  • Arbitrary state
  • Modeled by uninterpreted function m0
  • Writing Transforms Memory
  • M? Write(M, wa, wd)
  • ? a . ITE(a wa, wd, M(a))
  • Future reads of address wa will get wd

21
Modeling Unbounded FIFO Buffer
Already Popped
  • Queue is Subrange of Infinite Sequence
  • Q.head h
  • Index of oldest element
  • Q.tail t
  • Index of insertion location
  • Q.val q
  • Function mapping indices to values
  • q(i) valid only when h ? i lt t
  • Initial State Arbitrary Queue
  • Q.head h0, Q.tail t0
  • Impose constraint that h0 ? t0
  • Q.val q0
  • Uninterpreted function

q(h2)
q(h1)
q(h)
head
q(h1)

increasing indices
q(t2)
q(t1)
tail
q(t)
q(t1)
Not Yet Inserted
22
Modeling FIFO Buffer (cont.)
23
Systems of Identical Processes
  • Each Process has k State Variables
  • Each state variable represented as array
  • Indexed by process Id



sv1


sv2


svk
State of Process i
24
Modeling System of Identical Processes
  • On Each Step
  • Select arbitrary process index p
  • As if chosen by nondeterministic scheduler
  • Update state for selected process

nextstate lambda(i) case i p state(i)
IDLE TRYING i p state(i) TRYING
inuse TRYING i p state(i) TRYING
!inuse CRITICAL default state(i) esac
25
Decision Procedure
CLU Formula
Lambda Expansion
?-free Formula
Function Predicate Elimination
  • Operation
  • Series of transformations leading to
    propositional formula
  • Propositional formula checked with BDD or SAT
    tools
  • Bryant, Lahiri, Seshia CAV02

Function-free Formula
Convert to Boolean Formula
Boolean Formula
Boolean Satisfiability
26
Finite Model Property for CLU
x ? y ? succ(x) gt pred(y)
  • Observation
  • Need to encode all possible relative orderings of
    expressions
  • Each symbolic value has maximum range of
    increments decrements
  • Can use Boolean encodings of small integer ranges

27
Verifying OOO
  • Lahiri, Seshia, Bryant, FMCAD 2002
  • Goal
  • Show that OOO implements Instruction Set
    Architecture (ISA) model
  • For all possible execution sequences
  • Challenges
  • No bound on program length
  • OOO holds partially executed instructions in
    reorder buffer
  • States of two systems match only when reorder
    buffer flushed

28
Adding Shadow State
  • McMillan, 98
  • Arons Pnueli, 99
  • Provides Link Between ISA OOO Models
  • Additional entries in ROB
  • Do not affect OOO behavior
  • Generated when instruction dispatched
  • Predict values of operands and result
  • From ISA model

OOO
Reg. File
PC
Reorder Buffer
29
Adding Shadow Structures
result bus
Updated directly from the ISA model during
dispatch
  • shdw.src1valrob.tail ? Rfisa(src1)
  • shdw.src2valrob.tail ? Rfisa(src2)
  • shdw.valuerob.tail ? ALU(Rfisa(src1),
    Rfisa(src2), op)

30
Invariant Checking
  • Formulas I1, , In
  • Ij(s0) holds for any initial state s0, for 1 ? j
    ? n
  • I1(s) ? I2(s) ? ? In(s) ? Ij(s? ) for any
    current state s and successor state s? for 1 ? j
    ? n
  • Invariants for OOO (13)
  • Refinement maps (2)
  • Show relation between ISA and OOO models
  • Shadow state (3)
  • Shadow values correctly predict OOO values
  • State consistency (8)
  • Properties of OOO state that ensure proper
    operation
  • Overall Correctness
  • Follows by induction on time

31
Refinement Maps
  • Correspondence with a sequential ISA model
  • OOO and ISA synchronized at dispatch
  • For Register File Contents
  • ?r. reg.valid(r) ? reg.val(r) Rfisa(r)
  • For Program Counter
  • PCooo PCisa

32
Shadow Invariants
result bus
  1. ?robt. rob.valid(t) ? rob.value(t)
    shdw.value(t)
  2. ?robt. rob.src1valid(t) ? rob.src1val(t)
    shdw.src1val(t)
  3. ?robt. rob.src2valid(t) ? rob.src2val(t)
    shdw.src2val(t)

33
State Consistency Invariants
  • Tag Consistency invariants (2)
  • Instructions only depend on instruction preceding
    in program order
  • Register Renaming invariants (2)
  • Tag in a rename-unit should be in the ROB, and
    the destination register should match
  • ?r.?reg.valid(r)? (rob.head ? reg.tag(r) lt
    rob.tail ? rob.dest(reg.tag(r)) r )
  • For any entry, the destination should have
    reg.valid as false and tag should contain this or
    later instruction
  • ?robt.(?reg.valid(rob.dest(t)) ?
  • t ? reg.tag(rob.dest(t)) lt rob.tail)

34
State Consistency Invariants (cont.)
  • Executed instructions have operands ready
  • ?robt. rob.valid(t) ?
  • rob.src1valid(t) ? rob.src2valid(t)
  • Shadow-Value-Operands Relationship
  • ?robt. shdw.value(t) Alu(shdw.src1val(t),shdw.sr
    c2val(t),rob.op(t))
  • Producer-Consumer Values (2)
  • ?robt. ?rob.src1valid(t) ?
  • shdw.src1val(t) shdw.value(rob.src1tag(t))

35
Quantified Invariants and Proofs
  • Allowed Form
  • ?x1?x2?xk ?(x1xk)
  • ?(x1xk) is a CLU formula without quantifiers
  • x1xk are integer variables free in ?(x1xk)
  • Proving these invariants requires quantifiers
  • (?x1?x2?xk ?(x1xk)) ? ?y1?y2?ym ?(y1ym)
  • Prove ?x1?x2?xk?(x1xk) ? ??(y1ym) is not
    satisfiable
  • Undecidable
  • Automatic instantiation of x1xk with concrete
    terms
  • Sound but incomplete method
  • Reduce the quantified formula to a CLU formula
  • Can use the decision procedure for CLU

36
Proving Invariants
  • Proved Automatically
  • Quantifier instantiation was sufficient in these
    cases
  • Time spent 54s on 1.4GHz machine
  • Total effort 2 person days
  • Comparison
  • Previous efforts using theorem provers took weeks
    of effort

37
Extending the OOO Processor
  • base
  • Executes ALU instructions only
  • exc
  • Handles arithmetic exceptions
  • Must flush reorder buffer
  • exc/br
  • Handles branches
  • Predicts branch speculatively executes along
    path
  • exc/br/mem-simp
  • Adds load store instructions
  • Store commits as instruction retires
  • exc/br/mem
  • Stores held in buffer
  • Can commit later
  • Loads must scan buffer for matching addresses

38
Comparative Verification Effort
base exc exc / br exc / br / mem-simp exc / br / mem
Total Invariants 13 34 39 67 71
Manually instantiate 0 0 0 4 8
UCLID time 54 s 236 s 403 s 1594 s 2200 s
Person time 2 days 5 days 2 days 15 days 10 days
39
I Just Want a Loaf of Bread
Ingredients
Result
Recipe
40
Cooking with Invariants
Ingredients Predicates
rob.head ? reg.tag(r)
Recipe Invariants
?r,t.?reg.valid(r) ? reg.tag(r) t ?
(rob.head ? reg.tag(r) lt rob.tail ?
rob.dest(t) r )
reg.valid(r)
Result Correctness
reg.tag(r) t
rob.dest(t) r
41
Automatic Recipe Generation
Ingredients
Result
Recipe Creator
  • Want Something More
  • Given any set of ingredients
  • Generate best recipe possible

42
Automatic Predicate Abstraction
  • Graf Saïdi, CAV 97
  • Idea
  • Given set of predicates P1(s), , Pk(s)
  • Boolean formulas describing properties of system
    state
  • View as abstraction mapping States ? 0,1k
  • Defines abstract FSM over state set 0,1k
  • Form of abstract interpretation
  • Do reachability analysis similar to symbolic
    model checking
  • Prior Implementations
  • Very weak inference capabilities
  • Call theorem prover or decision procedure to test
    each potential transition
  • Little support for quantified predicates

43
Abstract State Space
Abstraction
Concretization
Abstract States
Abstract States
Concrete States
Concrete States
44
Abstract State Machine
Abstract System
Concrete System
  • Transitions in abstract system mirror those in
    concrete

45
Overapproximation by Abstract Model
Abstract System
Concrete System
  • Path in abstract state space may not correspond
    to one in concrete
  • OK when verifying safety properties
  • Possible false negatives, but no false positives

46
Predicate Abstraction Example
  • State Space
  • State variables x, y
  • Initial State
  • (2, 1)
  • Next State Behavior
  • x ? ?x
  • y ? ?y
  • Verification Task
  • Prove all bad states unreachable

Initial State
Bad States
47
Precise Analysis
  • Reachable States
  • (2, 1), (?2, ?1)

Reachable States
Bad States
48
Predicates
  • Use 3-valued predicates in this example

49
Abstract Initial State
Reached Set 0 LGG
50
Step 1 Concretize Reached Set 0
Reached Set 0 LGG
cx3
cxy
cy0
L
G
G
51
Compute Possible Successor States
x ? ?x y ? ?y
52
Abstract Newly Reached States
cx3
cxy
cy0
L
L
L
0
0
0
Reached Set 1 LLL, LGG
53
Step 2 Concretize Reached Set 1
Reached Set 1 LLL, LGG
cx3
cxy
cy0
L
L
L
54
Compute Possible Successor States
x ? ?x y ? ?y
55
Abstract Newly Reached States
Reached Set 2 LLL, LGG, EGG, GGG
56
Final Reached State Set
EGG
LGG
GGG
LLL
Bad States
57
Symbolic Formulation of Step 2
l1 x lt 3
l2 x lt y
g3 y gt 0
g1 x gt 3
g2 x gt y
l3 y lt 0
Reached Set 1 LLL, LGG
  • Concretized State Set
  • Encode each 3-valued L, E, G predicate with 2
    Boolean variables (l, g)
  • Represent state set as formula
  • (l1 ? ?g1 ? l2 ? ?g2 ? l3 ? ?g3)
  • ? (l1 ? ?g1 ? ?l2 ? g2 ? ?l3 ? g3)

58
Next-State Predicates
  • Next State (x?, y? )
  • Get predicates l?1, l?2, l?3 , g?1, g?2, g?3
  • Determine conditions under which predicates will
    hold in next state
  • Express in terms of current state (x, y)

Next State Predicate Condition x? ?x y? ?y Current State Matches
l?1 x? lt 3 ?x lt 3 x gt ?3
l?2 x? lt y? ?x lt ?y x gt y g2
l?3 y? lt 0 ?y lt 0 y gt 0 g3
g?1 x? gt 3 ?x gt 3 x lt ?3
g?2 x? gt y? ?x gt ?y x lt y l2
g?3 y? gt 0 ?y gt 0 y lt 0 l3
59
Consistency Constraints
  • Eliminate impossible predicate combinations
  • In general, may need to introduce additional
    variables
  • To express more complex transitivity constraints

60
Symbolic Form
  • Formulation
  • Express compatible combinations of current-state
    next-state variables
  • Quantify out current-state variables
  • Gives formula over next-state variables

61
Extracting Next-State Set
  • Run SAT checker over formula
  • Generate blocking clause for each newly generated
    state
  • (l1 ? ?g1 ? l2 ? ?g2 ? l3 ? ?g3)
  • ? (l1 ? ?g1 ? ?l2 ? g2 ? ?l3 ? g3)
  • ? ?(g1 ? g?1) ? ?(g?1 ? l?1) ? (g2 ? g3 ? l?1)
  • ? l2 ? g?2 ? g2 ?l?2
  • ? l3 ? g?3 ? g3 ? l?3

l1 g1 l2 g2 l3 g3 l?1 g?1 l?2 g?2 l?3 g?3 Next State
1 0 1 0 1 0 0 0 0 1 0 1 EGG
1 0 1 0 1 0 0 1 0 1 0 1 GGG
1 0 1 0 1 0 1 0 0 1 0 1 LGG
1 0 0 1 0 1 1 0 1 0 1 0 LLL
l1 g1 l2 g2 l3 g3 l?1 g?1 l?2 g?2 l?3 g?3 Next State
1 0 1 0 1 0 0 0 0 1 0 1 EGG
62
General Principle
  • Lahiri, Bryant, and Cook CAV 2003
  • Basis
  • Abstract state set described as formula over
    Boolean variables P p1, , pk
  • Current state given by formula ?(p1, , pk)
  • Generate Quantified CLU Formula Describing Next
    Abstract State Set
  • Concretize set of current states as formula
    ?(P1(s), , Pk(s))
  • Combine predicates with next-state functions to
    get next-state predicates P ?1(s, x), , P ?k(s,
    x)
  • Variables x encode nondeterministic choices
  • Get formula
  • ?s, x ?(P1(s), , Pk(s))
  • ? p?1?P ?1(s, x) ? ? p?k?P ?k(s, x)

63
General Principle (cont.)
  • Transform into Quantified Boolean Formula
  • Formula of form Next(P?) ? Z ?(Z, P?)
  • Z Integer and function variables
  • P? Abstract state variables
  • Translate into Boolean formula of form ? B ?(B,
    P?)
  • B Boolean variables arising from small-domain
    encoding
  • Key Property
  • P? ?(Z, P?) satisfiable P? ?(B,
    P?) satisfiable
  • Form Encountered in Symbolic Model Checking
  • Next(S?) ?S Curr(S) ? Trans(S, S?)
  • S Boolean variables encoding current state
  • S? Boolean variables encoding next state
  • Solve using either SAT or BDDs

64
Quantified Invariant Generation
  • User supplies predicates containing free
    variables
  • Generate globally quantified invariant
  • Example
  • Predicates
  • p1 reg.valid(r)
  • p2 rob.dest(t) r
  • p3 reg.tag(r) t
  • Abstract state satisfying (p1 ? p2 ? ?p3)
    corresponds to concrete state satisfying
  • ?r,t?reg.valid(r) ? reg.tag(r) t
  • ? rob.dest(t) r
  • rather than
  • ?r?reg.valid(r) ? ?r,treg.tag(r) t ?
  • ?r,trob.dest(t) r

65
Generating Quantified Invariants
  • Use Quantifier Instantiation to Approximate ?
    During Concretization
  • Causes even greater overapproximation
  • Similar technique used by Flanagan Qadeer, POPL
    02

66
Systems Verified with Predicate Abstraction
Model Predicates Iterations CPU Time
Out-Of-Order Execution Unit 25 9 2,613s
Germans Cache Protocol 21 9 122s
Germans Protocol, unbounded channels 30 19 15,000s
Bounded Retransmission Buffer 22 9 11s
Lamports Bakery Algorithm 24 24 5,211s
  • Very general models
  • Unbounded processes, buffers, cache lines,
  • Safety properties only

67
Other Uses of UCLID Verifier
  • Invariant Checking
  • More complex version of OOO including speculative
    execution, exceptions, buffered loads stores
  • Lahiri Bryant, CAV 2003
  • Predicate Abstraction
  • Core algorithm used to generate weakest Boolean
    precondition for software model checking
  • SLAM project at Microsoft
  • Pipelined Processor Verification
  • Verify checker processor from U. Michigan
  • Model extracted directly from Verilog
  • Bounded check of load-store unit from industrial
    microprocessor

68
Conclusions
  • CLU is Useful Logic
  • Expressive enough to model wide range of systems
  • Systems with unbounded resources
  • Abstract away most data operations
  • Simple enough to be tractable
  • Small domain property allows exploiting Boolean
    methods
  • Predicate Abstraction is Powerful Tool
  • Removes requirement to hand-generate invariants
  • Benefits similar to model checking

69
Further Work
  • Support for Proofs of Liveness
  • Must make argument that progress being made
  • Greater Automation
  • Automatic generation of predicates
  • More efficient implementation of predicate
    abstraction
  • More Powerful Logic
  • Linear arithmetic would be useful
  • Potential blow-up when translate to Boolean
    formula
  • Apply to Other Systems
  • Software
  • Network protocols
About PowerShow.com
