SHIPS SURVEY

1
SHIPS SURVEY

• NIPPON KAIJI KYOKAI

2
(No Transcript)
3

4
(No Transcript)
5
SHIPS SURVEY GOOD MAINTENANCEON BOARD

• NIPPON KAIJI KYOKAI
• (ClassNK)

6
Introduction to ClassNK

• Nippon Kaiji Kyokai, known as ClassNK or NK,
• is a ship classification society.It is what
  is known under Japanese law as a public service
  foundation and in its Act of Endowment, its
  ultimate goal is expressed as "to contribute to
  the development of maritime service for the
  protection of human life and property at sea".
  Environmental protection has also become an
  increasingly major concern.

7
Presented by

• Lcdr. Prayudh Thongdii Surveyor

8
Periodical surveys

• 2.1 General
• 2.2 Annual Surveys
• 2.3 Intermediate Surveys
• 2.4 Special Surveys
• 2.5 Docking Surveys
• 2.6 Boiler Survey (Skip)
• 2.6 Propeller Shaft Survey

9
Bulk Carrier
10
Bulk Carrier
11
Container Carrier
12

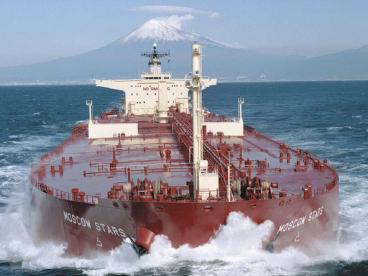

Oil Tanker
13
LNG Carrier
14
(No Transcript)
15
General Cargo
16
Reefer Carrier
17
Vehicles Carrier
18
Tug Boat
19
Annual Surveys

• 1 The purpose of an Annual Survey is to confirm
  that the general condition of the hull is
  maintained at a satisfactory level.
• 2 Generally as the ship ages, ballast tanks are
  required to be subjected to more extensive
  overall and close-up surveys at Annual
• Surveys.

20
Intermediate Surveys

• 1 The Intermediate Survey may be held at or
  between the second or third Annual Survey in each
  five year Special Survey cycle. Those items,
  which are additional to the requirements of the
  Annual Surveys, may be surveyed either at or
  between the 2nd and 3rd Annual Survey. The
  intermediate survey contains requirements for
  extended overall and close-up surveys including
  thickness measurements of cargo and ballast tanks.

21
Special Surveys

• 1 The Special Surveys are carried out at
  five-year intervals for the purpose of
  establishing the condition of the structure to
  confirm that the structural integrity is
  satisfactory in accordance with the
  Classification Requirements, and will remain fit
  for its intended purpose for another five-year
  period, subject to proper maintenance and
  operation of the ship and to periodical surveys
  carried out at the due dates.
• 2 The Special Survey concentrates on close-up
  surveys in association with thickness
  measurements and is aimed at detecting fractures,
  buckling, corrosion and other types of structural
  deterioration.
• 3 Thickness measurements are to be carried out
  upon agreement with the Classification Society
  concerned in conjunction with the Special Survey.

22
Drydocking (Bottom) Surveys

• The objective of docking the ship periodically
  is to inspect the portion of the hull beneath the
  water-line which those parts of the hull under
  the water-line are always immersed in water
  therefore, the condition of damage in the event
  of the ship stranding / grounding/damages cannot
  be observed.

23
Propeller Shaft Survey
24
Check lists

• Hull Machinery
• Fire fighting appliances
• Machinery in engine room
• Electrical Equipment
• Mooring arrangements
• Docking Survey
• Propeller Shaft Survey

25
Class SurveyGeneral Examinations(Hull)

• 01 Shell plating above W.L.
• 02 Weather deck plating
• 03 Openings on deck and outside of hull, deck
  house, companionway, hatch coamings and covers,
  side ports, cargo ports and side scuttles
• 04 Exposed engine casing and skylights
• 05 Ventilators
• 06 Air pipes and sounding pipes
• 07 W. T. bulkheads and superstructure's end
  bulkheads including W. T. doors, penetrations,
  Stop valves and door openings

26
Hull

• 08 Load line marks
• 09 Bulwarks, guard rails and freeing ports
• 10 Means of access gangways, walkways and life
  lines
• 11 Scuppers, inlets, other discharge pipes and
  valves
• 12 Anchoring and mooring arrangement
• 13 Fire extinguishing arrangement
• 14 Fire protection and means of escape, etc.
• 15 Loading computer
• 16 Ship Identification Number

27
Performance Test (Hull)

• 01 Doors on watertight bulkheads
• 02 Drainage, mooring and anchoring arrangements
  and their accessories
• 03 Appliances related to fire protection and
  escape
• 04 Fire detection and fire alarm system including
  manually operated call points
• 05 Fire pump including emergency fire pump,
  piping, hydrants, hoses, nozzles, etc.
• 06 Ventilation system fan
• 07 Fixed dry-chemical powder fire fighting system
• 08 Water spray system
• 09 Quantity of Carbon dioxide extinguishing
  medium
• 10 Quantity of halon extinguishing medium

28
Hull

• 11 Quantity of dry chemical powder extinguishing
  medium
• 12 Fixed carbon dioxide fire fighting system
  (Piping and alarm of systems)
• 13 Fixed halon fire fighting system (Piping and
  alarm of systems)
• 14 Fixed foam fire fighting system (Piping)
• 15 Fixed high expansion foam fire fighting system
  (Piping)

29
Hull

• 16 Fixed pressure water spraying fire fighting
• system (System and pump of the system)
• 17 Automatic sprinkler system (Delivery alarm
• and pump)
• 18 Closing appliances of openings related to fire

• fighting in way of cargo holds

30
Machinery

• General Examinations
• 01 Main propulsion machinery, power transmission
  machinery, shafting system,prime movers other
  than main propulsion machinery, boilers, thermal
  oil heaters,incinerators, pressure vessels,
  auxiliary machinery, piping systems, control
  systems,electrical installations and switchboards
• 02 Engine room, boiler spaces and means of escape
• 03 Refrigerating machinery except "RMC

31
Machinery

• Performance Tests
• 01 Shut-off devices for oil tanks
• 02 Emergency shut-down of motor for F.O. pumps,
  cargo
• oil pumps, ventilating fans boiler draught
  fans
• 03 Emergency electrical power source
• 04 Communication system with Engineer's alarm
• 05 Steering gears ( including control system )
• 06 Bilge system
• 07 Safety devices or alarm devices of main
  propulsion
• machinery and auxiliary machinery
• 08 Safety devices or alarm devices of boilers,
  thermal oil
• heaters and incinerators
• 09 Monitoring devices, such as pressure
  indicators,
• thermometers etc.

32

• Maintenance Check lists

33
Hull Machinery
Items Check Points

• Freeboard marks

• Clearly marked on shell plating each side.

34
Hull Machinery
Items Check Points

• Superstructure end
• bulkhead

• No heavy wastage exceeding permissible
• limit.

35
Hull Machinery
Items Check Points

• Doors of all access
• openings in bulkhead at ends of enclosed
• superstructures.

• Effective weathertightness.
• No heavy corrosion, holes.
• Condition of gaskets and clamping devices in good
  order.

36
Hull Machinery
Items Check Points

• Access hatches

• Effective weathertightness.
• Hatch coamings in good condition without
• heavy wastage or holes.
• Condition of gaskets and clamping devices in good
  order.

37
Hull Machinery
Items Check Points

• Cargo
• hatches

• Effective weathertightness.
• Hatch coamings and stays in good condition
• without heavy wastage or holes.
• Hatch covers in good condition without heavy
• wastage or holes.
• Condition of gaskets and clamping devices in
• good order.
• Battens and wedges available on board in
• good order.
• Tarpaulins in good condition without holes.

38
Hull Machinery
Items Check Points

• Machinery space
• openings

• Effective weathertightness.
• Covers, casings and coamings in good condition
  without heavy wastage or holes

39
Hull Machinery
Items Check Points

• Manholes,
• flush scuttles

• Effective weathertightness.
• Covers and bolts in good condition without heavy
  wastage.

40
Hull Machinery
Items Check Points

• Deckhouses,
• companionways
• with openings in freeboard deck

• Effective weathertightness.
• Bulkhead plating in good condition without heavy
  corrosion or holes.
• Doors in good condition without heavy
• corrosion or holes.
• Gaskets and clamping devices in good order.

41
Hull Machinery
Items Check Points

• Ventilators

• Coamings in good condition without heavy
  corrosion, holes.
• Closing covers in good condition, efficient
• weathertightness.
• Gaskets, clamping devices in order.

42
Hull Machinery
Items Check Points

• Air pipes

• Coamings in good condition without heavy
  corrosion or holes.
• Air pipe heads in good condition without heavy
  corrosion or holes.
• Floats in pipe heads in good order.
• Wire gauzes in good condition.
• (for oil tanks only)

43
Hull Machinery
Items Check Points

• Cargo ports
• and similar openings

• Effective weathertightness.
• Steel plating and attachments in good condition
  without heavy wastage.

44
Hull Machinery
Items Check Points

• Scuppers, inlets,
• discharges

• Distance pieces in good condition without heavy
  corrosion or holes.
• Non-return valves in good order without heavy
• corrosion or holes.

45
Hull Machinery
Items Check Points

• Side scuttles

• Effective watertightness.
• Deadlights in good order.

46
Hull Machinery
Items Check Points

• Freeing ports

• Draining arrangements
• in good order.

47
Hull Machinery
Items Check Points

• Bulwarks and stays,
• guard rails

• Condition in good order without heavy corrosion,
  holes or cracks.

48
Hull Machinery
Items Check Points

• Life lines,
• gangways,
• passages

• Condition in good order without heavy corrosion,
  missing components or holes.

49
Hull Machinery
Items Check Points

• Uprights, lashings

• Sockets, eye plates, stanchions in good
• condition without heavy corrosion, holes or
• cracks.

50
Hull Machinery
Items Check Points

• Main deck plating
• Cross deck plating

• Condition in good order.
• No heavy wastage, corrosion, cracks.

51
Hull Machinery
Items Check Points

• Fcle deck plating,
• Poop deck plating

• Condition in good order.
• No heavy wastage, corrosion, cracks.

52
Hull Machinery
Items Check Points

• All piping on deck with valves

• Condition in good order.
• No heavy wastage, corrosion, cracks.

53
Hull Machinery
Items Check Points

• Electric cable conduit

• Condition in good order.
• No heavy wastage, corrosion, cracks.

54
Hull Machinery
Items Check Points

• Cargo holds

• Bulkheads, frames, tanktop plating in good
  condition.
• No heavy corrosion, wastage, holes or cracks.
• Access ladders, piping in good condition.
• No heavy wastage, holes.

55
Hull Machinery
Items Check Points

• Ballast
• tanks

• No leakage, damage.
• Bulkheads (trans/longl.), longitudinals,
  transverse rings,
• horizontal girders, other members in good
  condition. No heavy corrosion, wastage, holes or
  cracks.
• Access ladders, piping in good condition. No
  heavy wastage, holes

56
Hull Machinery
Items Check Points

• Cargo
• tanks

• No leakage, damage.
• Bulkheads (trans/longl.), longitudinals,
  transverse rings, horizontal girders, other
  members in good condition. No heavy corrosion,
  wastage, holes or cracks.
• Access ladders, piping in good condition. No
  heavy wastage, holes

57
Hull Machinery
Items Check Points

• Fuel oil
• tanks

• No leakage, damage.
• Bulkheads (trans/longl.), longitudinals,
  transverse rings, horizontal girders, other
  members in good condition. No heavy corrosion,
  wastage, holes or cracks.
• Access ladders, piping in good condition. No
  heavy wastage, holes

58
Hull Machinery
Items Check Points

• Other compartments
• (Bosn store, deck
• stores, etc.)

• Bulkheads (trans/longl.), longitudinals,
  transverse
• rings, horizontal girders, other members in
  good
• condition.
• No heavy corrosion, wastage, holes or cracks.

59
Hull Machinery
Items Check Points

• Pump room

• Bulkheads, longitudinals, web frames, other
  members in good condition. No heavy corrosion,
  wastage, holes or cracks.
• Access ladders, piping in good condition.
• No heavy wastage, holes.
• Particular care to be taken to ensure electrical
• equipment in good order, lights (explosion
  proof).
• Protection of cargo pump room (bilge alarm, gas
  monitoring system, temperature sensor, inter-lock
  system) working satisfactorily

60
Hull Machinery
Items Check Points

• Water ingress alarm
• system

• Working satisfactorily

61
Hull Machinery
Items Check Points

• Remote pump control
• system
• (F.P.T, Bosn store)
• (for Bulk Carrier)

• Working satisfactorily

62
Hull Machinery
Items Check Points

• High velocity P/V
• valve

• Working satisfactorily
• No sticking/clogging by solidifying
• substances

63
Fire Fighting
Appliances Item
Check points

• Fire integrity

• Insulation on A class bulkheads and decks
  ingood condition.
• Penetrations of ventilation ducts cable
• penetration and pipes through A class bulk
• heads and decks in good order.

64
Fire Fighting Appliances
Item Check points

• Fire doors
• Skylights

• Operate satisfactorily.
• Self-closing doors not to be fitted with
• hold-back hooks.
• Closing arrangements in good order
• Skylights to be of steel and not contain glass
• panels.

65
Fire Fighting Appliances
Item Check points

• Fire dampers

• Operate satisfactorily.
• Cargo holds
• Engine room
• Accommodation spaces
• Control stations
• Other spaces
• Clear marking of Close-Open.
• No hole / defection of dampers

66
Fire Fighting Appliances
Item Check points

• Main fire pumps

• Operate satisfactorily.
• Proper pressure maintained.
• Pressure gauges in good order

67
Fire Fighting Appliances
Item Check points

• Emergency fire pump

• Operates satisfactorily.
• Proper pressure maintained.
• Pressure gauges in good order
• Prime mover in good condition.
• Exhaust gas piping in good order.

68
Fire Fighting Appliances
Item Check points

• Fire main piping
• Isolation valves

• No leakage, heavy wastage in lines
• No doublers, clamps,
• soft patches in lines
• Operate satisfactorily.

69
Fire Fighting Appliances
Item Check points

• Hydrants

• Fire hoses easily coupled to hydrants
• Satisfactory operation of valves.
• Valve handles not broken

70
Fire Fighting Appliances
Item Check
points

• Fire hoses

• All hoses in good condition, without leakage.
• Checking the number of hoses acc. to the fire
• control plan
• Complete with nozzle and couplings

71
Fire Fighting Appliances
Item Check
points

• Nozzles

• All nozzles in good condition, without leakage.
• Jet type nozzles, and jet/spray dual type in
• engine room.
• Operation of easy change mode.
• Operation of easy change mode and shut-off
  devices.

72
Fire Fighting Appliances
Item Check points

• Portable fire
• extinguishers
• foam,
• dry power
• CO2)

• Checking the number of portable fire
  extinguishers of each type according to the fire
• control plan.
• Cylinders in good condition,
• without serious corrosion / damage.
• Validity of the medium
• foam one year
• dry powder five year
• CO2 measure at Class SS
• and IS

73
Fire Fighting Appliances
Item Check
points

• Portable foam
• applicator unit

• Checking the air-foam nozzle, portable tank of
  foam making liquid, and one spare tank.
• Testing the connection to fire main by a fire
  hose.
• Condition of stowage container in good order.
• Validity of foam making liquid four years
• (impossible to extend by sampling)

74
Fire Fighting Appliances
Item Check
points

• Foam type fire
• extinguisher of 45 /135
• liters capacity or
• equivalent in firing
• space of boiler and in
• spaces of fuel oil system

• Visual condition in good order,without wastage.
• Easily usable condition.
• Validity of the medium
• Foam one year
• dry powder five years
• CO2 measure at Class
• SS and IS

75
Fire Fighting Appliances
Item Check points

• Fixed fire extinguishing
• arrangement in E/R,
• cargo spaces and cargo
• pump room
• (CO2 or Halon, foam,
• water spray)

• CO2 or Halon cylinders to be level/weight
  measured at Class SS and IS.
• Proper test certificate on board.
• Validity of foam liquid (5 years).
• After 5 years, effectiveness of foam liquid
  to be checked, and a sample test certificate
• available on board.
• Testing the audible alarm for the release of gas
  (CO2 or Halon)

76
Fire Fighting Appliances
Item Check points

• Fire detection

• Regular checking of the detection system and fire
  alarm.

77
Fire Fighting Appliances
Item Check
points

• Fuel oil tank shut-off
• valves
• Over 500L ships built on
• and after 1 July 1995
• Over 1000L ships built
• before 1 July 1995

• All valves to be closed by
• remote control from
• outside of E/R.
• Satisfactory operation of
• valves.
• In case that shut-off valves are operated by air,
  the air cylinder is always charged with correct
  pressure.
• Pressure gauge in good condition.

78
Fire Fighting Appliances
Item Check points

• Emergency stop of fans
• and fuel oil pumps in
• Engine room

• Satisfactory operation of emergency stop.

79
Fire Fighting Appliances
Item Check points

• Means of isolating the
• fuel supply to
• individual engines

• Satisfactory operation of means to isolate the
  fuel supply

80
Fire Fighting Appliances
Item Check points

• Firemans
• outfit

• Two(2) sets for cargo ships / Four(4) sets for
  tankers
• Stowage condition in good order according to the
  fire control plan.
• Protective clothing, boots and gloves,
  helmet,electric safety lamp, axe. Easily usable
  condition.
• Breathing apparatus with a smoke helmet or smoke
  mask and air pump, with proper length of air
  hose, or a self-contained breathing apparatus.
• 200 spare air cylinders available on board or
  100
• Air compressor.
• A fireproof lifeline of sufficient length for
  each breathing
• apparatus with a snap hook.
• Storage position is clearly marked.

81
Fire Fighting Appliances
Item Check points

• Fire extinguishing
• arrangement in
• paint lockers

• Fire fighting system in good order.
• (Type of arrangement is in accordance with the
  requirements of the flag state. e.g. portable
• fire extinguisher is acceptable for ships
  flying
• flag of Panama, Japan, etc.

82
Fire Fighting Appliances
Item Check points

• International
• shore
• connection

• At least one (1) shore connection with standard
  flange dimensions available on board.
• Four sets of bolts and nuts, each of 16 ? in
  diameter,
• 50 ? in length available on board.
• One gasket packing available on board.

83
Fire Fighting Appliances
Item Check
points

• Inert gas system

• Operates satisfactorily.
• Alarms in the control panel function properly.

84
Machinery in engine room
Item Check Points

• Main engines

• Operate satisfactorily.
• Safety devices function properly.
• Remote control functions properly.
• No leakage of oil / water
• Jacketed High Press. FO pipes in good order
• FO leak alarm in good order

85
Machinery in engine room
Item Check Points

• Generator
• engines

• Operate satisfactorily.
• Safety devices function properly.
• Remote and automatic control functions properly.
• No leakage of oil / water
• Jacketed High Press. FO pipes in good order
• FO leak alarm in good order

86
Machinery in engine room
Item Check Points

• Boilers

• Operate satisfactorily.
• Safety devices function properly.
• Remote and automatic control function
• properly.
• Pressure gauges in good order, and calibration is
  made every year.
• No leakage of steam / water / oil.
• Water level gauges in good order.

87
Machinery in engine room
Item Check Points

• Stern Tube Seal

• No leakage of oil / Sea water

88
Machinery in engine room
Item Check Points

• Essential
• machinery

• Operate satisfactorily.
• Safety devices function properly.
• Remote and automatic control function properly.
• No leakage from pump grand
• Meters and gauges in good order.

89
Machinery in engine room
Item Check Points

• Piping

• No heavy corrosion or leakage.
• No soft patches / doublers / cement box
• All valves operate satisfactorily.

90
Machinery in engine room
Item Check Points

• Bilge lines

• Bilge pumps, pipings
• in good order.
• Emerg. Bilge suction Valve operate satisfactorily

91
Machinery in engine room
Item Check Points

• Overall of
• Engine Room

• Cleanliness of E/R
• Must be clean without rubbish or waste oil.
• Guards and fencing
• Protection covers and/or guards
• All Meters and Gauges
• Self-closing device for sounding pipe of FO
• Tank
• Means to prevent oil spay provided on flange
• / joint in oil piping
• Insulation for all surfaces of machinery with
• high temp. above 220 deg. C

92
Machinery in engine room
Item Check Points

• Automatic Control
• System

• Engine Telegraph
• Alarm printer (UMS)
• Engine Console
• Extension alarm (UMS)
• M/E operation from Bridge

93
Electrical system Item
Check Points

• Lighting in E/R

• All lights in good order.
• Protection covers or guards in good order.

94
Electrical system Item
Check Points

• Lighting in
• accommodation spaces

• All lights in good order.
• Protection covers or guards in good order.

95
Electrical system Item
Check Points

• Lighting in control
• station, working room,
• steering room and other
• spaces

• All lights in good order.
• Protection covers or guards in good order.

96
Electrical system Item
Check Points

• Emergency cables

• Condition in good order.
• No exposed wire, heavy corrosion, especially
• on weather deck.

97
Electrical system Item
Check Points

• Emergency lights

• All lights in good order without damage.

98
Electrical system Item
Check Points

• Anti-explosion lights in
• dangerous spaces,
• pump room, battery
• room, paint locker etc.

• All lights in good order.
• No broken covers and guards.
• Tightening handles available on board.

99
Electrical system Item
Check Points

• Insulating mats around MSB

• Insulating mats available on board or insulation
  cement permanently laid up on the floor.

100
Electrical system Item
Check Points

• Insulation resistance

• No alarm of low insulation

101
Electrical system Item
Check Points

• Penetration in fire
• resisting divisions

• Filling material in good order
• (no clearance)

102
Mooring arrangements Item
Check points

• Anchor chain cables

• Condition in good order, no heavy wastage,
  missing components or damage.
• Stowage condition in good order.

103
Mooring arrangements Item
Check points

• Windlass

• Winches in good condition.
• Brake bands in good condition, no abnormal
• wear.
• Foundations, grating plates in good condition,
• no wastage, missing or broken sections.

104
Mooring arrangements
Item Check points

• Winches in good condition.
• Brake bands in good condition, no abnormal wear.
• Foundations, grating plates in good condition, no
  wastage, missing or broken sections.
• Sufficient ropes available on board and in good
  condition.
• Capstans operate satisfactorily.

• Mooring system

105
Docking Survey

• 01 Shell plating including keel plates, stem and
  stern frame(s)
• 02 Rudder(s) Measurement Rudder Clearance
• 03 Sea inlets and overboard discharges and their
  valves below
• freeboard deck
• 04 Sealing devices for stern tube and shaft
  bracket bearing

106
Docking Survey

• 05 After end of stern tube Measurement Tail
• Shaft Clearance
• 06 Propeller(s)
• 07 Valves and cocks on shell plating, sea chests

• and distance pieces
• 08 Anchors, anchor chain cables, ropes, hawse
• pipes, chain lockers and chain stoppers

107
Propeller Shaft Survey

• 01 Connection part with propeller (including
  examination of shaft by efficient crack detection
• 02 Propeller shaft except connection part with
  propeller
• 03 Stern tube bearing
• 04 Bearing wear down
• 05 Shaft bearing clearance
• 06 Open-up examination of sealing devices

108
Propeller Shaft Survey

• 07 Propeller boss bore in way of shaft taper
  section
• 08 Controllable Pitch Propeller (CPP)
• 09 Water lubrication line
• 10 Oil lubrication line including alarms,
• temperature measuring devices, L.O. pumps
• 11 Lubrication oil record book

109

• The End
