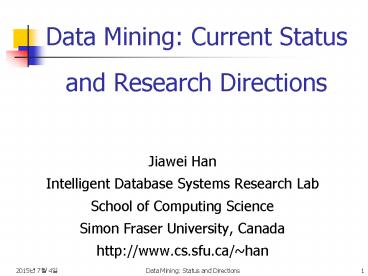

Data Mining: Current Status and Research Directions

1
Data Mining Current Status and Research
Directions

• Jiawei Han
• Intelligent Database Systems Research Lab
• School of Computing Science
• Simon Fraser University, Canada
• http//www.cs.sfu.ca/han

2
Outline

• Why is data mining hot?
• Current status Major technical progress
• Is data mining flying high, or not?
• How to fly data mining high?Research directions
  on data mining

3
Why Is Data Mining Hot?

• Data mining (knowledge discovery in databases)

• Extraction of interesting (non-trivial, implicit,
  previously unknown and potentially useful)
  information (knowledge) or patterns from data in
  large databases or other information repositories
• Necessity is the mother of invention
• Data is everywheredata mining should be
  everywhere, too!
• Understand and use dataan imminent task!

4
Data, Data, Everywhere!!

• Relational databaseA commodity of every
  enterprise
• Huge data warehouses are under construction
• POS (Point of Sales) Transactional DBs in
  terabytes
• Object-relational databases, distributed,
  heterogeneous, and legacy databases
• Spatial databases (GIS), remote sensing database
  (EOS), and scientific/engineering databases
• Time-series data (e.g., stock trading) and
  temporal data
• Text (documents, emails) and multimedia databases
• WWW A huge, hyper-linked, dynamic, global
  information system

5
Data Mining Is Everywhere, too!A
Multi-Dimensional View of Data Mining

• Databases to be mined
• Relational, transactional, object-relational,
  active, spatial, time-series, text, multi-media,
  heterogeneous, legacy, WWW, etc.
• Knowledge to be mined
• Characterization, discrimination, association,
  classification, clustering, trend, deviation and
  outlier analysis, etc.
• Techniques utilized
• Database-oriented, data warehouse (OLAP), machine
  learning, statistics, visualization, neural
  network, etc.
• Applications adapted
• Retail, telecommunication, banking, fraud
  analysis, DNA mining, stock market analysis, Web
  mining, Weblog analysis, etc.

6
Data Mining Confluence of Multiple Disciplines
Database Technology
Statistics
Data Mining
Machine Learning (AI)
Visualization
Information Science
Other Disciplines
7
Data MiningOne Can Trace Back to Early
Civilization

• Most scientific discoveries involve data mining
• Keplers Law, Newtons Laws, periodic table of
  chemical elements, , from big bang to DNA
• Statistics A discipline dedicated to data
  analysis
• Then why data mining? What are the differences?
• Huge amount of datain giga to tera bytes
• Fast computerquick response, interactive
  analysis
• Multi-dimensional, powerful, thorough analysis
• High-level, declarativeusers ease and control
• Automated or semi-automatedmining functions
  hidden or built-in in many systems

8
A Brief History of Data Mining Activities

• 1989 IJCAI Workshop on Knowledge Discovery in
  Databases
• Knowledge Discovery in Databases (G.
  Piatetsky-Shapiro and W. Frawley, 1991)
• 1991-1994 Workshops on Knowledge Discovery in
  Databases
• Advances in Knowledge Discovery and Data Mining
  (U. Fayyad, G. Piatetsky-Shapiro, P. Smyth, and
  R. Uthurusamy, 1996)
• 1995-1998 International Conferences on Knowledge
  Discovery in Databases and Data Mining
  (KDD95-98)
• Journal of Data Mining and Knowledge Discovery
  (1997)
• 1998 ACM SIGKDD, SIGKDD1999-2001 conferences,
  and SIGKDD Explorations
• More conferences on data mining
• PAKDD, PKDD, SIAM-Data Mining, (IEEE) ICDM,
  DaWaK, SPIE-DM, etc.

9
Research Progress in the Last Decade

• Multi-dimensional data analysis Data warehouse
  and OLAP (on-line analytical processing)
• Association, correlation, and causality analysis
• Classification scalability and new approaches
• Clustering and outlier analysis
• Sequential patterns and time-series analysis
• Similarity analysis curves, trends, images,
  texts, etc.
• Text mining, Web mining and Weblog analysis
• Spatial, multimedia, scientific data analysis
• Data preprocessing and database compression
• Data visualization and visual data mining
• Many others, e.g., collaborative filtering

10
Multi-Dimensional Data Analysis

• Data warehousing integration from heterogeneous
  or semi-structured databases
• Multi-dimensional modeling of data star
  snowflake schemas
• Efficient and scalable computation of data cubes
  or iceberg cubes
• OLAP (on-line analytical processing) drilling,
  dicing, slicing, etc.
• Discovery-driven exploration of data cubes
• From OLAP to OLAM A multi-dimensional view for
  on-line analytical mining

11
Association and Frequent Pattern Analysis

• Efficient mining of frequent patterns and
  association rules
• Apriori and FP-growth algorithms
• Multi-level, multi-dimensional, quantitative
  association mining
• From association to correlation, sequential
  patterns, partial periodicity, cyclic rules,
  ratio rules, etc.
• Query and constraint-based association analysis

12
Classification Scalable Methods and Handling of
Complex Types of Data

• Classification has been an essential theme in
  machine learning, and statistics research
• Decision trees, Bayesian classification, neural
  networks, k-nearest neighbors, etc.
• Tree-pruning, Boosting, bagging techniques
• Efficient and scalable classification methods
• Exploration of attribute-class pairs
• SLIQ, SPRINT, RainForest, BOAT, etc.
• Classification of semi-structured and
  non-structured data
• Classification by clustering association rules
  (ARCS)
• Association-based classification
• Web document classification

13
Clustering and Outlier Analysis

• Partitioning methods
• k-means, k-medoids, CLARANS
• Hierarchical methods micro-clusters
• Birch, Cure, Chameleon
• Density-based methods
• DBSCAN and OPTICS, DENCLU
• Grid-based methods
• STING, CLIQUE, WaveCluster
• Outlier analysis
• statistics-based, distance-based, deviation-based
• Constraint-based clustering
• COD (Clustering with Obstructed Distance)
• User-specified constraints

14
Sequential Patterns and Time-Series Analysis

• Trend analysis
• Trend movement vs. cyclic variations, seasonal
  variations and random fluctuations
• Similarity search in time-series database
• Handling gaps, scaling, etc.
• Indexing methods and query languages for
  time-series
• Sequential pattern mining
• Various kinds of sequences, various methods
• From GSP to PrefixSpan
• Periodicity analysis
• Full periodicity, partial periodicity, cyclic
  association rules

15
Similarity Search Similar Curves, Trends,
Images, and Texts

• Various kinds of data, various similarity mining
  methods
• Discovery of similar trends in time-series data
• Data transformation high-dimensional structures
• Finding similar images based on color, texture,
  etc.
• Content-based vs. keyword-based retrieval
• Color histogram-based signature
• Multi-feature composed signature
• Finding documents with similar texts
• Similar keywords (synonymy polysemy)
• Term frequency matrix
• Latent semantic indexing

16
Spatial, Multimedia, Scientific Data Analysis

• Multi-dimensional analysis of spatial, multimedia
  and scientific data
• Geo-spatial data cube and spatial OLAP
• The curse of dimensionality problem
• Association analysis
• A progressive refinement methodology
• Micro-clustering can be used for preprocessing in
  the analysis of complex types of data
• Classification
• Association-based for handling high-dimensionality
  and sparse data

17
Data Mining Industry and Applications

• From research prototypes to data mining products,
  languages, and standards
• IBM Intelligent Miner, SAS Enterprise Miner, SGI
  MineSet, Clementine, MS/SQLServer 2000, DBMiner,
  BlueMartini, MineIt, DigiMine, etc.
• A few data mining languages and standards (esp.
  MS OLEDB for Data Mining).
• Application achievements in many domains
• Market analysis, trend analysis, fraud detection,
  outlier analysis, Web mining, etc.

18
Is Data Mining Flying? Or Not??

• Data mining is flying
• R D have been striding forward greatly
• Applications have been broadened substantially
• But not as high as some may have hoped. Why not?
• Hope to see billions of s within years?
• A young and coming technology, not a hype!
• Not bread-and-butter but value-added service
• DBMS, WWW, and other information systems will
  still be a data mining aircraft-carrier
• Not on-the-shelf in nature
• Need training, understanding, and customizing
  (re-develop.)
• Young technologyneed much RD to fly high
• Much research, development, and real problem
  solving!

19
How to Fly Data Mining High?Research Directions

• Web mining
• Towards integrated data mining environments and
  tools
• Vertical (or application-specific) data mining
• Invisible data mining
• Towards intelligent, efficient, and scalable data
  mining methods

20
Web Mining A Fast Expanding Frontier in Data
Mining

• Mine what Web search engine finds
• Automatic classification of Web documents
• Discovery of authoritative Web pages, Web
  structures and Web communities
• Meta-Web Warehousing Web yellow page service
• Web usage mining

21
Mine What Web Search Engine Finds

• Current Web search engines A convenient source
  for mining
• keyword-based, return too many, often low quality
  answers, still missing a lot, not customized,
  etc.
• Data mining will help
• coverage Enlarge and then shrink, using
  synonyms and conceptual hierarchies
• better search primitives user preferences/hints
• linkage analysis authoritative pages and
  clusters
• Web-based languages XML WebSQL WebML
• customization home page Weblog user profiles

22
Discovery of Authoritative Pages in WWW

• Page-rank method ( Brin and Page, 1998)
• Rank the "importance" of Web pages, based on a
  model of a "random browser."
• Hub/authority method (Kleinberg, 1998)
• Prominent authorities often do not endorse one
  another directly on the Web.
• Hub pages have a large number of links to many
  relevant authorities.
• Thus hubs and authorities exhibit a mutually
  reinforcing relationship
• Both the page-rank and hub/authority
  methodologies have been shown to provide
  qualitatively good search results for broad query
  topics on the WWW.

23
Automatic Classification of Web Documents

• Web document classification
• Good human classification Yahoo!, CS term
  hierarchies
• These classifications can be used as training
  sets to build up learning model
• Key-word based classification is different from
  multi-dimensional classification
• Association or clustering-based classification is
  often more effective
• Multi-level classification is important

24
A Multiple Layered Meta-Web Architecture
More Generalized Descriptions
Layern
...
Generalized Descriptions
Layer1
Layer0
25
Web Yellow Page Service A Multi-Layer, Meta-Web
Approach

• XML facilitates structured and meta-information
  extraction
• Automatic classification of Web documents
• based on Yahoo!, etc. as training set
  keyword-based correlation/classification analysis
  (IR/AI assistance)
• Automatic ranking of important Web pages
• authoritative site recognition and clustering Web
  pages
• Generalization-based multi-layer meta-Web
  construction
• With the assistance of clustering and
  classification analysis
• Meta-Web can be warehoused and incrementally
  updated
• Querying and mining can be performed on or
  assisted by meta-Web

26
Importance of Constructing Multi-Layer Meta Web

• Benefits of Multi-Layer Meta-Web
• Multi-dimensional Web info summary analysis
• Approximate and intelligent query answering
• Web high-level query answering (WebSQL, WebML)
• Web content and structure mining
• Observing the dynamics/evolution of the Web
• Is it realistic to construct such a meta-Web?
• It benefits even if it is partially constructed
• The benefit may justify the cost of tool
  development, standardization, and partial
  restructuring

27
Web Usage (Click-Stream) Mining

• Weblog provides rich information about Web
  dynamics
• Multidimensional Weblog analysis
• disclose potential customers, users, markets,
  etc.
• Plan mining (mining general Web accessing
  regularities)
• Web linkage adjustment, performance improvements
• Web accessing association/sequential pattern
  analysis
• Web cashing, prefetching, swapping
• Trend analysis
• Dynamics of the Web what has been changing?
• Customized to individual users

28
Towards Integrated Data Mining Environments and
Tools

• OLAP Mining Integration of Data Warehousing and
  Data Mining
• Querying and Mining An Integrated Information
  Analysis Environment
• Basic Mining Operations and Mining Query
  Optimization
• Vertical (or application-specific) data mining
• Invisible data mining

29
OLAP Mining An Integration of Data Mining and
Data Warehousing

• Data mining systems, DBMS, Data warehouse systems
  coupling
• No coupling, loose-coupling, semi-tight-coupling,
  tight-coupling
• On-line analytical mining data
• integration of mining and OLAP technologies
• Interactive mining multi-level knowledge
• Necessity of mining knowledge and patterns at
  different levels of abstraction by
  drilling/rolling, pivoting, slicing/dicing, etc.
• Integration of multiple mining functions
• Characterized classification, first clustering
  and then association

30
An OLAM Architecture
Layer4 User Interface
Mining query
Mining result
User GUI API
OLAM Engine
OLAP Engine
Layer3 OLAP/OLAM
Data Cube API
Layer2 MDDB
MDDB
Meta Data
Database API
FilteringIntegration
Filtering
Layer1 Data Repository
Data Warehouse
Data cleaning
Databases
Data integration
31
Querying and Mining An Integrated Information
Analysis Environment

• Data mining as a component of DBMS, data
  warehouse, or Web information system
• Integrated information processing environment
• MS/SQLServer-2000 (Analysis service)
• IBM IntelligentMiner on DB2
• SAS EnterpriseMiner data warehousing mining
• Query-based mining
• Querying database/DW/Web knowledge
• Efficiency and flexibility preprocessing,
  on-line processing, optimization, integration,
  etc.

32
Basic Mining Operations and Mining Query
Optimization

• Relational databases There are a set of basic
  relational operations and a standard query
  language, SQL
• E.g., selection, projection, join, set
  difference, intersection, Cartesian product, etc.
• Are there a set of standard data mining
  operations, on which optimizations can be done?
• Difficulty different definitions on operations
• Importance optimization can be performed on them
  systematically, standardization to facilitate
  information exchange and system interoperability

33
Vertical Data Mining

• Generic data mining tools? Too simple to match
  domain-specific, sophisticated applications
• Expert knowledge and business logic represent
  many years of work in their own fields!
• Data mining business logic domain experts
• A multi-dimensional view of data miners
• Complexity of data Web, sequence, spatial,
  multimedia,
• Complexity of domains DNA, astronomy, market,
  telecom,
• Domain-specific data mining tools
• Provide concrete, killer solution to specific
  problems
• Feedback to build more powerful tools

34
Invisible Data Mining

• Build mining functions into daily information
  services
• Web search engine (link analysis, authoritative
  pages, user profiles)adaptive web sites, etc.
• Improvement of query processing history data
• Making service smart and efficient
• Benefits from/to data mining research
• Data mining research has produced many scalable,
  efficient, novel mining solutions
• Applications feed new challenge problems to
  research

35
Towards Intelligent Tools for Data Mining

• Integration paves the way to intelligent mining
• Smart interface brings intelligence
• Easy to use, understand and manipulate
• One picture may worth 1,000 words
• Visual and audio data mining
• Human-Centered Data Mining
• Towards self-tuning, self-managing,
  self-triggering data mining

36
Integrated Mining A Booster for Intelligent
Mining

• Integration paves the way to intelligent mining
• Data mining integrates with DBMS, DW, WebDB, etc
• Integration inherits the power of up-to-date
  information technology querying, MD analysis,
  similarity search, etc.
• Mining can be viewed as querying database
  knowledge
• Integration leads to standard interface/language,
  function/process standardization, utility, and
  reachability
• Efficiency and scalability bring intelligent
  mining to reality

37
One Picture May Worth 1000 Words!

• Visual Data Mining
• Visualization of data
• Visualization of data mining results
• Visualization of data mining processes
• Interactive data mining visual classification
• One melody may worth 1000 words too!
• Audio data mining turn data into music and
  melody!
• Uses audio signals to indicate the patterns of
  data or the features of data mining results

38
Visualization of data mining results in SAS
Enterprise Miner scatter plots

39
Visualization of association rules in MineSet 3.0
40
Visualization of a decision tree in MineSet 3.0
41
Visualization of Data Mining Processes by
Clementine
42
Interactive Visual Mining by Perception-Based
Classification (PBC)
43
Human-Centered Data Mining

• Finding all the patterns autonomously in a
  database? unrealistic because the patterns
  could be too many but uninteresting
• Data mining should be an interactive process
• User directs what to be mined
• Users must be provided with a set of primitives
  to be used to communicate with the data mining
  system using a data mining query language
• User should provide constraints on what to be
  mined
• System should use such constraints to guide the
  mining process (constraint-based mining or mining
  query optimization)

44
Constraint-Based Mining

• What kinds of constraints can be used in mining?
• Knowledge type constraint classification,
  association, etc.
• Data constraint SQL-like queries
• Find products sold together in Vancouver in
  Feb.01.
• Dimension/level constraints
• in relevance to region, price, brand, customer
  category.
• Rule constraints
• small sales (price lt 10) triggers big sales
  (sum gt 200).
• Interestingness constraints
• E.g., strong rules (min_support ? 3,
  min_confidence ? 60, min_lift gt 3.0).

45
Rule Constraints A Classification
Succinctness
Anti-monotonicity
Monotonicity
Convertible constraints
Inconvertible constraints
46
Constraint-Based Clustering Analysis

• User-specified constraints no cluster has less
  than 1000 gold customers
• Resource allocation (clustering) with obstacles

47
Towards Automated Data Mining?

• It is not realistic to automatically find all the
  knowledge in a large database
• Thus we promote human-centered, constraint-based
  mining
• However, to achieve genuine intelligent data
  mining, data mining process should be
  self-tuning, self-managing, self-triggering
• Functions should be developed to achieve such
  performance

48
Conclusions

• Data miningA promising research frontier
• Data mining research has been striding forward
  greatly in the last decade
• However, data mining, as an industry, has not
  been flying as high as expected
• Much research and application exploration are
  needed
• Web mining
• Towards integrated data mining environments and
  tools
• Towards intelligent, efficient, and scalable data
  mining methods

49
http//www.cs.sfu.ca/han http//db.cs.sfu.ca

• Thank you !!!

50
References

• J. Han and M. Kamber, Data Mining Concepts and
  Techniques, Morgan Kaufmann, 2001.
• J. Han, L. V. S. Lakshmanan, and R. T. Ng,
  "Constraint-Based, Multidimensional Data Mining",
  COMPUTER (special issues on Data Mining), 32(8)
  46-50, 1999.
