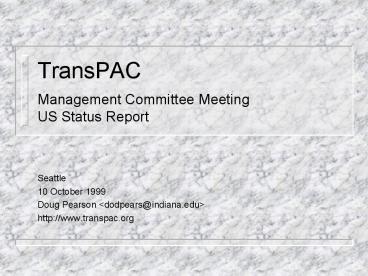

TransPAC Management Committee Meeting US Status Report

1
TransPAC Management Committee MeetingUS Status
Report

• Seattle
• 10 October 1999
• Doug Pearson ltdodpears_at_indiana.edugt
• http//www.transpac.org

2
TransPAC Management Committee

• APAN
• Australia
• Robin Stanton
• Markus Buchhorn
• Japan
• Shigeki Goto (Co-Chair)
• Kazunori Konishi
• Korea
• Yong-Jin Park
• Kyungpyo Hong
• Singapore
• Francis Lee
• Tham Chen Khong
• Tokyo XP
• Akira Kato
• Management Liaison
• Hiromasa Kaneko

• United States
• Indiana University
• Michael McRobbie (Co-Chair)
• Doug Pearson
• Steve Wallace
• Jim Williams
• Rick McMullen
• Dennis Gannon
• Karen Adams
• replacement for Allen Robel
• ATT
• To be determined
• STAR TAP
• Linda Winkler
• Management Liaison
• Steve Goldstein

3
a side note (from Tom Defanti)

• STAR TAP 2
• STAR TAP2 is the name of a funding proposal
• STAR TAP is the name of the project and facility

4
Milestones

• 1999
• Oct 4 SURFnet peering established
• Oct 3 IUCC peering established
• Sep 27 NORDUnet peering established
• Sept 21-24 APAN meetings in Canberra
• Sept 21 NSF year 2 funding approved
• Aug 19 STAR TAP layer 3 implemented
• Jul 28 CAnet II peering established
• Jul 22 6TAP peering established for JP and KR
• Jul 14 multicast MBGP/PIM-SM established
• Jun 22-25 INET99 CRL/IU demonstration of
  IEEE1394 DV/IP

5
Milestones

• 1999 (cont)
• Jun 17 Abilene peering established
• April 6 first HPIIS Team meeting
• Mar 22-26 GOIN99 TransPAC-based demonstrations
• Mar 14 bandwidth upgrade to 73Mbps
• Feb 08 multicast MBGP/PIM-DM established
• 1998
• Dec IPv6 APAN / WIDE peering with ESnet and
  vBNS
• Nov 25 APAN / ESnet peering
• Nov 24 APAN / NREN peering
• Nov 7-13 TransPAC-based iGrid demonstrations at
  SC98

6
Milestones

• 1998 (cont)
• Oct 23 APAN / vBNS peering
• Oct 18 24x7 IU TransPAC NOC operational
• Sep 21 NSF TransPAC 5-year award to IU
• Aug 18 IP routing KDD lt-gt IU via vBNS Downers
  Grove
• Jul 30 ATM service up APAN Tokyo XP to STAR TAP

7
Current Activities

• STAR TAP L3
• New peerings
• APAN Authorized Project Institutions
• Bandwidth upgrade
• Extended policy routing
• Application activities
• IU NOC activation for EuroLink and STAR TAP
• Network services testbeds

8
STAR TAP Layer 3

• STAR TAP provides optional Layer 3 peering
  service
• The TransPAC router and switched colocated at
  STAR TAP are now general STAR TAP resources
• Reduces the complexity of a large mesh of
  peerings
• Layer 2 services are still available for direct
  peering
• John Jamison is lead STAR TAP engineer
• IU NOC to provide STAR TAP NOC services

9
(No Transcript)
10
STAR TAP Architecture
CORAL
Cisco LS1010 ATM switch
APAN
OC3c
OC3c
OC3c
OC3c
OC3mon
Surveyor
Web Cache
Cisco 7505 (IPv4)
Cisco 7200 (IPv6)
AMP
Ethernet
11
Current APAN/TransPAC Peering

• vBNS exchange full AI routes
• NREN exchange full APAN-AI with NREN projects
• ESnet exchange full AI routes
• NISN exchange IMnet with NISN
• NORDUnet exchange full AI routes
• CAnet2 exchange full AI routes
• SURFnet exchange full AI routes
• IUCC exchange full AI routes
• Abilene exchange full AI routes
• Argonne exchange full AI routes

12
Count of Routes Advertised

• vBNS 303
• NREN 1
• ESnet 119
• NORDUnet 83
• CAnet2 152
• SURFnet 62
• IUCC 20
• Abilene 224
• Argonne 13

• APAN 53

13
APAN Institutions Currently Routed on
TransPACas of 09 October 1999

• Australia
• Cooperative Research Center, Advanced
  Computational Systems 150.203.198.0/24
• Japan
• Agency of Industrial Science and Technology
  (AIST) 150.18.0.0/16
• Agency of Industrial Science and Technology
  (AIST) 150.29.0.0/16
• Agency of Industrial Science and Technology
  (AIST) 150.82.0.0/16
• Agency of Industrial Science and Technology
  (AIST) 202.213.160.0/20
• Agriculture, Forestry and Fisheries Research
  Council (AFFRC) 150.26.0.0/16
• APAN JP Tokyo Exchange Point 203.181.248.0/24
• Communications Research Laboratory 202.249.37.0/2
  4
• Communications Research Laboratory
  (CRL) 133.243.0.0/16
• Electrotechnical Laboratory (ETL) 192.50.74.0/23
• Electrotechnical Laboratory (ETL) 192.50.76.0/23
• Japan Advanced Institute of Science and
  Technology (JAIST) 150.65.0.0/16

14
APAN Institutions Currently Routed on TransPAC

• Japan (continued)
• Japan Science and Technology Corporation
  (JST) 202.241.76.0/24
• Japan Science and Technology Corporation
  (JST) 210.146.66.0/24
• Keio University 131.113.0.0/16
• Keio University 133.27.0.0/16
• Keio University 203.178.136.0/21
• Keio University 203.178.148.0/25
• Kokusai Denshin Denwa Laboratory 192.26.91.0/24
• Kyoto University 130.54.0.0/16
• Kyoto University 133.3.0.0/16
• Nara Advanced Institute of Science and
  Technology (NAIST) 163.221.0.0/16
• National Cancer Center 160.190.0.0/16
• National Cardiovascular Center 202.241.88.0/22
• National Institute of Genetics 133.39.0.0
• National Space Development Agency of Japan
  (NASDA) 133.56.0.0/16
• National Space Development Agency of Japan
  (NASDA) 202.245.153.0/24

15
APAN Institutions Currently Routed on TransPAC

• Japan (continued)
• Osaka University 133.1.0.0/16
• Osaka University 192.50.0.0/21
• Real World Computing Partnership
  (RWCP) 163.220.0.0/16
• The Institute of Physical and Chemical Research
  (RIKEN) 134.160.0.0/16
• Tokyo Institute of Technology (TIT) 131.112.0.0/1
  6
• Universty of Tokyo 130.69.0.0/16
• Universty of Tokyo 133.11.0.0/16
• Universty of Tokyo 157.82.0.0/16
• Waseda University 133.9.0.0/16

16
APAN Institutions Currently Routed on TransPAC

• Korea
• APAN KR NOC 203.255.248.0/21
• Chungnam National University 203.255.248.0/21
• Ewha University 203.255.248.0/21
• Hanyang University 203.255.248.0/21
• Information and Communications
  University 203.255.248.0/21
• Inha University 203.255.248.0/21
• Korea Advanced Institute of Science and
  Technology (KAIST) 143.248.0.0/16
• Korea Advanced Institute of Science and
  Technology (KAIST) 192.249.24.0/24
• Korea Advanced Institute of Science and
  Technology (KAIST) 203.255.248.0/21
• Korean Meteorological Administration 203.255.248.
  0/21
• KORNET 203.232.126.0/24
• KORNET 203.232.127.0/24
• Kyungpook University 203.255.248.0/21
• Postech 203.255.248.0/21
• Seoul National University 147.46.0.0
• Seoul National University 203.255.248.0/21
• Soongsil University 203.255.248.0/21

17
APAN Institutions Currently Routed on TransPAC

• Singapore
• National University of Singapore 137.132.0.0/16
• Kent Ridge Digital Labs 192.122.131.0/24
• Kent Ridge Digital Labs 192.122.132.0/22
• Kent Ridge Digital Labs 192.122.136.0/22
• Kent Ridge Digital Labs 192.122.140.0/24
• Nanyang Technological University
  (NTU) 155.69.0.0/16
• National University of Singapore 137.132.0.0/16
• National University of Singapore 202.8.94.0/23
• Thailand
• Asian Institute of Technology (AIT) 192.41.170.0/
  24
• Asian Institute of Technology (AIT) 203.159.0.0/1
  6

18
APAN Authorized Project Institutions

• Annual renewal of AAI and API authorizations
  required by project proposal or annual report to
  APAN Allocation Committee.

19
Bandwidth of Link

• Original bandwidth 35Mbps
• NSF and JST funded
• Current bandwidth 73Mbps
• Upgraded March 14 1999
• JST funded upgrade
• 70Mbps HPIIS and 3Mbps commercial
• In progress - upgrade to 100Mbps
• No-cost upgrade negotiated with carriers ATT and
  KDD
• Target late November 1999

20
Extended Policy Routing

• Differences of routing permissions of AAI and API
  may require extended policy routing architecture.

21
Application Activities

• Full report of applications is available in the
  TransPAC Annual Report at http//www.transpac.org/
  documents.html

22
Application Activities - Demonstrations

• INET99 DV/IP Demonstration San Jose, June 99
• CRL and IU demonstration of IEEE1394 DV/IP
• Internet2 MegaConference Seattle, 11 October
  99
• Over 60 universities and organizations in H.323
  conference connected in a distributed system of
  11MCUs
• CEOS99 Stockholm, 10-11 Nov 99
• EO Data Search and Access using DIAL
• Distributed Solar Activity Prediction Model
• Real Time Teleseminar Discussion of TRMM Data
  Results
• Data Access and 3D Visualization via the WWW
  (VRML)

23
(No Transcript)
24
Application Activities - Demonstrations

• SC99 Portland, 13-19 Nov 99
• ETL demonstration of MJPEG video conferencing
  over ATM
• iGRID2000 Yokohama, 18-21 July 00
• Demonstrations?

25
Applications (selected interest)

• Keio University and University of Wisconsin
• Distance learning using DV/IPv6
• Proposal for TransPAC File System
• AFS cell dedicated for TransPAC projects

26
User Services

• Contacts
• JP Hiromasa Kaneko lth2kaneko_at_jst.go.jpgt
• AU Markus Buchhorn ltmarkus_at_acsys.anu.edu.augt
• KR Prof Yong-Jin Park ltpark_at_hyuee.hanyang.ac.krgt

• SG Dr. Francis Lee ltebslee_at_ntu.edu.sggt
• US Dr. Donald F. McMullen ltmcmullen_at_indiana.edu
  gt

27
Tracking Applications

• Authorizations to use TransPAC are granted for
  meritorious research and education applications
  and collaborations.
• The objective of TransPAC is to provide a basis
  for the development of next generation
  applications supporting international
  collaborations and enabling interaction with
  global information and experimental resources.

28
Tracking Applications

• The effectiveness measure of TransPAC is the
  degree of success in enabling these applications.
• Enabling, tracking and reporting of the
  applications is of primary importance.
• Dear Colleague letter used annually to contact
  the researchers for application status.

29
NOC

• IU NOC currently provides service for TransPAC
  and Abilene.
• IU NOC is gearing up to provide service for
  EuroLink and STAR TAP

30
Measurement

• MRTG used to monitor utilization
• Surveyor at IU, JP, KR and SG to be at STAR TAP
• OC3mon installed and operated by NLANR MOAT
• NLANR AMP to be installed at STAR TAP
• Unix host to be installed at STAR TAP
• Skitter running at JP and KR
• Multicast mSD and Markus summarizer
• Route monitoring tool under development
• Performance analysis of link to be performed

31
Utilization measured at TPS-STARTAP
Daily 10 October 99
Monthly 10 October 99
32
Utilization measured at TPS-STARTAP
Yearly 10 October 99
33
Testbeds

• Cache
• Operational in APAN
• Cache to be installed at STAR TAP
• Mutlicast / MBone
• Operational
• Experimentation with applications
• Monitoring considerations
• IPv6
• APAN / WIDE peering at the 6TAP

34
Testbeds

• QoS
• QoS routers to be installed by APAN-JP and STAR
  TAP
• H.323 video experiments to be conducted initially

35
Annual Report to the NSF

• TransPAC Organization and Management Committee
• Milestones
• Progress Report
• Attainment of HPIIS Objectives
• Collaboration and Application Testbeds
• Papers and Presentations
• Application Status Reports
• Performance Analysis Report
• Program Plan
• Appendixes Detail and Descriptions of
  Applications

36
Program Plan (Year 2) to NSF

• Core Network Service
• Pursue increased bandwidth
• Pursue additional peering with HPREN
• Cooperate with STAR TAP for STAR TAP L3 service
• NOC
• IU NOC to provide NOC service for STAR TAP and
  Eurolink
• Install measurement/management machine at STAR
  TAP
• Develop and implement NOC tools
• Web interface access to trouble tickets

37
Year 2 Program Plan to NSF

• User Services
• iGRID2000
• Annual census of the research and education users
• Database of project (application) information
• LFN tuning support for applications
• Support for high performance application users
• Improvement of user services web site/resources
• Newsletter-style communications to users
• Applications development and tuning workshop
• Web-based bandwidth reservation form

38
Year 2 Program Plan to NSF

• Application Collaborations and Demonstrations
• Web-based information about existing
  collaborations
• Direct end-user support for application
  development
• Foster new collaborations
• Sponsor and support demonstrations
• iGRID2000
• CEOS99
• I2DVN
• Advanced Application Testbeds
• Middleware - Globus

39
Year 2 Program Plan to NSF

• Advanced Network Services Testbeds
• Multicast
• Additional multicast interconnectivity
• Deploy tools for multicast monitoring and
  measurement
• QoS
• Participation in QBone
• Web-based resource request and reservation system
• IPv6
• Participation in 6REN/6TAP
• Cache
• Participate with STAR TAP for cache implementation

40
Year 2 Program Plan to NSF

• Performance Analysis and Measurement
• Published TransPAC performance analysis
• Surveyor installations
• Improved visualization and utilization of
  Surveyor reports
• Improved visualization and utilization of OC3mon
  statistics
• Human Resources
• Fill positions for additional TransPAC network
  engineer and high performance applications
  engineer

41
Year 2 Program Plan to NSF

• Web-based information
• Descriptive information regarding applications
  and collaborations
• Technical information regarding application
  performance and host tuning
• Performance reports including enhanced Surveyor
  and OC3mon reports
• Web accessible trouble ticket system
• HPIIS Team
• Close collaboration with other HPIIS teams
• Deploy collaboration tools including video
  conferencing

42

• This report will be available at
  http//www.transpac.org/meetings.html
