EMBAF

1

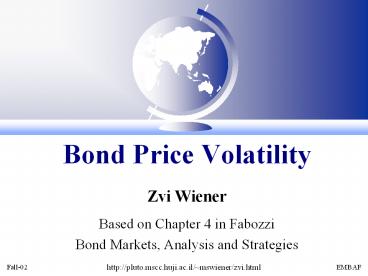

Bond Price Volatility

• Zvi Wiener
• Based on Chapter 4 in Fabozzi
• Bond Markets, Analysis and Strategies

2
You Open a Bank!

• You have 1,000 customers.
• Typical CD is for 1-3 months with 1,000.
• You pay 5 on these CDs.
• A local business needs a 1M loan for 1 yr.
• The business is ready to pay 7 annually.
• What are your major sources of risk?
• How you can measure and manage it?

3
Money Manager
value
0 t D
4
8 Coupon Bond
Zero Coupon Bond
5
Price-Yield for option-free bonds
price
yield
6
Taylor Expansion

• To measure the price response to a small change
  in risk factor we use the Taylor expansion.
• Initial value y0, new value y1, change ?y

7
Derivatives
F(x)
x
8
Properties of derivatives
9
Zero-coupon example
10
Example
y10, ?y0.5
T P0 P1 ?P 1 90.90 90.09 -0.45 2 82.64 81.16 -1
.79 10 38.55 35.22 -8.65
11
Property 1

• Prices of option-free bonds move in OPPOSITE
  direction from the change in yield.
• The price change (in ) is NOT the same for
  different bonds.

12
Property 2

• For a given bond a small increase or decrease in
  yield leads very similar (but opposite) changes
  in prices.
• What does this means mathematically?

13
Property 3

• For a given bond a large increase or decrease in
  yield leads to different (and opposite) changes
  in prices.
• What does this means mathematically?

14
Property 4

• For a given bond a large change in yield the
  percentage price increase is greater than the
  percentage decrease.
• What does this means mathematically?

15
What affects price volatility?

• Linkage
• Credit considerations
• Time to maturity
• Coupon rate

16
Bond Price Volatility

• Consider only IR as a risk factor
• Longer TTM means higher volatility
• Lower coupons means higher volatility
• Floaters have a very low price volatility
• Price is also affected by coupon payments
• Price value of a Basis Point (PVBP) price change
  resulting from a change of 0.01 in the yield.

17
Duration and IR sensitivity
18
Duration

• F. Macaulay (1938)
• Better measurement than time to maturity.
• Weighted average of all coupons with the
  corresponding time to payment.
• Bond Price Sum CFt/(1y)t
• suggested weight of each coupon
• wt CFt/(1y)t /Bond Price
• What is the sum of all wt?

19
Duration

• The bond price volatility is proportional to the
  bonds duration.
• Thus duration is a natural measure of interest
  rate risk exposure.

20
Modified Duration

• The percentage change in bond price is the
  product of modified duration and the change in
  the bonds yield to maturity.

21
Duration
22
Duration
23
Duration
24
Measuring Price Change
25
The Yield to Maturity

• The yield to maturity of a fixed coupon bond y is
  given by

26
Macaulay Duration

• Definition of duration, assuming t0.

27
Macaulay Duration
A weighted sum of times to maturities of each
coupon.

• What is the duration of a zero coupon bond?

28
Meaning of Duration
29
Parallel shift
r
T
30
Comparison of two bonds

• Coupon bond with duration 1.8853
• Price (at 5 for 6m.) is 964.5405
• If IR increase by 1bp
• (to 5.01), its price will fall to 964.1942, or
• 0.359 decline.

• Zero-coupon bond with equal duration must have
  1.8853 years to maturity.
• At 5 semiannual its price is
• (1,000/1.053.7706)831.9623
• If IR increase to 5.01, the price becomes
• (1,000/1.05013.7706)831.66
• 0.359 decline.

31
Duration
D
Zero coupon bond
15 coupon, YTM 15
Maturity
0 3m 6m 1yr 3yr 5yr 10yr 30yr
32
Example

• A bond with 30-yr to maturity
• Coupon 8 paid semiannually
• YTM 9
• P0 897.26
• D 11.37 Yrs
• if YTM 9.1, what will be the price?
• ?P/P - ?y D
• ?P -(?y D)P -9.36
• P 897.26 - 9.36 887.90

33
What Determines Duration?

• Duration of a zero-coupon bond equals maturity.
• Holding ttm constant, duration is higher when
  coupons are lower.
• Holding other factors constant, duration is
  higher when ytm is lower.
• Duration of a perpetuity is (1y)/y.

34
What Determines Duration?

• Holding the coupon rate constant, duration not
  always increases with ttm.

35
Convexity
36
Example

• 10 year zero coupon bond with a semiannual yield
  of 6

The duration is 10 years, the modified duration
is
The convexity is
37
Example
If the yield changes to 7 the price change is
38
FRM-98, Question 17

• A bond is trading at a price of 100 with a yield
  of 8. If the yield increases by 1 bp, the price
  of the bond will decrease to 99.95. If the yield
  decreases by 1 bp, the price will increase to
  100.04. What is the modified duration of this
  bond?
• A. 5.0
• B. -5.0
• C. 4.5
• D. -4.5

39
FRM-98, Question 17
40
FRM-98, Question 22

• What is the price of a 10 bp increase in yield on
  a 10-year par bond with a modified duration of 7
  and convexity of 50?
• A. -0.705
• B. -0.700
• C. -0.698
• D. -0.690

41
FRM-98, Question 22
42
Portfolio Duration

• Similar to a single bond but the cashflow is
  determined by all Fixed Income securities held in
  the portfolio.

43
Bond Price Derivatives

• D - modified duration, dollar duration is the
  negative of the first derivative

Dollar convexity the second derivative, C -
convexity.
44
Duration of a portfolio
45
ALM Duration

• Does NOT work!
• Wrong units of measurement
• Division by a small number

46
Duration Gap

• A - L C, assets - liabilities capital

47
ALM Duration

• A similar problem with measuring yield

48

• Do not think of duration as a measure of time!

49

• Key rate duration
• Principal component duration
• Partial duration

50
Very good question!

• Cashflow
• Libor in one year from now
• Libor in two years form now
• Libor in three years from now (no principal)
• What is the duration?

51
Home Assignment

• What is the duration of a floater?
• What is the duration of an inverse floater?
• How coupon payments affect duration?
• Why modified duration is better than Macaulay
  duration?
• How duration can be used for hedging?

52
Home AssignmentChapter 4

• Ch. 4 Questions 1, 2, 3, 4, 15.
• Calculate duration of a consul (perpetual bond).

53
End Ch. 4
54
Understanding of Duration/Convexity

• What happens with duration when a coupon is paid?
• How does convexity of a callable bond depend on
  interest rate?
• How does convexity of a puttable bond depend on
  interest rate?

55
Callable bond

• The buyer of a callable bond has written an
  option to the issuer to call the bond back.
• Rationally this should be done when
• Interest rate fall and the debt issuer can
  refinance at a lower rate.

56
Puttable bond

• The buyer of a such a bond can request the loan
  to be returned.
• The rational strategy is to exercise this option
  when interest rates are high enough to provide an
  interesting alternative.

57
Embedded Call Option
r
58
Embedded Put Option
regular bond
r
59
Convertible Bond
Payoff
Stock
60
Timing of exercise

• European
• American
• Bermudian
• Lock up time

61
Macaulay Duration
Modified duration
62
Bond Price Change
63
Duration of a coupon bond
64
Exercise

• Find the duration and convexity of a consol
  (perpetual bond).
• Answer (1y)/y.

65
FRM-98, Question 29

• A and B are perpetual bonds. A has 4 coupon, and
  B has 8 coupon. Assume that both bonds are
  trading at the same yield, what can be said about
  duration of these bonds?
• A. The duration of A is greater than of B
• B. The duration of A is less than of B
• C. They have the same duration
• D. None of the above

66
FRM-97, Question 24

• Which of the following is NOT a property of bond
  duration?
• A. For zero-coupon bonds Macaulay duration of the
  bond equals to time to maturity.
• B. Duration is usually inversely related to the
  coupon of a bond.
• C. Duration is usually higher for higher yields
  to maturity.
• D. Duration is higher as the number of years to
  maturity for a bond selling at par or above
  increases.

67
FRM-99, Question 75

• You have a large short position in two bonds with
  similar credit risk. Bond A is priced at par
  yielding 6 with 20 years to maturity. Bond B has
  20 years to maturity, coupon 6.5 and yield of
  6. Which bond contributes more to the risk of
  the portfolio?
• A. Bond A
• B. Bond B
• C. A and B have similar risk
• D. None of the above

68
Portfolio Duration and Convexity

• Portfolio weights

69
Example

• Construct a portfolio of two bonds A and B to
  match the value and duration of a 10-years, 6
  coupon bond with value 100 and modified duration
  of 7.44 years.
• A. 1 year zero bond - price 94.26
• B. 30 year zero - price 16.97

70

• Barbel portfolio consists of very short and very
  long bonds.
• Bullet portfolio consists of bonds with similar
  maturities.
• Which of them has higher convexity?

71
FRM-98, Question 18

• A portfolio consists of two positions. One is
  long 100 of a two year bond priced at 101 with a
  duration of 1.7 the other position is short 50
  of a five year bond priced at 99 with a duration
  of 4.1. What is the duration of the portfolio?
• A. 0.68
• B. 0.61
• C. -0.68
• D. -0.61

72
FRM-98, Question 18
Note that 100 means notional amount and can be
misunderstood.
73
Useful formulas
74
Volatilities of IR/bond prices

• Price volatility in End 99 End 96
• Euro 30d 0.22 0.05
• Euro 180d 0.30 0.19
• Euro 360d 0.52 0.58
• Swap 2Y 1.57 1.57
• Swap 5Y 4.23 4.70
• Swap 10Y 8.47 9.82
• Zero 2Y 1.55 1.64
• Zero 5Y 4.07 4.67
• Zero 10Y 7.76 9.31
• Zero 30Y 20.75 23.53

75
Duration approximation

• What duration makes bond as volatile as FX?
• What duration makes bond as volatile as stocks?
• A 10 year bond has yearly price volatility of 8
  which is similar to major FX.
• 30-year bonds have volatility similar to equities
  (20).

76
Volatilities of yields

• Yield volatility in , 99 ?(?y/y) ?(?y)
• Euro 30d 45 2.5
• Euro 180d 10 0.62
• Euro 360d 9 0.57
• Swap 2Y 12.5 0.86
• Swap 5Y 13 0.92
• Swap 10Y 12.5 0.91
• Zero 2Y 13.4 0.84
• Zero 5Y 13.9 0.89
• Zero 10Y 13.1 0.85
• Zero 30Y 11.3 0.74
