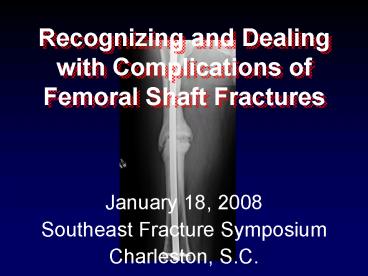

Recognizing and Dealing with Complications of Femoral Shaft Fractures

1
Recognizing and Dealing with Complications of
Femoral Shaft Fractures

• January 18, 2008
• Southeast Fracture Symposium
• Charleston, S.C.

2
Objectives

• Common Complications of IM Nailing
• Patient related - Pulmonary
• Malunions
• Nonunions
• Infection
• Solutions
• Literature
• Personal

3
Why ?

• Common procedure treatment of choice
• complacency
• Locking allowed extension of technique
• Leads to more difficult fractures nailed
• Medical legal
• AAOS survey IM nail complications most common
  for suits filed

4
Pulmonary Problems and Reaming

• 1980s - recognition that reaming created ?
  embolic phenomemon Christie
• 1990s - reamed nails in patients with chest
  trauma ? mortality Pape
• Great controversy Europe vs USA
• Research into reaming

5
Reaming Solutions

• All reamers are now deep fluted with thin drive
  shafts but no speed change
• Reamer Irrigator Aspirator (RIA)
• Bilateral tibias, femurs
• ? Pulmonary compromise chest injury, CXR, ?PaO2

6
Patient Care Solutions

• Unreamed Nails - probably not effective COTS
• Bosse plate vs reamed nail study
• Minimally invasive plating
• Relative stability with locking internal fixators
• ? for unstable patient

More awareness by surgeons M.I.P chest/shock
Bilateral femurs or tibias ? Better intraop
and post op monitoring ( pulse oximetry on
wards x 24 hours)
7
Malunions

• Recognition
• History
• Functional deficit
• Cosmetic problem
• Pain

8

• 38 year old male
• 8 yrs after fracture with diffuse aching thigh
  pain with activity
• Limits ability to work at heavy labor or sports

9
Malunions

• Recognition
• History
• Functional deficit
• Cosmetic problem
• Pain
• Physical
• Inspection
• Gait
• LLD and rotation
• LLD gt 1 2 cm, must be symptomatic
• Rotation must get past neutral

10
Prevention

• Do it right the first time !

11
Leg Length Discrepancy

• Fracture pattern related - Complex (C1, C3)
  length unstable
• Acceptable limit lt 1.5 cm
• Most commonly a result of poor reduction
• Rare to see as post op complication unless
  unlocked

12
Solutions Length

• Technique of assuring equal leg lengths
• Measurement of opposite femur not leg
• Maintaining reduction with fracture table or
  distractor
• Bilateral fracture make equal
• Static locking
• Postop check in OR
• In post op period, do CT scan to determine
  alignment
• Adequate History

13
Rotation

• Commonest cause of legal problems
• Most difficult to avoid
• Do not need to be perfectly equal
• assure both internal and external rotation are
  equal

14
Solutions Rotation

• Vigilance to detail
• Fracture table sets rotation pre op
• Lateral Decubitus on fracture table tends to ?
  internal rotation
• No fracture table - requires a method to
  maintain rotation
• Always lock both ends Brumback

15
Solutions Rotation

• Vigilance to detail
• Surface anatomical method
• Skin creases, patella 10 - 15 ext rotation
• Confirm by radiological techniques
• Check at beginning and end of procedure
• If in post op period do CT

16
Technique

• Assess rotation on normal leg
• Knee flexed, extended

Foot progression angle
17
Solutions Rotation

• Confirm by radiological techniques
• Width of cortices in each fragment
• Anteversion condylar axis

18
Malunions

• Management

19
Leg Length Discrepancy

• Symptomatic (gt2cm), most are short
• Lengthening
• Up to 5 cm acute (distractor, table)
• gt5 cm progressive lengthening
• Osteotomies
• Step cut
• Oblique
• Transverse (closed osteotomy technique static
  locked IM nail)

Plate and bone graft
20
22 yr old female with femoral shaft fracture
treated with expandable nailLLD 2.5cmlimp, does
not want lift or shortening
21
Rotational Malunions

• Closed intramedullary osteotomy technique

Varus Valgus Malunions

• Usually in metaphyseal regions after nailing
• Improper reductions, malposition of guide wire
• Usually requires open osteotomy and plate
  fixation

22
Case Example varus- flexion deformity
23
Non Unions

• Uncommon lt 5
• Usually 6 months to 9 months wait
• Femur - exchange nail plus bone graft unless
  hypertrophic non union

24
Exchange Nailing

• Removal of nail, reaming to larger size(2mm) and
  insertion of larger nail
• Biology ? periosteal blood supply ? new bone
  formation, ? Reaming debris
• Mechanical ? stability by larger nail, more
  cortical contact and more locking screws

25
Exchange Nail
26
Results Exchange Nailing

• Webb 96 success for non unions treated with nail
• 49 were exchange nails no data available on
  these
• Rest of the literature
• 108 cases, 83 united with one exchange nail 77
• 4 months to heal
• Hak, Weresh, Pihlajamaki, Banaszkiewicz

27
Exchange nail

• Bone graft - gt 30 to 50 cortical defects
• - after multifragmented
  fracture
• - open procedure to correct
  deformity
• Supplemental locked plate graft
• Plate controls rotational instability
• Failure of first may exchange again but bone
  graft

28
Oligotrophic Non union
Post op
Pre op
29
Oligotrophic Non union
6 Months
Exchange Nail Graft
30
Oligotrophic Non union
6 months sp Ex Nail Graft
3 months sp Plate Graft
31
Infections

• Uncommon for closed fractures
• More common in nailed open fractures
• If lt 3 months and nail stable debride fracture
  site, IV antibiotics X 6 weeks and bone graft if
  needed at 6 - 12 weeks

32
Chronic Infected Non Union

• If gt 3months , infection not draining
• remove nail, ream canal,
• renail /-graft
• antibiotics (suppressive)

33
Chronic Infected Non Union

• If gt 3months and draining
• - remove nail, ream canal,
• - debride soft tissue and bone
• - obtain stability ex fix or traction
• - antibiotics per cultures (antibiotic PMMA)
• - when drainage stopped , soft tissues OK,
  labs normalizing may reamed nail /- bone graft
• - suppressive antibiotics till union

34
Cove, J.A. JOT 11513 520, 1997
35
Summary

• Complications are uncommon
• Mal unions - Prevention is the best cure!
• Non unions need appropriate assessment and
  consideration for graft
• Infections don't delay can become a problem
