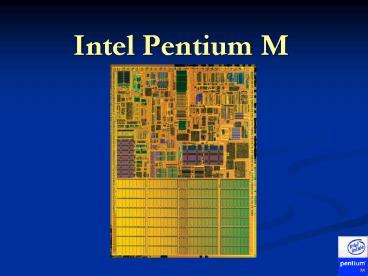

Intel Pentium M

1
Intel Pentium M
2
Outline

• History
• P6 Pipeline in detail
• New features
• Improved Branch Prediction
• Micro-ops fusion
• Speed Step technology
• Thermal Throttle 2
• Power and Performance

3
Quick Review of x86

• 8080 - 8-bit
• 8086/8088 - 16-bit (8088 had 8-bit external data
  bus) - segmented memory model
• 286 - introduction of protected mode, which
  included segment limit checking,
  privilege levels, read- and exe-only segment
  options
• 386 - 32-bit - segmented and flat memory
  model - paging
• 486 - first pipeline - expanded the 386's ID
  and EX units into five-stage pipeline - first
  to include on-chip cache - integrated x87 FPU
  (before it was a coprocessor)
• Pentium (586) - first superscalar - included
  two pipelines, u and v - virtual-8086 mode
  - MMX soon after
• Pentium Pro (686 or P6) - three-way superscalar
  - dynamic execution - out-of-order execution,
  branch prediction, speculative execution -
  very successful micro-architecture
• Pentium 2 and 3 - both P6
• Pentium 4 - new NetBurst architecture
• Pentium M - enhanced P6

4
Pentium Pro Roots

• NexGen 586 (1994)
• Decomposes IA32 instructions into
  simplerRISC-like operations (R-ops or micro-ops)
• Decoupled Approach
• NexGen bought by AMD
• AMD K5 (1995) also used micro-ops
• Intel Pentium Pro
• Intels first use of decoupled architecture

5
Pentium-M Overview

• Introduced March 12, 2003
• Initially called Banias
• Created by Israeli team
• Missed deadline by less than 5 days
• Marketed with Intels Centrino Initiative
• Based on P6 microarchitechture

6
P6 Pipeline in a Nutshell

• Divided into three clusters (front, middle, back)
• In-order Front-End
• Out-of-order Execution Core
• Retirement
• Each cluster is independent
• I.e. if a mispredicted branch is detected in the
  front-end, the front-end will flush and retch
  from the corrected branch target, all while the
  execution core continues working on previous
  instructions

7
P6 Pipeline in a Nutshell
8
(No Transcript)
9
P6 Front-End

• Major units IFU, ID, RAT, Allocator, BTB, BAC
• Fetching (IFU)
• Includes I-cache, I-streaming cache, ITLB, ILD
• No pre-decoding
• Boundary markings by instruction-length decoder
  (ILD)
• Branch Prediction
• Predicted (speculative) instructions are marked
• Decoding (ID)
• Conversion of instructions (macro-ops) into
  micro-ops
• Allocation of Buffer Entries RS, ROB, MOB

10
P6 Execution Core

• Reservation Station (RS)
• Waiting micro-ops ready to go
• Scheduler
• Out-of-order Execution of micro-ops
• Independent execution units (EU)
• Must be careful about out-of-order memory access
• Memory ordering buffer (MOB) interfaces to the
  memory subsystem
• Requirements for execution
• Available operands, EU, and write-back bus
• Optimal performance

11
P6 Retirement

• In-order updating of architected machine state
• Re-order buffer (ROB)
• Micro-op retirement all or none
• Architecturally illegal to retire only partof an
  IA-32 instruction
• In-ordering handling of exceptions
• Legal to handle mid-execution, but illegalto
  handle mid-retirement

12
PM Changes to P6

• Most changes made in P6 front-end
• Added and expanded on P4 branch predictor
• Micro-ops fusion
• Addition of dedicated stack engine
• Pipeline length
• Longer than P3, shorter than P4
• Accommodates extra features above

13
PM Changes to P6, cont.

• Intel has not released the exact length of the
  pipeline.
• Known to be somewhere between the P4 (20
  stage)and the P3 (10 stage). Rumored to be 12
  stages.
• Trades off slightly lower clock frequencies (than
  P4) for better performance per clock, less branch
  prediction penalties,

14
Blue Man Group Commercial Break
15
Banias

• 1st version
• 77 million transistors, 23 million more than P4
• 1 MB on die Level 2 cache
• 400 MHz FSB (quad pumped 100 MHZ)
• 130 nm process
• Frequencies between 1.3 1.7 GHz
• Thermal Design Point of 24.5 watts

http//www.intel.com/pressroom/archive/photos/cent
rino.htm
16
Dothan

• Launched May 10, 2004
• 140 million transistors
• 2 MB Level 2 cache
• 400 or 533 MHz FSB
• Frequencies between 1.0 to 2.26 GHz
• Thermal Design Point of 21(400 MHz FSB) to 27
  watts

http//www.intel.com/pressroom/archive/photos/cent
rino.htm
17
Dothan cont.

• 90 nm process technology on 300 mm wafer.
• Provide twice the capacity of the 200 mm while
  the process dimensions double the transistor
  density
• Gate dimensions are 50nm or approx half the
  diameter if the influenza virus
• P and n gate voltages are reduced by enhancing
  the carrier mobility of the Si lattice by 10-20
• Draws less than 1 W average power

18
Bus

• Utilizes a split transaction deferred reply
  protocol
• 64-bit width
• Delivers up to 3.2 Gbps (Banis) or 4.2 Gbps
  (Dothan) in and out of the processor
• Utilizes source synchronous transfer of addresses
  and data
• Data transferred 4 times per bus clock
• Addresses can be delivered times per bus clock

19

• Bus update in Dothan
• http//www.intel.com/technology/itj/2005/volume09i
  ssue01/art05_perf_power

20
L1 Cache

• 64KB total
• 32 K instruction
• 32 K data (4 times P4M)
• Write-back vs. write-through on P4
• In write-through cache, data is written to both
  L1 and main memory simultaneously
• In write-back cache, data can be loaded without
  writing to main memory, increasing speed by
  reducing the number of slow memory writes

21
L2 cache

• 1 2 MB
• 8-way set associative
• Each set is divided into 4 separate power
  quadrants.
• Each individual power quadrant can be set to a
  sleep mode, shutting off power to those quadrants
• Allows for only 1/32 of cache to be powered at
  any time
• Increased latency vs. improved power consumption

22
Prefetch

• Prefetch logic fetches data to the level 2 cache
  before L1 cache requests occur
• Reduces compulsory misses due to an increase of
  valid data in cache
• Reduces bus cycle penalties

23
Schedule

• P6 Pipeline in detail
• Front-End
• Execution Core
• Back-End
• Power Issues
• Intel SpeedStep
• Testing the Features
• x86 system registers
• Performance Testing

24
P6 Front-end Instruction Fetching

• IA-32 Memory Management
• Classic segmented model (cannot be disabled in
  protected mode)
• Separation of code, data, and stack into
  "segments
• Optional paging
• Segments divided into pages (typically 4KB)
• Additional protection to segment-protection
• I.e. provides read-write protection on a
  page-by-page basis
• Stage 11 (stage 1) - Selection of address for
  next I-cache access
• Speculation address chosen from competing
  sources (i.e. BTB, BAC, loop detector, etc.)
• Calculation of linear address from logical
  (segment selector offset)
• Segment selector index into a table of segment
  descriptors, which include base address, size,
  type, and access right of the segment
• Remember only six segment selectors, so only six
  usable at a time
• 32-bit code nowadays uses flat model, so OS can
  make do with only a few (typically four) segments
• IFU chooses address with highest priority and
  sends it to stage two

25
P6 Front-end Instruction Fetching

• Stage 12-13 - Accessing of caches
• Accesses instruction caches with address
  calculated in stage one
• Includes standard cache, victim cache, and
  streaming buffer
• With paging, consults ITLB to determine physical
  page number (tag bits)
• Without paging, linear address from stage one
  becomes physical address
• Obtains branch prediction from branch target
  buffer (BTB)
• BTB takes two cycles to complete one access
• Instruction boundary (ILD) and BTB markings
• Stage 14 - Completion of instruction cache access
• Instructions and their marks are sent to
  instruction buffer or steered to ID

26
P6 Front-end Instruction Fetching
27
P6 Front-end Instruction Decoding

• Stage 15-16 - Decoding of IA32 Instructions
• Alignment of instruction bytes
• Identification of the ends of up to three
  instructions
• Conversion of instructions into micro-ops
• Stage 17 - Branch Decoding
• If the ID notices a branch that went unpredicted
  by the BTB (i.e. if the BTB had never seen the
  branch before), flushes the in-order pipe, and
  re-fetches from the branch target
• Branch target calculated by BAC
• Early catch saves speculative instructions from
  being sent through the pipeline
• Stage 21 - Register Allocation and Renaming
• Synonymous with stage 17 (a reminder of
  independent working units)
• Allocator used to allocate required entries in
  ROB, RS, LB, and SB
• Register Alias Table (RAT) consulted
• Maps logical sources/destinations to physical
  entries in the ROB (or sometimes RRF)
• Stage 22 Completion of Front-End
• Marked micro-ops are forwarded to RS and ROB,
  where theyawait execution and retirement,
  respectively.

28
P6 Front-end Instruction Decoding
29
Register Alias Table Introduction

• Provides register renaming of integer and
  floating-point registers and flags
• Maps logical (architected) entries to physical
  entries usually in the re-order buffer (ROB)
• Physical entries are actually allocated by the
  Allocator
• The physical entry pointers become a part of the
  micro-ops overall state as it travels through
  the pipeline

30
RAT Details

• P6 is 3-way super-scalar, so the RAT must be able
  to rename up to six logical sources per cycle
• Any data dependences must be handled
• Ex op1) ADD EAX, EBX, ECX (dest. EAX) op2)
  ADD EAX, EAX, EDX
• op3) ADD EDX, EAX, EDX
• Instead of making op2 wait for op1 to retire, the
  RAT provides data forwarding
• Same case for op3, but RAT must make sure that it
  gets the result from op2 and not op1

31
RAT Implementation Difficulties

• Speculative Renaming
• Since speculative micro-ops flow by, the RAT must
  be able to undo its mappings in the case of a
  branch misprediction
• Partial-width register reads and writes
• Consider a partial-width write followed by a
  larger-width read
• Data required by the read is an assimilation of
  multiple previous writes to the register to
  make sure, RAT must stall the pipeline
• Retirement Overrides
• Common interaction between RAT and ROB
• When a micro-op retires, its ROB entry is removed
  and its result may be latched into an architected
  destination register
• If any active micro-ops source the retired ops
  destination, they must not reference the outdated
  ROB entry
• Mismatch stalls
• Associated with flag renaming

32
The Allocator

• Works in conjunction with RAT to allocate
  required entries
• In each cycle, assumes three ROB, RS, and LB and
  two SB entries
• Once micro-ops arrive, it determines how many
  entries are really needed
• ROB Allocation
• If three entries arent available the allocator
  will stall
• RS Allocation
• A bitmap is used to determine which entries are
  free
• If the RS is full, pipeline is stalled
• RS must make sure valid entries are not
  overwritten
• MOB Allocation
• Allocation of LB and SB entries also done by
  allocator

33
PM Changes to P6 Front-End

• Micro-op fusion
• Dedicated Stack Engine
• Enhanced branch prediction
• Additional stages
• Intels secret
• Most likely required for extra functionality
  above

34
Micro-ops Fusion

• Fusion of multiple micro-ops into one micro-op
• Less contention for buffer entries
• Similarity to SIMD data packing
• Two examples of fusion from Intel documentation
• IA32 load-and-operate and store instructions
• Not known for certain whether these are the only
  cases of fusion
• Possibly inspired by MacroOps used in K7 (Athlon)

35
Dedicated Stack Engine

• Traditional out-of-order implementations update
  the Stack Pointer Register (ESP) by sending a µop
  to update the ESP register with every stack
  related instruction
• Pentium M implementation
• A delta register (ESPD) is maintained in the
  front end
• A historic ESP (ESPO) is then kept in the
  out-of-order execution core
• Dedicated logic was added to update the ESP by
  adding the ESPO with the ESPD

36
Improvements

• The ESPO value kept in the out-of-order machine
  is not changed during a sequence of stack
  operations, this allows for more parallelism
  opportunities to be realized
• Since ESPD updates are now done by a dedicated
  adder, the execution unit is now free to work on
  other µops and the ALUs are freed to work on
  more complex operations
• Decreased power consumption since large adders
  are not used for small operations and the
  eliminated µops do not toggle through the machine

• Approximately 5 of the µops have been eliminated

37
Complications

• Since the new adder lives in the front end all of
  its calculations are speculative. This
  necessitates the addition of recovery table for
  all values of ESPO and ESPD
• If the architectural value of ESP is needed
  inside of the out-of-order machine the decode
  logic then needs to insert a µop that will carry
  out the ESP calculation

38
Branch Prediction

• Longer pipelines mean higher penalties for
  mispredicted branches
• Improvements result in added performance and
  hence less energy spent per instruction retired

39
Branch Prediction in Pentium M

• Enhanced version of Pentium 4 predictor
• Two branch predictors added that run in tandem
  with P4 predictor
• Loop detector
• Indirect branch detector
• 20 lower misprediction rate than PIII resulting
  in up to 7 gain in real performance

40
Branch Prediction
Based on diagram found here http//www.cpuid.org/
reviews/PentiumM/index.php
41
Loop Detector

• A predictor that always branches in a loop will
  always incorrectly branch on the last iteration
• Detector analyzes branches for loop behavior
• Benefits a wide variety of program types

http//www.intel.com/technology/itj/2003/volume07i
ssue02/art03_pentiumm/p05_branch.htm
42
Indirect Branch Predictor

• Picks targets based on global flow control
  history
• Benefits programs compiled to branch to
  calculated addresses

http//www.intel.com/technology/itj/2003/volume07i
ssue02/art03_pentiumm/p05_branch.htm
43
Reservation Station

• Used as a store for µops to wait for their
  operands and execution units to become available
• Consists of 20 entries
• Control portion of the entry can be written to
  from one of three ports
• Data portion can be written to from one of 6
  available ports
• 3 for ROB
• 3 for EU write backs
• Scheduler then uses this to schedule up to 5 µops
  at a time
• During pipeline stage 31 entries that are ready
  for dispatch are then sent to stage 32

44
Cancellation

• Reservation Station assumes that all cache
  accesses will be hits
• In the case of a cache miss micro-ops that are
  dependant on the write-back data need to be
  cancelled and rescheduled at a later time
• Can also occur due to a future resource conflict

45
Retirement

• Takes 2 clock cycles to complete
• Utilizes reorder buffer (ROB) to control
  retirement or completion of µops
• ROB is a multi-ported register file with separate
  ports for
• Allocation time writes of µop fields needed at
  retirement
• Execution Unit write-backs
• ROB reads of sources for the Reservation Station
• Retirement logic reads of speculative result data
• Consists of 40 entries with each entry 157 bits
  wide
• The ROB participates in
• Speculative execution
• Register renaming
• Out-of-order execution

46
Speculative Execution

• Buffers results of the execution unit before
  commit
• Allows maximum rate for fetch and execute by
  assuming that branch prediction is perfect and no
  exceptions have occurred
• If a misprediction occurs
• Speculative results stored in the ROB are
  immediately discarded
• Microengine will restart by examining the
  committed state in the ROB

47
Register Renaming

• Entries in the ROB that will hold the results of
  speculative µops are allocated during stage 21 of
  the pipeline
• In stage 22 the sources for the µops are
  delivered based upon the allocation in stage 21.
• Data is written to the ROB by the Execution Unit
  into the renamed register during stage 83

48
Out-of-order Execution

• Allows µops to complete and write back their
  results without concern for other µops executing
  simultaneously
• The ROB reorders the completed µops into the
  original sequence and updates the architectural
  state
• Entries in ROB are treated as FIFO during
  retirement
• µops are originally allocated in sequential order
  so the retirement will also follow the original
  program order
• Happens during pipeline stage 92 and 93

49
Exception Handling

• Events are sent to the ROB by the EU during stage
  83
• Results sent to the ROB from the Execution Unit
  are speculative results, therefore any exceptions
  encountered may not be real
• If the ROB determines that branch prediction was
  incorrect it inserts a clear signal at the point
  just before the retirement of this operation and
  then flushes all the speculative operations from
  the machine
• If speculation is correct, the ROB will invoke
  the correct microcode exception handler
• All event records are saved to allow the handler
  to repair the result or invoke the correct macro
  handler
• Pointers for the macro and micro instructions are
  also needed to allow the program to resume after
  completion by the event handler
• If the ROB retires an operation that faults, both
  the in-order and out-of-order sections are
  cleared. This happens during pipeline stages 93
  and 94

50
Memory Subsystem

• Memory Ordering Buffer (MOB)
• Execution is out-of-order, but memory accesses
  cannot just be done in any order
• Contains mainly the LB and the SB
• Speculative loads and stores
• Not all loads can be speculative
• I.e. a memory-mapped I/O ld could have
  unrecoverable side effects
• Stores are never speculative (cant get back
  overwritten bits)
• But to improve performance, stores are queued in
  the store buffer (SB) to allow pending loads to
  proceed
• Similar to a write-back cache

51
Schedule

• P6 Pipeline in detail
• Front-End
• Execution Core
• Back-End
• Power Issues
• Intel SpeedStep
• Testing the Features
• x86 system registers
• Performance Testing

52
Power Issues

• Power use a C V2 F
• a activity factor
• C effective capacitance
• V voltage
• F operating frequency
• Power use can be reduced linearly by lowering
  frequency and capacitance and quadratically by
  scaling voltage

53
Mobile Use

• Mobile is bursty full power is only necessary
  for brief periods
• Intel developed SpeedStep technology to take
  advantage of this fact and reduce power
  consumption during periods of inactivity

http//www.intel.com/technology/itj/2003/volume07i
ssue02/art05_power/p05_thermal.htm
54
SpeedStep I and II

• SpeedStep I and II used in previous generations
• Only two states
• High performance (High frequency mode)
• Lower power use (Low frequency mode)
• Problems
• Slow transition times
• Limited opportunity for optimization

55
Pentium M Goals

• Optimize for performance when plugged in
• Optimize for long battery-life when unplugged

56
SpeedStep III

• Optimized to fix limitations of previous
  generations
• Three innovations
• Voltage-Frequency switching separation
• Clock partitioning and recovery
• Event blocking

The 6 states of the Pentium M 1,6GHz
57
Voltage-Frequency switching separation

• Voltage scaling is stepped up and down
  incrementally
• This prevents clock noise and allows the
  processor to remain responsive during transition
• Once voltage target is reached, frequency is
  throttled

http//www.intel.com/technology/itj/2003/volume07i
ssue02/art03_pentiumm/p10_speedstep.htm
58
Clock partitioning and recovery

• During transition, only the core clock and
  phase-locked-loop are stopped
• This keeps logic active even while the clock is
  stopped

http//www.intel.com/technology/itj/2003/volume07i
ssue02/art03_pentiumm/p10_speedstep.htm
59
Event blocking

• To prevent loss of events during frequency and
  voltage scaling when the core clock is stopped,
  interrupts, pin events, and snoop requests are
  sampled and saved
• These events are retransmitted once the core
  clock becomes available

http//www.intel.com/technology/itj/2003/volume07i
ssue02/art03_pentiumm/p10_speedstep.htm
60
Leakage

• Transistors in off state still draw current
• As transistors shrink and clock speed increases,
  transistors leak more current causing higher
  temperatures and more power use

61
Strained Silicon
http//www.research.ibm.com/resources/press/strain
edsilicon/
62
Benefits of Strained Silicon

• Electrons flow up to 70 faster due to reduced
  resistance
• This leads to chips which are up to 35 faster,
  without decrease in chip size
• Intels "uni-axial" strained silicon process
  reduces leakage by at least five times without
  reducing performance the 65nm process will
  realize another reduction of at least four times

63
High-K Transistor Gate Dielectric (coming soon)

• The dielectric used since the 1960s, silicon
  dioxide, is so thin now that leakage is a
  significant problem
• A high-k (high dielectric constant) material has
  been developed by Intel to replace silicon
  dioxide
• This high-k material reduces leakage by a factor
  of 100 below silicon dioxide

64
More Advances to Expect

• Continued lowering of capacitance has helped
  reduce power consumption
• Tri-gate transistors decreases leakage by
  increasing the amount of surface area for
  electrons to flow through

65
Schedule

• P6 Pipeline in detail
• Front-End
• Execution Core
• Back-End
• Power Issues
• Intel SpeedStep
• Testing the Features
• x86 system registers
• Performance Testing

66
x86 System Registers

• EFLAGS
• Various system flags
• CPUID
• Exposes type and available features of processor
• Model Specific Registers (MSRs)
• rdmsr and wrmsr
• Examples
• Enabling/Disabling SpeedStep
• Determining and changing voltage/frequency points
• More

67
Performance Testing

• P4 2.2GHz vs. PM 1.6GHz

68
Benchmark
69
Battery Life
70
Pentium M vs AMD Turion
71
(No Transcript)
72
Gaming
73
Battery Life
74
Future Processors

• Yonah
• Dual-core processor
• Manufactured on a 65 nm process
• Starting at 2.16GHz with a 667 MHz FSB (166MHz
  quad-pumped)
• Shared 2MB L2 cache
• Increased floating point performance with SSE3
  instructions
• Merom
• Based on EM64T ISA
• Consume 0.5 W of power, half of what the Dothan
  consumes
• Possibility of laptops with 10 hours of battery
  life
