Title: Plant Layout and Material Handling Spring 2002


1

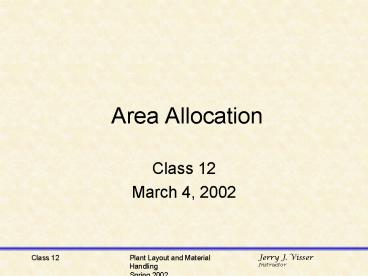

Area Allocation
  • Class 12
  • March 4, 2002

2
Todays Topics
  • Review quiz 11
  • Review Class Schedule
  • Class Lecture
  • Quiz 12

3
Quiz 11
  • Office topics
  • Questions?

4
Area Allocation
  • Space Requirements Planning
  • Building Size Determination
  • Dimensionless Block Diagram
  • Area Allocation Procedure
  • Office Area Allocation

5
Space Requirements Planning
  • Total Space Requirements Worksheet
  • Consider the cube
  • Under the floor
  • Overhead
  • Clear space (8 to ceiling)
  • Truss level
  • Roof

6
Total Space Requirements
7
Building Size Determination
  • My example shows I need 433 sq ft
  • 2 to 1 length to width desirable
  • Divide total by 2 and then sq root
  • Round up to 25
  • 25 X 50 area

8
Dimensionless block diagram
A
E
1 Viper XDesk
Alcohol Wash
Post Cure Apparatus
Flammable Storage
I
O
9
Area Allocation Procedure
  • Establish 2 to 1 area grid
  • Number of blocks 400 sq ft (20X20)
  • Can be smaller blocks if appropriate
  • Assign block based on Dimensionless Block Diagram
  • Layout with internal boundaries
  • This is actual scale layout. Doesnt have to fit
    perfect square blocks.

10
1.Establish Grid
Viper
Flammable Storage
Sink
Network Server
Post Cure Apparatus
Alcohol Wash
Desks
3D Printer
Depowder Station
Conference Table
Storage
11
2.RP Example ( of blocks)
12
3.Assigning blocks
13
Office Area Allocation
  • Same as before, just with office.
  • Smaller plant layouts can incorporate
    manufacturing with office together.

14
Quiz 12
