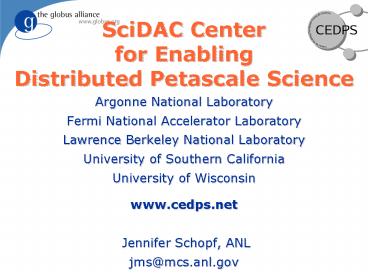

SciDAC Center for Enabling Distributed Petascale Science

1
SciDAC Center for Enabling Distributed
Petascale Science

• Argonne National Laboratory
• Fermi National Accelerator Laboratory
• Lawrence Berkeley National Laboratory
• University of Southern California
• University of Wisconsin
• www.cedps.net
• Jennifer Schopf, ANL
• jms_at_mcs.anl.gov

2
The Petascale Data Challenge
U
U
U

• DOE facilities generatemany petabytes of data(2
  petabytes all U. S. academic research
  libraries!)

Remotedistributed users
U
U

• Remote users (at labs universities, industry)
  need data!

U
Massive data
U

• Rapid, reliable accesskey to maximizingvalue of
  B facilities

U
DOE facilities
3
Bridging the Divide (1)Move Data to Users When
Where Needed
A
Deliver this 100 Terabytes to locations A, B,
C by 9am tomorrow
B
C

• Fast gt10,000x faster thanusual Internet

• Reliable recoverfrom many failures
• Predictable data arrives when scheduled
• Secure protect expensive resources data
• Scalable deal with manyusers much data

4
Bridging the Divide (2)Allow Users to Move
ComputationNear Data
A
Perform mycomputation F ondatasets X, Y, Z

• Science servicesprovide analysisfunctions
  neardata source

• Flexible easyintegration of functions
• Secure protect expensive resources data
• Scalable deal with manyusers much data

X
F
Y
Z
5
Bridging the Divide (3)Troubleshoot
End-to-EndProblems
A
Why did my datatransfer (or remoteoperation)
fail?
B
C

• Identify diagnose failures performanceproblem
  s

• Instrument includemonitoring points inall
  system components
• Monitor collect data inresponse to problems
• Diagnose identify thesource of problems

6
Overview

• For Each Area
• Current Work
• An example in current use
• How to combine the tools for CEDPS
• Work with Applications
• Contributing to Globus

7
Data Services in CEDPS

• Ann Chervenak, ISI, is the CEDPS Data lead
• annc_at_isi.edu
• And these slides are adapted from hers
• Develop tools and techniques for reliable,
  high-performance, secure, and policy-driven
  placement of data within a distributed science
  environment
• Data placement and distribution services that
  implement different data distribution and
  placement behaviors
• Managed Object Placement Serviceenhancement to
  todays GridFTPthat allows for management of
• Space
• Bandwidth
• Connections
• Other resources needed to endpoints of data
  transfers

8
Existing Globus Data Services

• Tools for Efficient, Reliable Data Management
• GridFTP
• Fast, secure data transport
• The Reliable File Transfer Service (RFT)
• Data movement services for GT4
• The Replica Location Service (RLS)
• Distributed registry that records locations of
  data copies
• The Data Replication Service (DRS)
• Integrates RFT and RLS to replicate and register
  files
• The Data Access and Integration Service (DAIS)
• Service to access relational and XML database

9
GridFTP

• A high-performance, secure, reliable data
  transfer protocol optimized for high-bandwidth
  wide-area networks
• FTP with well-defined extensions
• Uses basic Grid security (control and data
  channels)
• Multiple data channels for parallel transfers
• Partial file transfers
• Third-party (direct server-to-server) transfers
• Reusable data channels
• Command pipelining
• GGF recommendation GFD.20

10
GridFTP in GT4
Disk-to-disk onTeraGrid

• 100 Globus code
• No licensing issues
• Stable, extensible
• IPv6 Support
• XIO for different transports
• Striping ? multi-Gb/sec wide area transport
• Pluggable
• Front-end e.g., future WS control channel
• Back-end e.g., HPSS, cluster file systems
• Transfer e.g., UDP, NetBLT transport

11
GridFTP Does NOT Require GSI

• All the GridFTP speed and features with the
  following security options
• Anonymous mode
• Clear Text Passwords
• GridFTP-SSH
• GridFTP-SSH - only need SSH keys on the server
• No certificates or CAs
• Keys already exist on most systems.
• SSH is used to form the Control Channel
• Only need ssh running on the server side.
• Standard login audit trails

12
Reliable File Transfer

• Service that accepts requests for third-party
  file transfers
• Maintains state in a DB about ongoing transfers
• Recovers from RFT service failures
• Increased reliability because state is stored in
  a database.
• Service interface
• The client can submit the transfer request and
  then disconnect and go away
• Similar to a job scheduler for transfer job
• Two ways to check status
• Subscribe for notifications
• Poll for status (can check for missed
  notifications)

13
Reliable File TransferThird Party Transfer
RFT Client

• Fire-and-forget transfer
• Web services interface
• Many files directories
• Integrated failure recovery
• Has transferred 900K files

SOAP Messages
Notifications(Optional)
RFT Service
GridFTP Server
GridFTP Server
14
The Globus Replica Location Service

• A Replica Location Service (RLS) is a distributed
  registry that records the locations of data
  copies and allows replica discovery
• RLS maintains mappings between logical
  identifiers and target names
• Must perform and scale well support hundreds of
  millions of objects, hundreds of clients
• E.g., LIGO (Laser Interferometer Gravitational
  Wave Observatory) Project
• RLS servers at 10 sites
• Maintain associations between 11 million logical
  file names 120 million physical file locations

15
Replica Location Service

• Distributed registry
• Records the locations of data copies for replica
  discovery
• Maintains mappings between logical identifiers
  and target names

• Local Replica Catalogs (LRCs) contain consistent
  information about logical-to-target mappings
• Replica Location Index (RLI) nodes aggregate
  information about one or more LRCs
• LRCs use soft state update mechanisms to inform
  RLIs about their state relaxed consistency of
  index
• Optional compression of state updates reduces
  communication, CPU and storage overheads
• Membership service registers participating LRCs
  and RLIs and deals with changes in membership

16
Motivation for Higher-Level Data Management
Services

• Data-intensive applications need higher-level
  data management services that integrate
  lower-level Grid functionality
• Efficient data transfer (GridFTP, RFT)
• Replica registration and discovery (RLS)
• Eventually validation of replicas, consistency
  management, etc.
• Goal is to generalize the custom data management
  systems developed by several application
  communities
• Eventually plan to provide a suite of general,
  configurable, higher-level data management
  services
• Globus Data Replication Service (DRS) is the
  first of these services

17
Data Replication Service

• Included in the GT4.0.2 release
• Design based on publication component of the LIGO
  Lightweight Data Replicator system
• Developed by Scott Koranda
• Client specifies (via DRS interface) which files
  are required at local site
• DRS uses
• Globus Delegation Service to delegate proxy
  credentials
• RLS to discover where replicas exist in the Grid
• Selection algorithm to choose among available
  source replicas (provides a callout default is
  random selection)
• Reliable File Transfer (RFT) service to copy data
  to site
• Via GridFTP data transport protocol
• RLS to register new replicas

18
NeST

• Software network storage appliance
• Provides guaranteed storage allocation
• Allocation units, called lots, provide a
  guaranteed space for a period of time.
• http//www.cs.wisc.edu/condor/nest/

19
Stork

• Scheduling and management of data placement jobs
• Provides for multiple transfer mechanisms and
  retries in the event of transient failures
• Integrated into the Condor system
• Stork jobs can be managed with Condor's workflow
  management software (DAGMan).
• http//www.cs.wisc.edu/condor/stork/

20
Storage Resource Manager (SRM)

• Provide protocol negotiation
• Dynamic transfer URL allocation
• Advanced space and file reservation
• Reliable replication mechanisms
• http//computing.fnal.gov/ccf/projects/SRM/

21
dCache

• Manages individual disk storage nodes
• Makes them appears as a single storage space with
  a single file system root
• SRM v1 and v2 interface
• Supports GridFTP and other transports for
  whole-file data movement
• Includes a proprietary POSIX-like interface
  (dcap) for random access to file contents
• http//www.dcache.org/

22
Globus Data Tools in Production The
LIGO Project

• Laser Interferometer Gravitational Wave
  Observatory
• Data sets first published at Caltech
• Publication includes specification of metadata
  attributes
• Data sets may be replicated at up to 10 LIGO
  sites
• Sites perform metadata queries to identify
  desired data
• Pull copies of data from Caltech or other LIGO
  sites
• Customized data management system the
  Lightweight Data Replicator System (LDR)
• Built on top of Globus data tools tools GridFTP,
  RLS

23
Globus Data Tools in Production The
Earth System Grid

• Climate modeling data (CCSM, PCM)
• Data management coordinated by ESG portal
• RLS, GridFTP
• Datasets stored at NCAR
• 64.41 TB in 397253 total files
• IPCC Data at LLNL
• 26.50 TB in 59,300 files
• Data downloaded 56.80 TB in 263,800 files
• Avg. 300GB downloaded/day
• All files registered and located using RLS, moved
  among sites using GridFTP

24
Data Services in CEDS

• Develop tools and techniques for reliable,
  high-performance, secure, and policy-driven
  placement of data within a distributed science
  environment
• Data placement and distribution services that
  implement different data distribution and
  placement behaviors
• Managed Object Placement Serviceenhancement to
  todays GridFTPthat allows for management of
• Space
• Bandwidth
• Connections
• Other resources needed to endpoints of data
  transfers
• Services to move computation to data

25
Layered Architecture
26
Higher-Level Data Placement Services

• Decide where to place objects
  and replicas in the distributed
  Grid
  environment
• Policy-driven, based on needs of
  application
• Effectively creates a placement workflow that is
  then passed to the Reliable Distribution Service
  Layer for execution
• Simplest push or pull-based service that places
  explicit list of data items
• Similar to existing DRS
• Metadata-based placement
• Decide where data objects are placed based on
  results of metadata queries for data with certain
  attributes
• Example LIGO replication

27
Higher-Level Data Placement Services

• N-Copies maintain N copies of data items
• Placement service checks existing replicas
• Creates/delete replicas to maintain N
• Keeps track of lifetime of allocated storage
  space
• Example UK QCDGrid
• Publication/Subscription
• Allows sites or clients to subscribe to topics of
  interest
• Data objects are placed or replicated as
  indicated by these subscriptions
• Question What higher-level placement policies
  would be desirable for Fermi applications?
• High energy physics
• Others

28
Reliable Distribution Layer

• Responsible for carrying out the
  distribution or placement plan
  generated by higher-level service
• Examples
• Reliable File Transfer Service
• U Wisconsin Stork
• LBNL Data Mover Light
• Provide feedback to higher level placement
  services on the outcome of the placement workflow
• Call on lower-level services to coordinate

29
Managed Object PlacementService

• Building blocks
• Data Transfer Service
• GridFTP server, needs resource management
• Disk Space Manager

• Provides local storage allocation
• NeST storage appliance Provides storage and
  connection management and bookkeeping
• Stork data placement manager and matchmaker for
  co-scheduling of connections between the
  endpoints
• dCache storage management (Fermi) improve
  scalability and fault tolerance jointly develop
  interfaces and interaction with GridFTP
• Storage Resource Manager
• Connection Management incoming and outgoing
• Scheduler (C-Cache, Stork, RFT) includes queue
• Eventually interact with both endpoints of
  transfer

30
Science Services in CEDPS

• Kate Keahey, ANL, is the CEDPS Scalable Services
  lead
• keahey_at_mcs.anl.gov
• Some slides compliments of Kate
• Develop tools and techniques for construction,
  operation, and provisioning of scalable science
  services
• Service construction tools that make it easy to
  take application code (whether simulation, data
  analysis, command line program, or library
  function) and wrap it as a remotely accessible
  service
• Service provisioning tools that allow dynamic
  management of the computing, storage, and
  networking resources required to execute a
  service, and the configuration of those resources
  to meet application requirements.
• Services to move computation to data

31
PyGlobus

• Python implementation of the WS-Resource
  framework
• Includes support for WS-Addressing,
  WS-Notification, WS-Lifetime management, and
  WS-Security
• Compatible with the GT4 Java WS Core
• A lightweight standalone container
• Automatic service startup on container start
• Basic API for resource persistence and recovery
• Support for wrapping legacy codes and command
  line applications as Grid Services

32
Virtual Workspace Project

• Virtual Workspace
• Abstraction of an execution environment
• Dynamically available to authorized clients
• Abstraction captures
• Resource quota for execution environment on
  deployment
• Software configuration aspects of the environment

• Workspace Service allows a Grid client to
  dynamically deploy and manage workspaces
• Built on
• Xen hypervisor an open source, efficient
  implementation.
• GT4 authentication and authorization mechanisms

33
Recent Demonstrationwith STAR

• Problem STAR is a relatively complex code and
  extremely hard to install - even if resources are
  available, the users can't use them because there
  is no easy way to automatically install the
  application
• Solution Put STAR in a VM, and use the
  workspace service to dynamically deploy those
  STAR VMs based on need
• Users submit requests for STAR execution to those
  nodes
• Demod at SC06, biggest obstacle is not
  technology but deployment Xen and the workspace
  service is not available on many platforms

34
Workspace Service Backstage
The VWS manages a set of nodes inside the TCB
(typically a cluster). This is called the node
pool.
Pool node
Pool node
Pool node
The workspace service has a WSRF frontend that
allows users to deploy and manage virtual
workspaces
VWS Service
Pool node
Pool node
Pool node
VWS Node
Each node must have a VMM (Xen) installed, along
with the workspace backend (software that
manages individual nodes)
Pool node
Pool node
Pool node
Image Node
Pool node
Pool node
Pool node
VM images are staged to a designated image
node inside the TCB
Trusted Computing Base (TCB)
35
Scalable Science Services

• Service-enabling applications is too hard for
  application developers
• Community may already have a required data
  analysis function, typically implemented as a
  standalone (parallel or sequential) program or
  library
• Turning this existing implementation into a
  service is arduous and time-consuming
• Process involves knowledge about the mechanics of
  service container implementation and Grid
  mechanisms
• Solution Formalize and automate this process in
  service wrapping tools
• Automate the process of embedding application
  code into an Application Hosting Service (AHS)

36
Service ConstructionApplication Hosting
Environment

• An AHS involves
• An application-specific service interface to
  analysis code
• A management interface that allows the service
  provider to monitor and control the AHSs
  execution
• The AHS interacts with external policy decision
  points (PDPs) for policy enforcement and
  provisioners for service scalability

37
Service Provisioningwith Variance

• If the load on a service varies significantly
  over time, then the number of resources allocated
  to the service must also vary
• Solution Introduce provisioning tools that
• Allow a service provider to specify desired
  performance levels, while other system components

• Monitor service behavior
• Dynamically add and remove resources applied to
  service activity, so as to adapt to varying
  service load

38
Configuring and Discovering

• Execution environments are difficult to configure
  and discover
• Scientific applications often require specific,
  customized environments
• Variations in OS, middleware version, libs, etc,
  and file system pose barriers to application
  portability
• Solution Use resource catalogs and virtual
  machine technology to streamline service
  deployment
• Our resource catalogs will exploit schemas and
  information providers describing the relevant
  characteristics of an environment
• Advertise these descriptions through MDS4 to
  allow the application provisioner to discover and
  select a set of platforms suitable for
  application execution

39
Time-Varying Requirements

• Dynamic community demands mean that the number
  and type of science services required can vary
  over time
• Solution Allow for dynamic service deployment
• Mechanisms that can allow new instances of
  services to be created on demand
• Used to instantiate both application services and
  data placement services
• Based on current work with dynamic deployment of
  Web Services, executable programs, and virtual
  machines
• Develop these mechanisms further to provide a
  powerful and flexible service deployment
  infrastructure that allows for the creation,
  monitoring, and control of arbitrary services

40
Troubleshooting in CEDPS

• Brian Tierney, LBNL, is the CEDPS TS lead
• BLTierney_at_lbl.gov
• Develop tools and techniques for failure
  detection and diagnosis in distributed systems
• Better logs and logging services to understand
  application and service behavior
• Better diagnostic tools to discover failures and
  performance faults, and for notification of these
  errors

41
MDS4

• Basic Grid monitoring service
• Information providers translate data form a
  variety of sources to a standard interface
• Index service is a caching registry
• Trigger Service provides errors and warnings

42
NetLogger

• Extremely light-weight approach to reliably
  collecting monitoring events from multiple
  distributed locations
• Log file management tools
• store-and-forward with rollover and stale file
  removal
• Targeted for high-volume logs typical of
  application instrumentation
• Efficient in-memory summarization to reduce data
  volume
• Prototype anomaly detection tool
• locate missing workflow events based on a
  predefined list of expected events

43
ESG and Trigger Service

• Trigger Service monitors seven services across
  five sites
• 3 years experience
• Minimal load on the services
• Policy to prevent false positives
• Increased ability to detect and access cross-Grid
  failures

44
Troubleshooting and CEDPS
45
Need For Unique IDs

• Tracking distributed activities that involve many
  service and software layers
• A single high-level request (e.g., distribute
  these files) may involve many distinct
  activities (e.g., reserve space, move file,
  authenticate) at different sites
• To diagnose failures or performance problems we
  need to be able to identity and access just the
  corresponding log records
• Solution associate a globally unique identifier
  with every activity and service invocation
• Extend from previous demonstration work with
  biology workflows where we transferred and logged
  the workflows Activity ID at every step

46
Logs and Log Management

• Logging and monitoring data is hard to find and
  manage
• Data scattered across sites and within a site
• No agreed on standards for what logs should
  look like
• Large volumes of data are possible
• A heavily loaded GridFTP server with all network
  and disk I/O instrumented generates 1.1 GB of log
  data per hour
• Introduce Best Practices for logging
• Then implement for GT, Condor, and others
• Log collection service
• Work to deploy on OSG as first case
• Log management functions
• Provide for turning logging on and off, moving
  log data back to the user for analysis, deleting
  old log data, etc.

47
Automatic Failure Detection

• Automated failure detection for infrastructure
  services
• Distributed systems often run many services with
  little or no 24-7 support
• Failures are discovered only when user tasks fail
• Solution Deploy monitoring information providers
  to gather behavior data on resources and services
• Use this data to warn system administrators of
  faults and to study how fault behaviors change
  over time.
• Extend MDS4 Trigger Service
• Create a NetLogger-based event-driven monitoring
  system to gather runtime data from services and
  applications

48
Performance Degradation Detection

• Performance degradation is often overlooked
• Many systems have long running services used by
  different users at different times, and no single
  group tracking behavior
• Solution Develop and apply analysis functions to
  archived background monitoring and event-driven
  log data
• Track executions dynamically and compare them to
  past behaviors and service guarantees
• When service behavior degrades or deadlines are
  threatened the proper services or users can be
  notified to take action
• Develop analysis components to examine end-to-end
  bottleneck analysis and detection, trend
  analysis, and alarm generation

49
Work with Applications

• Strong collaborations with DOE applications,
  SciDAC software centers, and DOE facilities

50
Work with Applications

• CEDPS, ESG, OSG starting to plan closer
  cooperation as part of SciDAC-2
• Earth Systems Grid
• Data work
• Error and warning alpha tester
• Open Science Grid
• Data services for ATLAS and CMS
• Services work with STAR
• Logging service Alpha tester
• Second Wave
• LIGO (OSG) Data focus
• GADU Scalable services and data focus
• Fusion- FACETS Keith Jackson, Scalable services
  focus
• DANSE Keith Jackson, Scalable services focus

51
CEDPS Senior Personnel

• PI Ian Foster, foster_at_mcs.anl.gov
• Project Manager Jennifer Schopf, jms_at_mcs.anl.gov
• Area Leads
• Data Ann Chervenak, annc_at_isi.edu
• Services Kate Keahey, keahey_at_mcs.anl.gov
• Troubleshooting, Brian Tierney, BLTierney_at_lbl.gov
• Site representatives
• ANL Jennifer Schopf, jms_at_mcs.anl.gov
• FNAL Gene Oleynik, oleynik_at_fnal.gov
• ISI Carl Kesselman, carl_at_isi.edu
• LBNL Keith Jackson, KRJackson_at_lbl.gov
• U Wisc Miron Livny, livny_at_cs.uwisc.edu

52
Expanding the Communityof Globus Contributors

• Creation of the dev.globus community process
• Provides an open forum for discussion and
  enhancement of current Globus
• Enabling the integration of 20 new components
  from the US and Europe as incubators

53
Globus DevelopmentEnvironment

• Based on Apache Jakarta
• Individual development efforts organized as
  projects
• Consensus-based decision making
• Control over each project in the hands of its
  most active and respected contributors
  (committers)
• Globus Management Committee (GMC) providing
  overall guidance and conflict resolution

54
Common Infrastructure

• Code repositories (CVS, SVN)
• Mailing lists
• -dev, -user, -announce, -commit
• Issue tracking (bugzilla)
• Including roadmap info for future development
• Wikis
• License (Apache 2)
• Known interactions for people accessing your
  project

55
Current Technology Projects

• Common runtime projects
• C Core Utilities, C WS Core, CoG jglobus, Core WS
  Schema, Java WS Core, Python Core, XIO
• Data projects
• Data Replication, GridFTP, OGSA-DAI, Reliable
  File Transfer, Replica Location
• Execution projects
• GRAM, GridWay, MPICH-G2
• Information services projects
• MDS4
• Security Projects
• C Security, CAS/SAML Utilities, Delegation
  Service, GSI-OpenSSH, MyProxy

56
Non-Technology Projects

• Distribution Projects
• Globus Toolkit Distribution
• Process was used for April 4.0.2 4.0.3 releases
• Documentation Projects
• GT Release Manuals
• Incubation Projects
• Incubation management project
• And any new projects wanting to join

57
Incubator Process

• Entry point for new Globus projects
• Incubator Management Project (IMP)
• Oversees incubator process form first contact to
  becoming a Globus project
• Quarterly reviews of current projects
• Process being debugged by Incubator Pioneers
• http//dev.globus.org/wiki/Incubator/
  Incubator_Process

58
Escalation
Incubator Projects
B
Proposal
A
Any Grid Project
59
Current Incubator Projectsdev.globus.org/wiki/Wel
come Incubator_Projects

• Distributed Data Management (DDM)
• Dynamic Accounts
• Grid Authentication and Authorization with
  Reliably Distributed Services (GAARDS)
• Grid Development Tools for Eclipse (GDTE)
• GridShib
• Grid Toolkit Handle System (gt-hs)
• Higher Order Component Service Architecture
  (HOC-SA)
• Introduce

• Local Resource Manager Adaptors (LRMA)
• Metrics
• MEDICUS
• OGCE
• Portal-based User Registration Service (PURSe)
• ServMark
• UCLA Grid Portal Software (UGP)
• Workflow Enactment Engine Project (WEEP)
• Cog Workflow
• Virtual Workspaces

60
Weve Just hadOur First Escalation!

• GridWay Meta Scheduling Project
• Iganacio Llorente, Universided Complutense de
  Madrid
• Provides scheduling functionality similar to that
  found on local DRM (Distributed Resource
  Management) systems
• Advanced scheduling capabilities on a Grid
  consisting of Globus services
• Dynamic discovery selection
• Opportunistic migration
• Support for the definition of new scheduling
  policies
• Detection and recovery from remote and local
  failures
• Straightforward deployment that does not require
  new services apart from those provided by the
  Globus Toolkit MDS, GRAM, GridFTP and RFT

61
For More Information

• Jennifer Schopf
• jms_at_mcs.anl.gov
• http//www.mcs.anl.gov/jms
• CEDPS
• http//www.cedps.net
• Globus Main Website
• http//www.globus.org
• Dev.globus
• http//dev.globus.org
