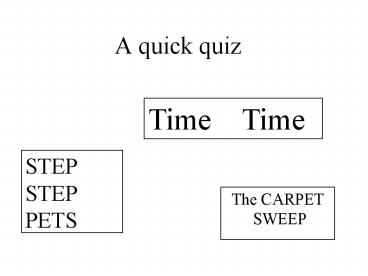

A quick quiz

1
A quick quiz
Time Time
STEP STEP PETS
The CARPET SWEEP
2
Reading and viewing across stages and KLA

• edup4076

3
Focus

• Link from research on visual literacy
• To Syllabus documents
• To practical in class activity

4
Key points

• Images have a semiotic system and grammar - the
  choices construct meanings - versions of
  reality
• Visual grammar (K v L 1996 style) runs parallel
  to verbal grammar
• Words rely on logic of time and sequence and
  images rely on space and simultaneity

5
Time and sequence

• The man wobbled on a board while juggling rings
  and keeping a box balanced on a ball on top of
  his head as a bee flew through the rings

Space and simultaneity
6
(No Transcript)
7
" children actively experiment with the
representational resources of word and image, and
with the ways in which they can be combined.
Their drawings are not just illustrations of a
verbal text, not just 'creative embellishment'
they are part of a 'multimodally' conceived text,
a semiotic interplay in which each mode, the
verbal and the visual, is given a defined and
equal role to play." Kress and van Leeuwen p118
8
Theory of semiotic systems( how we make meaning)

• Remember theory from writing lectures three
  metafunctions in communication (ideational,
  interpersonal and textual) which are realised in
  the register variables of field, tenor and mode.
• This theory is behind the English K-6 syllabus
  but the language it is expressed in is
  traditional grammar.

9
(No Transcript)
10
Meaning for action or classification

• Narrative patterns serve to represent unfolding
  actions and events, processes of change,
  transitory spatial arrangements. They involve
  participants doing something to or for another.

• Conceptual patterns represent participants in
  terms of their class (classificatory), structure
  (analytical) or meaning (symbolical).

The cat is chasing the mouse. My netball team has
nine players in it. Four girls are really tall
and two are short and three are medium height.
Thinking moment - how would you represent these
statements in images?
11
What metalanguage do we have?
Interactive
12
What metalanguage is in the K-6 English syllabus?
13
what is the motivation to use this metalanguage
in the classroom?

• We are working towards building up an explicit
  metasemiotic knowledge base.
• Why? Because children need to move
• from the informal to the
• systematic, from concrete to
• abstract understandings of
• the world, from the spoken
• to the written.

14
Life cycles
15
Using visual literacy in the stage 3 classroom
context - learning to view

• The class is studying life cycles in Science.
  They are to write an explanation based on a range
  of sources.

Half the class is given the image and they are to
represent the information in terms of a graphic
organiser of factual information and then write
it up as an explanation of the life cycle.
The other half of the class is given a text
explanation of the life cycle of frogs. They are
to convert the information using a graphic
organiser into an image that represents key
points.
Frogs
16
glossary

• Graphic organisers visual means of representing
  written information in logical patterns

Venn compare and contrast
Topic sentence and facts
Cycle format
fact
fact
topic
topic
fact
fact
fact
17
Narrative as action in material events

• Transactional an action carried out on
  something visible (a goal) seen in vector lines
  from actor towards goal

18
Conceptual images

• Classification by relationship or taxonomy
• Overt if a superordinate or category label is
  given

19
Covert if no category label is given
Netball teams
tigers
pumas
tabbycats
need to have equivalence in size, orientation to
viewer and objectivity
20
Analytical images

• Images that show part whole relationships
• If labelled then structured analytical
• The whole is the carrier
• and the parts the
• possessive attributes,
• e.g. maps

21
Suggestive

• Symbolism is carried within the image and often
  the detail of the image is de-emphasised to
  create a mood the equivalent of metaphor in
  written text

22
Using visual literacy in the stage 3 classroom
context - learning about viewing

• Text analyst role in another lesson using the
  same image students are asked to discuss the
  image in terms of visual grammar resources. Which
  visual strategies has the illustrator chosen to
  represent the life of frogs? (Think social
  purpose)
• classification (write up as overt taxonomy)
• analytical (write up as carrier attributes)
• symbolic (write up as list of suggestive
  attributes)
• transactional processes (write up as list of
  actions)

23
Interactive structures

• visual resources construct the nature of
  relationships between viewers and what is viewed.
• contact
• social distance
• attitude
• power
• realism
• coding orientation

24
Coding orientation - what counts as real

• Naturalistic
• Schematised
• abstract

25
Learning about evaporation
26
Using visual literacy in the stage 2 classroom
context - learning about viewing

• Text analyst role in a science lesson students
  are asked to categorise the images in terms of
  visual grammar resources.
• Attitude frontal angle, closely involved
• Social distance close up, the hand could be
  ours
• Power high angle
• Coding orientation naturalistic

27
Using visual literacy in the stage 2 classroom
context - learning about viewing

• How could students transform the text to be more
  scientific and less participatory?
• Students are to discuss what effect the images
  had on their appreciation of the topic in terms
  of engagement, links to their own lives and
  understanding of scientific concepts.
• Students are to redesign the text changing the
  level of coding from naturalistic to schematic or
  abstract.

28
Compositional structures

• are concerned with the distribution of the
  information value or relative emphasis among
  elements of the text and image.
• information value
• framing
• Salience

29
The reading path

• The way the eye moves around the page
• It starts at the point on the page where the eye
  is drawn to most
• Therefore framing and salience are very
  important when planning text layout

30
Using visual literacy in the stage 3 classroom
context - learning to view for information
What is the reading path of this text? Give
students a copy on which they number the 7 images
in order of their importance and reading logic
related to the main topic. They must justify
their reasons.
31
Annotating images

• Use text boxes to identify the visual resource
  used and comment on how it creates meaning
• Use arrows to connect the boxes to the element in
  the image you are naming
• Ensure you annotate elements from all three
  strands of meaning making resources in the
  grammar.
• This work is done to prepare for the way in which
  you would teach the text. It is like showing your
  working out in maths.

32
Location stream where prawn was caught like
being there
Realism real photo image gives 3D depth, detail
and true colour like seeing it
Size hands used to show relative size like
holding it
Narrative transactional actional a human is
holding the prawn
Naturalistic the image is as close to real as
possible not abstract concept
Salience hands most salient as human element
then prawn reading path
Framing clean cut around image separates it
from other text to focus attention
33
Different image for a different teaching purpose
so different resources are used to create
different meanings
What do I need to teach about reading this image?
34
What is the difference?
